Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters.
Specifications:
| Description_ASC |
Prevents heat related transmission failures |
| Description_ASC |
Extends life of transmission |
| Description_ASC |
Improves transmission performance |
| Description_ASC |
Sturdy furnace-brazed aluminum construction |
| Description_ASC |
17 row cooler design |
| Description_ASC |
1-1/4" turbulators maximize cooling & minimize pressure drop |
| Description_ASC |
New 1/2" NPT female cooler fittings |
| Description_ASC |
1/2" NPT x 3/8" hose barb adapters included |
| Description_ASC |
23500 BTU |
| Description_ASC |
Fluid Capacity: 12 oz. |
| Description_ASC |
Cooler Only |
| Description_DEF |
Automatic Transmission Oil Cooler |
| Description_DES |
17 Row Series 9000 Plate & Fin Cooler, 1/2" NPT |
| Description_KEY |
plate and fin coolers |
| Description_KEY |
plate and fin transmission cooler kits |
| Description_KEY |
transmission cooling |
| Description_KEY |
transmission components |
| Description_KEY |
aluminum coolers, towing accessories |
| Description_KEY |
coolers |
| Description_KEY |
transmission cooling |
| Description_KEY |
stacked plate coolers |
| Description_KEY |
transcoolers |
| Description_KEY |
heavy duty transcoolers |
| Description_KEY |
heavy duty transmission cooler kits |
| Description_FAB |
17 Row Series 9000 Plate & Fin Cooler, 1/2" NPT |
| Description_INV |
Fluid Cooler |
| Description_EXT |
17 Row Series 9000 Plate & Fin Cooler, 1/2" NPT |
| Description_MKT |
Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. |
| Description_SHO |
Fluid Cooler |
| BTU |
23500 |
| Color |
Black |
| Cooler style |
Plate & Fin |

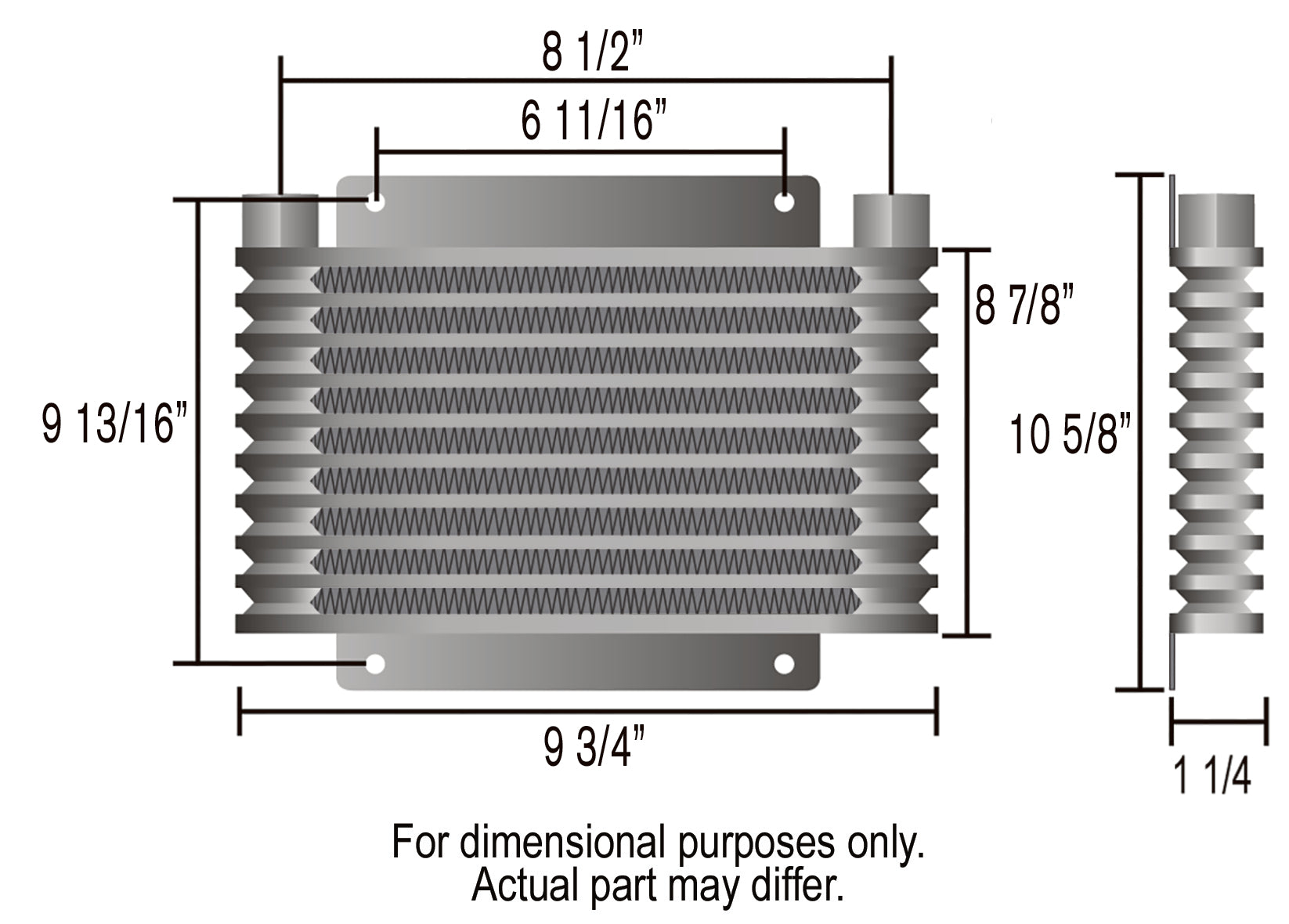

| Depth |
1-1/4 |
| Fitting size |
3/8 barb |
| GVW |
24000 |
| Height |
10-5/8 |
| Inlet dim |
8-1/2 |
| Inlet size |
1/2 NPT female |
| Material |
Aluminum |
| Mounting |
6-11/16 x 9-13/16 |
| Width |
9-3/4 |
| Length |
2.0000 |
| Width |
12.0000 |
| Height |
13.0000 |
| Weight |
5.0000 |
