Derale 14200 Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity for Select Chevrolet Astro, Chevrolet Blazer, Chevrolet C10, Chevrolet C10 Suburban, Chevrolet C15, Chevrolet C20, Chevrolet C20 Suburban, Chevrolet C30, Chevrolet
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping

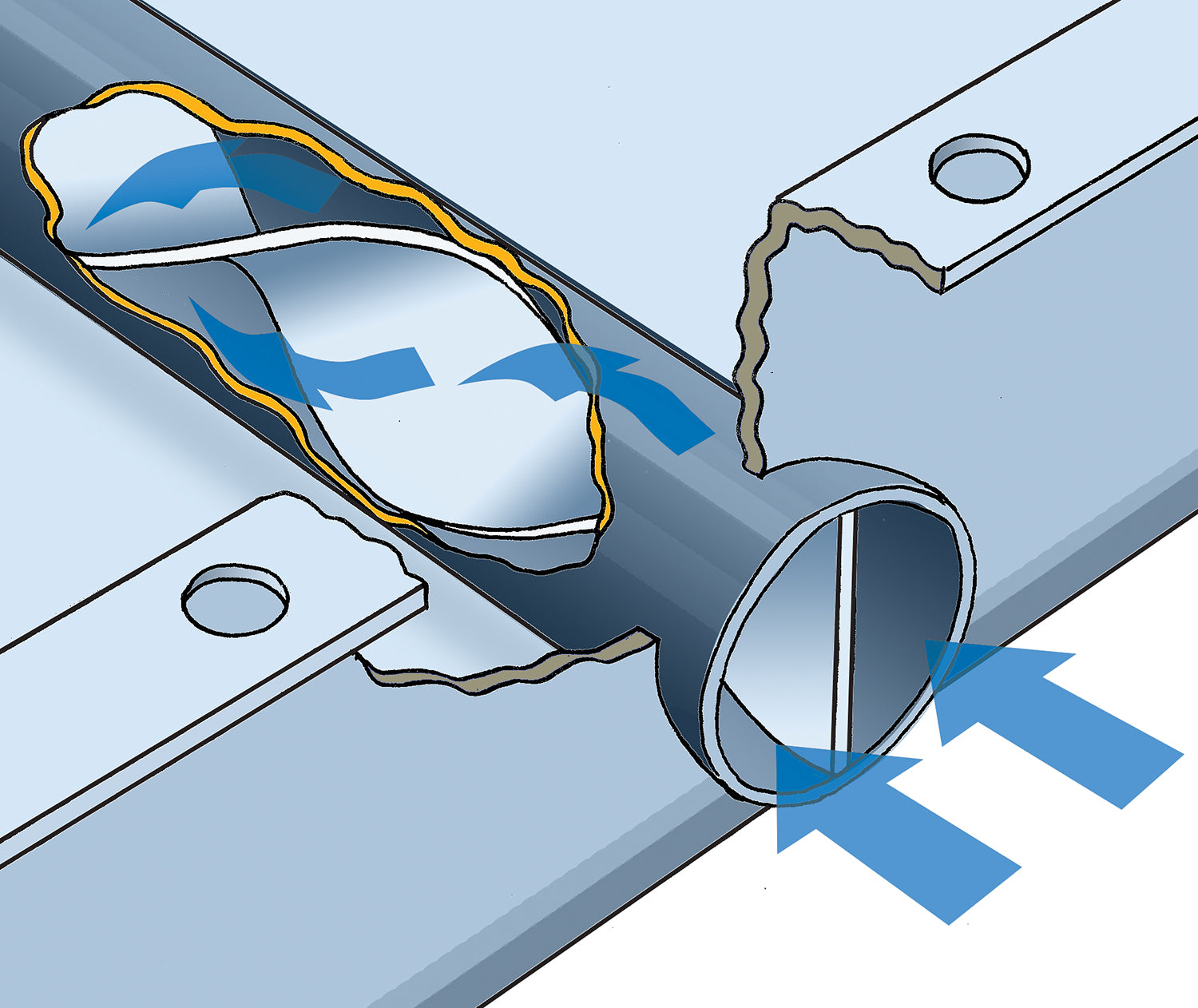

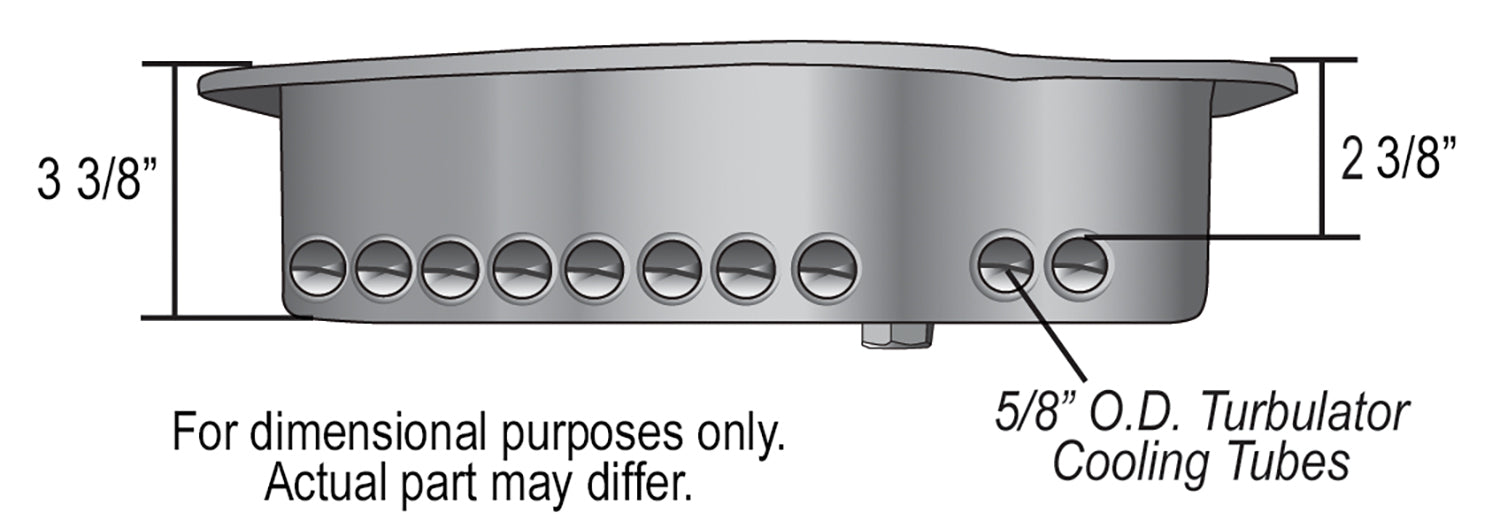

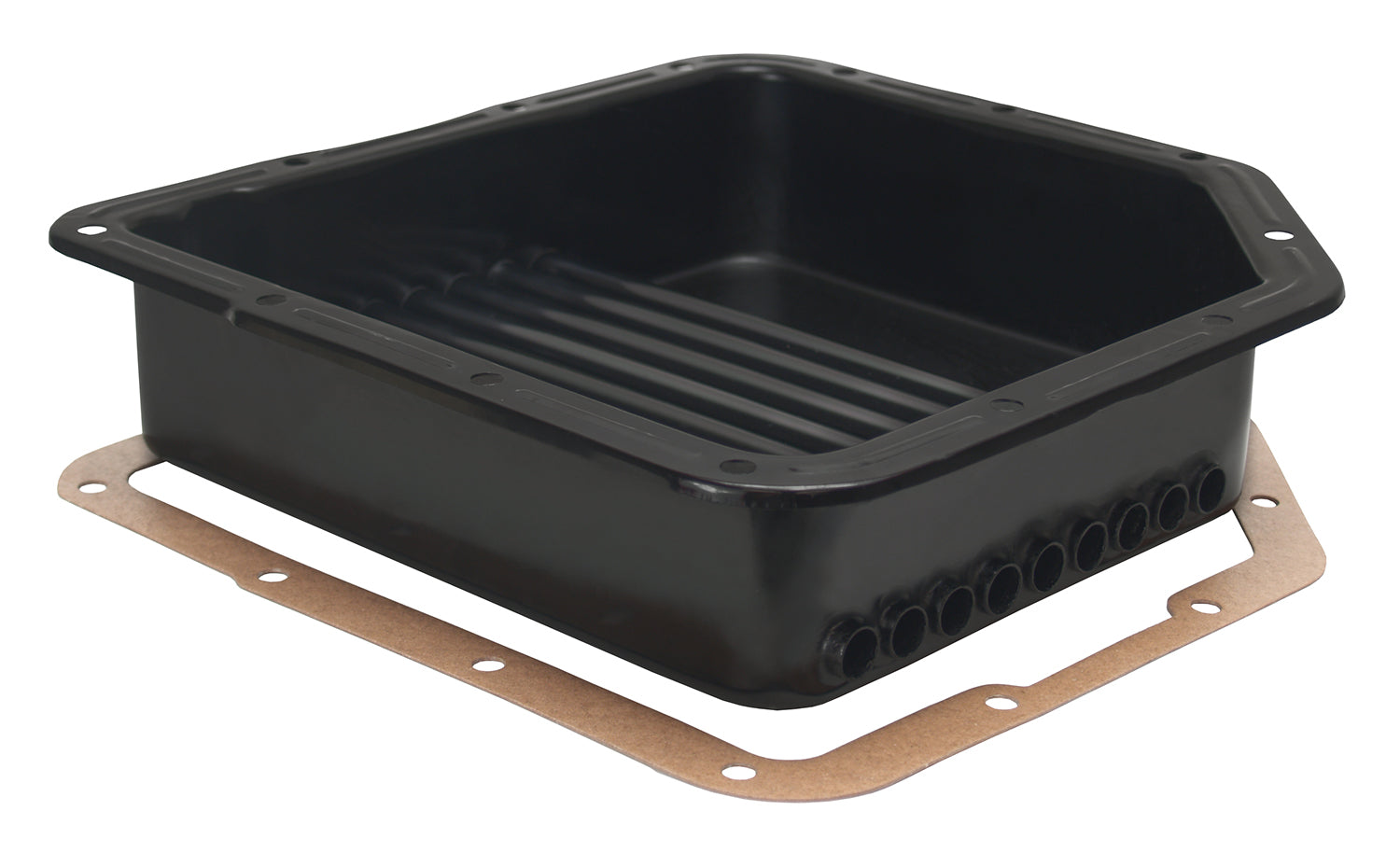

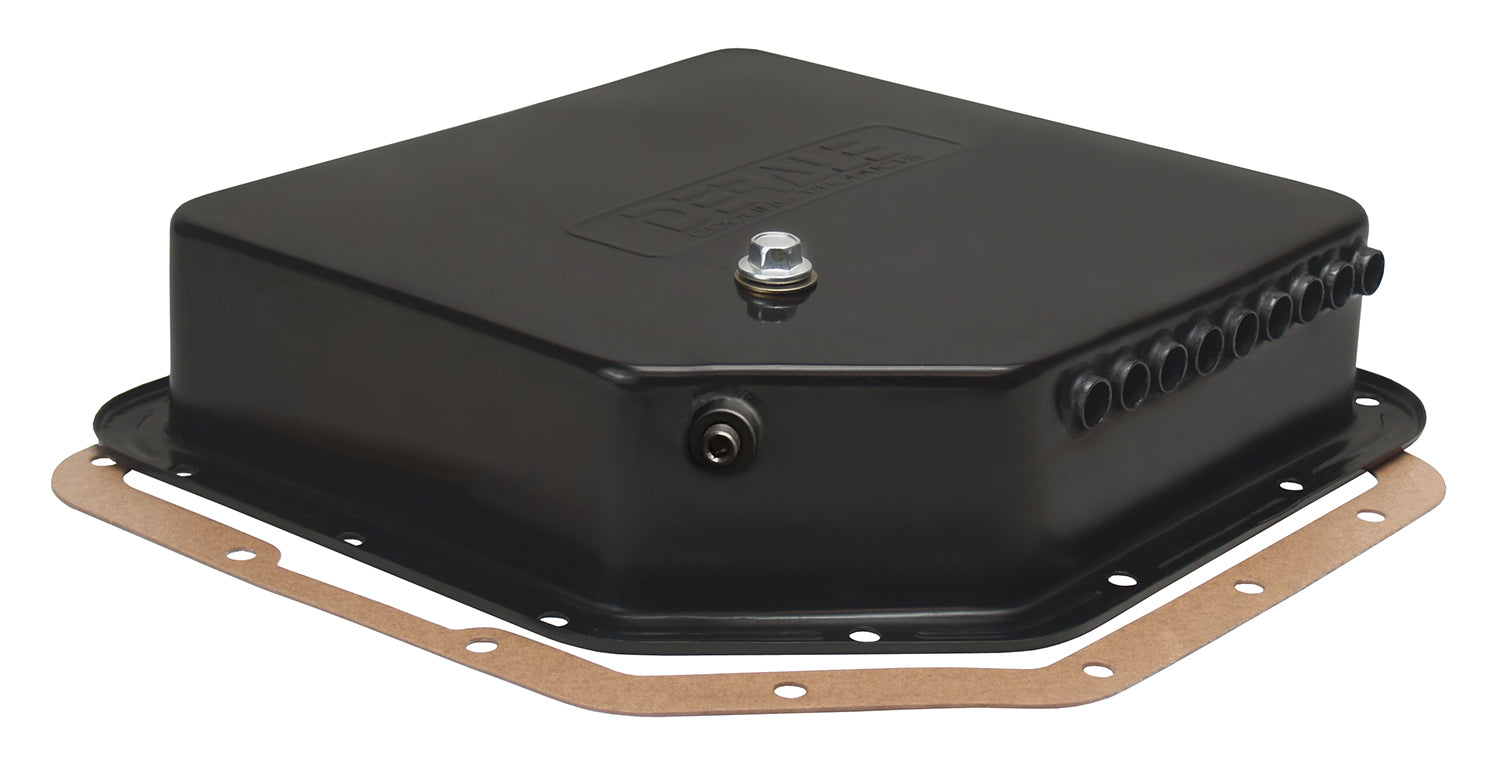

Derale's TH350 Transmission Cooling Pan #14200 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity
Fits: 1985-1987 Chevrolet Astro, 1969-1987 Chevrolet Blazer, 1975-1986 Chevrolet C10, 1968-1986 Chevrolet C10 Suburban, 1982-1985 Chevrolet C15, 1975-1987 Chevrolet C20, 1968-1986 Chevrolet C20 Suburban, 1975-1986 Chevrolet C30, 1968-1987 Chevrolet El Camino, 1975-1987 Chevrolet G10, 1975-1987 Chevrolet G20, 1968-1974 Chevrolet G20 Van, 1975-1987 Chevrolet G30, 1975-1986 Chevrolet K10, 1968-1986 Chevrolet K10 Suburban, 1975-1986 Chevrolet K20, 1968-1986 Chevrolet K20 Suburban, 1977-1986 Chevrolet K30, 1975-1986 Chevrolet K5 Blazer, 1987 Chevrolet LLV, 1975-1982 Chevrolet LUV, 1972-1974 Chevrolet Luv Pickup, 1975-1980 Chevrolet P10, 1975-1987 Chevrolet P20, 1975-1987 Chevrolet P30, 1987 Chevrolet R10, 1987 Chevrolet R10 Suburban, 1987 Chevrolet R20, 1987 Chevrolet R20 Suburban, 1987 Chevrolet R30, 1982-1987 Chevrolet S10, 1983-1987 Chevrolet S10 Blazer, 1987 Chevrolet V10, 1987 Chevrolet V10 Suburban, 1987 Chevrolet V20, 1987 Chevrolet V20 Suburban, 1987 Chevrolet V30, 1975-1978 GMC C15, 1975-1978 GMC C15 Suburban, 1968-1974 GMC C15/C1500 Pickup, 1968-1974 GMC C15/C1500 Suburban, 1979-1986 GMC C1500, 1979-1986 GMC C1500 Suburban, 1975-1978 GMC C25, 1975-1978 GMC C25 Suburban, 1968-1974 GMC C25/C2500 Pickup, 1968-1974 GMC C25/C2500 Suburban, 1979-1986 GMC C2500, 1979-1986 GMC C2500 Suburban, 1975-1978 GMC C35, 1968-1974 GMC C35/C3500 Pickup, 1979-1986 GMC C3500, 1978-1987 GMC Caballero, 1975-1978 GMC G15, 1979-1987 GMC G1500, 1975-1978 GMC G25, 1979-1987 GMC G2500, 1975-1978 GMC G35, 1970-1974 GMC G35/G3500 Van, 1979-1987 GMC G3500, 1970-1987 GMC Jimmy, 1975-1978 GMC K15, 1975-1978 GMC K15 Suburban, 1968-1974 GMC K15/K1500 Pickup, 1968-1974 GMC K15/K1500 Suburban, 1979-1986 GMC K1500, 1979-1986 GMC K1500 Suburban, 1975-1978 GMC K25, 1975-1978 GMC K25 Suburban, 1968-1974 GMC K25/K2500 Pickup, 1968-1974 GMC K25/K2500 Suburban, 1979-1986 GMC K2500, 1979-1986 GMC K2500 Suburban, 1977-1978 GMC K35, 1970-1974 GMC K35/K3500 Pickup, 1979-1986 GMC K3500, 1975-1978 GMC P15, 1979-1980 GMC P1500, 1975-1978 GMC P25, 1979-1987 GMC P2500, 1975-1978 GMC P35, 1979-1987 GMC P3500, 1987 GMC R1500, 1987 GMC R1500 Suburban, 1987 GMC R2500, 1987 GMC R2500 Suburban, 1987 GMC R3500, 1982-1987 GMC S15, 1983-1987 GMC S15 Jimmy, 1985-1987 GMC Safari, 1971-1977 GMC Sprint, 1973-1974 GMC Transmode, 1987 GMC V1500, 1987 GMC V1500 Suburban, 1987 GMC V2500, 1987 GMC V2500 Suburban, 1987 GMC V3500
Please review Specifications and the detailed fitment table for notes and exceptions.
