CURT 28358 Pipe-Mount Swivel Jack with Side Handle (5;000 lbs; 15in. Travel)
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
Body, Exterior & Accessories ❯
Brakes ❯
Towing, Trailer & Truck Accessories ❯
Always the correct part
Performance matched parts
We know our products
Economy shipping
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Description_ABR | JACK |
| Description_ASC | 15" of vertical travel accommodate multiple ball heights |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |

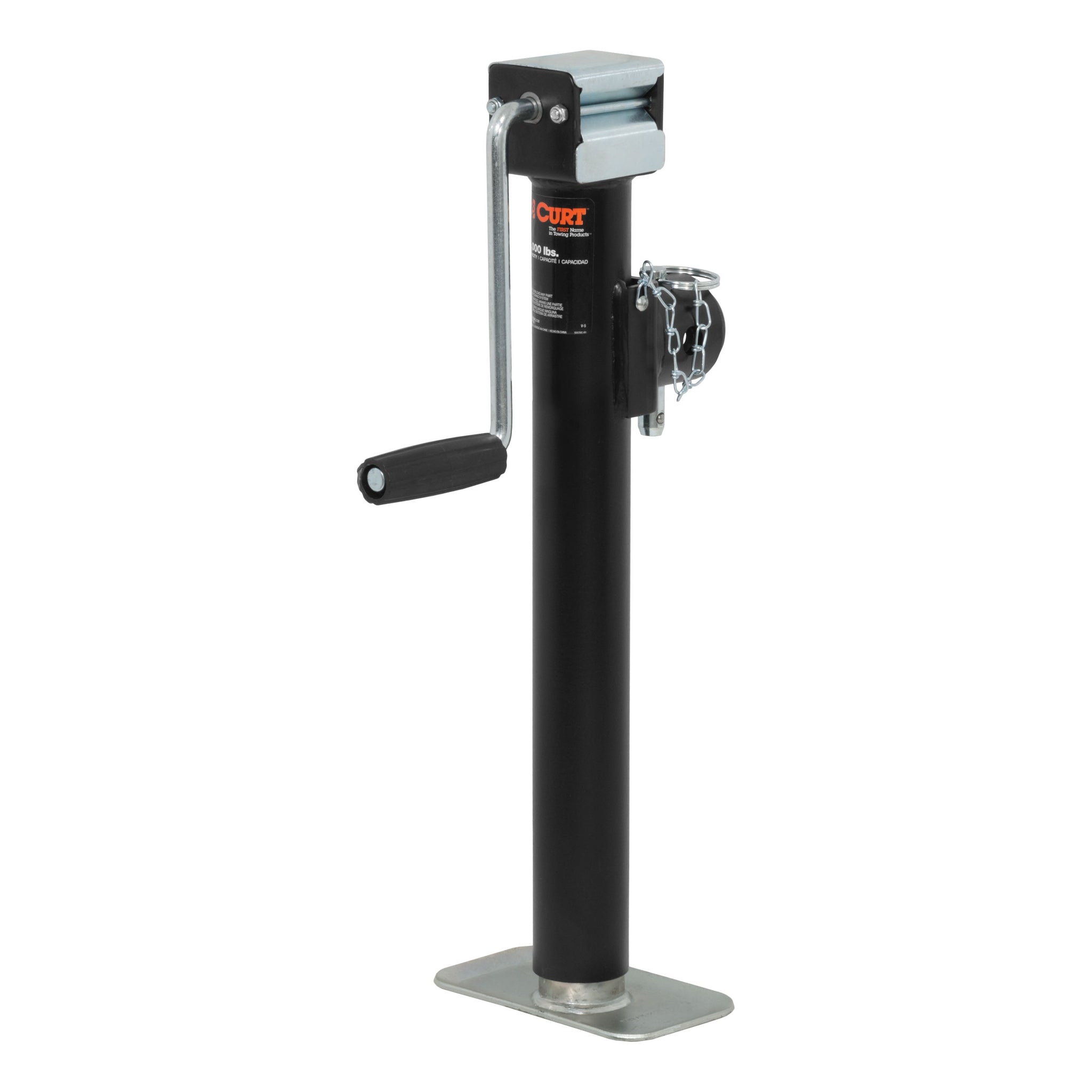

| Description_ASC | Pipe-Mount Swivel Jack with Side Handle (5,000 lbs, 15" Travel) |
| Description_ASC | Pull-pin keeps jack securely locked in place |
| Description_ASC | Rated for 5,000 lbs. support capacity and 3,000 lbs. lift capacity |

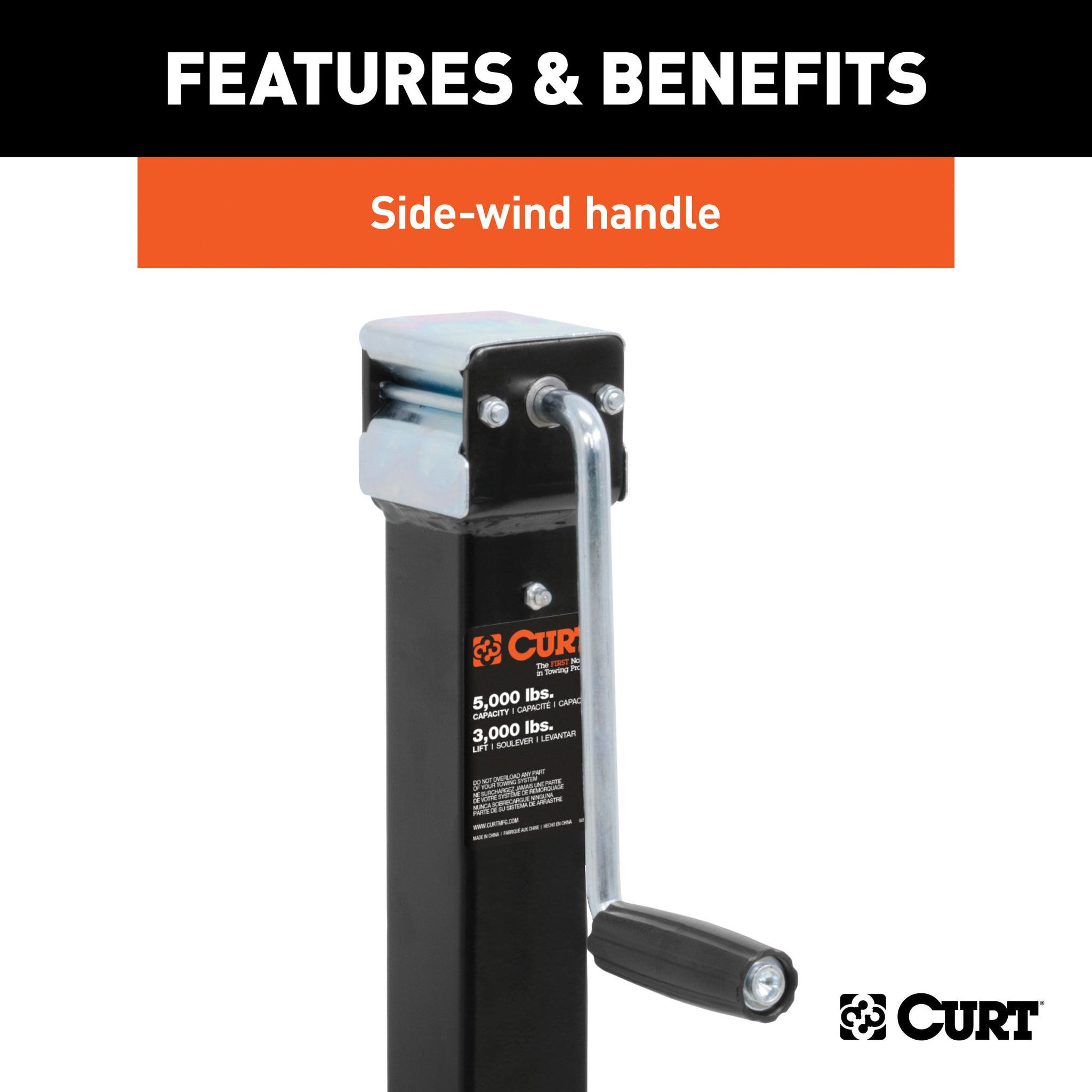

| Description_ASC | Side-wind handle easily raises or lowers trailer coupler |

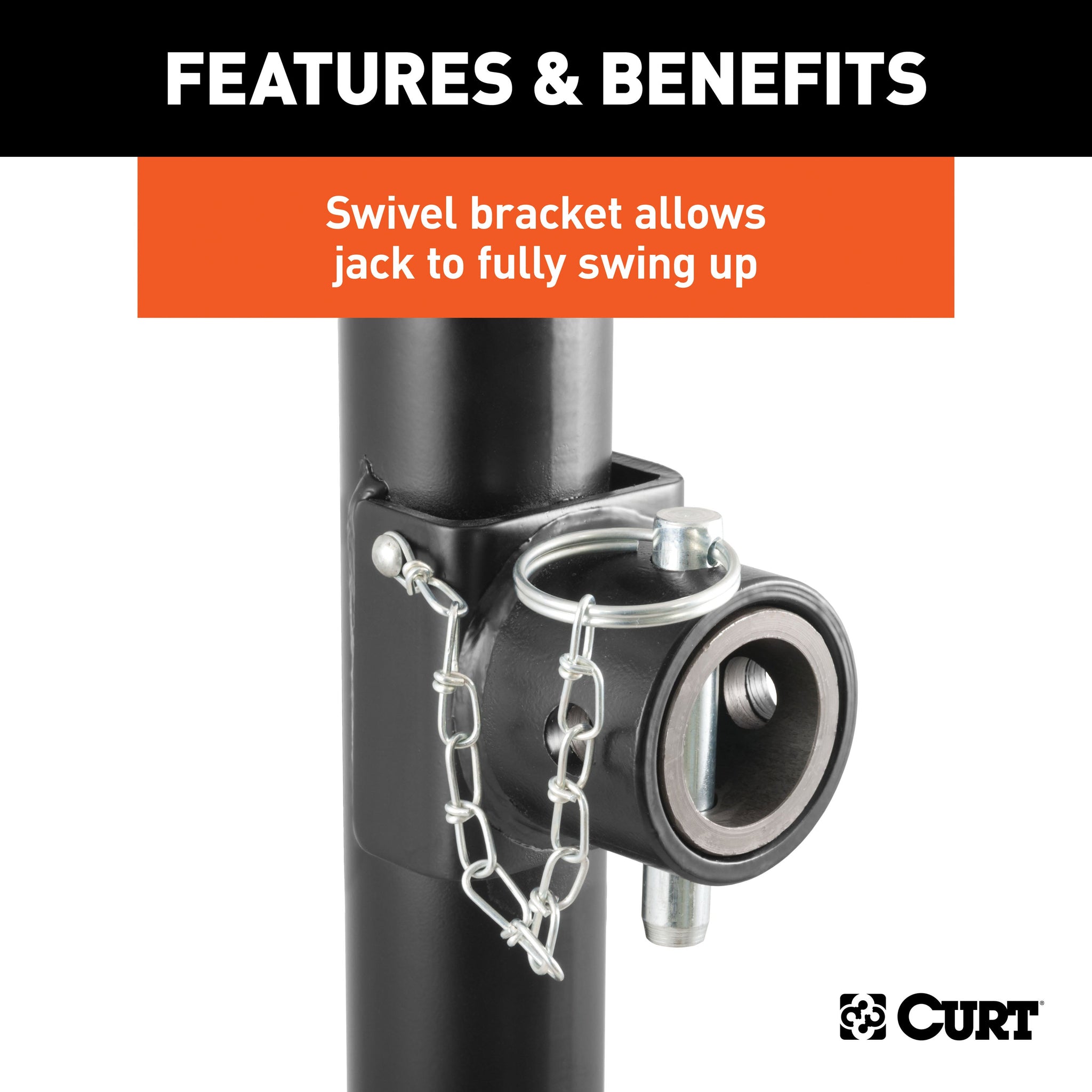

| Description_ASC | Swivel bracket allows jack to fully swing up and out of the way for travel |
| Description_ASC | Weld-on pipe-mount accepts a 5/8" pull-pin |
| Description_ASM | CURT 28358 Weld-On Pipe-Mount Swivel Trailer Jack, 5,000 lbs. Support Capacity, 15-1/2 Inches Vertical Travel |
| Description_DEF | Trailer Jack |
| Description_DES | Pipe-Mount Swivel Jack with Side Handle (5,000 lbs, 15" Travel) |
| Description_DES | Pipe-Mount Swivel Jack with Side Handle (5;000 lbs; 15in. Travel) |
| Description_EXT | CURT 28358 Weld-On Pipe-Mount Swivel Trailer Jack, 5,000 lbs. Support Capacity, 15-1/2 Inches Vertical Travel |
| Description_EXT | CURT 28358 Weld-On Pipe-Mount Swivel Trailer Jack; 5;000 lbs. 15-1/2 Inches Vertical Travel |

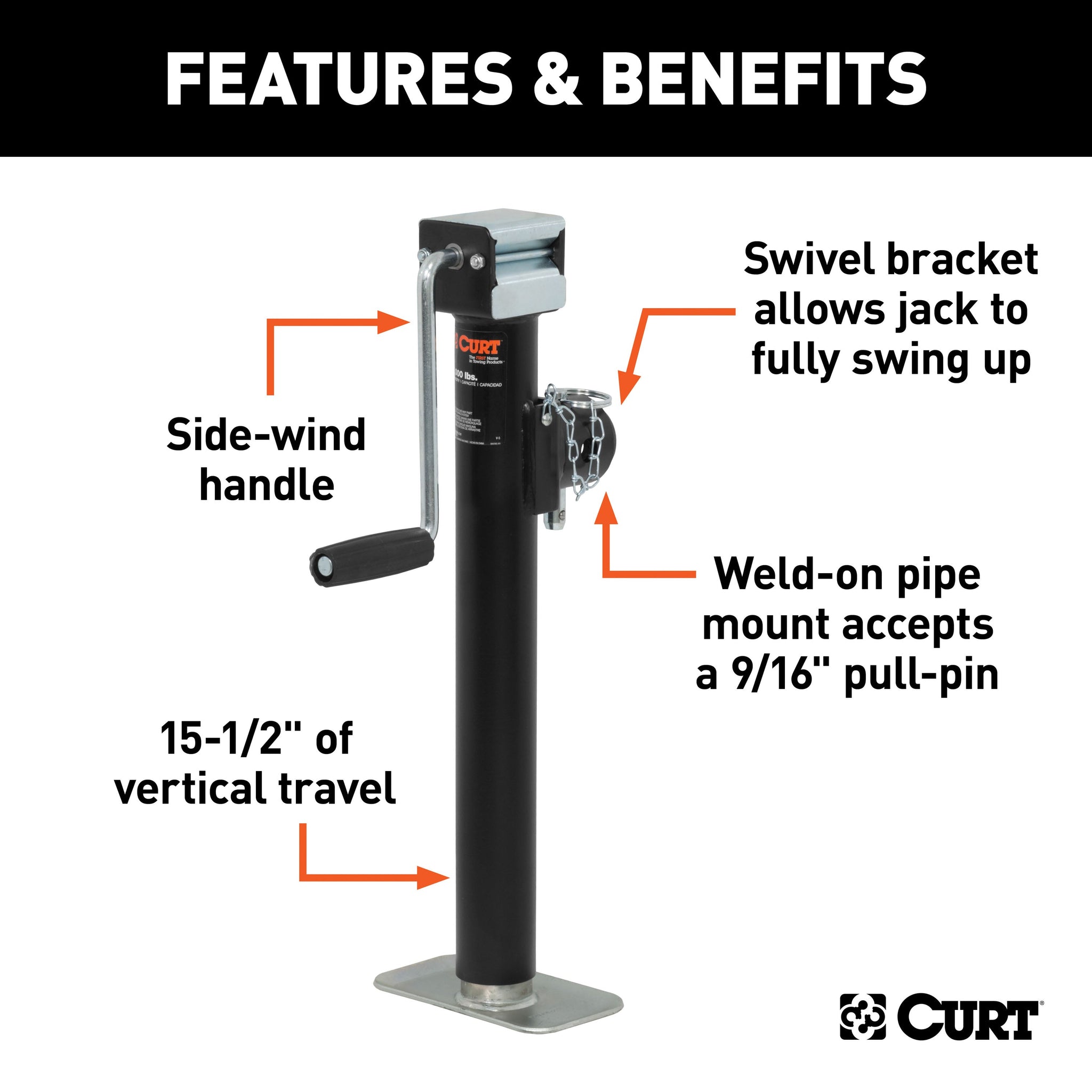

| Description_FAB | 15 In. Of Vertical Travel Accommodate Multiple Ball Heights |
| Description_FAB | Pull-Pin Keeps Jack Securely Locked In Place |
| Description_FAB | Side-Wind Handle Easily Raises Or Lowers Trailer Coupler |
| Description_FAB | Supports Up To 5000 Lbs. Trailer Tongue Weight |
| Description_FAB | Swivel Bracket Allows Jack To Swing Up And Out Of The Way |
| Description_FAB | Weld-On Pipe-Mount Accepts A 5/8 In. Pull-Pin |
| Description_INV | Pipe-Mount Swivel Jack |
| Description_KEY | tounge heavy duty lift small trailers leg jetski ring toe plates toung camper stabilizer lifts pound mounts replacement weldon rv universal side away campers motorhome tube manual accessories parts folding car footplate front bolt-on bolton |
| Description_MKT | In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT pipe mount swivel jack features a support capacity of 5,000 lbs., a lift capacity of 3,000 lbs. and a travel of 15". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and includes a weldable pipe with a 5/8" hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer. |
| Description_MKT | In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT pipe mount swivel jack features a weight capacity of 5,000 lbs. and a travel of 15". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and includes a weldable pipe with a 5/8" hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer. |
| Description_SHO | Pipe-Mount Swivel Ja |
| Description_SHO | Swivel Jack |
| Description_SLA | In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT pipe mount swivel jack features a support capacity of 5,000 lbs., a lift capacity of 3,000 lbs. and a travel of 15". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and includes a weldable pipe with a 5/8" hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer. |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| height | 7.6 |
| Hole Size | .625 |
| Item Class - XA | OBS |
| Item Height - XA | 7.600 |
| Item Length - XA | 22.250 |
| Item Width - XA | 9.600 |
| length | 22.25 |
| Lift Capacity | 3,000 LBS |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 65.0 |
| Retail Height - XA | 7.600 |
| Retail Length - XA | 22.250 |
| Retail Width - XA | 9.600 |
| Shipping Weight - XA | 15.800 |
| Support Capacity | 5,000 LBS |
| Tariff 301 - XA | Yes |
| Title | Pipe-Mount Swivel Jack with Side Handle (5,000 lbs, 15" Travel) |

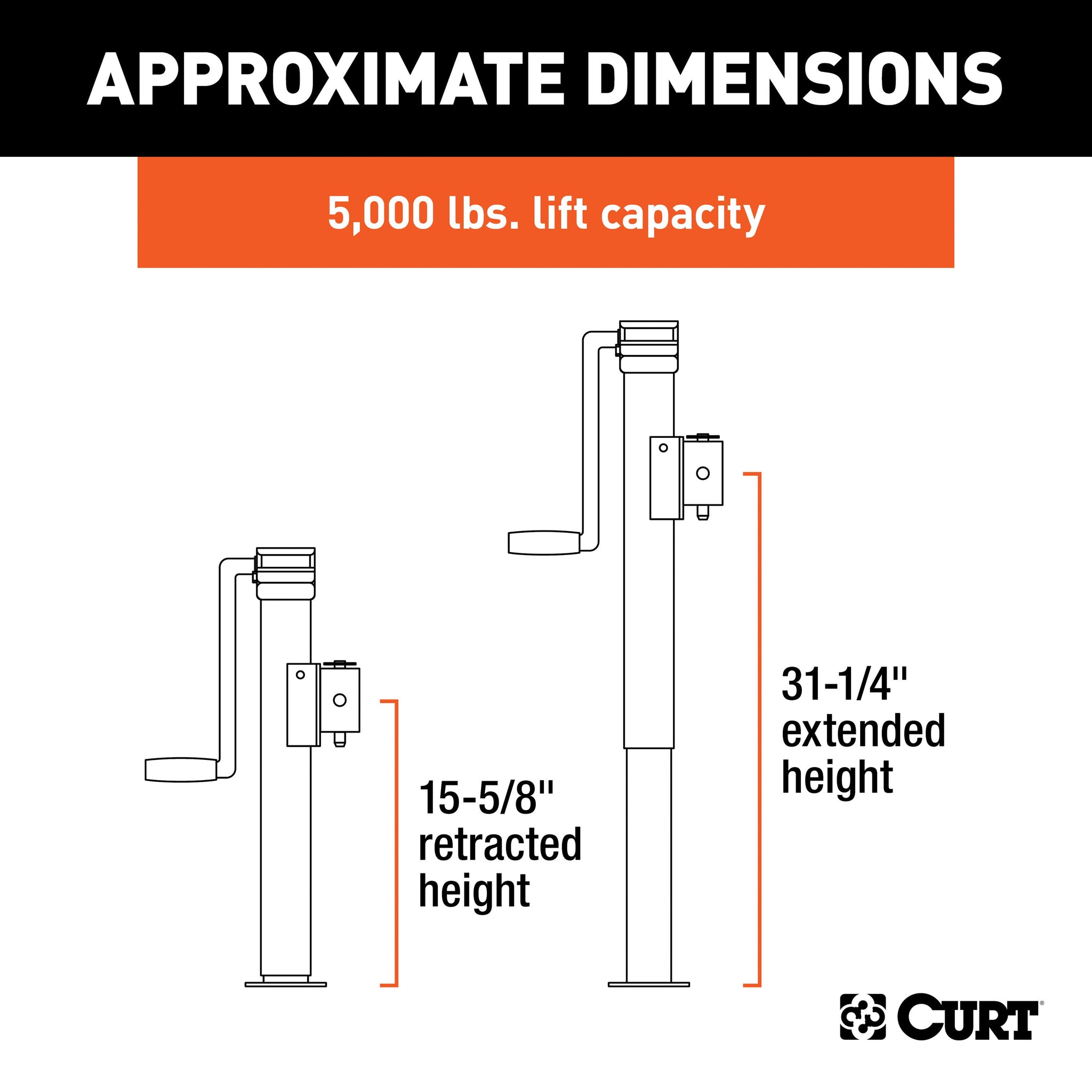

| Travel | 15 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 15.8 |
| width | 9.6 |
