CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 12" x 12" x 6" Air-to-Water Core is rated for 2000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
Specifications:
| Description_DEF |
Intercooler Core |
| Description_DES |
Air-to-Water Bar & Plate Intercooler Core 12L x 12H x 6W |
| Description_EXT |
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Air-to-Water Core is rated for 2000 WHP and the perfect fit for your custom high-performance intercooler. |
| Description_INV |
CSF 8086 - Universal Intercooler Core |
| Description_SHO |
CSF Intercooler Core |
| Description_MKT |
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 12" x 12" x 6" Air-to-Water Core is rated for 2000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible. |
| Description_FAB |
Heavy-Duty Bar & Plate Intercooler Cores |
| Description_FAB |
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications |
| Description_FAB |
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding |
| Description_FAB |
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding |
| Description_FAB |

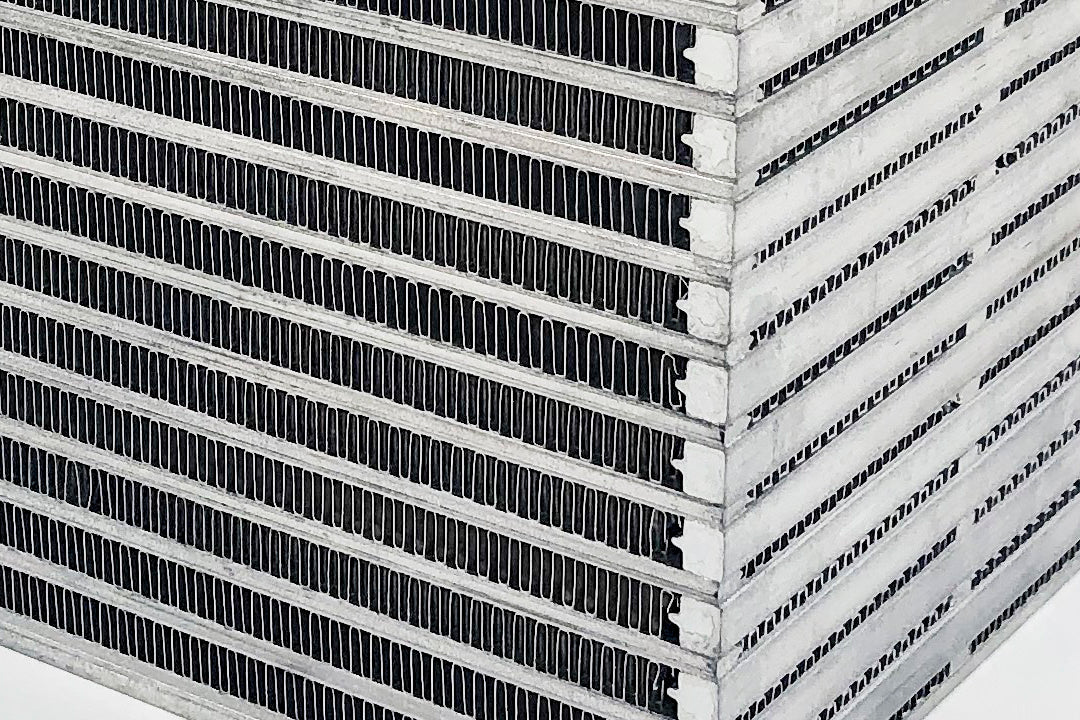

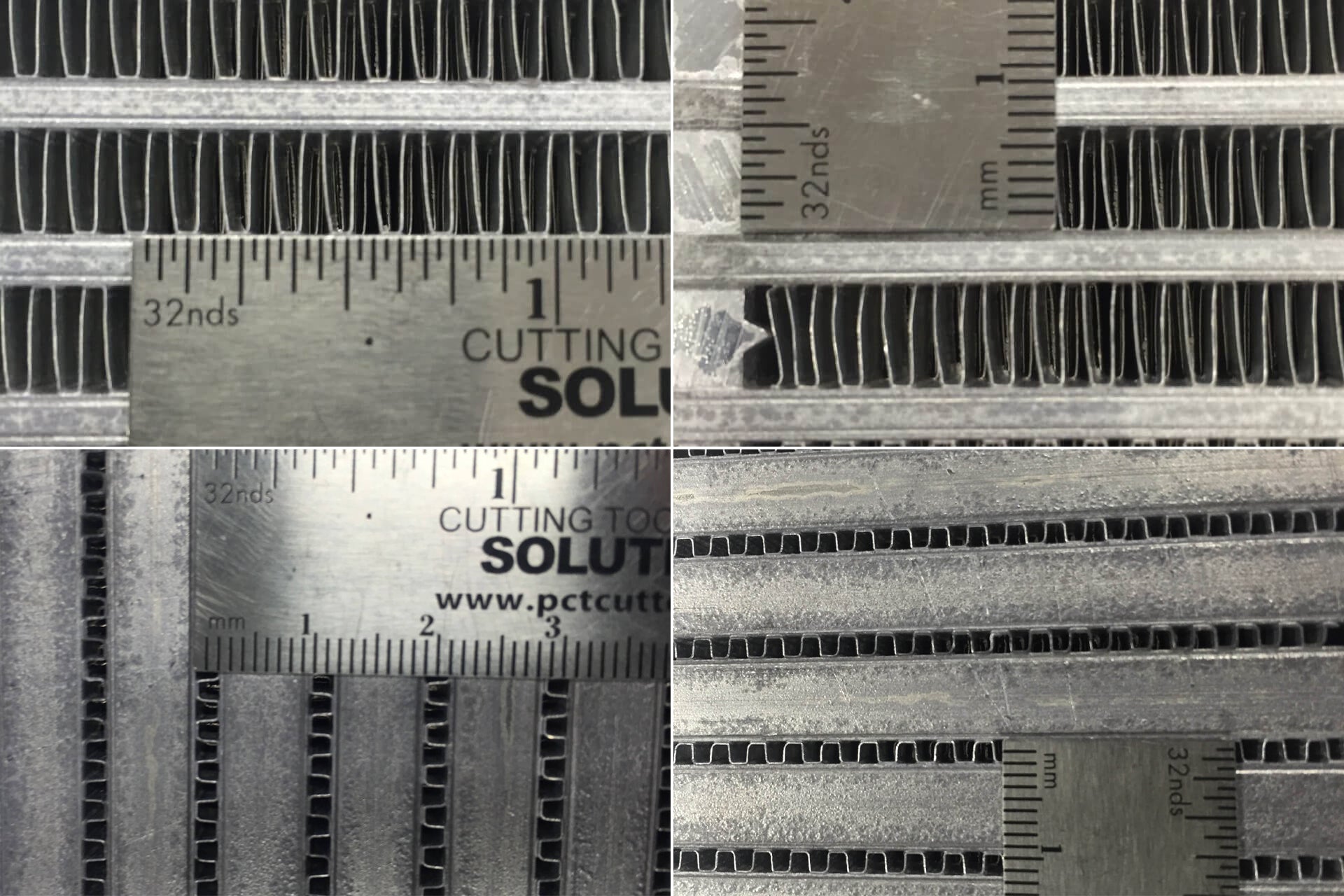

Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core) |
| Description_FAB |
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total) |
| Description_FAB |
Strict Quality Control and Quality Testing, Including Individual Pressure Testing |
| Description_FAB |
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services |
| Description_FAB |
Dimensions: 12"x12"x6" (305mm x 303mm x 150mm) |
| Description_FAB |
HP Rating: 2000 |
| Description_FAB |
Air-to-Water |
| Title |

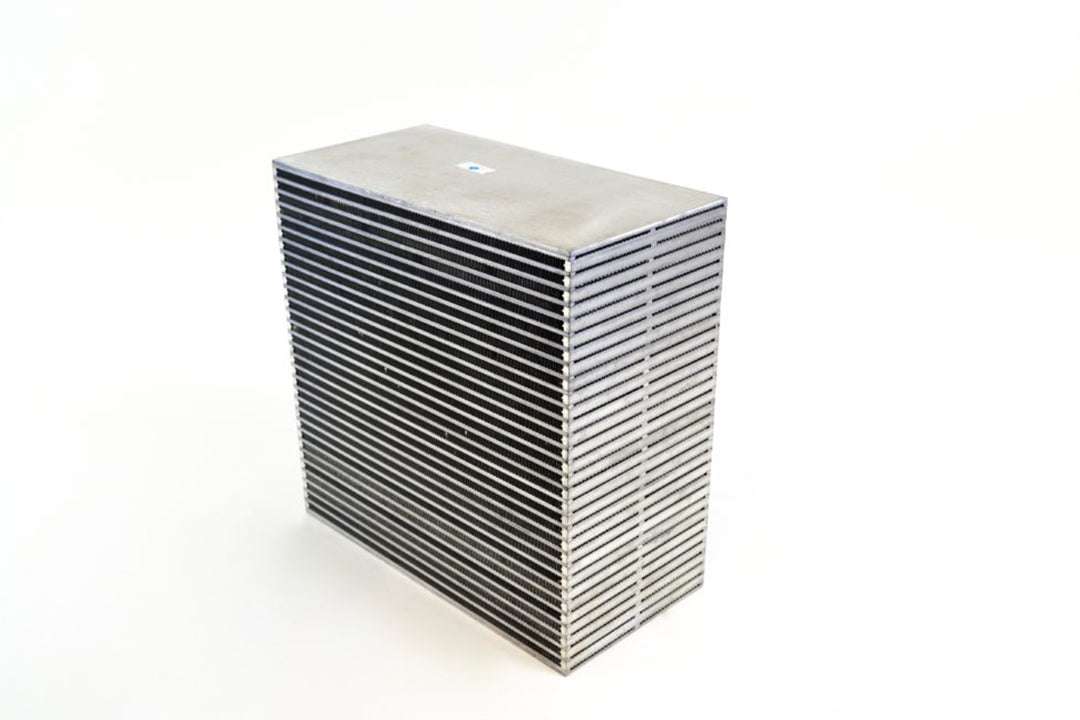

Air-to-Water Bar & Plate Intercooler Core 12L x 12H x 6W |
| Core Width |
6 |
| Core Width |
150 |
| Core Height |
12 |
| Core Height |
303 |
| Core Material |
Aluminum |
| Intercooler Type |
Air-to-Water |
| Core Length |
12 |
| Core Length |
305 |
| HP Rating |
2000 |
| Length |
15.0000 |
| Width |
9.0000 |
| Height |
16.0000 |
| Weight |
28.0000 |
