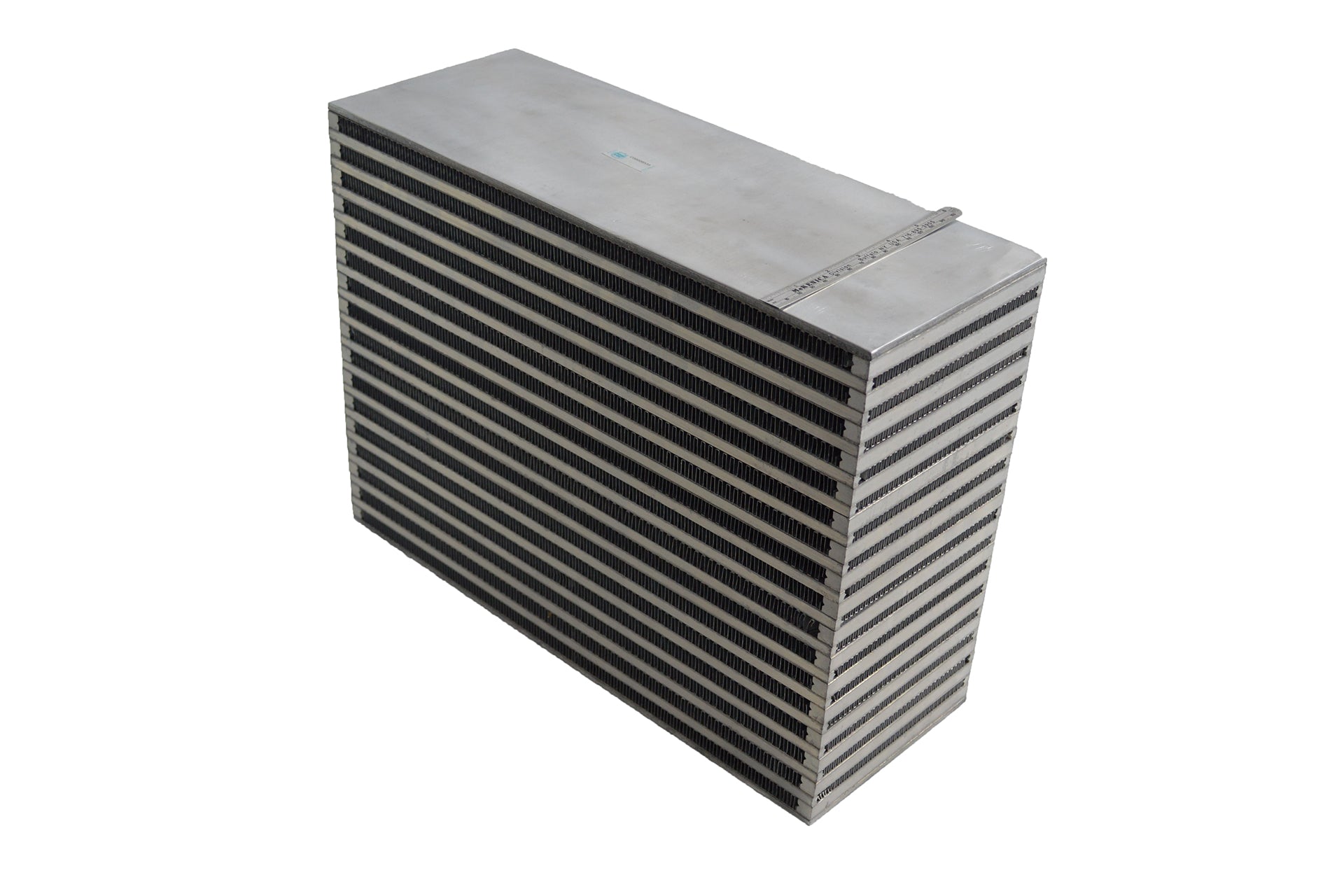

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 18" x 12" x 6" Horizontal Flow Core is rated for 1300 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
Specifications:
| Description_DEF |
Intercooler Core |
| Description_DES |
The MAGNUM 1000HP+ Intercooler Core 18X12x6 Bar & Plate design |
| Description_EXT |
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Horizontal Flow Core is rated for 1300 WHP and the perfect fit for your custom high-performance intercooler. |
| Description_FAB |
Heavy-Duty Bar & Plate Intercooler Cores |
| Description_FAB |
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications |
| Description_FAB |
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding |
| Description_FAB |
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding |
| Description_FAB |

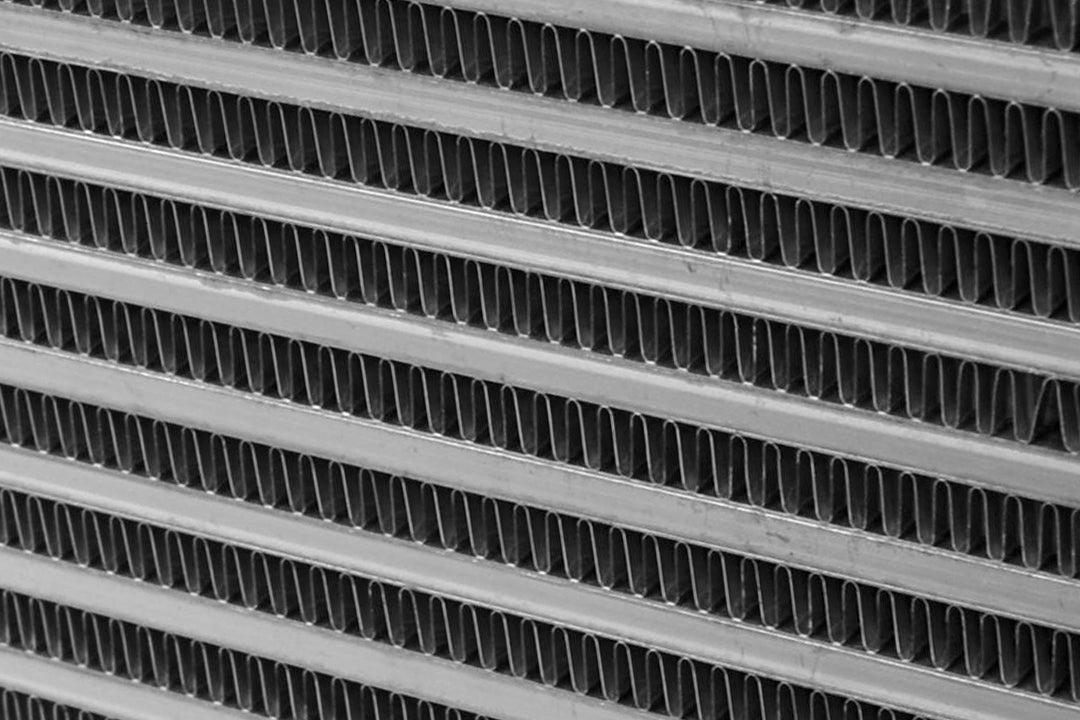

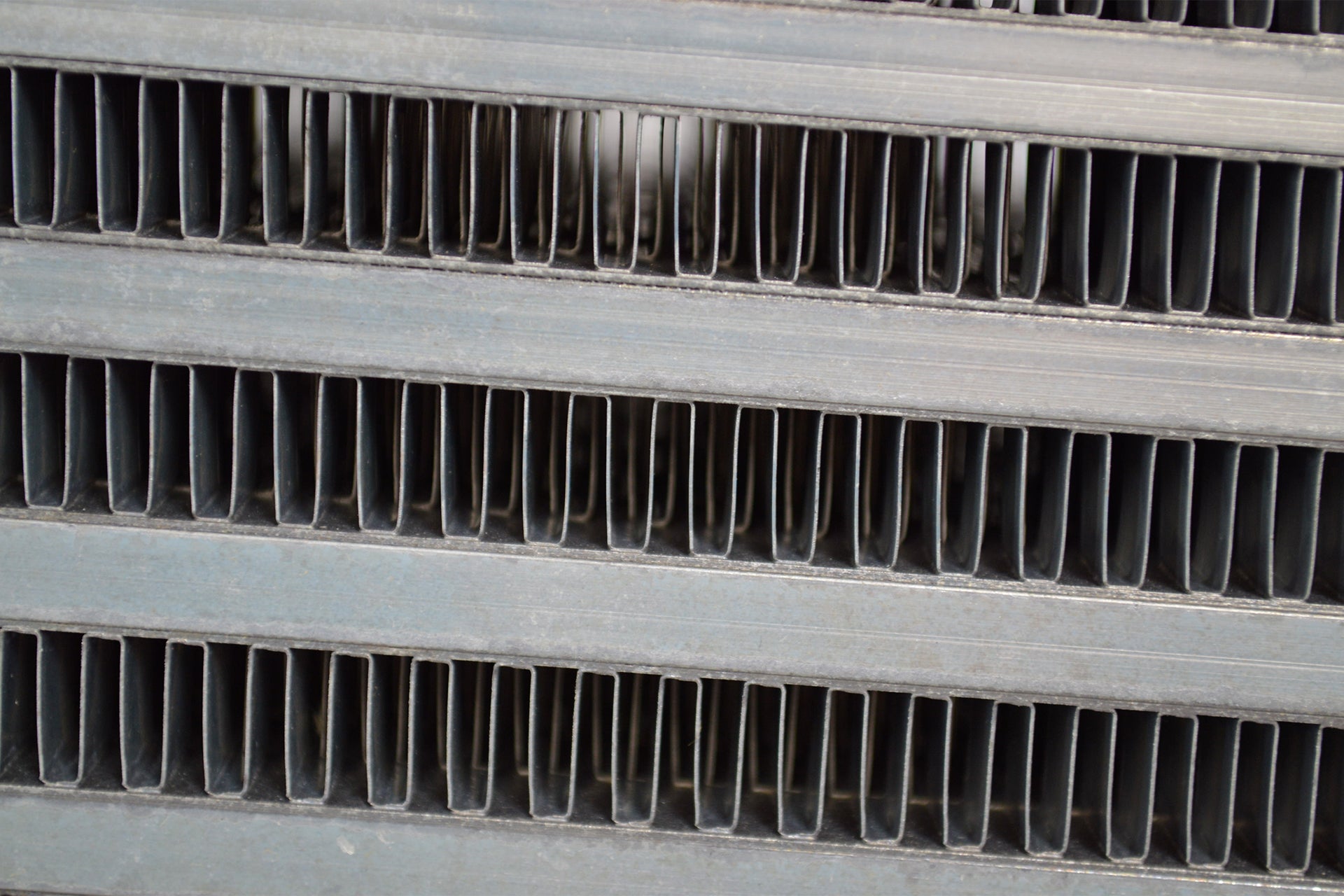

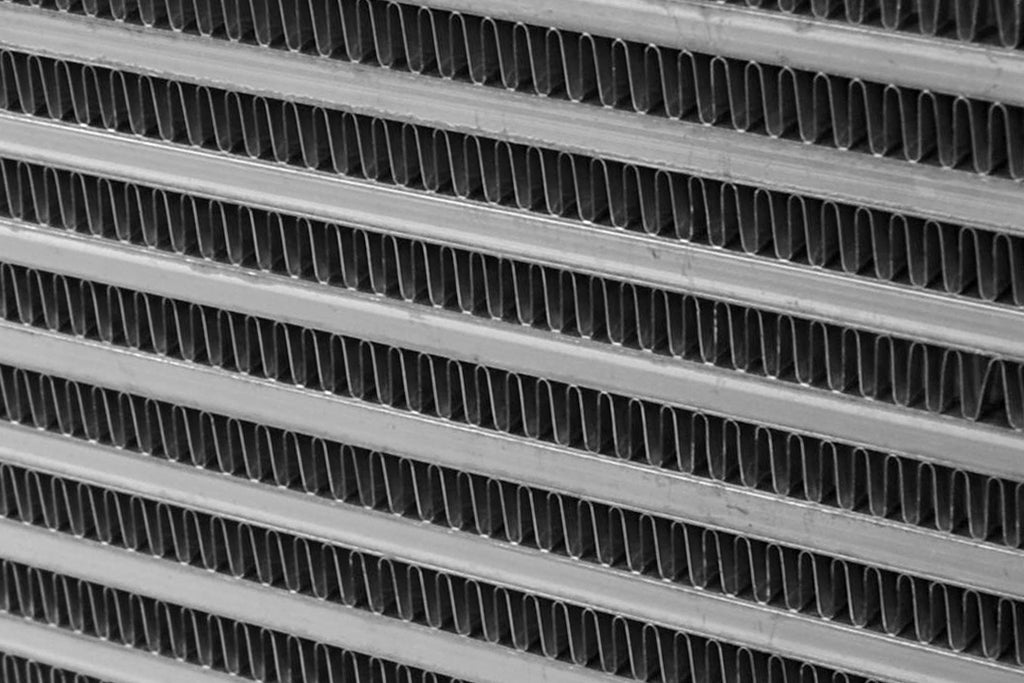

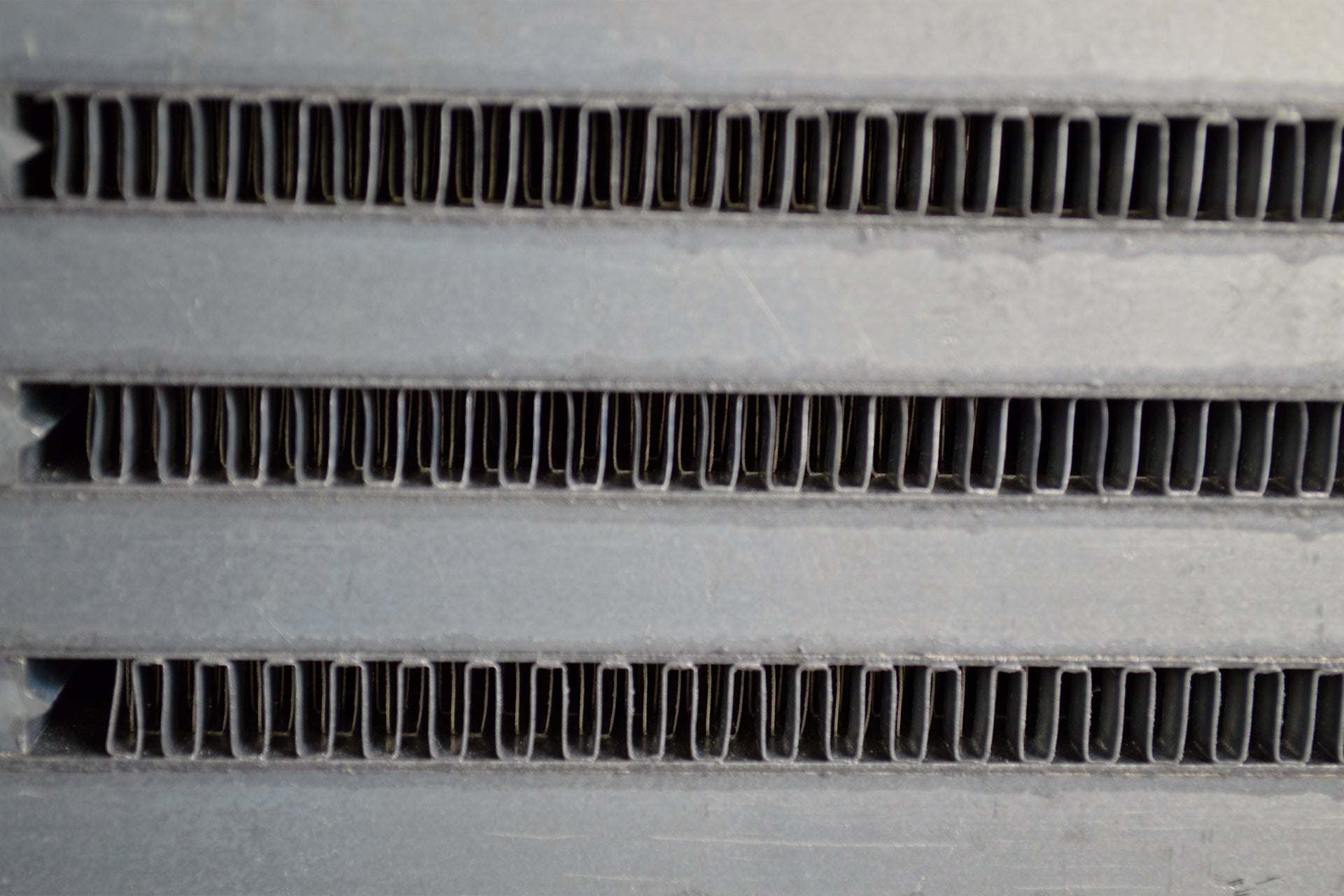

Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core) |
| Description_FAB |
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total) |
| Description_FAB |
Strict Quality Control and Quality Testing, Including Individual Pressure Testing |
| Description_FAB |
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services |
| Description_FAB |
Dimensions: 18"x12"x6" (455mm x 300mm x 150mm) |
| Description_FAB |
HP Rating: 1300 |
| Description_FAB |
Cross-flow |
| Description_SHO |
CSF Intercooler Core |
| Description_INV |
CSF 8040 - Universal Intercooler Core |
| Description_MKT |
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 18" x 12" x 6" Horizontal Flow Core is rated for 1300 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible. |
| Core Width |
6 |
| Core Width |
150 |
| Title |
The MAGNUM 1000HP+ Intercooler Core 18X12x6 Bar & Plate design |
| Core Height |
12 |
| Core Height |
300 |
| Intercooler Flow Direction |
Horizontal |
| Core Length |
18 |
| Core Length |
455 |
| Core Material |
Aluminum |
| HP Rating |
1300 |
| Intercooler Type |
Air-to-Air |
| Length |
17.0000 |
| Width |
8.0000 |
| Height |
21.0000 |
| Weight |
29.0000 |
