| Description_ASC |
Available with Tool Steel Retainers under 26906TS-KIT |
| Description_ASM |
Gm LS engines including truck engines, excluding LS7. |
| Description_DEF |
Engine Valve Spring Kit |
| Description_EXT |

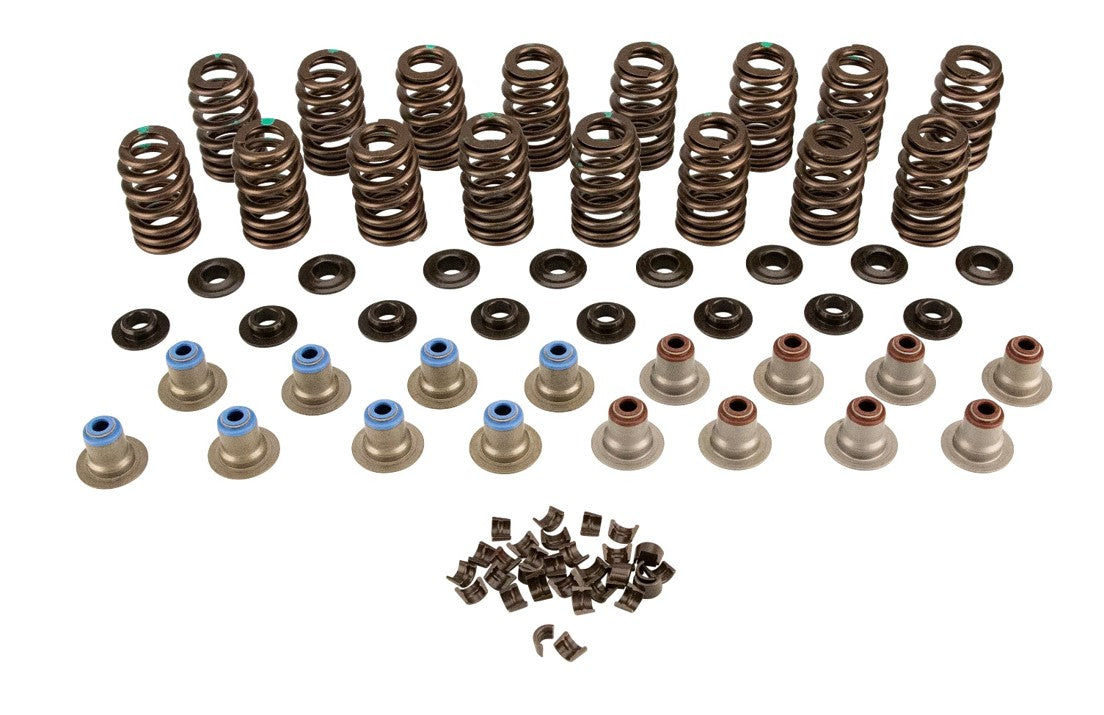

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and chromemoly steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift. |
| Description_DES |
LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers |
| Description_DES |
0.580" Max Lift |
| Description_INV |
LS6+SpringKitChromemolyStlRetainers |
| Description_SHO |
LS6+CStlKit |
| Description_KEY |
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHP |
None |
| Description_SLA |
Beehive Spring Kit |
| Locator Inner Diameter |
0.510 |
| Title |
LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers; 0.580" Max Lift |
| Spring Bottom Outside Diameter |
1.282 |
| Locator Thickness |
0.0600 |
| Valve Spring Type |
Beehive |
| C.A.R.B. Exempt for On-Road Vehicles? |
Yes |
| Engine Fitment |
GM LS Cathedral and Rectangle Port Applications |
| Spring Top Inside Diameter |
0.655 |
| Includes Valve Seals |
Yes |
| Spring Bottom Inside Diameter |
0.860 |
| Includes Spring Seats |
Yes |
| Coil Bind Height |
1.181 |
| Seat Height |
1.800 |
| C.A.R.B. E.O. Number |
N/A |
| Includes Locks |
Yes |
| Max Lift |
0.580 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Locator Outer Diameter |
1.300 |
| Includes Retainers |
Yes |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Valve Seal Outer Diameter |
0.600 |
| Seat Pressure |
92 |
| Compatible Shims |
4753 |
| Retainer Material |
Chromemoly Steel |
| Spring Top Outside Diameter |
1.077 |
| C.A.R.B. Exemption Reason |
No impact on pollution output of vehicle. |
| Valve Seal Type |
Steel Jacketed Viton |
| Length |
3.0000 |
| Width |
4.0000 |
| Height |
14.0000 |
| Weight |
3.0000 |
