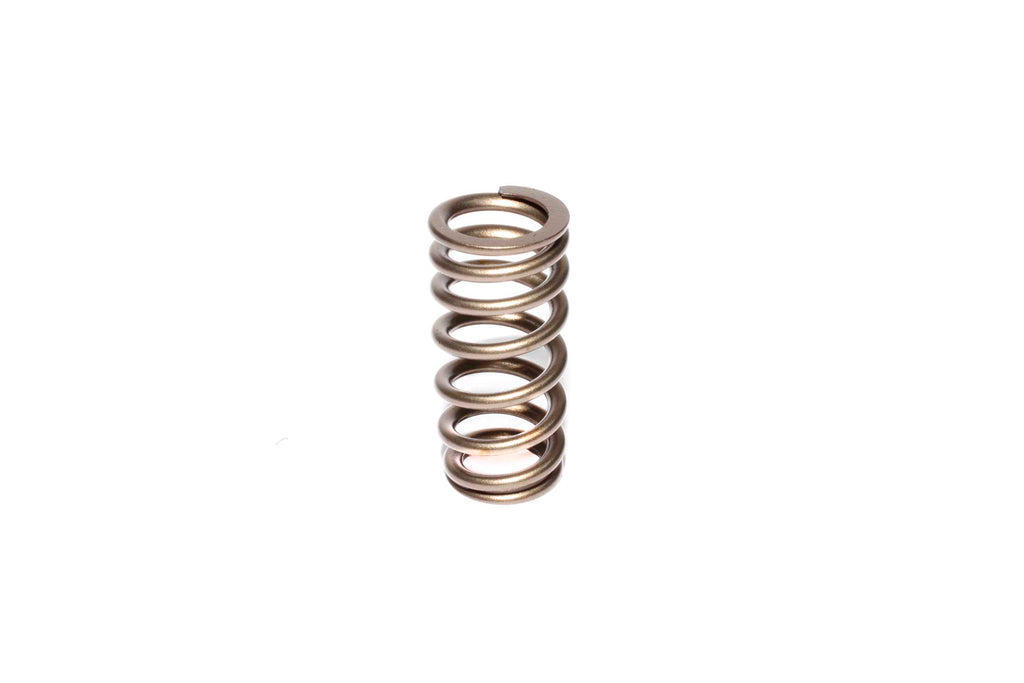

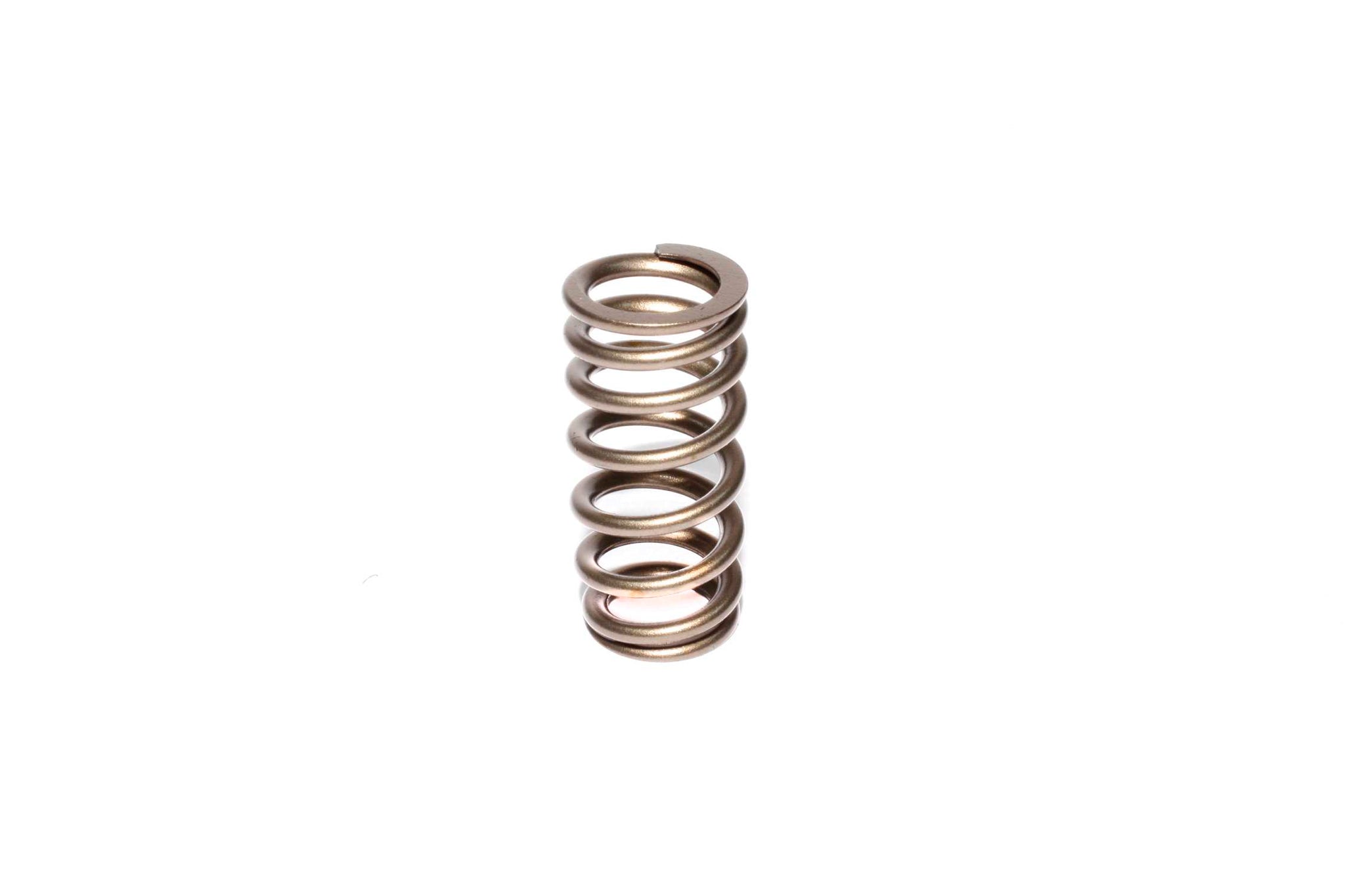

COMP Cams 26113-1 Performance Street 1.061" OD Beehive Spring, 1.570" Installed Height, 1 Spring
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
With a .550" maximum lift, these Beehive Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 and 3 Valve engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
| Part # | OD | ID | Seat Load | Open Load | Coil Bind | Rate (Lbs./In.) | Titanium Retainer | Steel Retainer | Cup Seat | Shims | |
| 26113 | Top Bottom | .9591.061 | .636.738 | 93 @ 1.570 | 198 @ 1.020 | .952 | 191 | 702, 791 | 1723, 700, 792 | N/A | N/A |
Beehive Valve Spring: Top .959" OD, .636" ID
Please review Specifications and the detailed fitment table for notes and exceptions.
