Description_ASM |
3-Bolt Camshaft Design - Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
Description_DEF |
Engine Camshaft |
Description_DES |

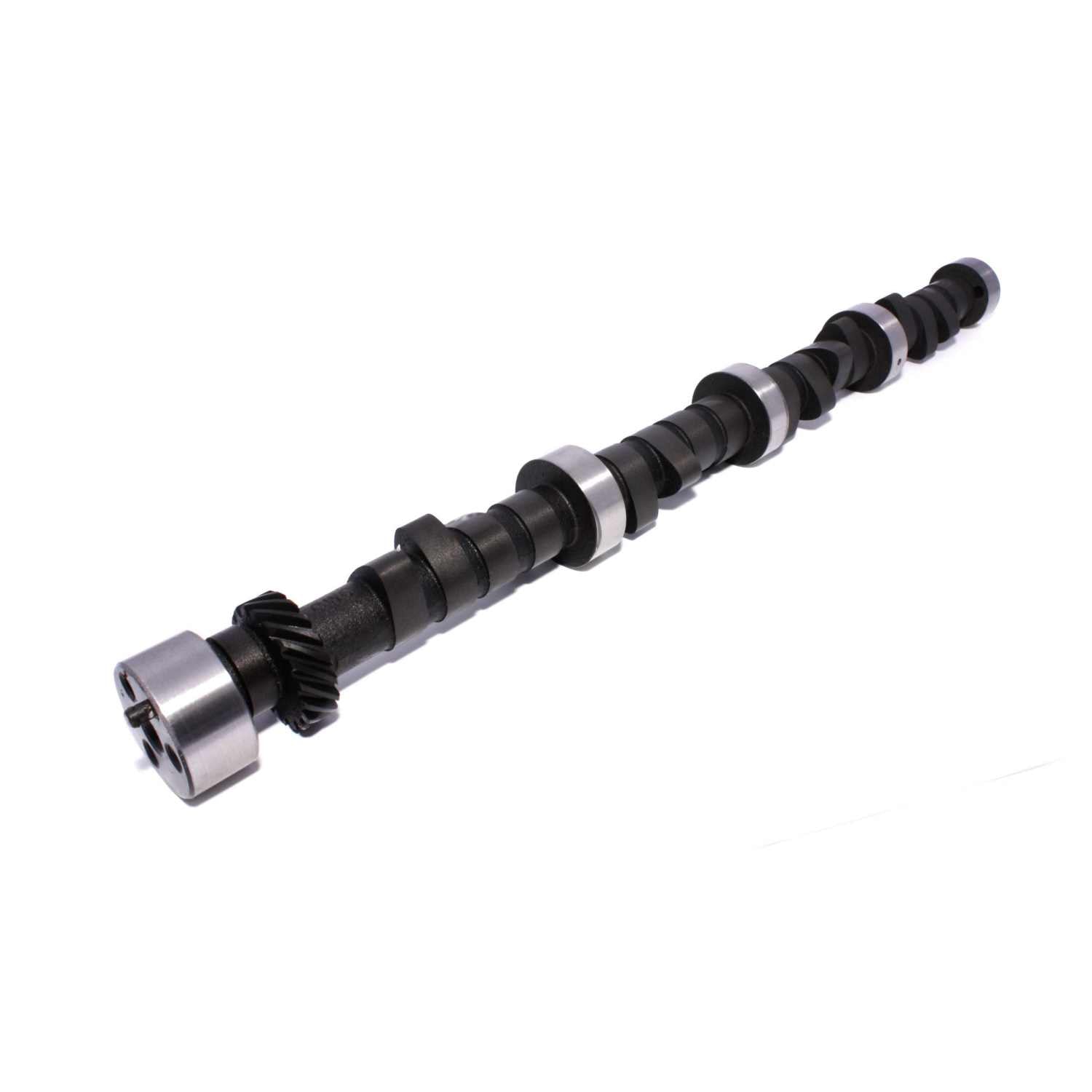

Drag Race 290/290 Solid Flat Cam for Chrysler 383-440 |
Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
Description_EXT |
440 with 5500+ stall, 5.13 gear, 11:1+ compression, 850+ CFM carb. |
Description_INV |
D-Race 290/290 S-Flt Cam Chrys 383-440 |
Description_SHO |
DR 290/290 SFTChrBRB |
Description_SHP |
None |
Engine Family |
Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
Basic Operating RPM Range |
5,000-7,200 |
Assembly Lubricant Included |
Yes |
Grind Number |
324A-8 |
Camshaft Material |
Cast Iron |
Valve Springs Required |
Yes |
Advertised Intake Duration |
324 |
Intake Duration at .050 Inch Lift |
290 |
Title |
Drag Race 290/290 Solid Flat Cam for Chrysler 383-440 |
Advertised Exhaust Duration |
324 |
Lobe Separation |
108 |
Usage |
Strip |
Lifter Type |
Solid Flat Tappet |
C.A.R.B. Exemption Reason |
N/A |
Camshaft Series |
Drag Race |
California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
Camshaft Gear Attachment |
3-Bolt |
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
C.A.R.B. E.O. Number |
N/A |
Lifters Included |
No |
Exhaust Valve Lift |
0.65 |
Intake Valve Lift |
0.65 |
C.A.R.B. Exempt for On-Road Vehicles? |
No |
Amazon ASIN |
B000P5B98W |
Exhaust Duration at .050 inch Lift |
290 |
Cam Type |
Solid Flat Tappet |
Length |
3.0000 |
Width |
3.0000 |
Height |
24.0000 |
Weight |
9.0000 |
