| Description_ASM |
Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF |
Engine Camshaft |
| Description_DES |

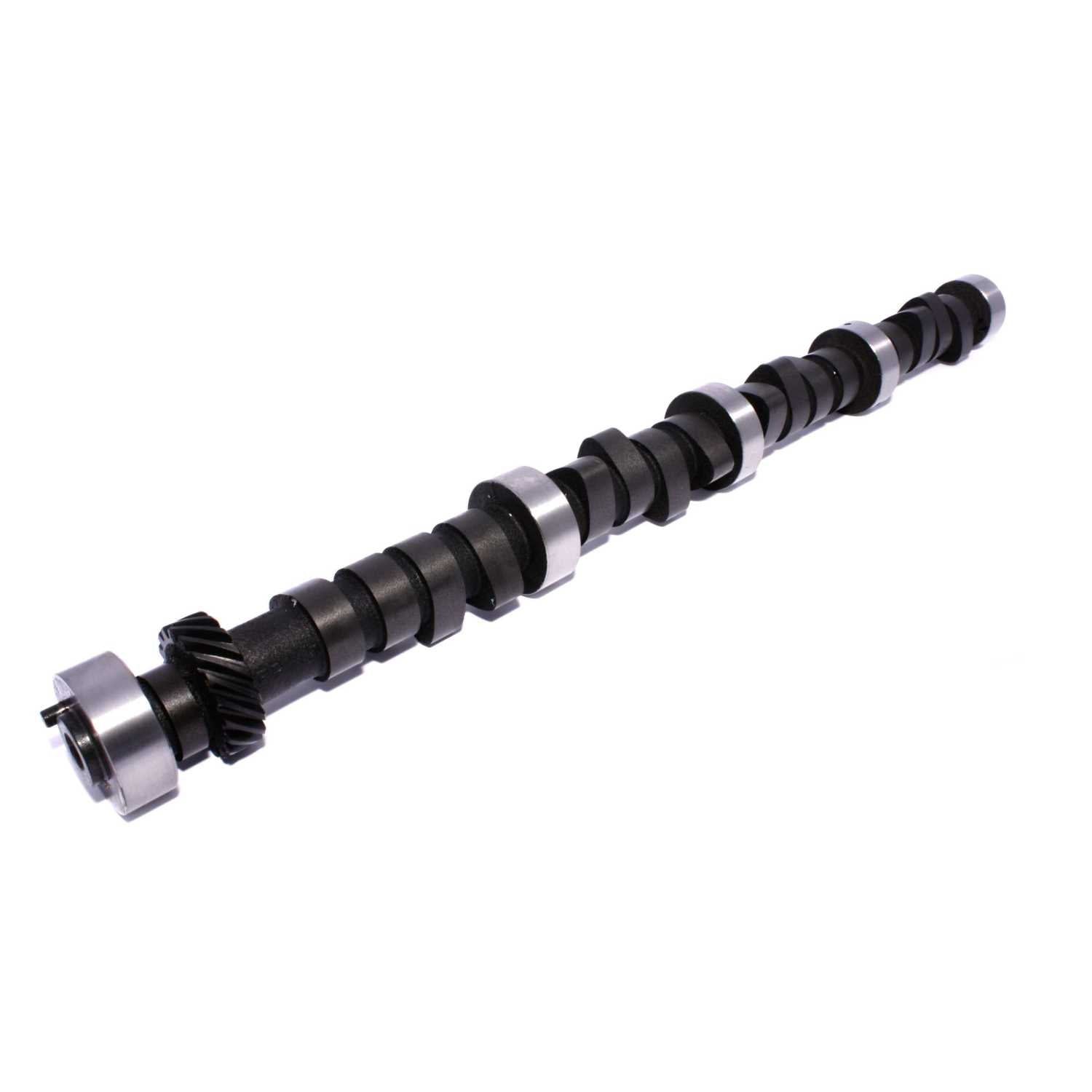

Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 383-440 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_INV |
M Muscle 222/226 H-Flt Cam Chrys 383-440 |
| Description_EXT |
Factory I.D. 2806980 for: 383c.i., 1968-70, factory 335 HP, 383c.i., 1971, factory 300 HP, 440c.i., 1967-70, factory 375/390 HP, 440c.i., 1971, factory 370/385 HP. |
| Description_SHO |
268AH-10 |
| Description_SHP |
None |
| Advertised Intake Duration |
268 |
| Valve Springs Required |
Yes |
| Title |
Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 383-440 |
| Intake Valve Lift |
0.464 |
| Basic Operating RPM Range |
1,600-5,600 |
| Assembly Lubricant Included |
Yes |
| Camshaft Material |
Cast Iron |
| Exhaust Duration at .050 inch Lift |
226 |
| Cam Type |
Hydraulic Flat Tappet |
| Engine Family |
Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Grind Number |
268AH-10 |
| Advertised Exhaust Duration |
276 |
| Camshaft Gear Attachment |
1-Bolt |
| Amazon ASIN |
B000P5D9XA |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Cam and Lifter Kit Upgrade |
CL21-305-4 |
| C.A.R.B. E.O. Number |
N/A |
| Usage |
Street/Performance |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Lifters Included |
No |
| Camshaft Series |
Magnum Muscle |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Valve Lift |
0.464 |
| C.A.R.B. Exemption Reason |
N/A |
| Lifter Type |
Hydraulic Flat Tappet |
| Intake Duration at .050 Inch Lift |
222 |
| Lobe Separation |
110 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
10.0000 |
