| Description_ASM |
Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF |
Engine Camshaft |
| Description_DES |

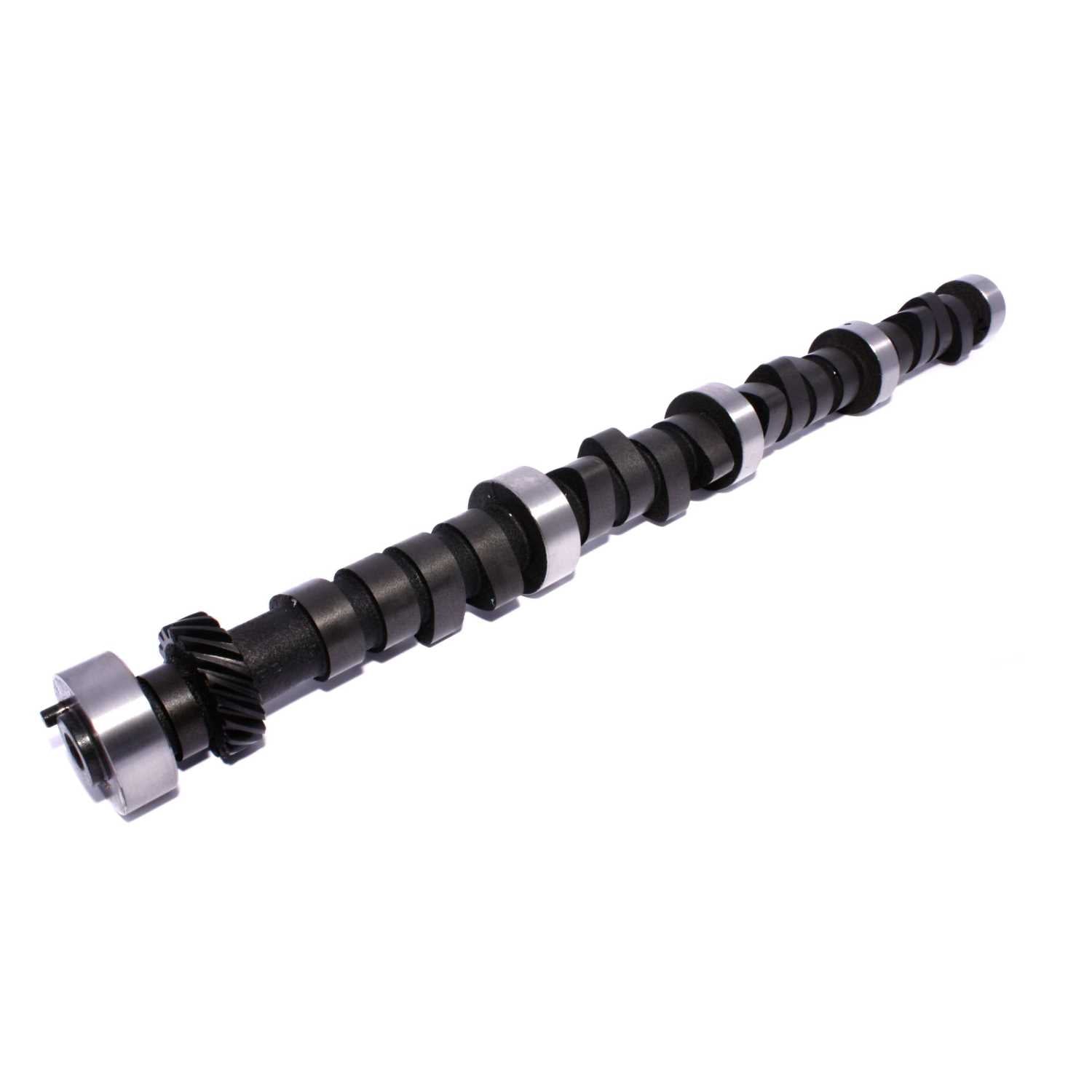

Magnum 253/253 Hydraulic Flat Cam for Chrysler 383-440 |
| Description_EXT |
Pro Street. 383 needs 3500-3700+ stall. 440 needs 3000-3300+ stall. 850 CFM carb, 10:1+ compression. Headers and good int, 3.90-4.30 gear. |
| Description_INV |
Mag 253/253 H-Flat Cam Chrysler 383-440 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_MKT |
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs. |
| Description_SHO |
Mag 253/253 HFTCHBRB |
| Description_SHP |
None |
| C.A.R.B. E.O. Number |
N/A |
| Exhaust Duration at .050 inch Lift |
253 |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Valve Lift |
0.525 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Camshaft Gear Attachment |
1-Bolt |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Series |
Magnum |
| C.A.R.B. Exemption Reason |
N/A |
| Cam Type |
Hydraulic Flat Tappet |
| Lifters Included |
No |
| Usage |
Street/Strip |
| Lifter Type |
Hydraulic Flat Tappet |
| Basic Operating RPM Range |
3,500-6,500 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Engine Family |
Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Camshaft Material |
Cast Iron |
| Intake Valve Lift |
0.525 |
| Valve Springs Required |
Yes |
| SK-Kit Upgrade |
SK21-243-4 |
| Advertised Intake Duration |
305 |
| Cam and Lifter Kit Upgrade |
CL21-243-4 |
| Assembly Lubricant Included |
Yes |
| Lobe Separation |
110 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| K-Kit Upgrade |
K21-243-4 |
| Advertised Exhaust Duration |
305 |
| Amazon ASIN |
B001O0FWWQ |
| Title |
Magnum 253/253 Hydraulic Flat Cam for Chrysler 383-440 |
| Grind Number |
305H |
| Intake Duration at .050 Inch Lift |
253 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
10.0000 |
