| Description_ASM |
Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF |

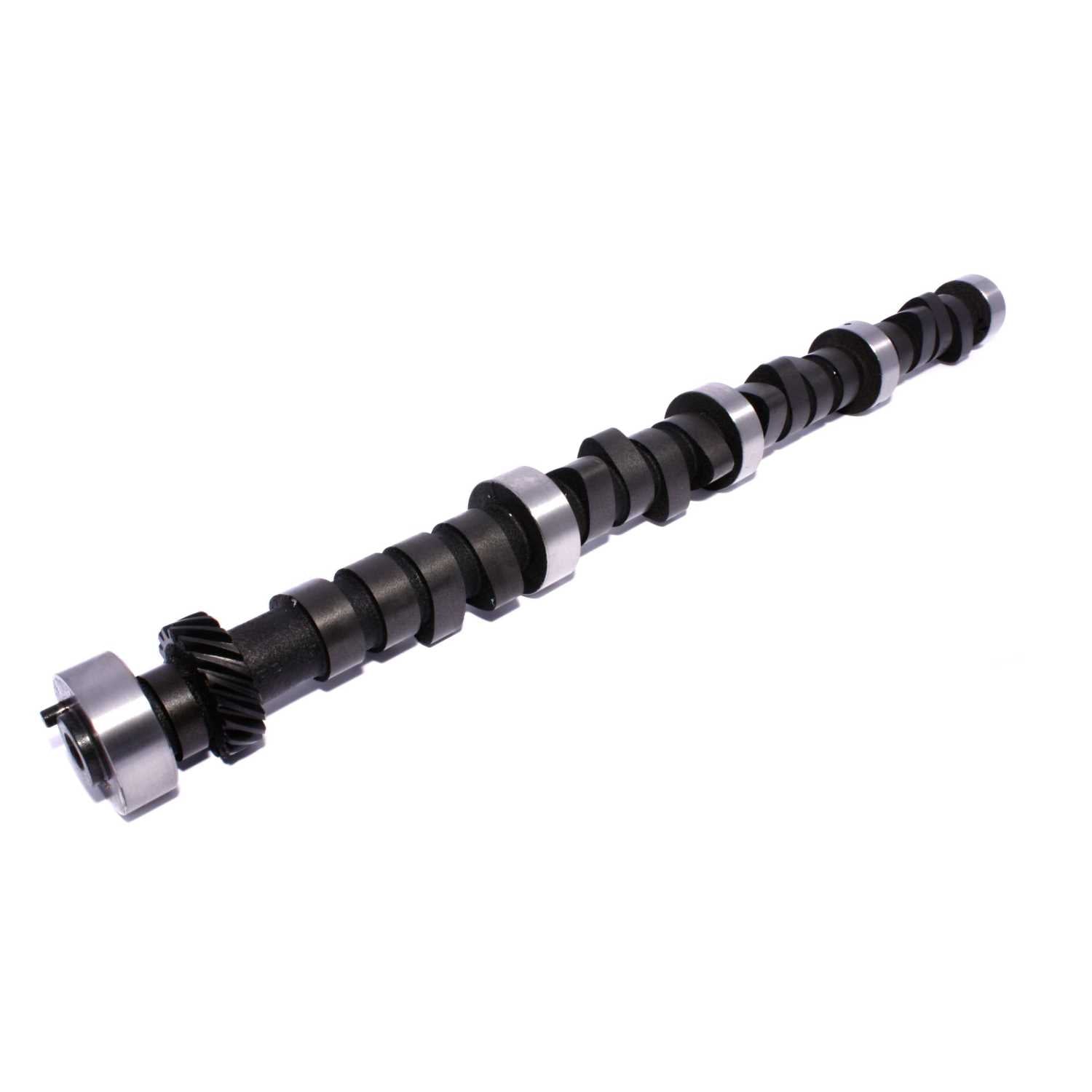

Engine Camshaft |
| Description_DES |
Xtreme Energy 240/246 Hydraulic Flat Cam for Chrysler 383-440 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_MKT |
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Description_INV |
XE 240/246 Hyd Flat Cam Chrysler 383-440 |
| Description_EXT |
Street/strip, needs 2800+ stall, 9:1 compression, rough idle. |
| Description_SHP |
None |
| Description_SHO |
XE 240/246 HFTChBRB |
| Lifters Included |
No |
| SK-Kit Upgrade |
SK21-225-4 |
| Lobe Separation |
110 |
| Camshaft Series |
Xtreme Energy |
| Advertised Intake Duration |
284 |
| Camshaft Material |
Cast Iron |
| Engine Family |
Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Exhaust Valve Lift |
0.51 |
| Assembly Lubricant Included |
Yes |
| Title |
Xtreme Energy 240/246 Hydraulic Flat Cam for Chrysler 383-440 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Lifter Type |
Hydraulic Flat Tappet |
| Usage |
Street/Performance |
| C.A.R.B. Exemption Reason |
N/A |
| Basic Operating RPM Range |
2,300-6,500 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Intake Valve Lift |
0.507 |
| Valve Springs Required |
Yes |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Camshaft Gear Attachment |
1-Bolt |
| C.A.R.B. E.O. Number |
N/A |
| Amazon ASIN |
B000R9XD44 |
| Grind Number |
XE284H |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Exhaust Duration |
296 |
| Exhaust Duration at .050 inch Lift |
246 |
| K-Kit Upgrade |
K21-225-4 |
| Cam and Lifter Kit Upgrade |
CL21-225-4 |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Intake Duration at .050 Inch Lift |
240 |
| Cam Type |
Hydraulic Flat Tappet |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
10.0000 |
