| Description_ASM |
Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF |
Engine Camshaft |
| Description_DES |

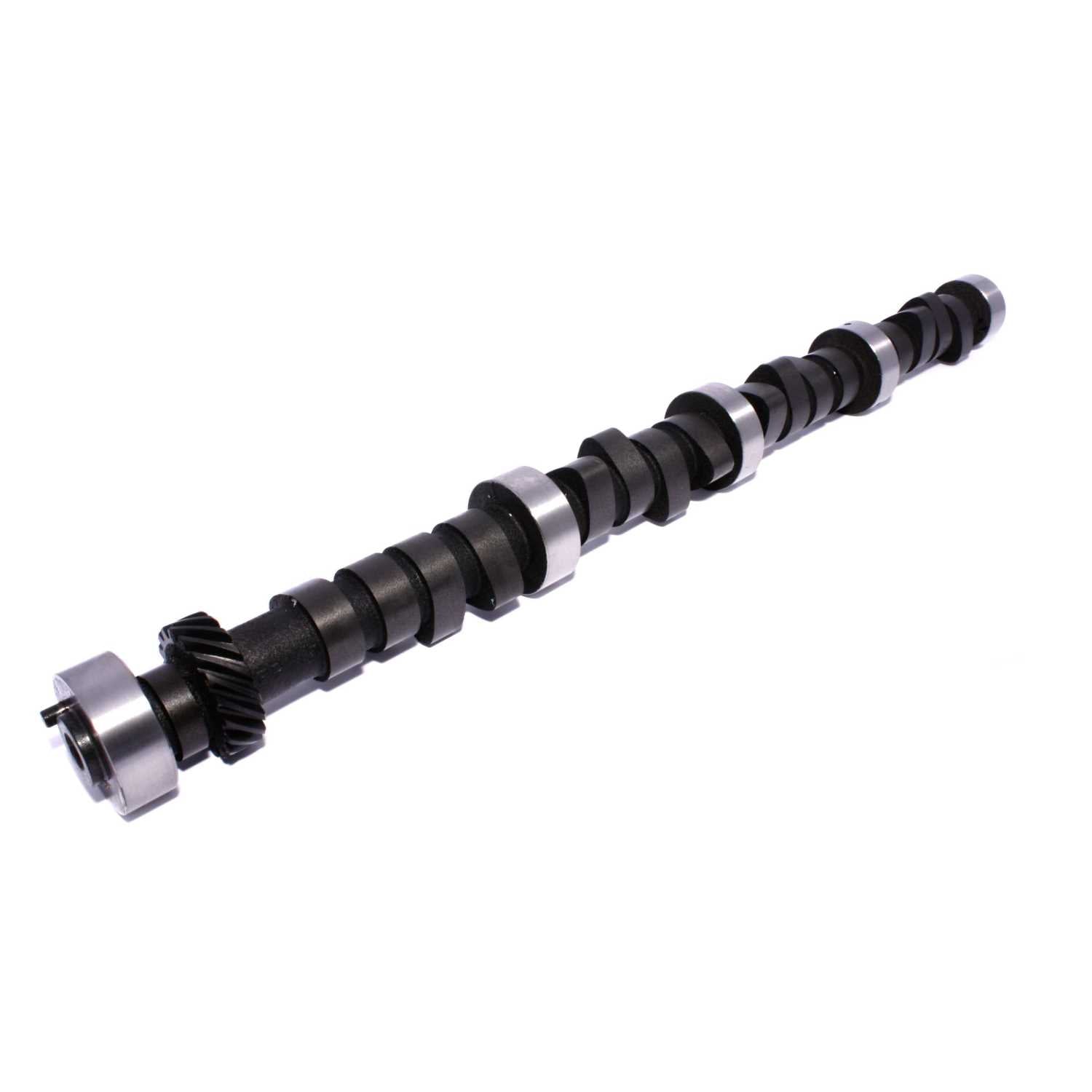

Xtreme Energy 218/224 Hydraulic Flat Cam for Chrysler 383-440 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_INV |
XE 218/224 Hyd Flat Cam Chrysler 383-440 |
| Description_EXT |
Excellent response, good mileage, stock converter, 3.23 gear. |
| Description_SHP |
None |
| Description_SHO |
XE 218/224 HFTChBRB |
| Description_MKT |
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Exhaust Duration at .050 inch Lift |
224 |
| Advertised Exhaust Duration |
270 |
| Lifters Included |
No |
| Grind Number |
XE262H |
| C.A.R.B. Exemption Reason |
N/A |
| Cam Type |
Hydraulic Flat Tappet |
| Camshaft Gear Attachment |
1-Bolt |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Basic Operating RPM Range |
1,300-5,600 |
| Valve Springs Required |
Yes |
| C.A.R.B. E.O. Number |
N/A |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Cam and Lifter Kit Upgrade |
CL21-222-4 |
| Intake Valve Lift |
0.462 |
| Amazon ASIN |
B000N5RI3O |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Title |
Xtreme Energy 218/224 Hydraulic Flat Cam for Chrysler 383-440 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Engine Family |
Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| SK-Kit Upgrade |
SK21-222-4 |
| Lobe Separation |
110 |
| Lifter Type |
Hydraulic Flat Tappet |
| Camshaft Series |
Xtreme Energy |
| Usage |
Street/Performance |
| Camshaft Material |
Cast Iron |
| Intake Duration at .050 Inch Lift |
218 |
| Assembly Lubricant Included |
Yes |
| K-Kit Upgrade |
K21-222-4 |
| Exhaust Valve Lift |
0.47 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Intake Duration |
262 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
10.0000 |
