| Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF |
Engine Camshaft |
| Description_DES |

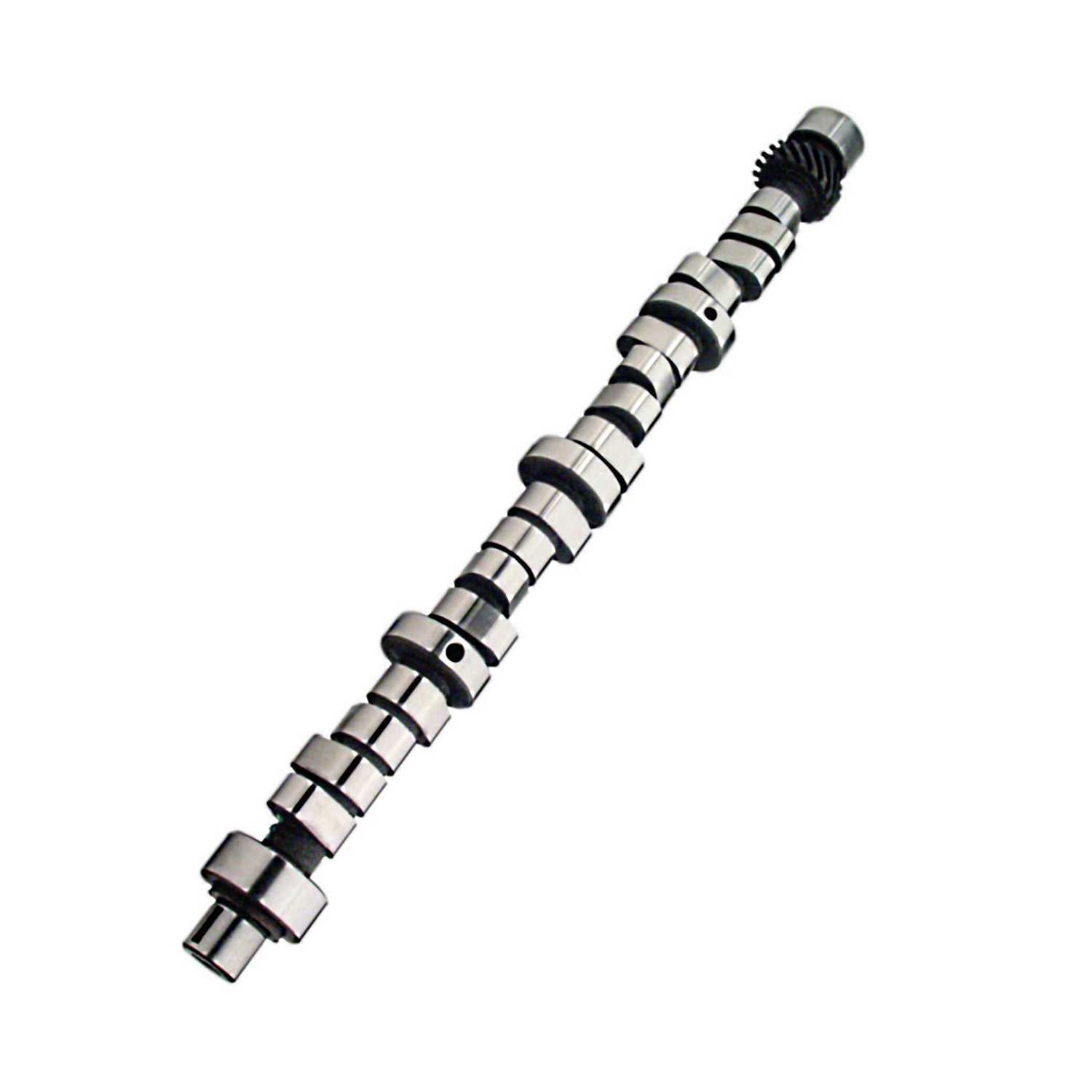

Xtreme Energy 218/224 Hydraulic Roller Cam for Chrysler 273-360 |
| Description_EXT |
3.23-3.91 gears, stock converter in 340 and 360, mild converter in 318, 9:1 compression, street machine. |
| Description_INV |
XE 218/224 H-Roller Cam Chrysler 273-360 |
| Description_MKT |
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_SHO |
XE 218/224 HRlChrLA |
| Description_SHP |
None |
| Exhaust Duration at .050 inch Lift |
224 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Grind Number |
XR268HR-10 |
| Advertised Exhaust Duration |
276 |
| Intake Duration at .050 Inch Lift |
218 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. E.O. Number |
N/A |
| Valve Springs Required |
Yes |
| C.A.R.B. Exemption Reason |
N/A |
| Camshaft Gear Attachment |
1-Bolt |
| Basic Operating RPM Range |
1,400-5,500 |
| Cam Type |
Hydraulic Roller |
| Lifter Type |
Hydraulic Roller |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Title |
Xtreme Energy 218/224 Hydraulic Roller Cam for Chrysler 273-360 |
| Amazon ASIN |
B001GBPMVE |
| Intake Valve Lift |
0.535 |
| Lobe Separation |
110 |
| Camshaft Series |
Xtreme Energy |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Assembly Lubricant Included |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Usage |
Street/Performance |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Valve Lift |
0.531 |
| Advertised Intake Duration |
268 |
| Camshaft Material |
Billet Steel |
| Lifters Included |
No |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
