| Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF |
Engine Camshaft |
| Description_DES |

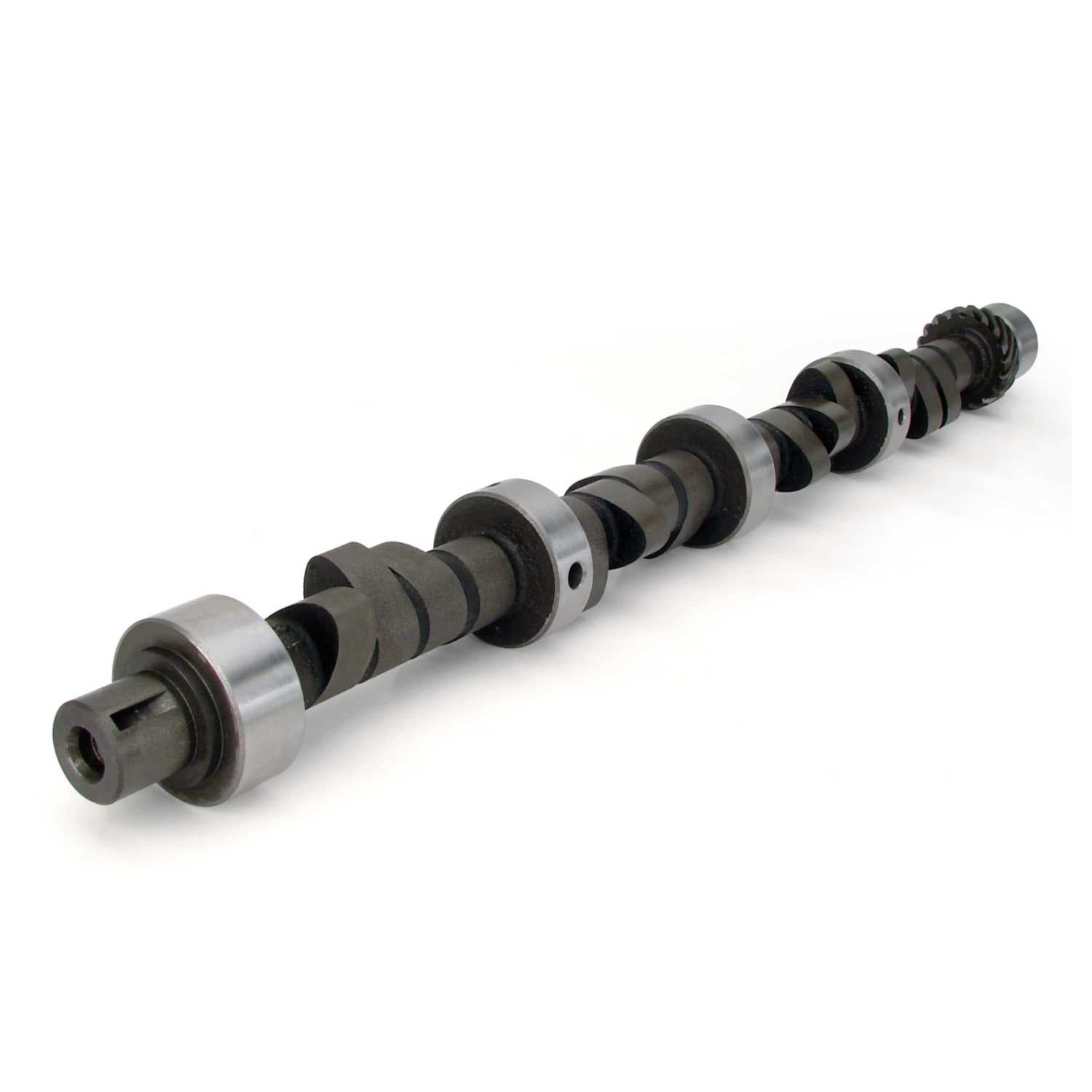

Magnum 224/224 Solid Flat Cam for Chrysler 273-360 |
| Description_SHO |
Mag 224/224 SFTChrLA |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_EXT |
Great in 340 and 360 with 9:1-9.5:1 compression, 650-750 CFM carb and 3.55-3.91 gear. Largest cam to use with stock converter. |
| Description_INV |
Magnum 224/224 S-Flat Cam Chrysl 273-360 |
| Description_MKT |
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs. |
| Description_SHP |
None |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exemption Reason |
N/A |
| Amazon ASIN |
B001O07DLO |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Usage |
Street/Strip |
| Cam Type |
Solid Flat Tappet |
| Camshaft Series |
Magnum |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lobe Separation |
110 |
| Exhaust Valve Lift |
0.468 |
| Lifters Included |
No |
| C.A.R.B. E.O. Number |
N/A |
| Exhaust Duration at .050 inch Lift |
224 |
| Camshaft Gear Attachment |
1-Bolt |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| SK-Kit Upgrade |
SK20-246-4 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Intake Valve Lift |
0.468 |
| Basic Operating RPM Range |
1,800-5,800 |
| Assembly Lubricant Included |
Yes |
| K-Kit Upgrade |
K20-246-4 |
| Grind Number |
270S |
| Lifter Type |
Solid Flat Tappet |
| Title |
Magnum 224/224 Solid Flat Cam for Chrysler 273-360 |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Valve Springs Required |
Yes |
| Advertised Intake Duration |
270 |
| Camshaft Material |
Cast Iron |
| Intake Duration at .050 Inch Lift |
224 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Cam and Lifter Kit Upgrade |
CL20-246-4 |
| Advertised Exhaust Duration |
270 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
