Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
Description_DEF |
Engine Camshaft |
Description_DES |

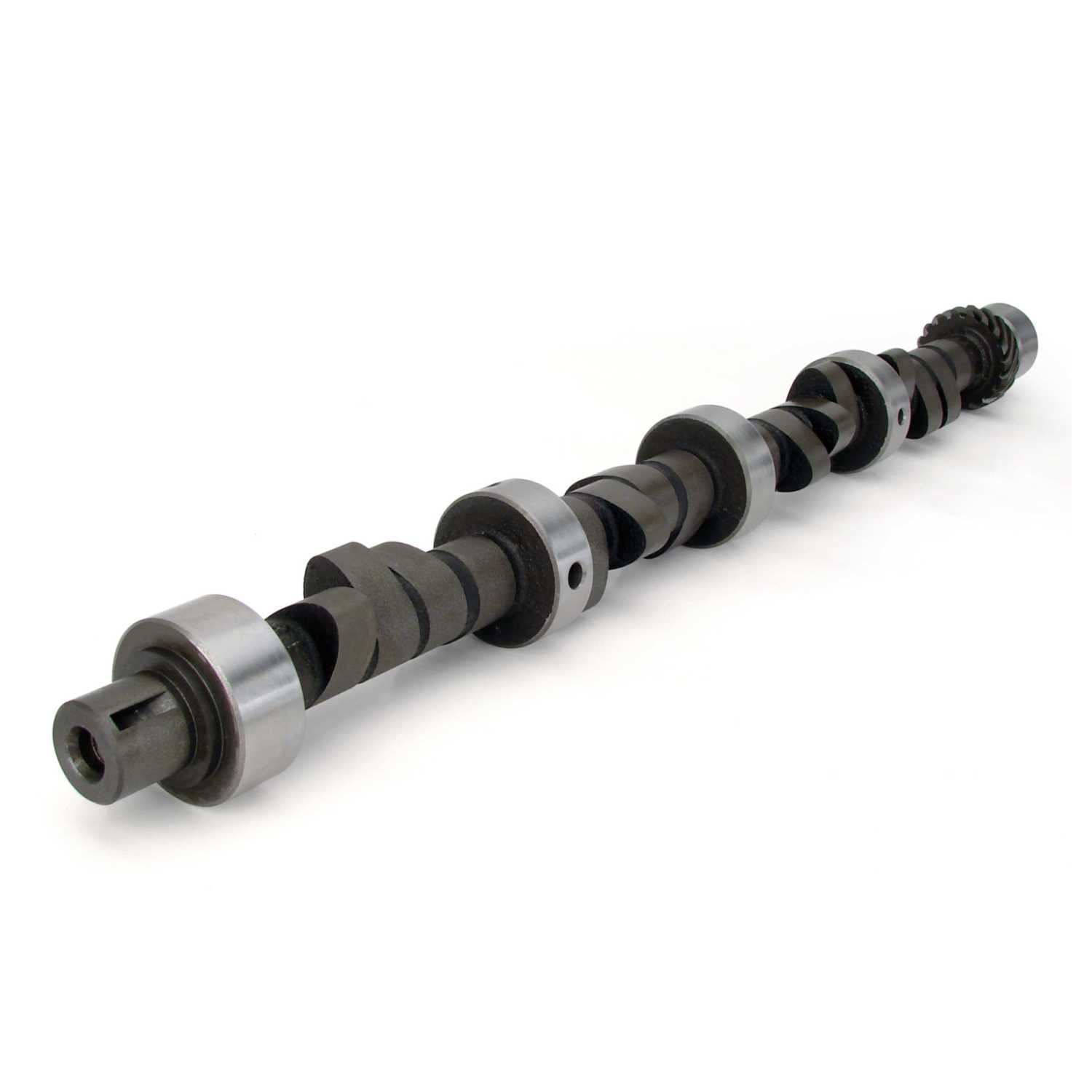

Xtreme Energy 230/236 Hydraulic Flat Cam for Chrysler 273-360 |
Description_INV |
XE 230/236 Hyd Flat Cam Chrysler 273-360 |
Description_EXT |
Very strong torque and throttle response, 2200+ stall. |
Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
Description_MKT |
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
Description_SHO |
XE 230/236 HFTChryLA |
Description_SHP |
None |
Valve Springs Required |
Yes |
Title |
Xtreme Energy 230/236 Hydraulic Flat Cam for Chrysler 273-360 |
Assembly Lubricant Included |
Yes |
Basic Operating RPM Range |
1,800-6,000 |
Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
Camshaft Material |
Cast Iron |
Amazon ASIN |
B000CIS6UG |
Intake Duration at .050 Inch Lift |
230 |
Cam and Lifter Kit Upgrade |
CL20-224-4 |
Intake Valve Lift |
0.488 |
Grind Number |
XE274H |
Advertised Exhaust Duration |
286 |
Camshaft Gear Attachment |
1-Bolt |
C.A.R.B. Exempt for On-Road Vehicles? |
No |
Advertised Intake Duration |
276 |
Exhaust Duration at .050 inch Lift |
236 |
Cam Type |
Hydraulic Flat Tappet |
C.A.R.B. E.O. Number |
N/A |
SK-Kit Upgrade |
SK20-224-4 |
Usage |
Street/Performance |
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
Lifters Included |
No |
K-Kit Upgrade |
K20-224-4 |
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
C.A.R.B. Exemption Reason |
N/A |
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
Camshaft Series |
Xtreme Energy |
Exhaust Valve Lift |
0.491 |
California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
Lifter Type |
Hydraulic Flat Tappet |
Lobe Separation |
110 |
Length |
3.0000 |
Width |
3.0000 |
Height |
24.0000 |
Weight |
9.0000 |
