| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

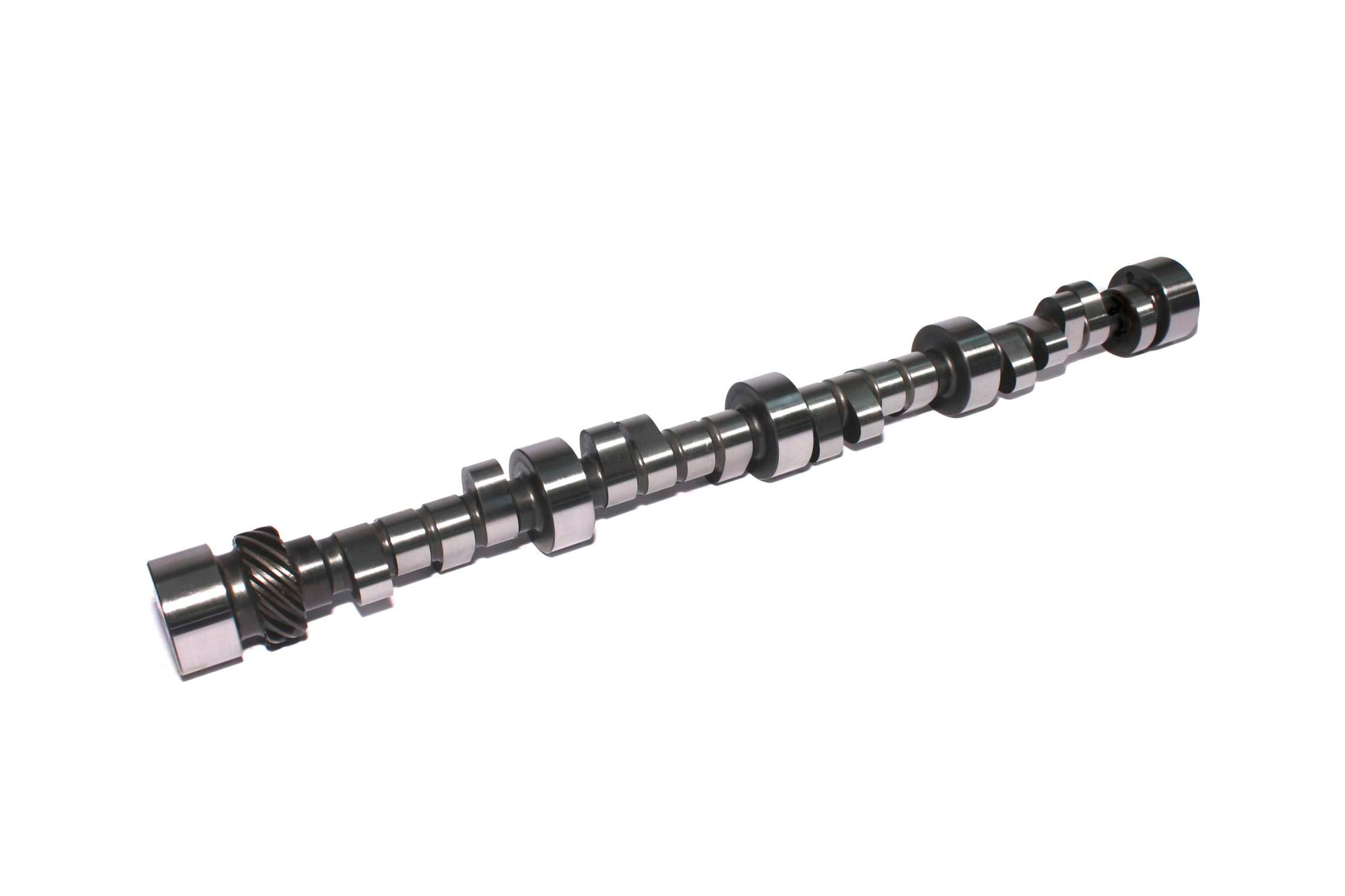

Drag Race 280/292 Solid Roller Cam for Chevrolet Small Block |
| Description_EXT |
355+ c.i., ported head, 5500+ stall, in light car. |
| Description_INV |
Drag Race 280/292 Solid Roller Cam SBC |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHO |
DR 280/292 SRlr SBC |
| Description_SHP |
None |
| Description_TRA |
Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Advertised Exhaust Duration |
330 |
| Camshaft Material |
Billet Steel |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Valve Springs Required |
Yes |
| Advertised Intake Duration |
317 |
| Grind Number |
317DR-6 |
| Intake Duration at .050 Inch Lift |
280 |
| Assembly Lubricant Included |
No |
| Basic Operating RPM Range |
5500-7,800 |
| Amazon ASIN |
B001O0BRH0 |
| Title |
Drag Race 280/292 Solid Roller Cam for Chevrolet Small Block |
| Cam Type |
Solid Roller |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. E.O. Number |
N/A |
| Intake Valve Lift |
0.66 |
| Lifter Type |
Solid Roller |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lobe Separation |
106 |
| Camshaft Series |
Drag Race |
| Exhaust Valve Lift |
0.63 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Camshaft Gear Attachment |
3-Bolt |
| C.A.R.B. Exemption Reason |
N/A |
| Lifters Included |
No |
| Exhaust Duration at .050 inch Lift |
292 |
| Usage |
Strip |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
