| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

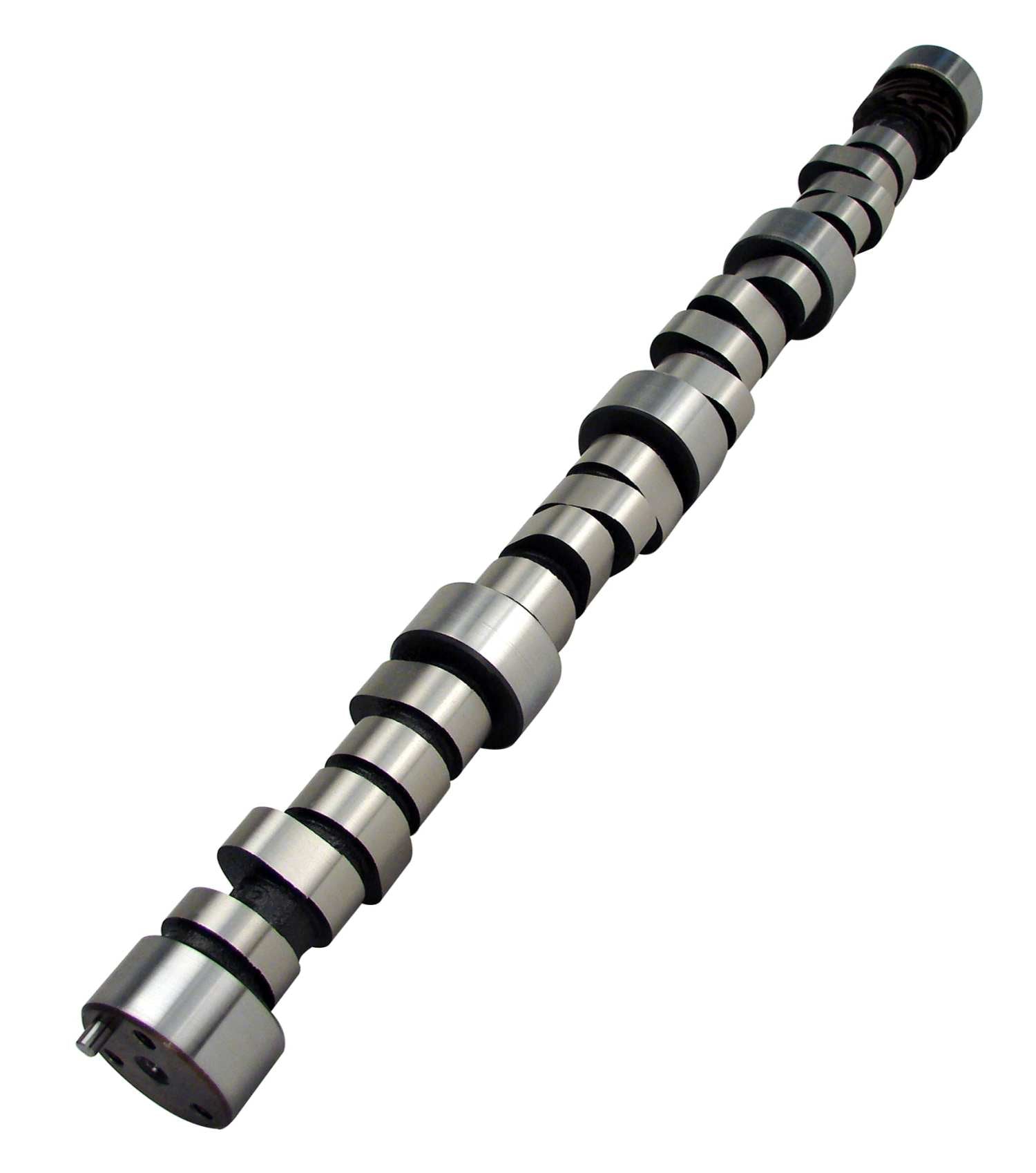

Magnum 236/236 Solid Roller Cam for Chevrolet Small Block |
| Description_EXT |
Street/strip performance. Choppy idle, use 2500+ stall and headers. 9.5:1 compression. |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_INV |
Magnum 236/236 Solid Roller Cam SBC |
| Description_SHP |
None |
| Description_TRA |
Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Description_SHO |
Mag 236/236 SRlrSBC |
| C.A.R.B. E.O. Number |
N/A |
| Camshaft Gear Attachment |
3-Bolt |
| Lobe Separation |
110 |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Duration at .050 inch Lift |
236 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Valve Lift |
0.55 |
| Amazon ASIN |
B000V9GBUI |
| Camshaft Series |
Magnum |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. Exemption Reason |
N/A |
| Usage |
Street/Strip |
| Cam Type |
Solid Roller |
| Intake Valve Lift |
0.55 |
| Lifters Included |
No |
| SK-Kit Upgrade |
SK12-702-8 |
| Lifter Type |
Solid Roller |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Grind Number |
280AR |
| Title |
Magnum 236/236 Solid Roller Cam for Chevrolet Small Block |
| Advertised Intake Duration |
280 |
| Valve Springs Required |
Yes |
| Assembly Lubricant Included |
No |
| Advertised Exhaust Duration |
280 |
| K-Kit Upgrade |
K12-702-8 |
| Camshaft Material |
Austempered Ductile Iron |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade |
CL12-702-8 |
| Intake Duration at .050 Inch Lift |
236 |
| Basic Operating RPM Range |
2,500-6,500 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
23.0000 |
| Weight |
9.0000 |
