| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

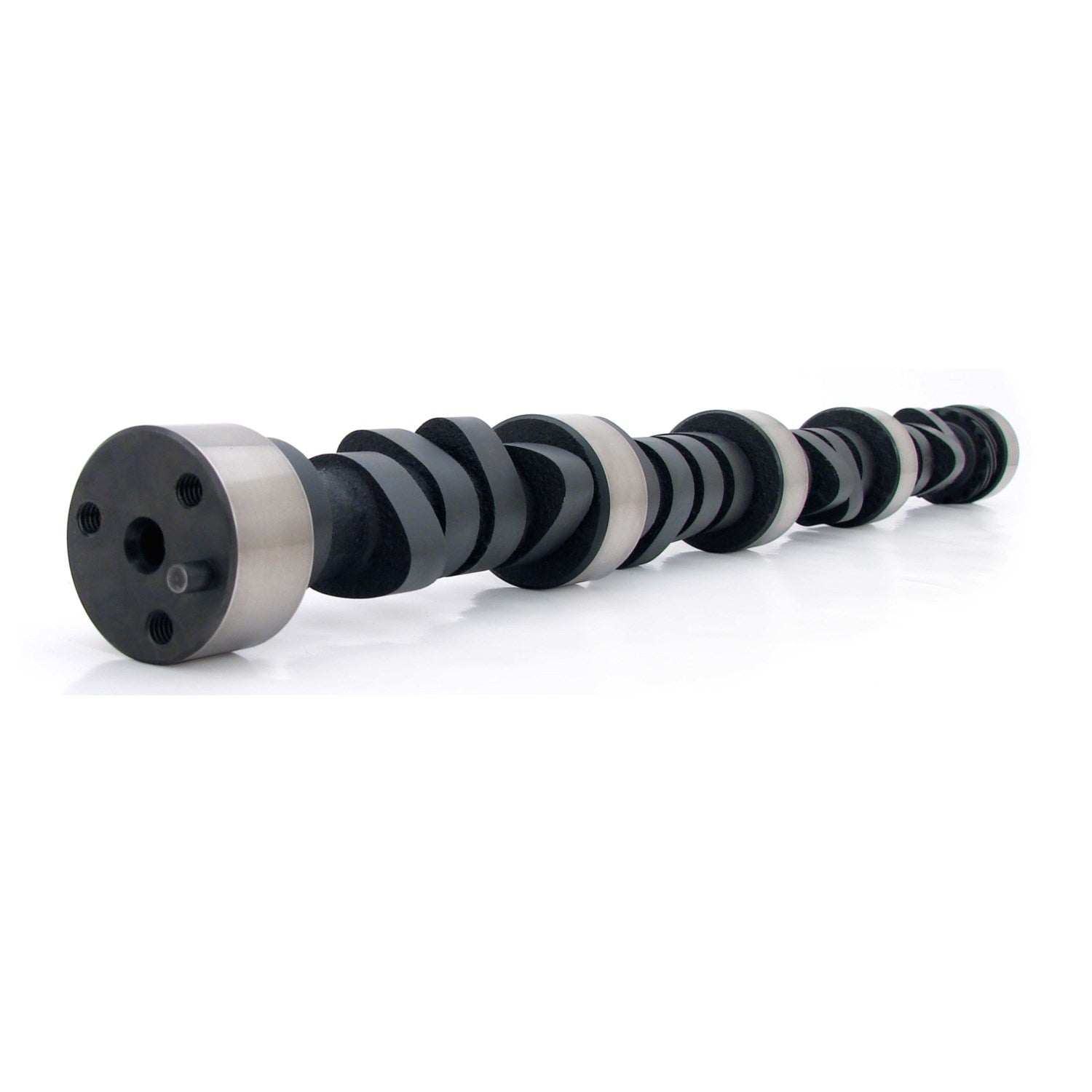

Oval Track NIT 252/258 Solid Flat Cam for Chevrolet Small Block |
| Description_EXT |
1/4-3/8 tight. 327-358c.i., 12:1+ compression. 4 BBL with good intake and exhaust. |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_INV |
Oval Track NIT 252/258 S-Flat Cam SBC |
| Description_SHP |
None |
| Description_SHO |
OT NIT 252/258SFTSBC |
| Lobe Separation |
106 |
| Camshaft Series |
Xtreme Oval |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lifter Type |
Solid Flat Tappet |
| Advertised Intake Duration |
282 |
| Title |
Oval Track NIT 252/258 Solid Flat Cam for Chevrolet Small Block |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Camshaft Material |
Nitrided Cast Iron |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Exhaust Valve Lift |
0.536 |
| Assembly Lubricant Included |
Yes |
| Usage |
Strip |
| Advertised Exhaust Duration |
292 |
| C.A.R.B. E.O. Number |
N/A |
| Exhaust Duration at .050 inch Lift |
258 |
| Intake Valve Lift |
0.54 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Camshaft Gear Attachment |
3-Bolt |
| Valve Springs Required |
Yes |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Grind Number |
282XOS-6 |
| Amazon ASIN |
B002EDX6IO |
| Basic Operating RPM Range |
3,000-6700 |
| Intake Duration at .050 Inch Lift |
252 |
| C.A.R.B. Exemption Reason |
N/A |
| Lifters Included |
No |
| Cam Type |
Solid Flat Tappet |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
23.0000 |
| Weight |
9.0000 |
