| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

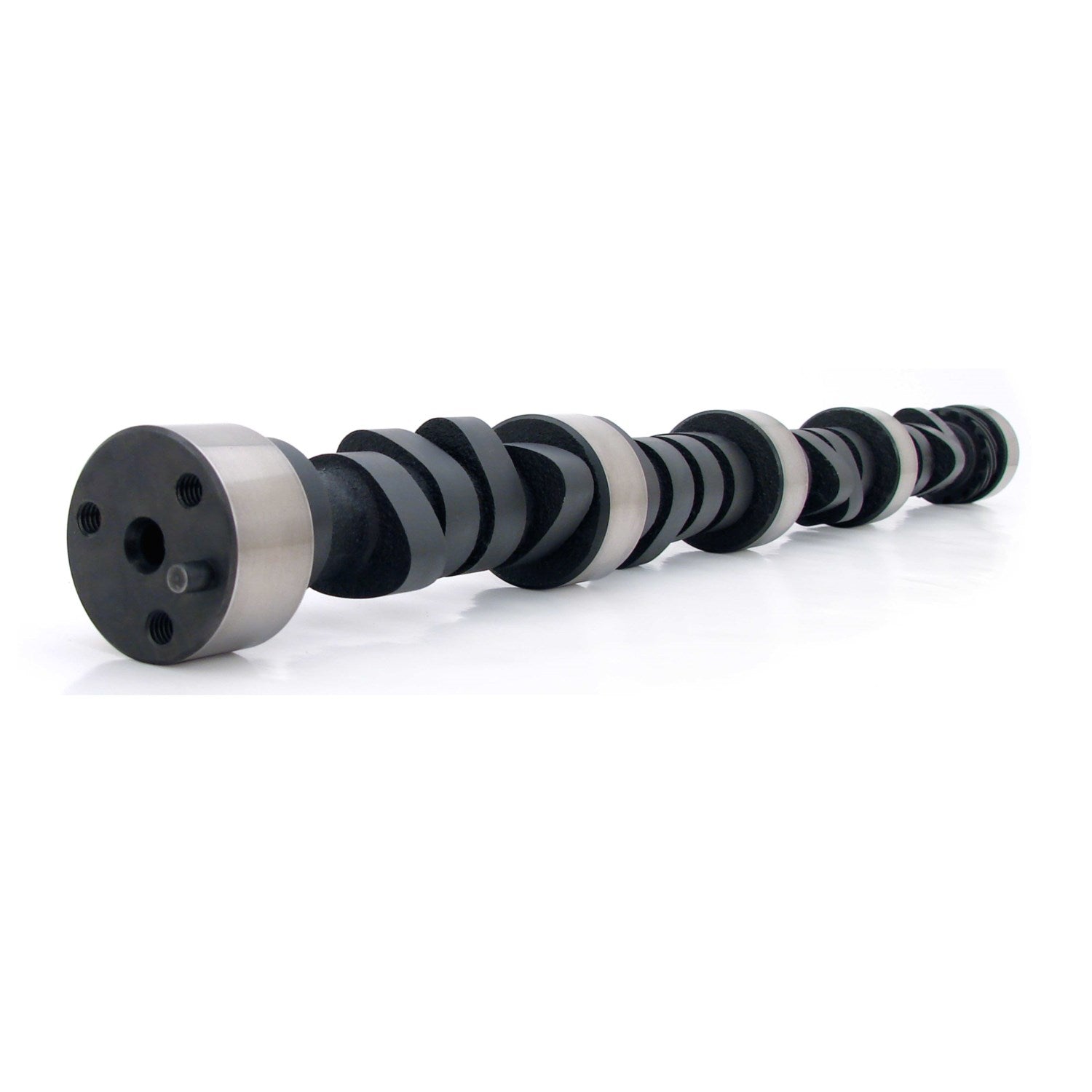

Puller/Mud Race/Drag/O-Track NIT 265/276 Solid Flat Cam Chevrolet Small Block |
| Description_INV |
Puller/M-Race NIT 265/276 S-Flt Cam SBC |
| Description_EXT |
Good for 377-406 engine to run high RPM. Requires upgraded cylinder heads and manifold. 327-350, 4500+ stall, good power. 11:1 compression. Good for 1/2 to 5/8 mile track with light car, large engine. Nitrided. |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHO |
Puller 265/276SFTSBC |
| Description_SHP |
None |
| Lifter Type |
Solid Flat Tappet |
| Camshaft Series |
Oval Track |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lobe Separation |
106 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Camshaft Material |
Nitrided Cast Iron |
| Advertised Intake Duration |
300 |
| Usage |
Strip |
| Intake Duration at .050 Inch Lift |
265 |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Exhaust Valve Lift |
0.557 |
| Title |
Puller/Mud Race/Drag/O-Track NIT 265/276 Solid Flat Cam Chevrolet Small Block |
| Assembly Lubricant Included |
Yes |
| Cam Type |
Solid Flat Tappet |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason |
N/A |
| Advertised Exhaust Duration |
314 |
| C.A.R.B. E.O. Number |
N/A |
| Exhaust Duration at .050 inch Lift |
276 |
| Intake Valve Lift |
0.562 |
| Valve Springs Required |
Yes |
| Amazon ASIN |
B002EE0AVE |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Basic Operating RPM Range |
4,300-7,300 |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Grind Number |
300B-6 |
| Camshaft Gear Attachment |
3-Bolt |
| Lifters Included |
No |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
23.0000 |
| Weight |
9.0000 |
