| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

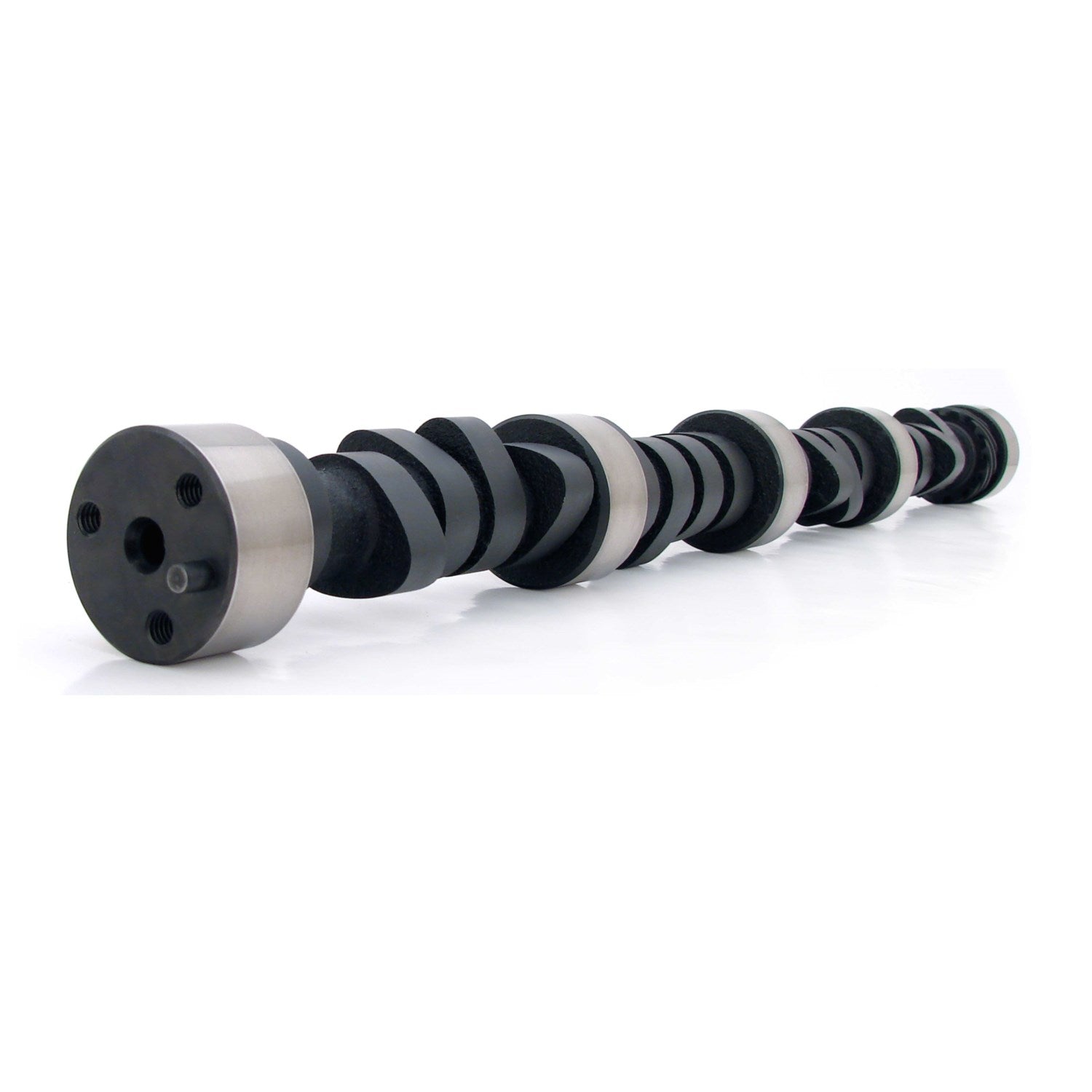

Drag Race/Tight Lash NIT 266/274 Solid Flat Cam for Chevrolet Small Block |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_INV |
D-Race/T-Lash NIT 266/274 S-Flt Cam SBC |
| Description_EXT |
350-400, 12:1 compression, 4800+ stall. Nitrided. For big tracks with unrestricted 377-410 engines. Best with good heads and intake. Nitrided. |
| Description_SHP |
None |
| Description_SHO |
DR/TL 266/274 SFTSBC |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exemption Reason |
N/A |
| Usage |
Strip |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Lobe Separation |
106 |
| Camshaft Series |
Tight Lash |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. E.O. Number |
N/A |
| Exhaust Valve Lift |
0.59 |
| Lifters Included |
No |
| Lifter Type |
Solid Flat Tappet |
| Intake Valve Lift |
0.57 |
| Title |
Drag Race/Tight Lash NIT 266/274 Solid Flat Cam for Chevrolet Small Block |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Intake Duration |
296 |
| Advertised Exhaust Duration |
304 |
| Camshaft Material |
Nitrided Cast Iron |
| Assembly Lubricant Included |
Yes |
| Cam Type |
Solid Flat Tappet |
| Camshaft Gear Attachment |
3-Bolt |
| Amazon ASIN |
B002EDX6AW |
| Intake Duration at .050 Inch Lift |
259 |
| Valve Springs Required |
Yes |
| Exhaust Duration at .050 inch Lift |
266 |
| Grind Number |
296TLS-6 |
| Basic Operating RPM Range |
3500-7,500 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
