| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

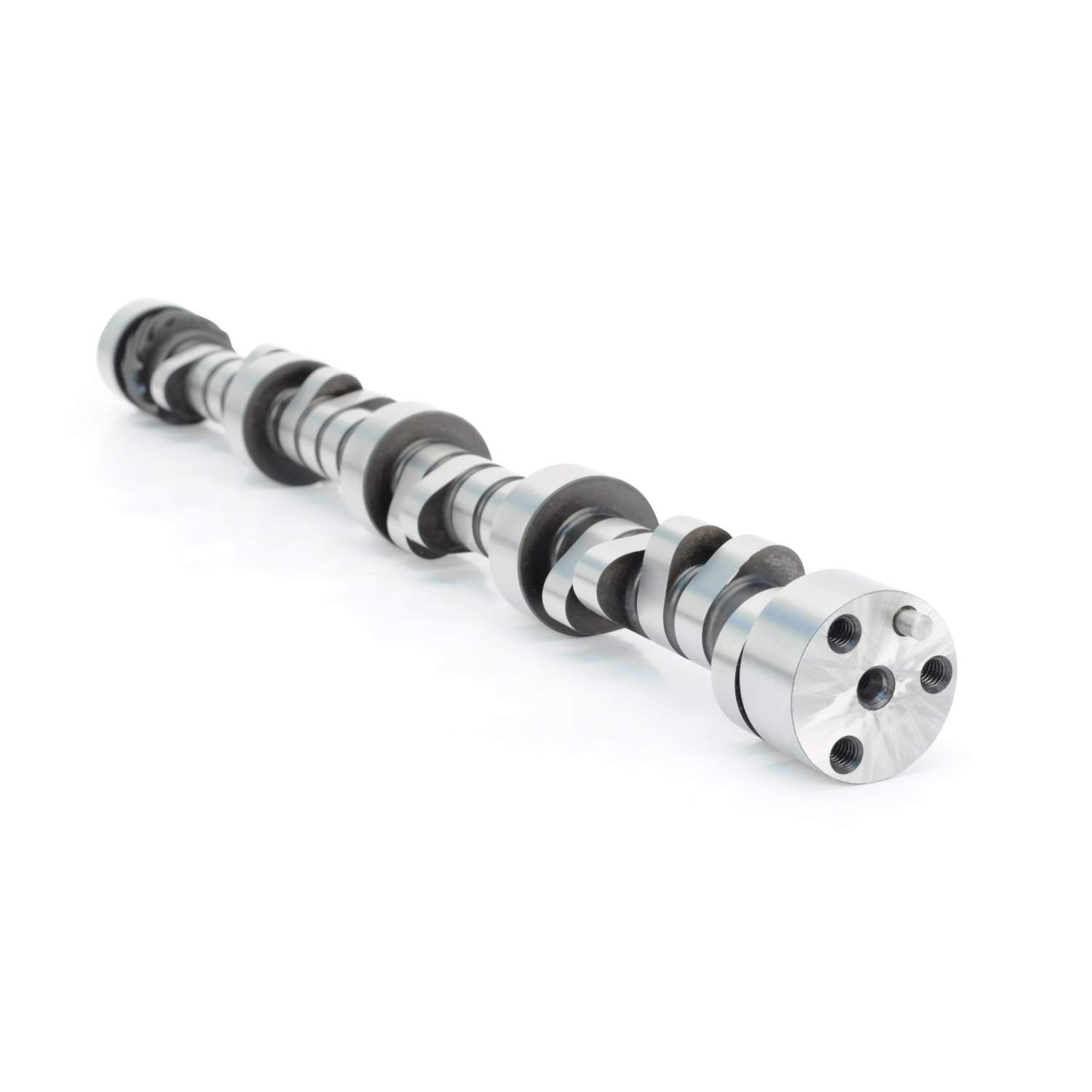

4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block |
| Description_EXT |
Best choice for street 383 stroker engines with good cylinder heads. Very wide power range. 2600+ Stall. |
| Description_INV |
4-Pattern 234/244 IB H-Roller Cam SBC |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHP |
None |
| Description_TRA |
Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Description_SHO |
4Pt 234/244 HRlr SBC |
| Inboard Intake Valve Lift |
0.627 |
| Inboard Exhaust Valve Lift |
0.614 |
| Lifter Type |
Hydraulic Roller |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Series |
4-Pattern Small Base Circle |
| Advertised Outboard Intake Duration |
289 |
| Advertised Inboard Intake Duration |
287 |
| Assembly Lubricant Included |
No |
| Outboard Exhaust Valve Lift |
0.618 |
| Grind Number |
287QS9 |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Usage |
Street/Strip |
| Title |
4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block |
| Inboard Intake Duration at .050 Inch Lift |
234 |
| Cam Type |
Hydraulic Roller |
| Inboard Exhaust Duration at .050 inch Lift |
244 |
| Camshaft Material |
Billet Steel |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Outboard Exhaust Duration |
301 |
| C.A.R.B. Exemption Reason |
N/A |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Basic Operating RPM Range |
2,400-6,700 |
| Outboard Exhaust Duration at .050 inch Lift |
246 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Amazon ASIN |
B00CWZW2B6 |
| Lifters Included |
No |
| Valve Springs Required |
Yes |
| Outboard Intake Valve Lift |
0.63 |
| C.A.R.B. E.O. Number |
N/A |
| Outboard Intake Duration at .050 Inch Lift |
236 |
| Advertised Inboard Exhaust Duration |
299 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Camshaft Gear Attachment |
3-Bolt |
| Length |
3.0000 |
| Width |
7.0000 |
| Height |
12.0000 |
| Weight |
9.0000 |
