| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_EXT |
Street/strip. Best at wide-open throttle. Need all upgrades with 2600+ converter. 9.5:1 compression. |
| Description_DES |

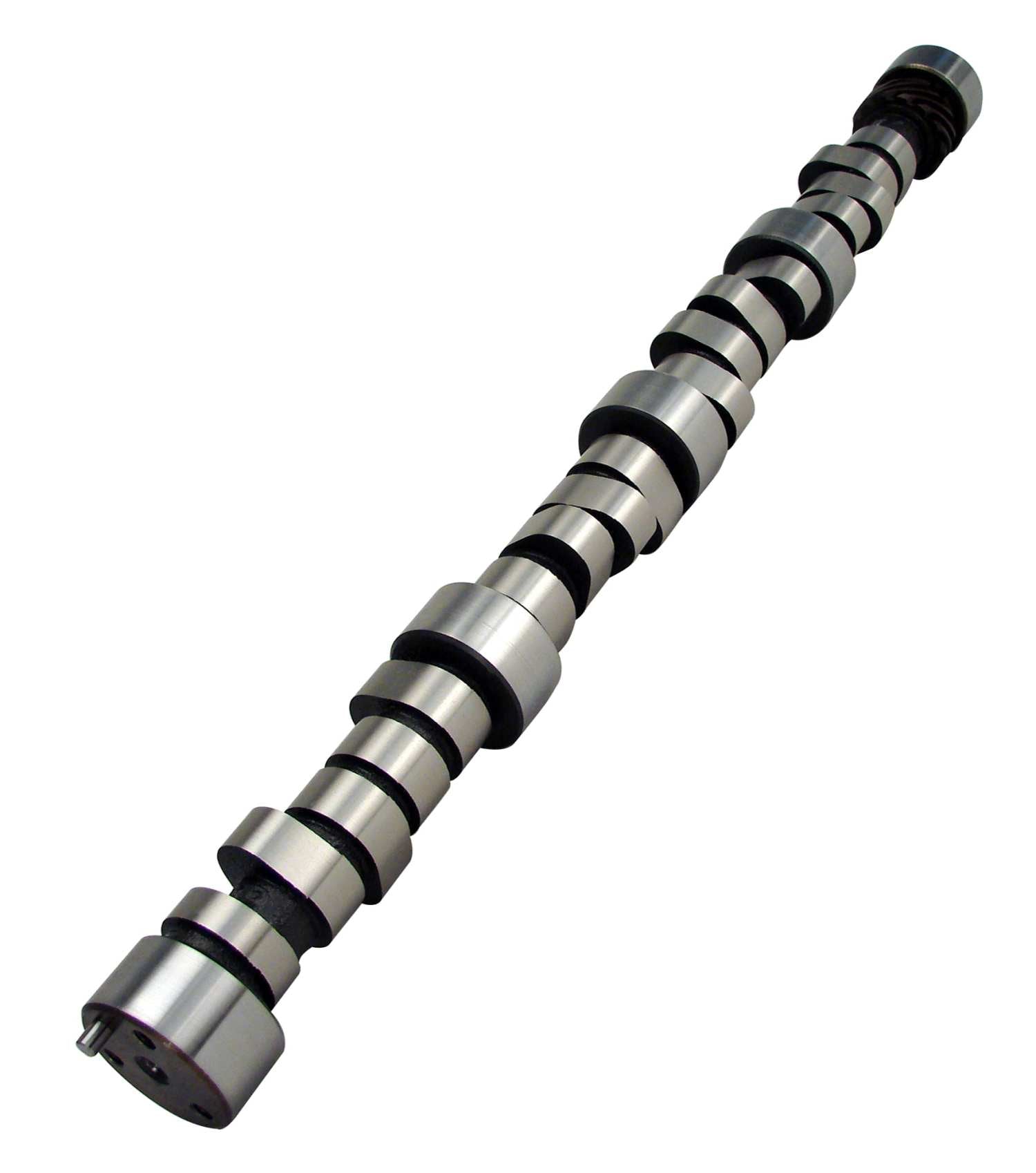

XFI 242/248 Hydraulic Roller Cam for Chevrolet Small Block |
| Description_INV |
XFI 242/248 Hydraulic Roller Cam SBC |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHP |
None |
| Description_TRA |
Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Description_SHO |
XFI 242/248 HRlr SBC |
| Lifters Included |
No |
| C.A.R.B. E.O. Number |
N/A |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Valve Lift |
0.579 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Usage |
Street/Performance |
| Camshaft Series |
XFI |
| C.A.R.B. Exemption Reason |
N/A |
| Valve Springs Required |
Yes |
| Assembly Lubricant Included |
No |
| SK-Kit Upgrade |
SK12-468-8 |
| Lifter Type |
Hydraulic Roller |
| Intake Valve Lift |
0.584 |
| Title |
XFI 242/248 Hydraulic Roller Cam for Chevrolet Small Block |
| Lobe Separation |
113 |
| Basic Operating RPM Range |
2,200-6,200 |
| Cam and Lifter Kit Upgrade |
CL12-468-8 |
| Advertised Intake Duration |
292 |
| Intake Duration at .050 Inch Lift |
242 |
| Camshaft Gear Attachment |
3-Bolt |
| Grind Number |
292XFI HR-13 |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Amazon ASIN |
B001G7BMD0 |
| Advertised Exhaust Duration |
300 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Exhaust Duration at .050 inch Lift |
248 |
| Cam Type |
Hydraulic Roller |
| K-Kit Upgrade |
K12-468-8 |
| Camshaft Material |
Austempered Ductile Iron |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
9.0000 |
