| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

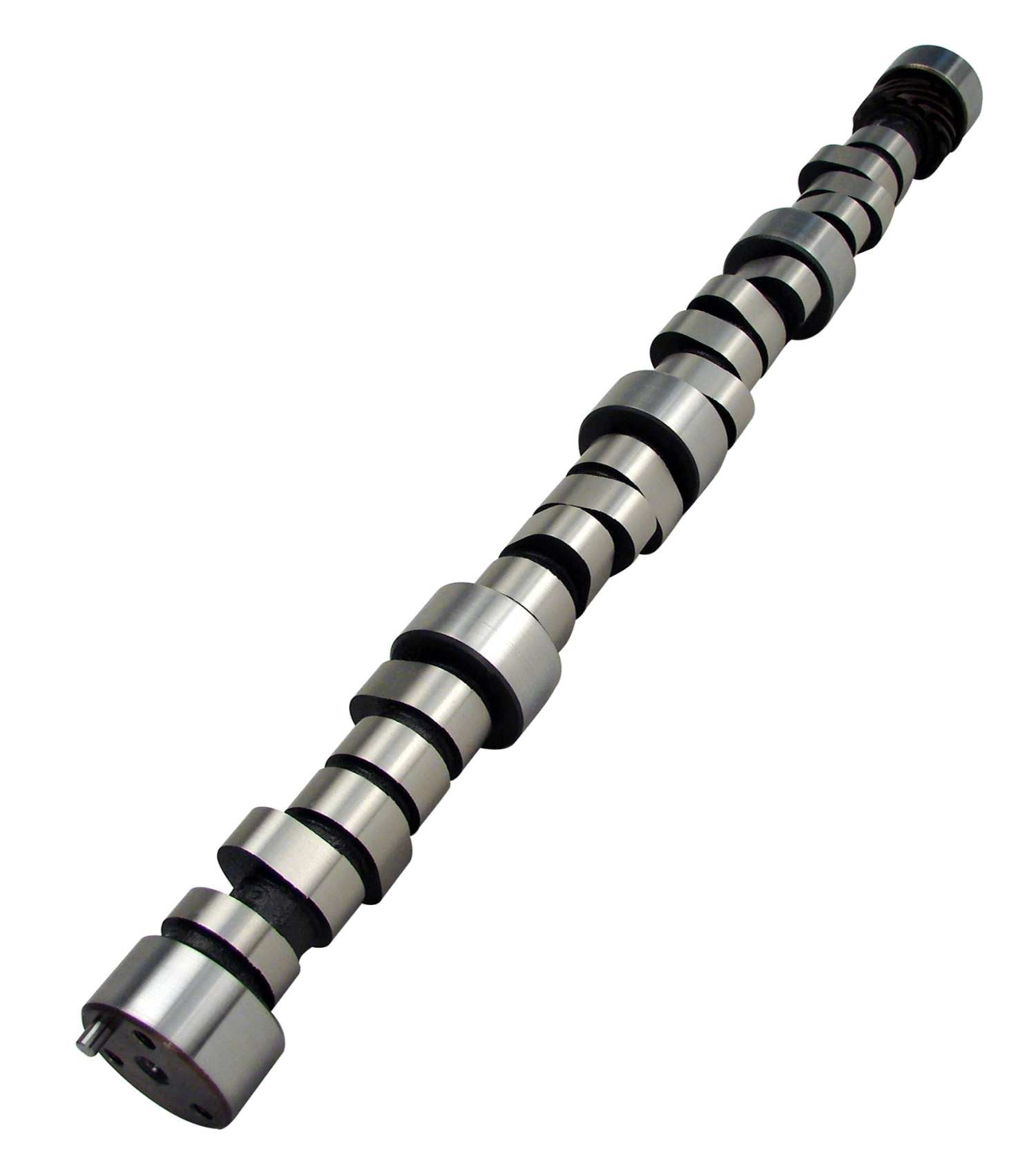

Xtreme Marine 212/218 Hydraulic Roller Cam for Chevrolet Small Block |
| Description_EXT |
Good for inboard/outboard pleasure boat, skiing and good economy. |
| Description_INV |
Xtreme Marine 212/218 Hyd Roller Cam SBC |
| Description_SHO |
XM 212/218 HRlrSBC |
| Description_SHP |
None |
| Description_TRA |
Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Lifters Included |
No |
| C.A.R.B. E.O. Number |
N/A |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Duration at .050 inch Lift |
218 |
| Camshaft Gear Attachment |
3-Bolt |
| Cam Type |
Hydraulic Roller |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Usage |
Marine |
| Camshaft Series |
Xtreme Marine |
| C.A.R.B. Exemption Reason |
N/A |
| Exhaust Valve Lift |
0.495 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| SK-Kit Upgrade |
SK12-416-8 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Amazon ASIN |
B000P5G6KI |
| Lobe Separation |
112 |
| Valve Springs Required |
Yes |
| Advertised Intake Duration |
264 |
| Intake Valve Lift |
0.488 |
| Lifter Type |
Hydraulic Roller |
| Grind Number |
XM264HR |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Assembly Lubricant Included |
No |
| Title |
Xtreme Marine 212/218 Hydraulic Roller Cam for Chevrolet Small Block |
| Basic Operating RPM Range |
1,200-5,200 |
| Cam and Lifter Kit Upgrade |
CL12-416-8 |
| Advertised Exhaust Duration |
270 |
| Camshaft Material |
Austempered Ductile Iron |
| K-Kit Upgrade |
K12-416-8 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Intake Duration at .050 Inch Lift |
212 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
9.0000 |
