| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

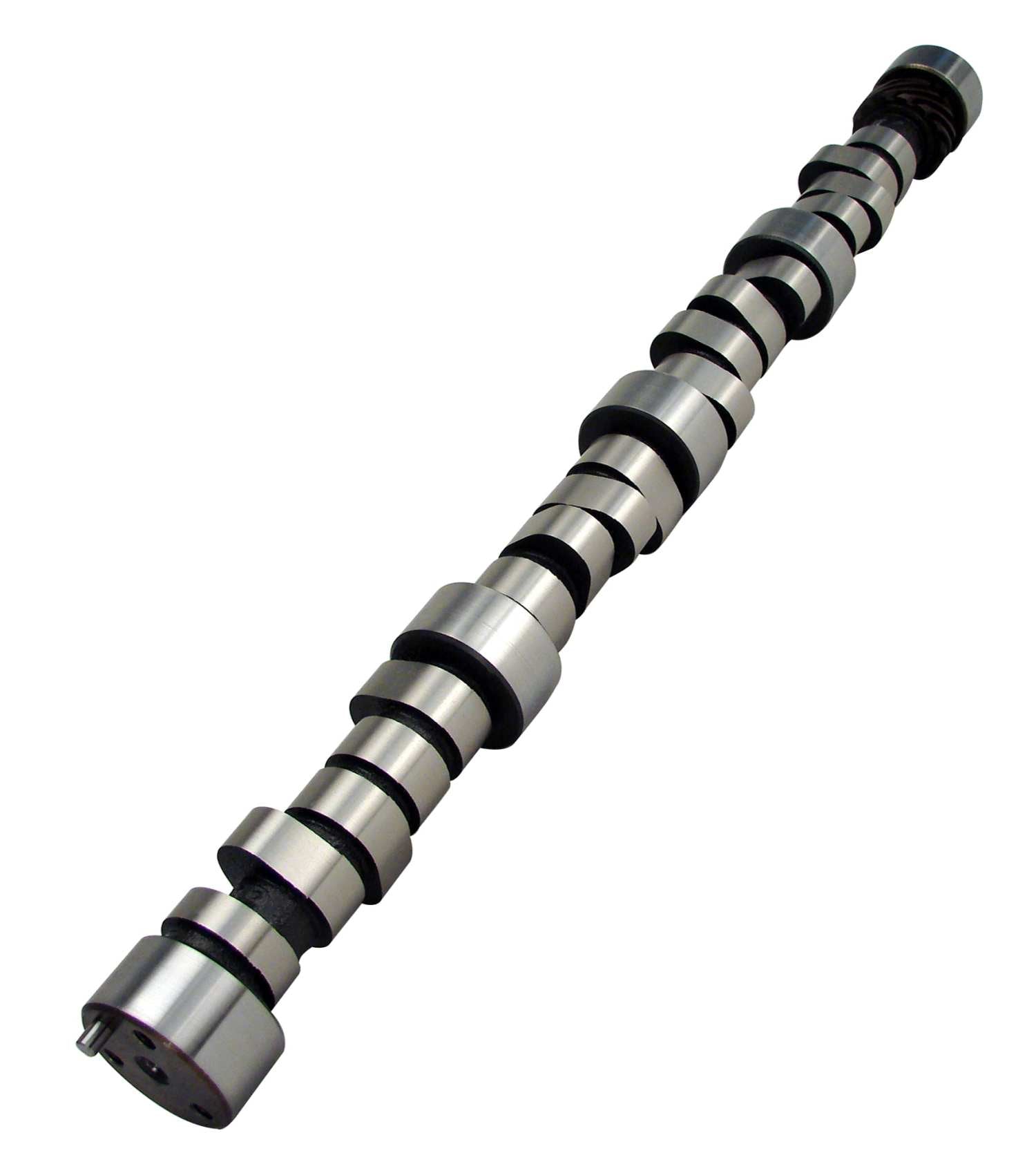

Xtreme 4x4 206/210 Hydraulic Roller Cam for Chevrolet Small Block |
| Description_INV |
Xtreme 4x4 206/210 Hyd Roller Cam SBC |
| Description_EXT |
Strong torque, good mileage, for stock to mildly modified engines. |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHP |
None |
| Description_TRA |
Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Description_SHO |
X4 206/210 HRlr SBC |
| C.A.R.B. E.O. Number |
N/A |
| Camshaft Gear Attachment |
3-Bolt |
| Lifters Included |
No |
| Exhaust Duration at .050 inch Lift |
210 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Cam Type |
Hydraulic Roller |
| Intake Valve Lift |
0.458 |
| Amazon ASIN |
B000P5B9X2 |
| C.A.R.B. Exemption Reason |
N/A |
| Lifter Type |
Hydraulic Roller |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Valve Springs Required |
Yes |
| Camshaft Series |
Xtreme 4x4 |
| Basic Operating RPM Range |
1,000-5,000 |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| SK-Kit Upgrade |
SK12-409-8 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Assembly Lubricant Included |
No |
| Intake Duration at .050 Inch Lift |
206 |
| Exhaust Valve Lift |
0.458 |
| Lobe Separation |
111 |
| Advertised Intake Duration |
258 |
| Cam and Lifter Kit Upgrade |
CL12-409-8 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Exhaust Duration |
262 |
| K-Kit Upgrade |
K12-409-8 |
| Camshaft Material |
Austempered Ductile Iron |
| Title |
Xtreme 4x4 206/210 Hydraulic Roller Cam for Chevrolet Small Block |
| Grind Number |
X4258HR |
| Usage |
Street/Performance |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
