| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

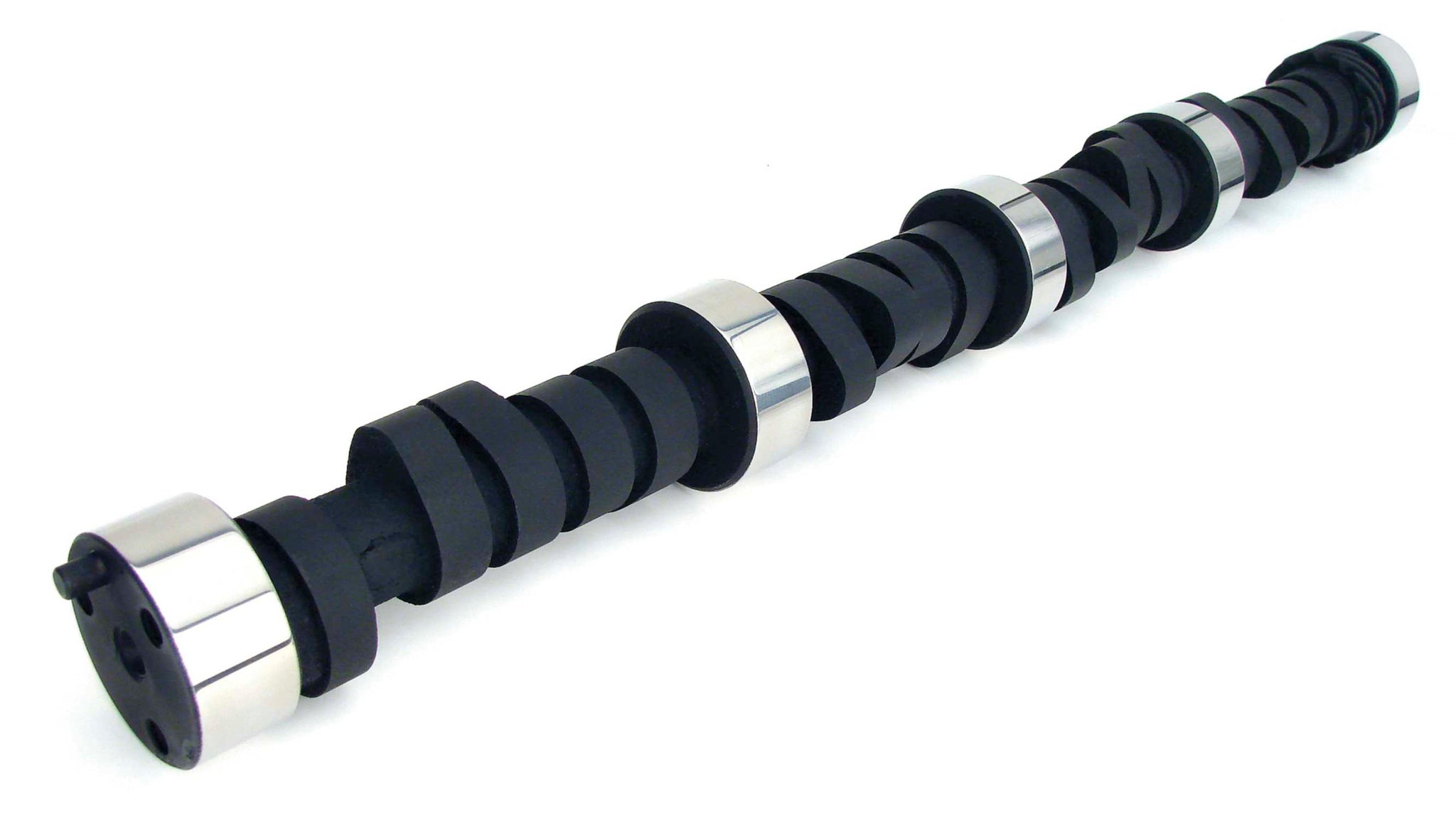

Blower and Turbo 270/280 Solid Flat Cam for Chevrolet Small Block |
| Description_INV |
Blower/Turbo 270/280 Solid Flat Cam SBC |
| Description_EXT |
Serious bracket race and very hot street with 471 or larger blower. |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHO |
B/T 270/280 SFTSBC |
| Description_SHP |
None |
| Grind Number |
310BS-14 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Intake Duration at .050 Inch Lift |
270 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Camshaft Gear Attachment |
3-Bolt |
| Intake Valve Lift |
0.563 |
| Title |
Blower and Turbo 270/280 Solid Flat Cam for Chevrolet Small Block |
| Advertised Exhaust Duration |
320 |
| C.A.R.B. E.O. Number |
N/A |
| Lifter Type |
Solid Flat Tappet |
| Lobe Separation |
114 |
| Cam Type |
Solid Flat Tappet |
| Exhaust Duration at .050 inch Lift |
280 |
| Basic Operating RPM Range |
3500-7,000 |
| Amazon ASIN |
B000V9HYMW |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exemption Reason |
N/A |
| Valve Springs Required |
Yes |
| Assembly Lubricant Included |
Yes |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Usage |
Street/Performance |
| Advertised Intake Duration |
310 |
| Exhaust Valve Lift |
0.563 |
| Lifters Included |
No |
| Camshaft Series |
Blower and Turbo |
| Camshaft Material |
Cast Iron |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
