| Description_ASM |
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF |
Engine Camshaft |
| Description_DES |

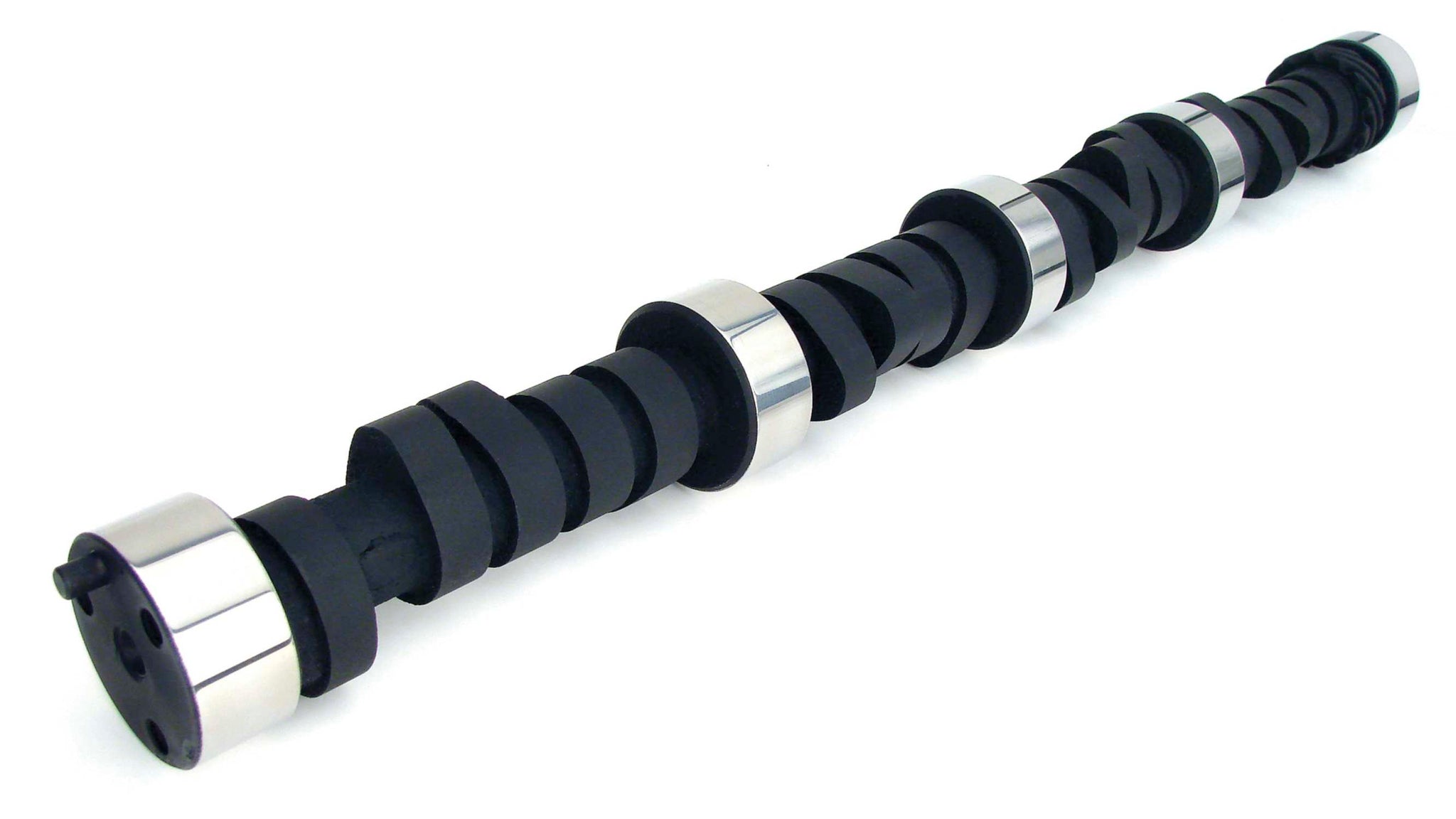

Magnum 224/224 Hydraulic Flat Cam for Chevrolet Small Block |
| Description_EXT |
Great for street machines. Needs 2500+stall, headers and gears. Rough idle. |
| Description_INV |
Magnum 224/224 Hyd Flat Cam for SBC |
| Description_KEY |
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHP |
None |
| Description_SHO |
Mag 224/224 HFTSBC |
| K-Kit Upgrade |
K12-212-2 |
| Amazon ASIN |
B000CIQ784 |
| Intake Duration at .050 Inch Lift |
230 |
| Grind Number |
280H |
| Exhaust Duration at .050 inch Lift |
230 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Exhaust Duration |
280 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Cam Type |
Hydraulic Flat Tappet |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Cam and Lifter Kit Upgrade |
CL12-212-2 |
| Valve Springs Required |
Yes |
| C.A.R.B. E.O. Number |
N/A |
| Intake Valve Lift |
0.48 |
| Lobe Separation |
110 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason |
N/A |
| Camshaft Gear Attachment |
3-Bolt |
| Basic Operating RPM Range |
2,000-6,000 |
| Assembly Lubricant Included |
Yes |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lifter Type |
Hydraulic Flat Tappet |
| Camshaft Material |
Cast Iron |
| Engine Family |
Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Series |
Magnum |
| Lifters Included |
No |
| SK-Kit Upgrade |
SK12-212-2 |
| Exhaust Valve Lift |
0.48 |
| Title |
Magnum 224/224 Hydraulic Flat Cam for Chevrolet Small Block |
| Usage |
Street/Strip |
| Advertised Intake Duration |
280 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
9.0000 |
