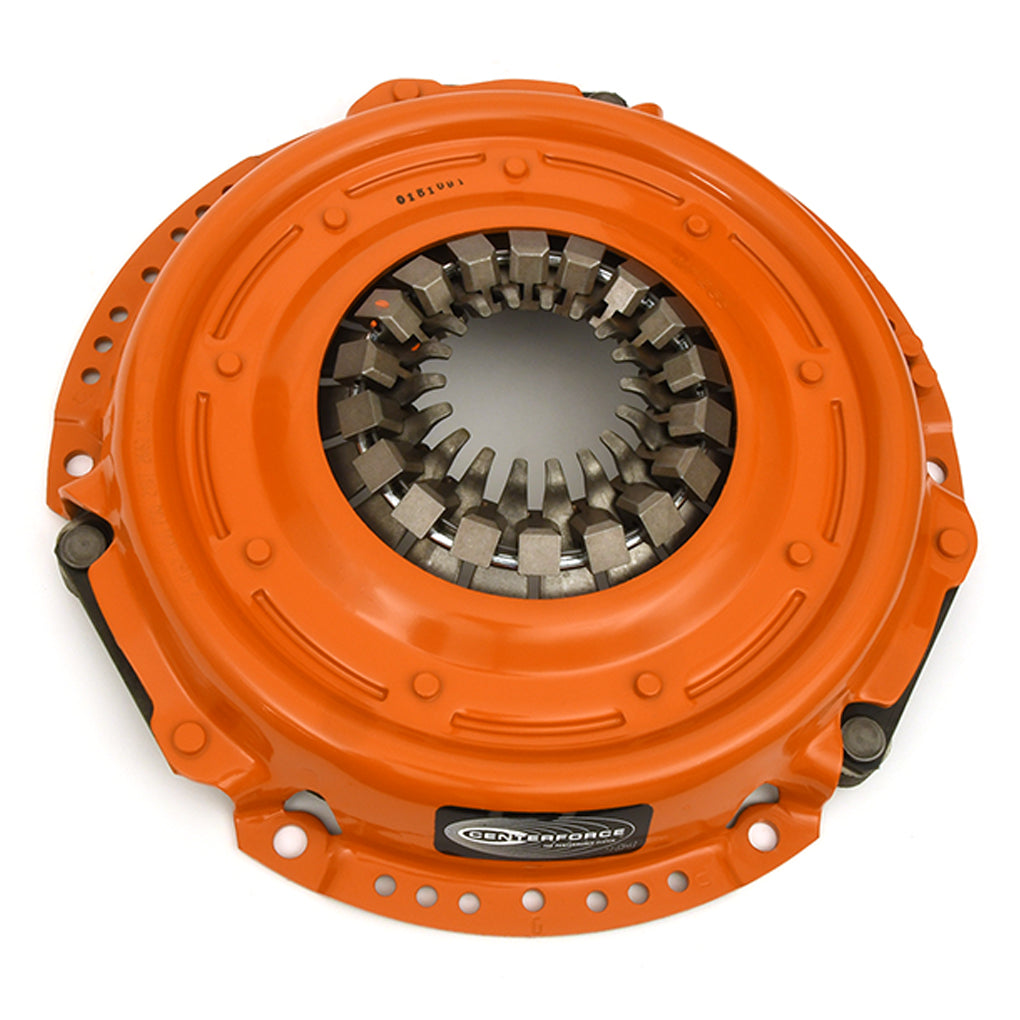

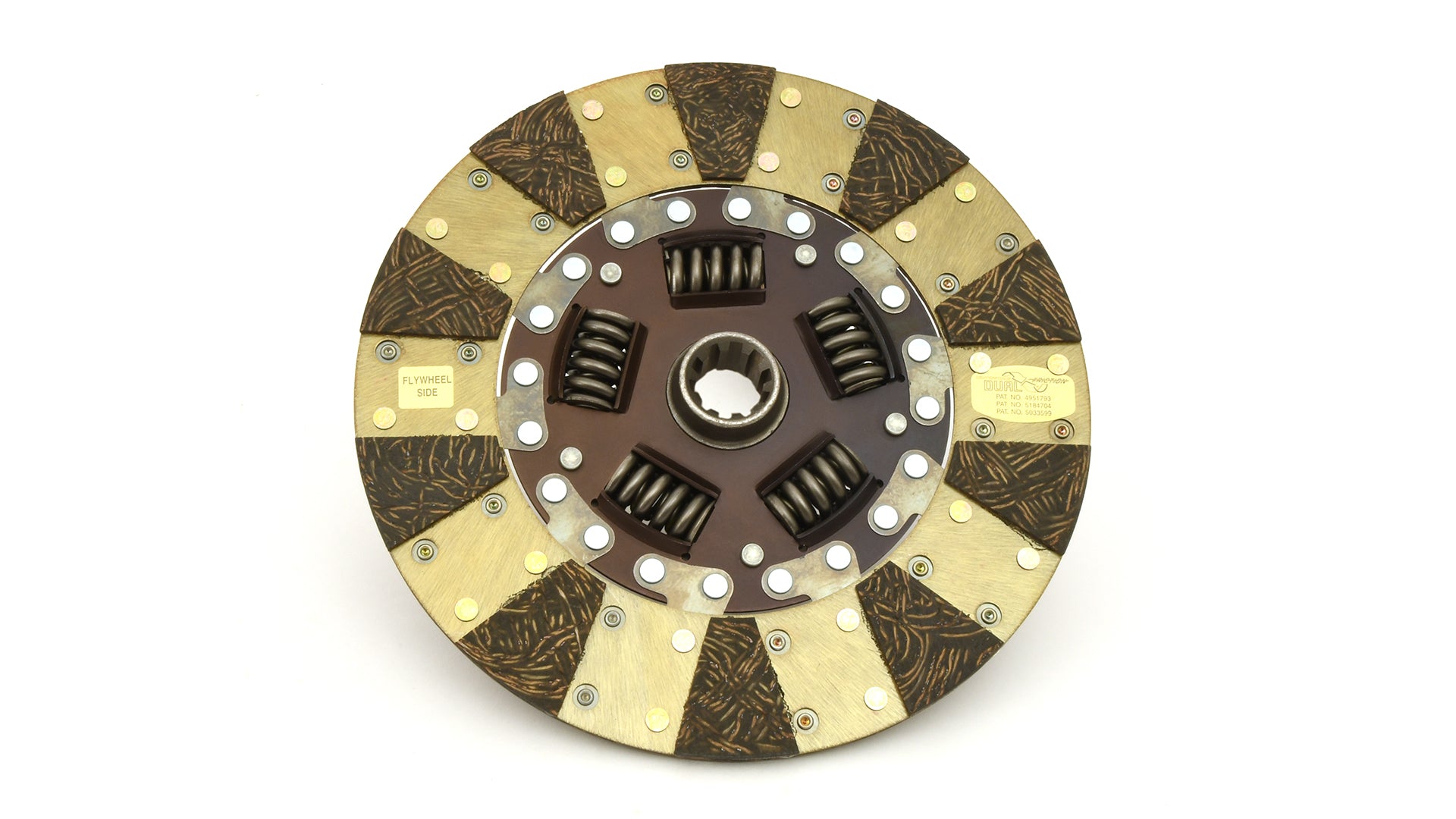

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Specifications:
| Description_ABR |
DF-K |
| Description_APS |
1994 thru 2006 Jeep Trucks 4.0L |
| Description_ASM |
1994 thru 2006 Jeep Trucks 4.0L |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Dual Friction(R), Clutch Kit |
| Description_FAB |
10.4" Diameter; |
| Description_LAB |

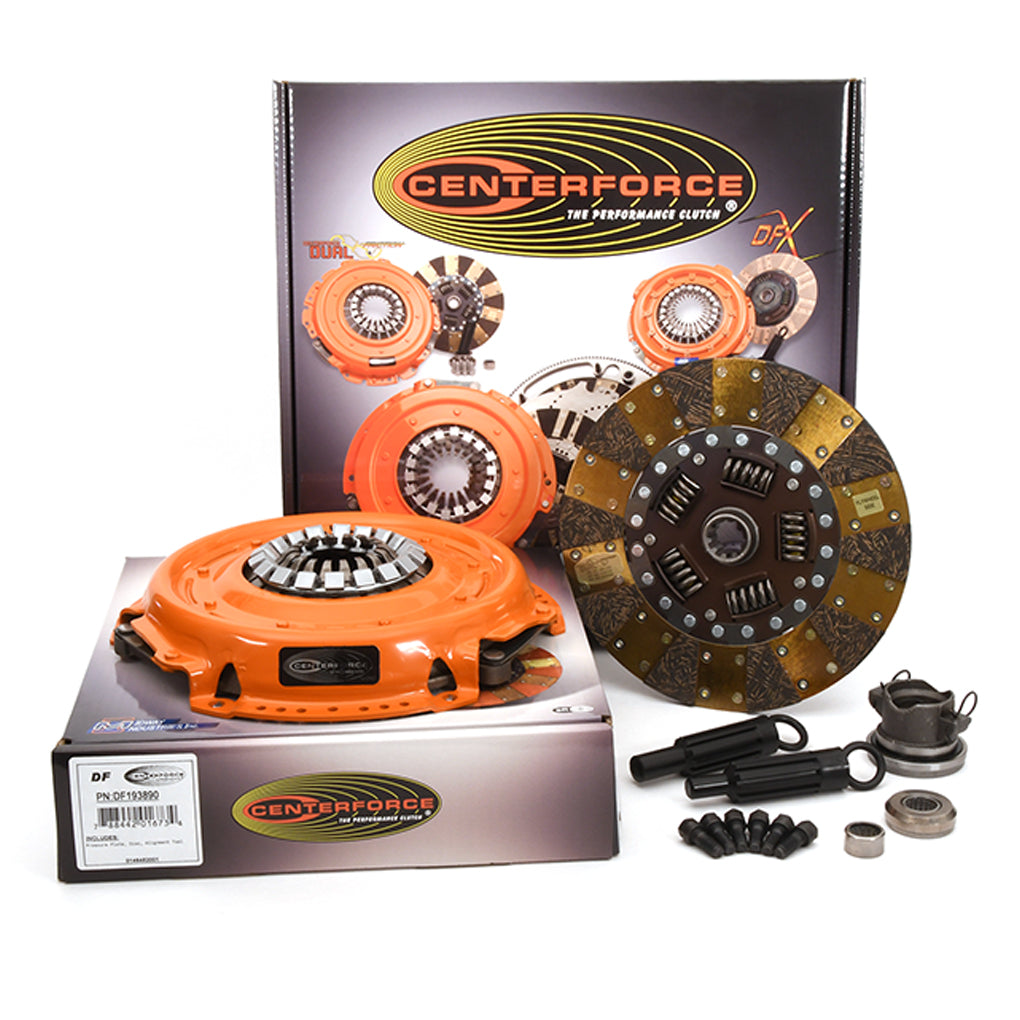

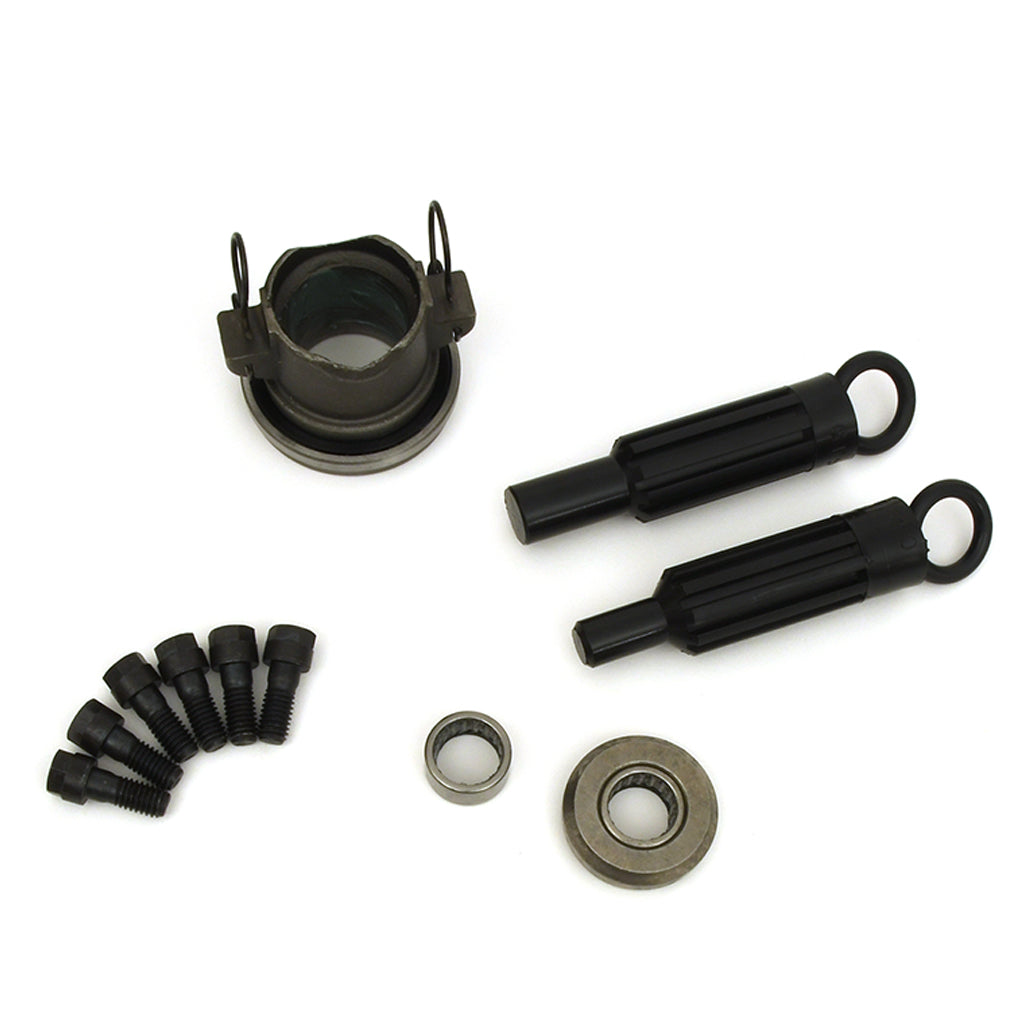

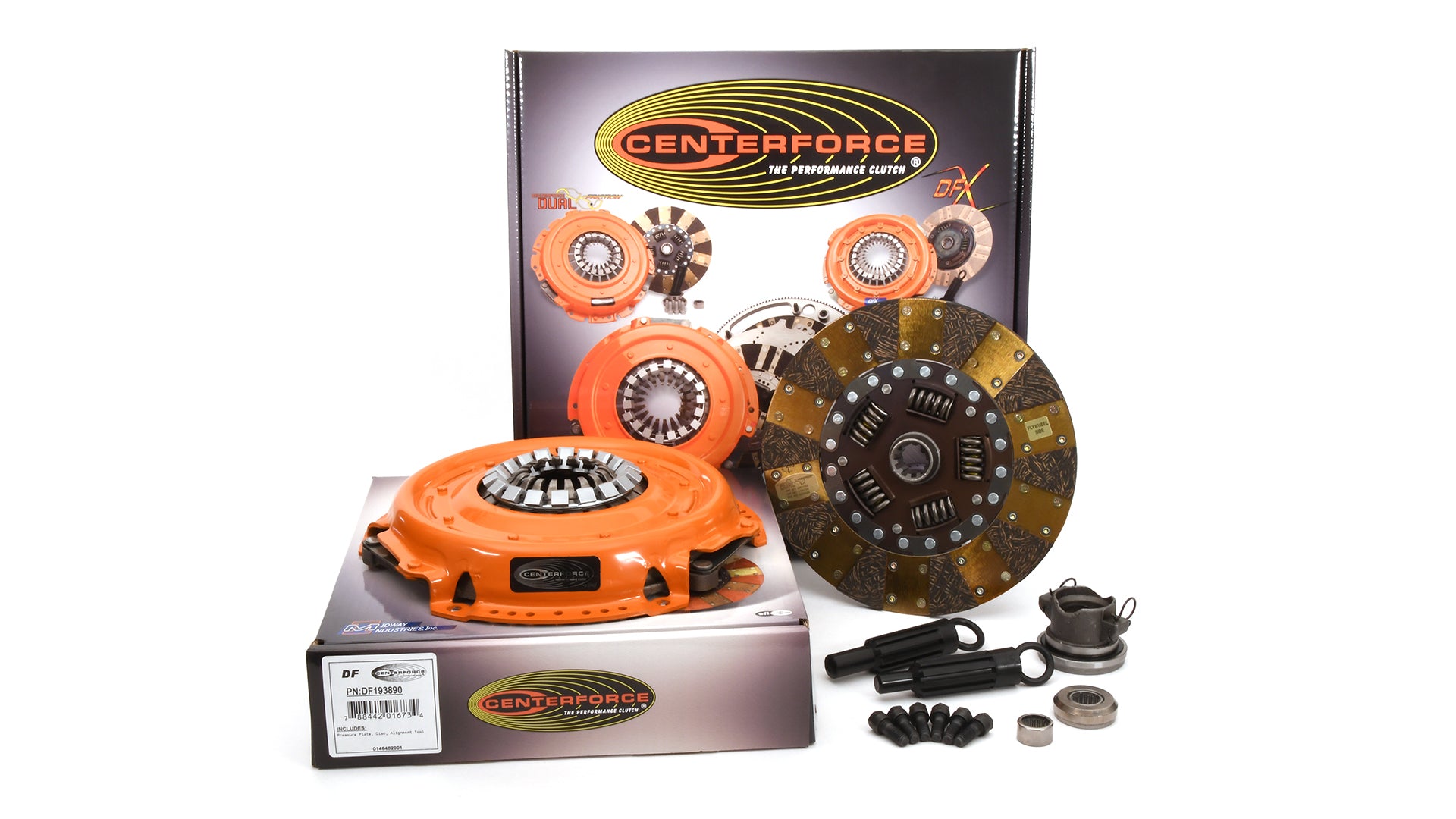

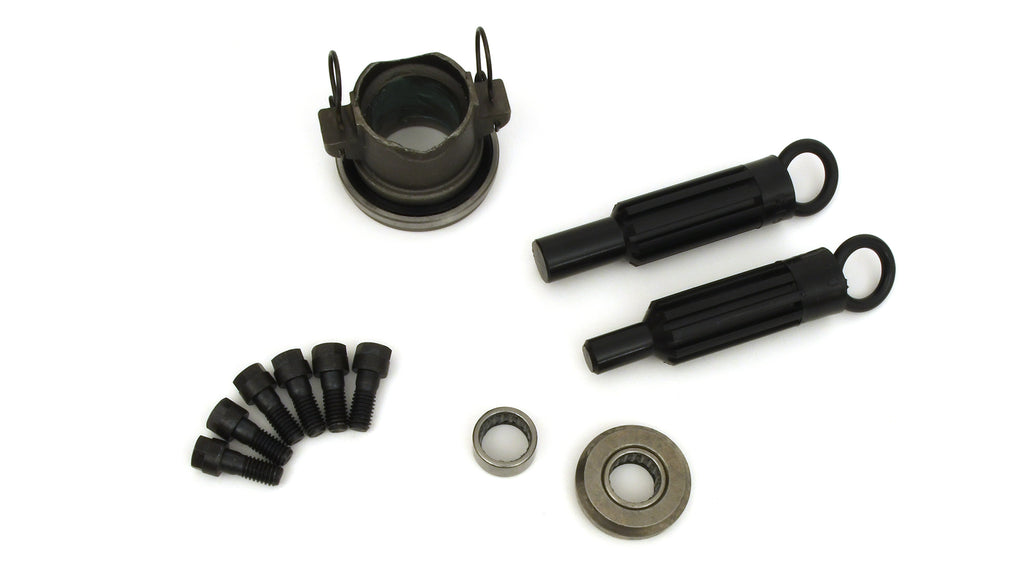

Cover, Disc, T.O.B., Pilot Bearings, Bolts, Align Tool |
| Description_EXT |
The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination. |
| Description_INV |
Centerforce, Full Clutch Kits |
| Description_MKT |
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications. |
| Description_SHO |
Full Clutch Kits |
| Description_SLA |

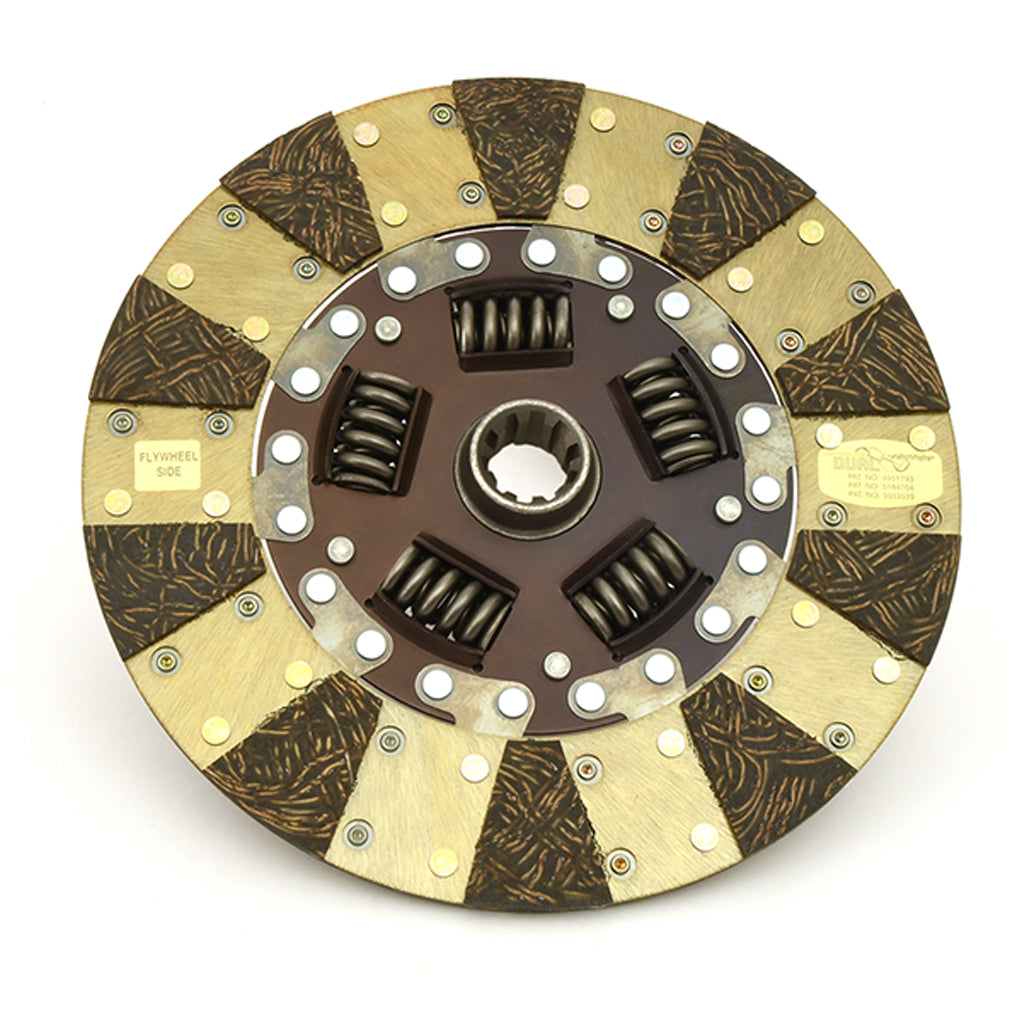

Clutch Kit, Dual Friction, 10.4-IN/264.2-MM, 1-1/8-IN - 10 Spl., Sprung Full face/Segmented face Organic/Carbon Composite Disc |
| Description_SLD |
Dual Friction, 10.4-IN, 1.125-IN - 10 Spl. |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid |
Sprung |
| Input Spline Quantity |
10 |
| Made In The USA |
Assembled |
| Clutch Bolt Size |
3/8 - 16 X 0.900 |
| Clutch Bolt Type |
Shouldered |
| Counterweight Assist |
YES |
| Title |
PN: KDF939064 - Dual Friction, Clutch Kit |
| Alignment Tool Included |
Yes |
| Clutch Bolt Pattern |
2 |
| Clutch Disc Diameter |
10.4 |
| Clutch Disc Diameter |
264.2 |
| Disc Material |
Organic/Carbon composite |
| Disc Type |
Full face/Segmented face |
| Input Shaft Diameter |
1.125 |
| Material |

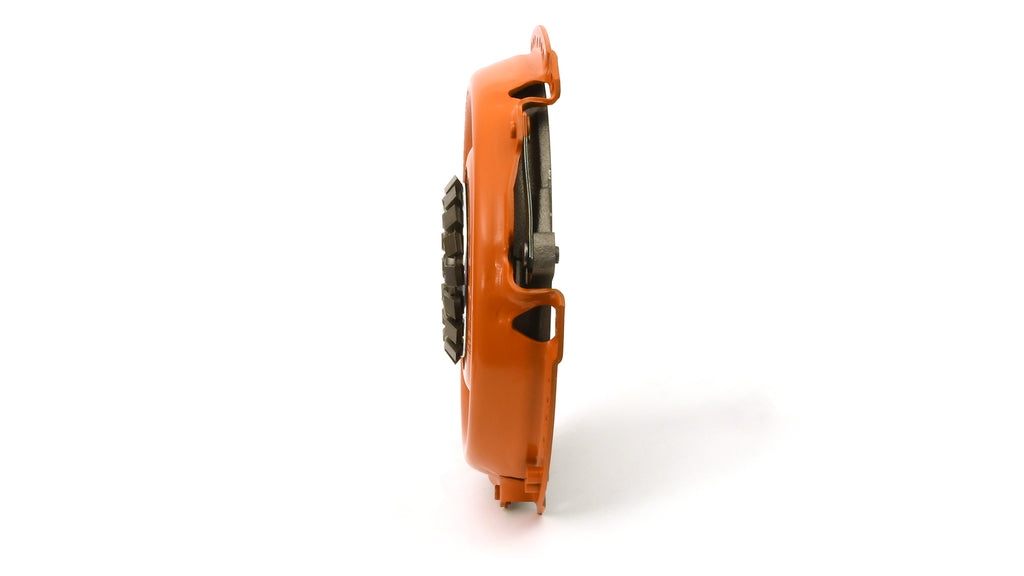

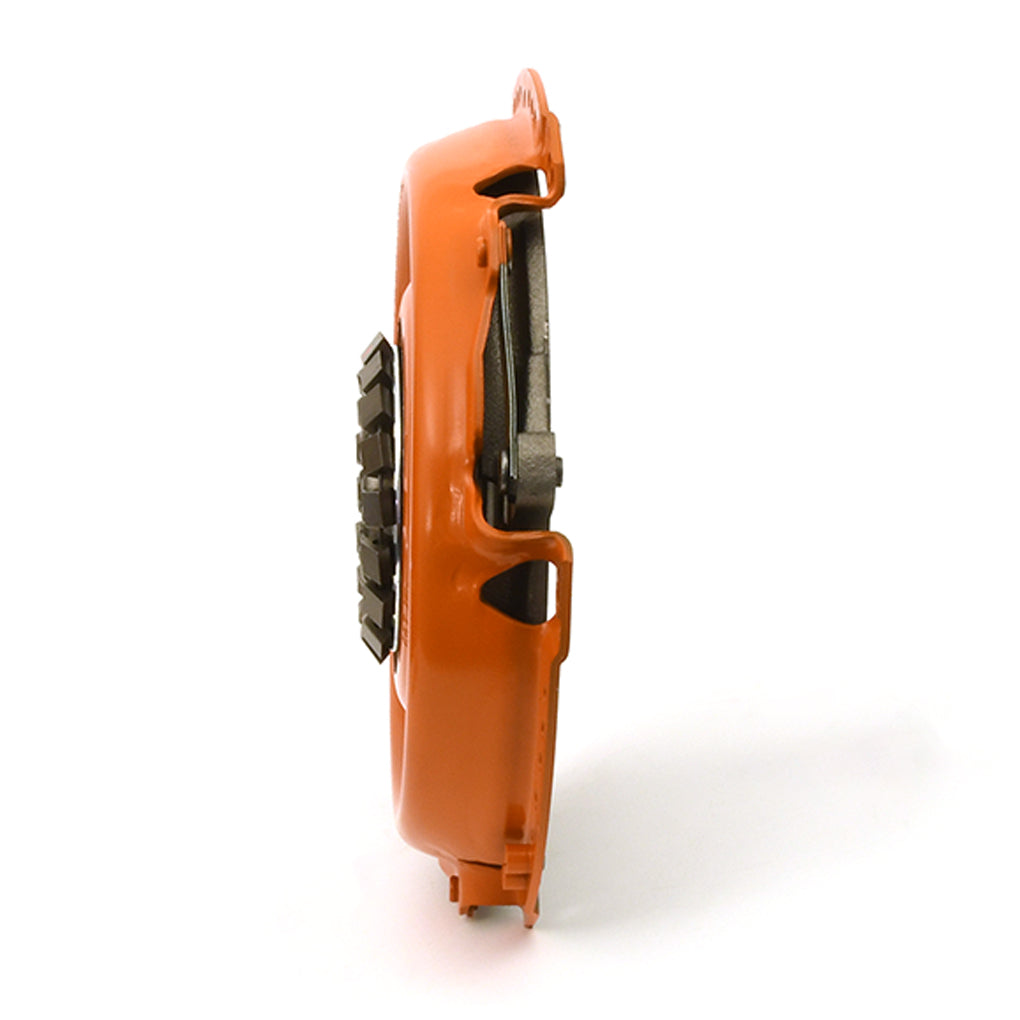

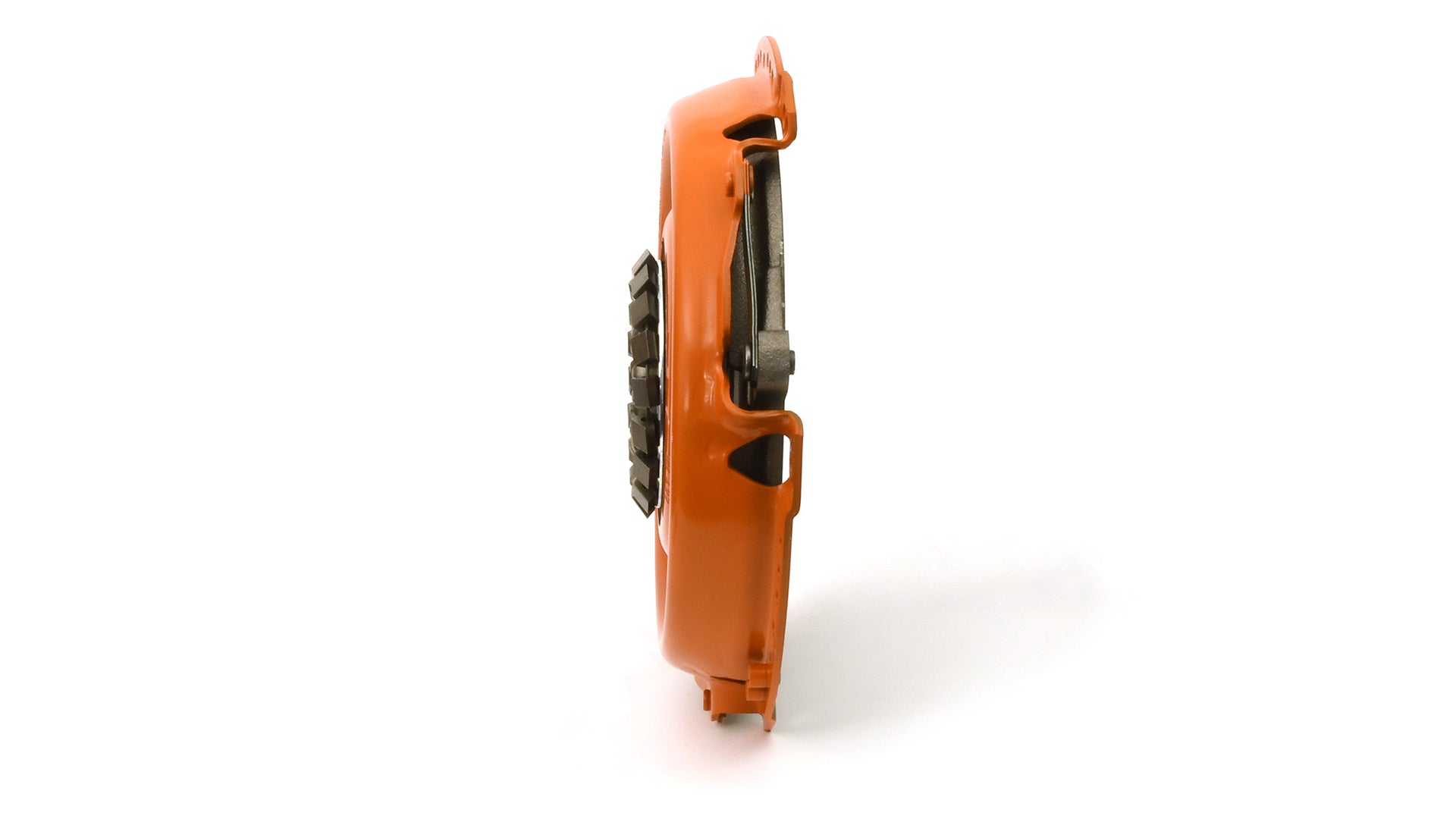

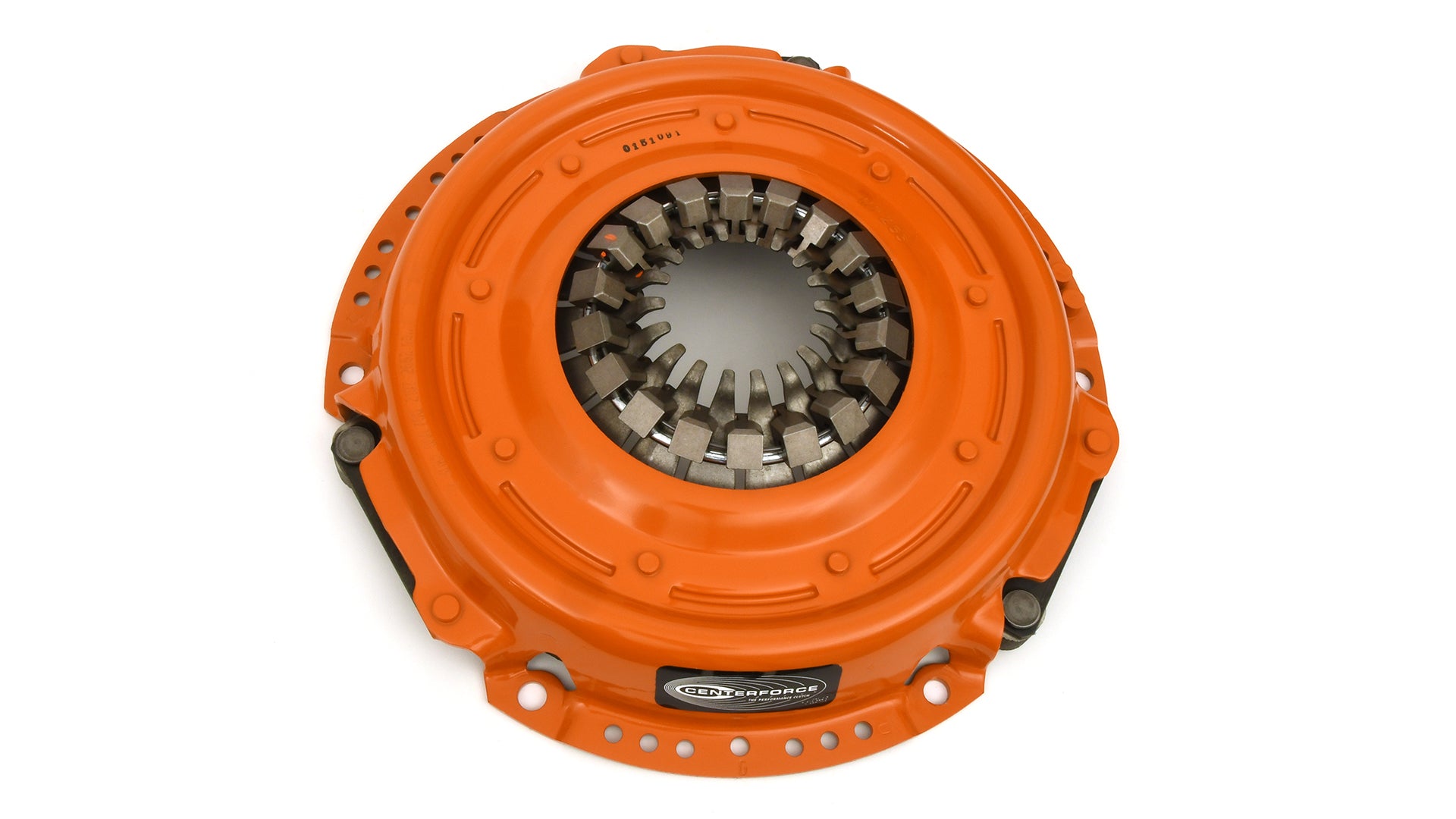

Cast Iron Pressure Plate / Full Face and Segmented Organic Friction |
| Mounting Hardware Included |
Yes |
| Pilot Bushing Included |
Yes |
| Release Bearing Included |
Yes |
| Torque Capacity |
521 |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
25.5000 |
