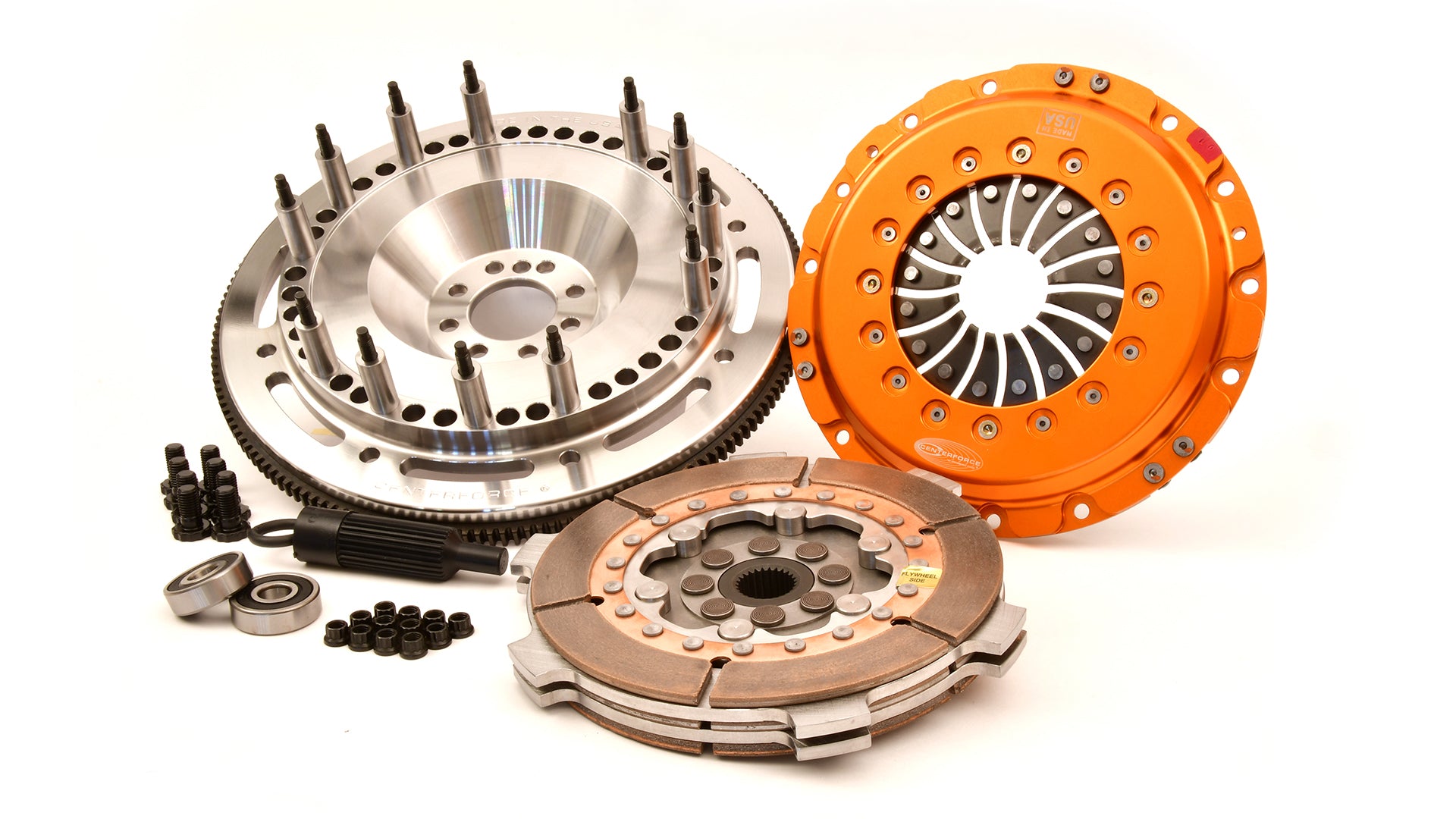

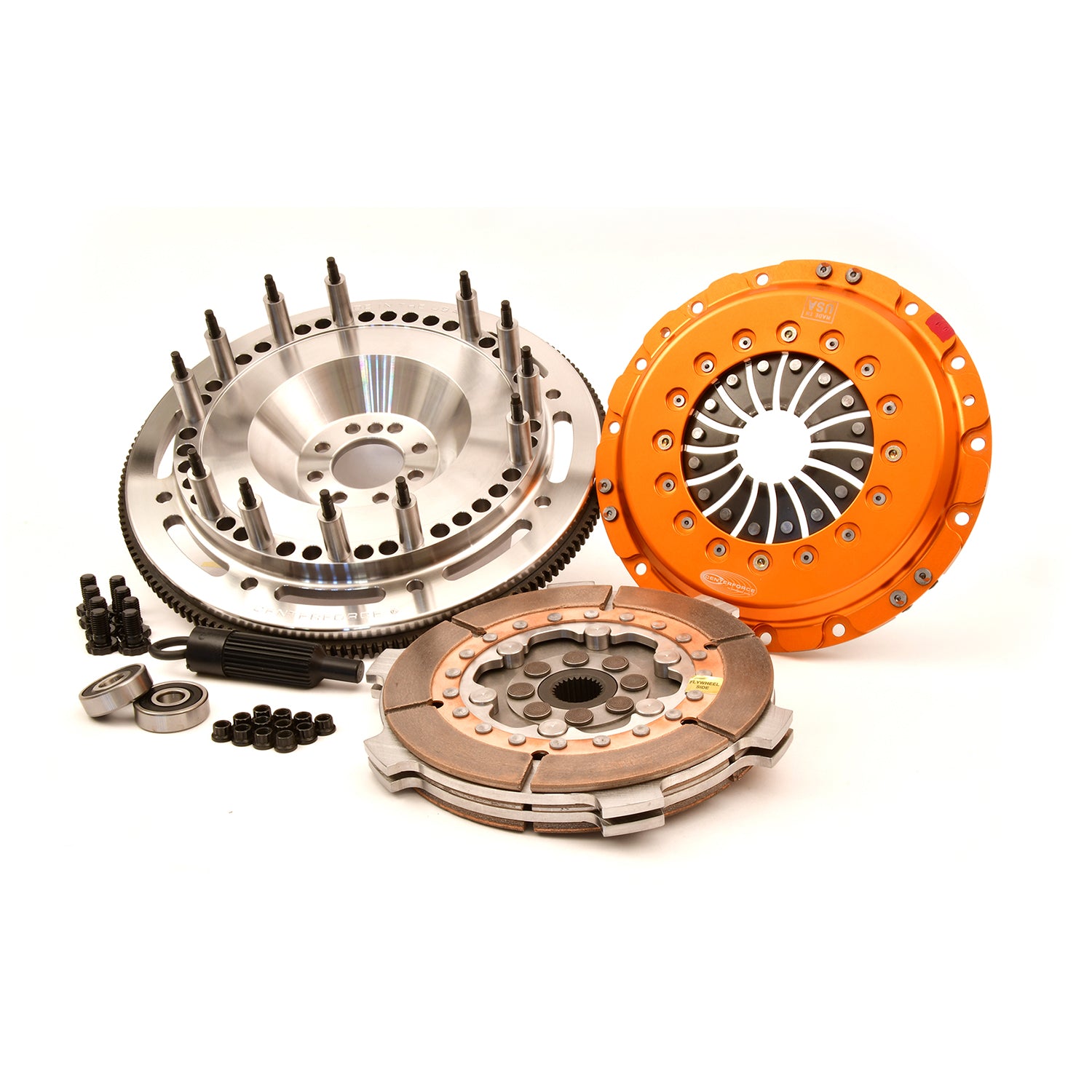

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications:
| Description_APS |
2014 thru 2019 Chevrolet Camaro and Corvette 6.2L |
| Description_ABR |
MDA |
| Description_ASM |
2014 thru 2019 Chevrolet Camaro and Corvette 6.2L |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
TRIAD(R) XDS, Clutch and Flywheel Kit |
| Description_FAB |
8.75" Diameter; |
| Description_LAB |
P.Plate, Discs, Floaters, Flywh, P.P.Bolts, A.Tool, Pilot Brgs |
| Description_EXT |
The Centerforce(R) TRIAD XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1200 ft/lbs. |
| Description_INV |
Centerforce, Full Kits W/Flywheel |
| Description_SLD |
TRIAD, 8.75-IN, 1.125-IN - 26 Spl., 1100 Ft/Lbs |
| Description_SLA |
Clutch and Flywheel Kit, TRIAD, 8.75-IN/222-MM, 1-1/8-IN - 26 Spl., Solid Disc, 1100 Ft/Lbs Trq. Cap. |
| Description_MKT |
The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners. |
| Description_SHO |
Full Kits W/Flywheel |
| Clutch Disc Diameter |
8.75 |
| Clutch Disc Diameter |
222 |
| Title |
PN: 838264077 - TRIAD XDS, Clutch and Flywheel Kit |
| Tooth Quantity |
168 |
| Replaceable Friction Surface |
N |
| Counterweight Assist |
No |
| Crankshaft Bolt Hole Quantity |
8 |
| Flywheel Crank Bolt Size |
MM11 x 1.50 x 23 |
| Material |
Cast Iron Pressure Plate / Full Face Metalic Friction |
| Ring Gear O.D. |
14.105 |
| Made In The USA |
Assembled |
| Alignment Tool Included |
Yes |
| Disc Type Sprung Solid |
Solid |
| Input Shaft Diameter |
1.125 |
| Input Spline Quantity |
26 |
| Mounting Hardware Included |
Yes |
| Pilot Bushing Included |
Yes |
| Torque Capacity |
1100 |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
50.9000 |
