Centerforce 836264042 TRIAD(R) DS, Clutch and Flywheel Kit

2 sold in last 8 days

Brand: Centerforce

SKU: ds_BDPL_836264042

In-Store:

Dist. Ctr: Out of stock

Product Code: Transmission Clutch and Flywheel Kit

$3,323.30

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Centerforce 836264042 TRIAD(R) DS, Clutch and Flywheel Kit

Details
Reviews

Details

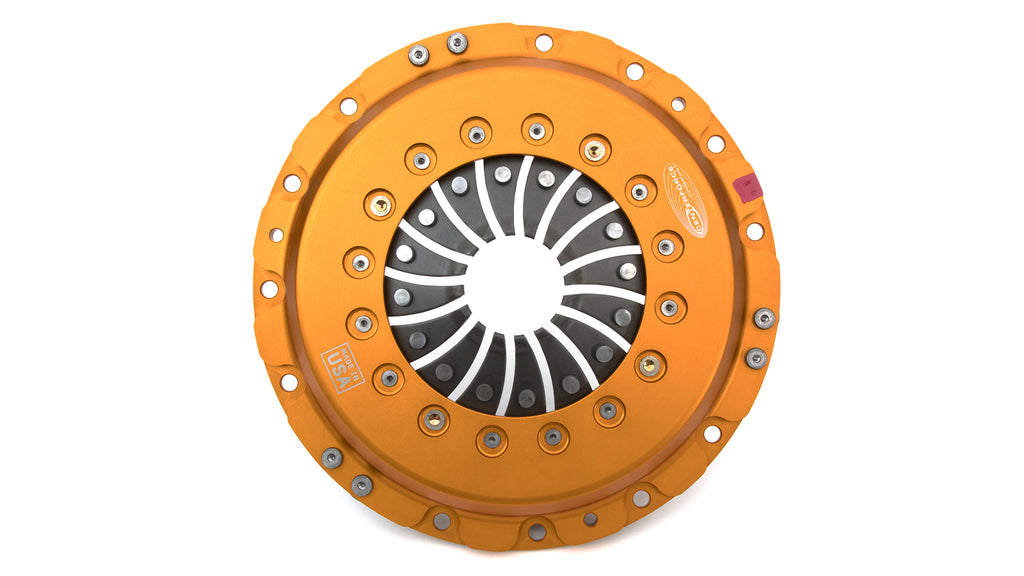

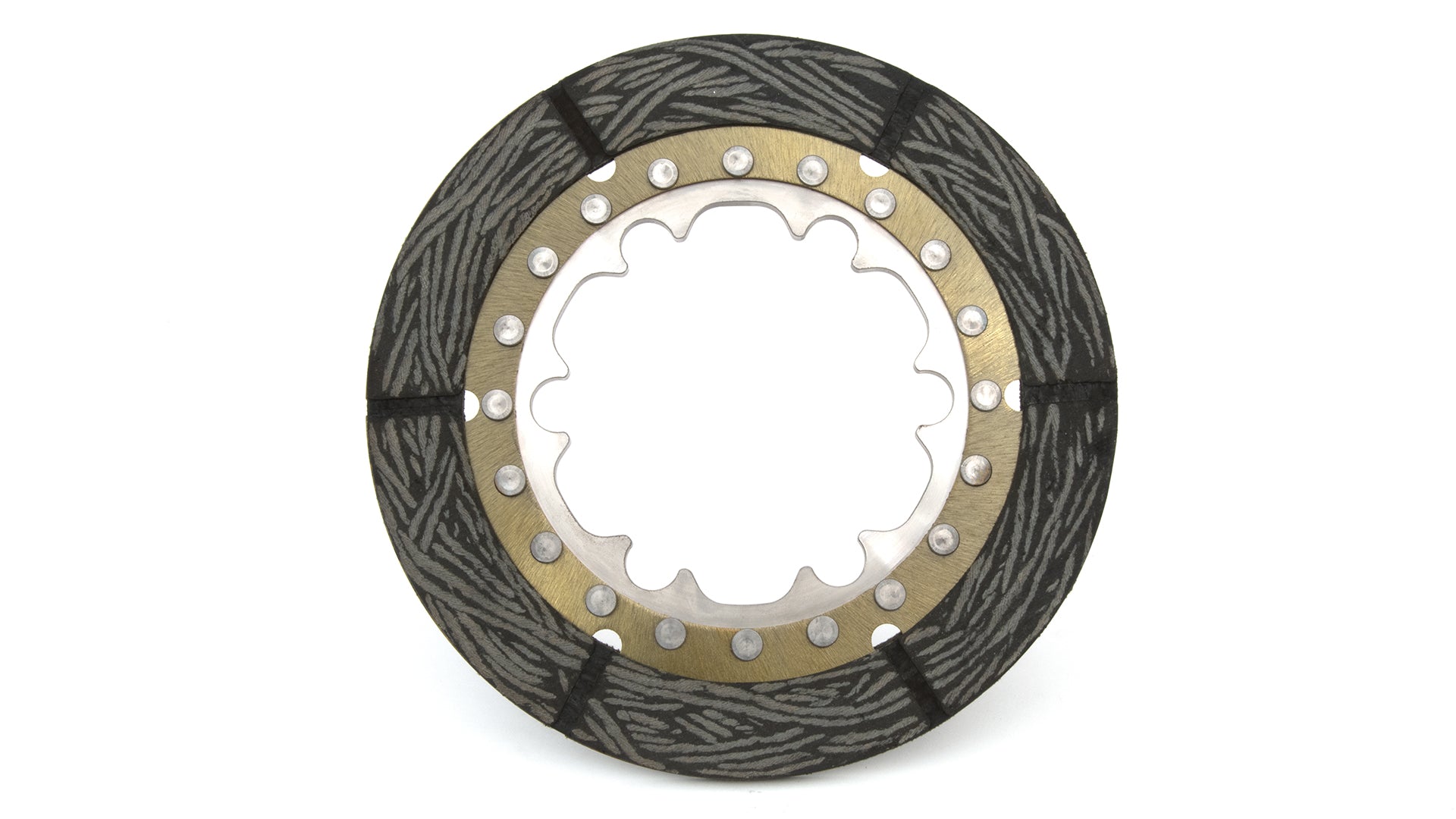

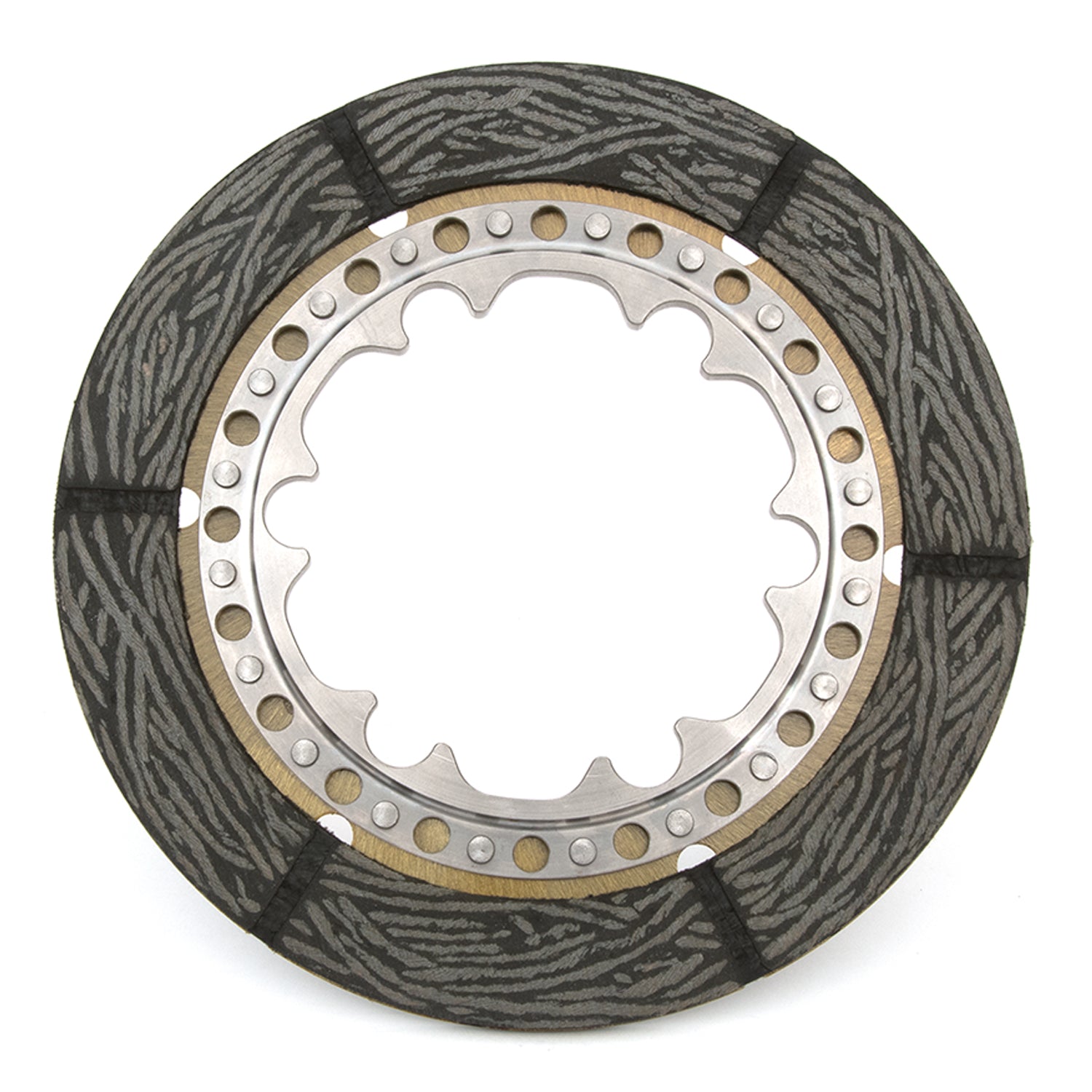

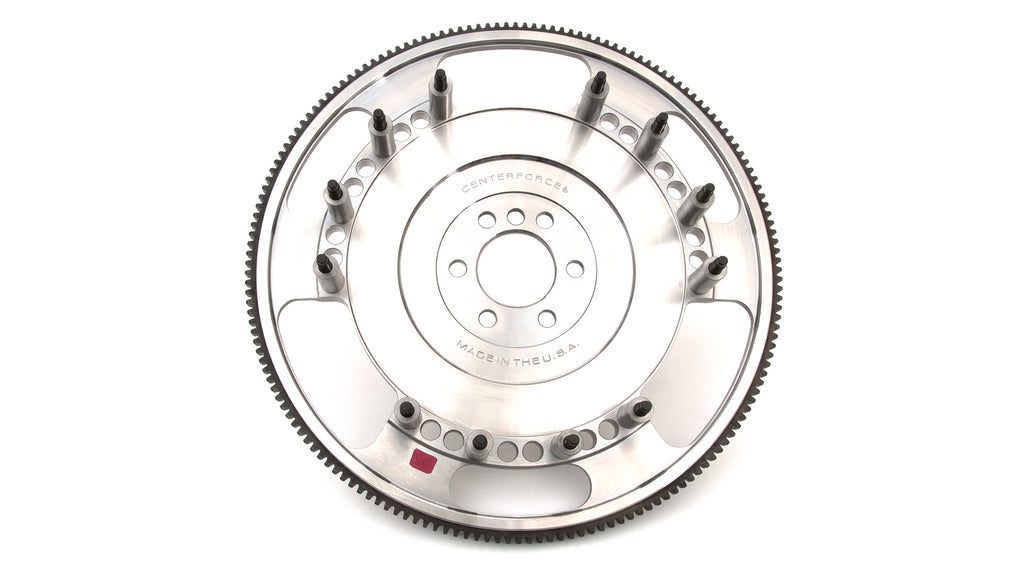

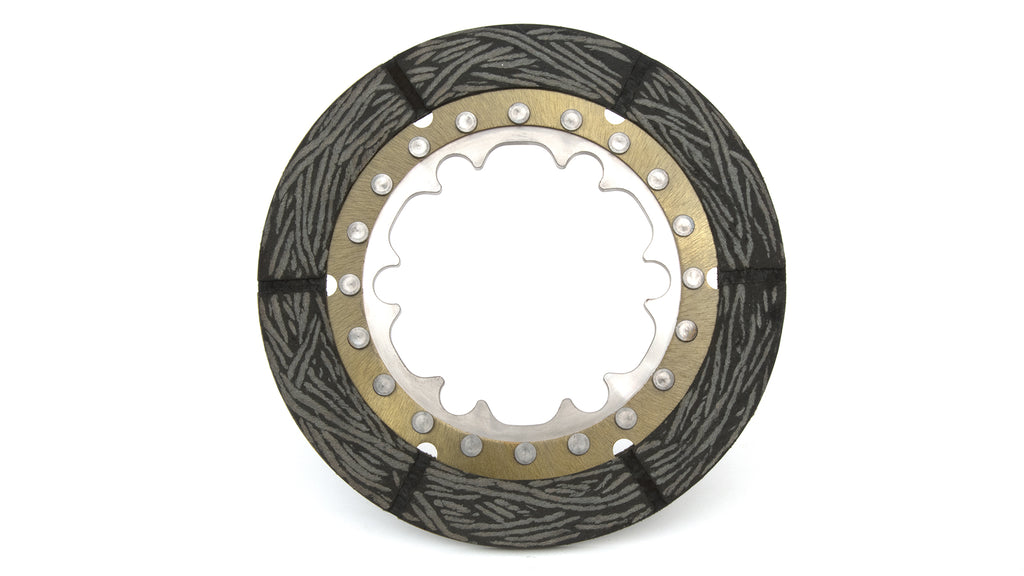

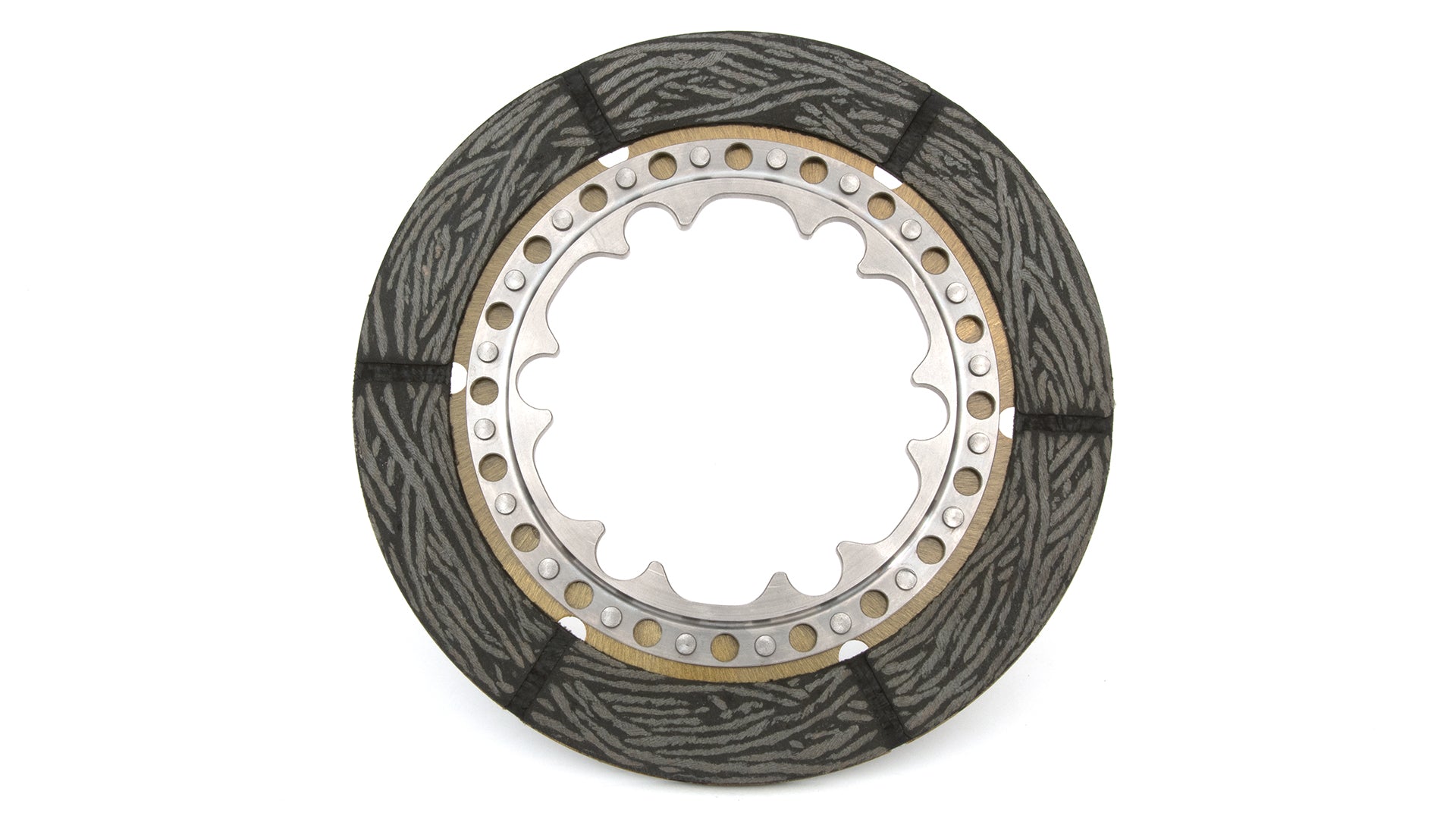

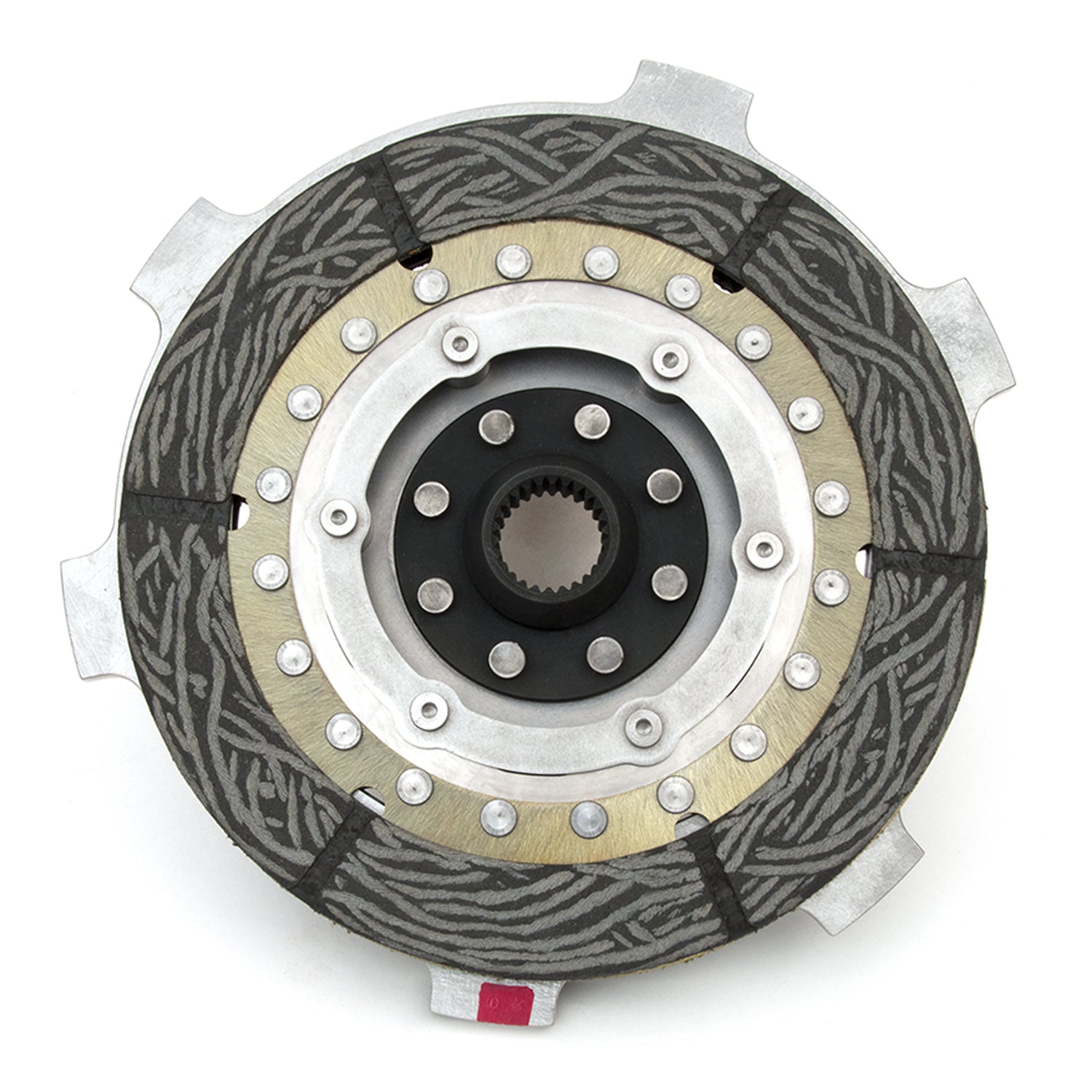

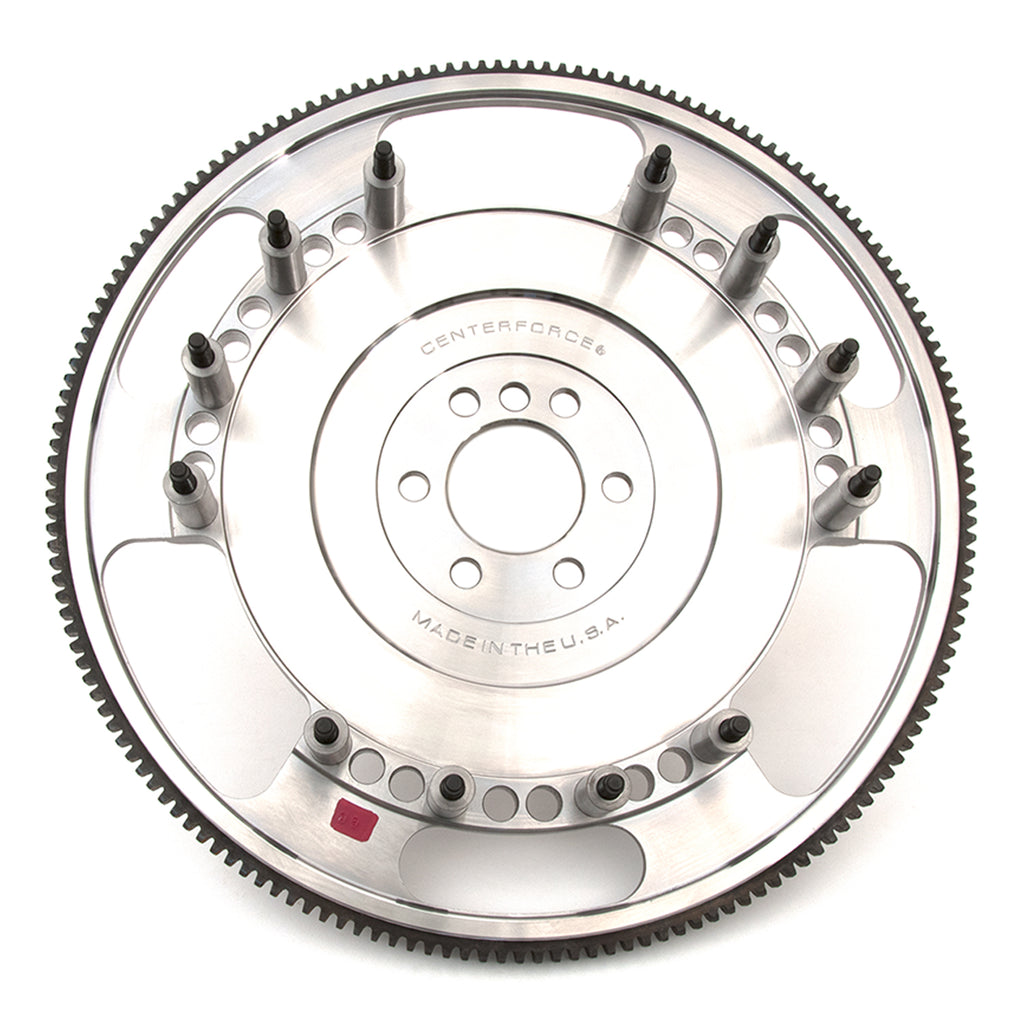

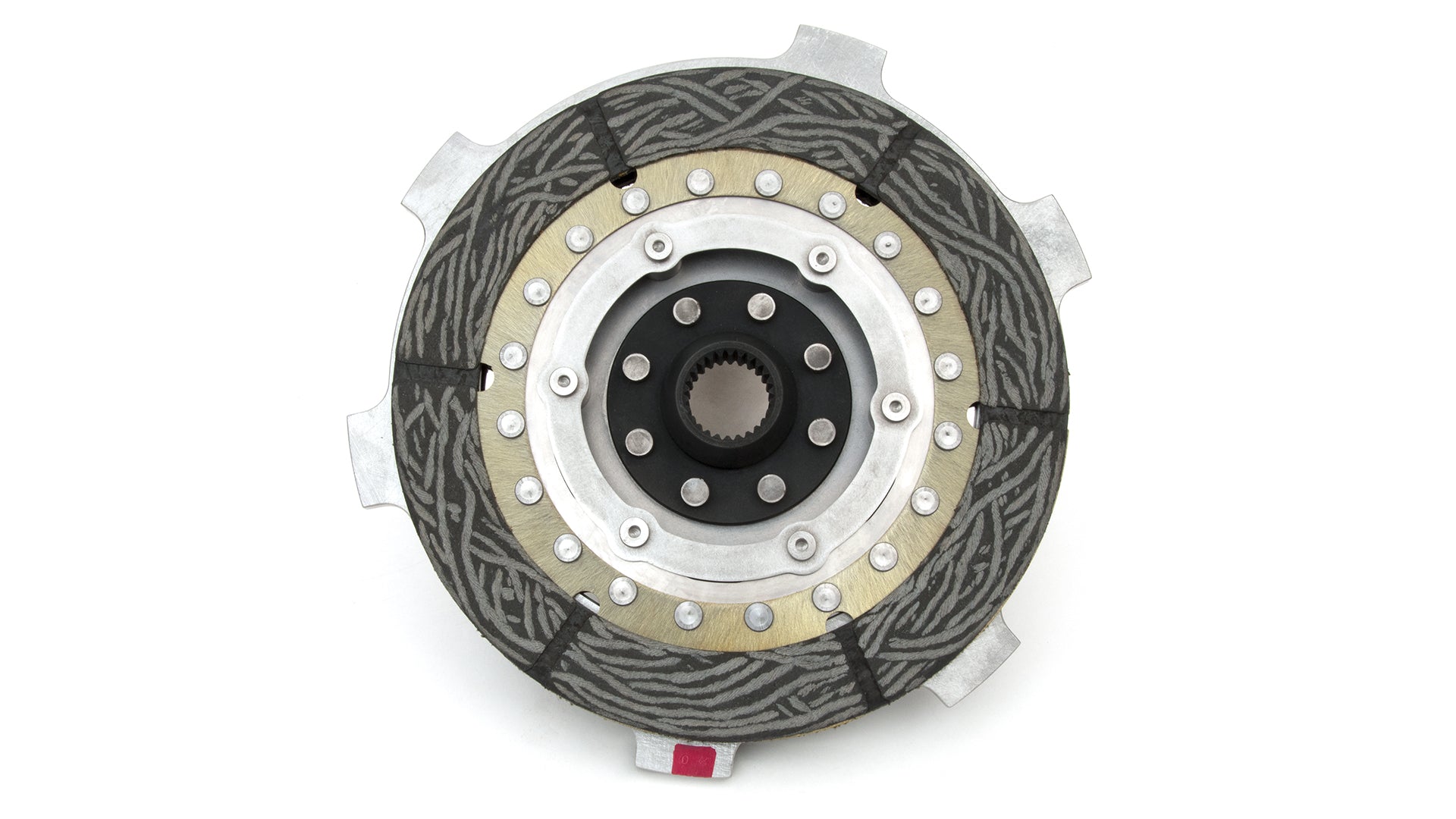

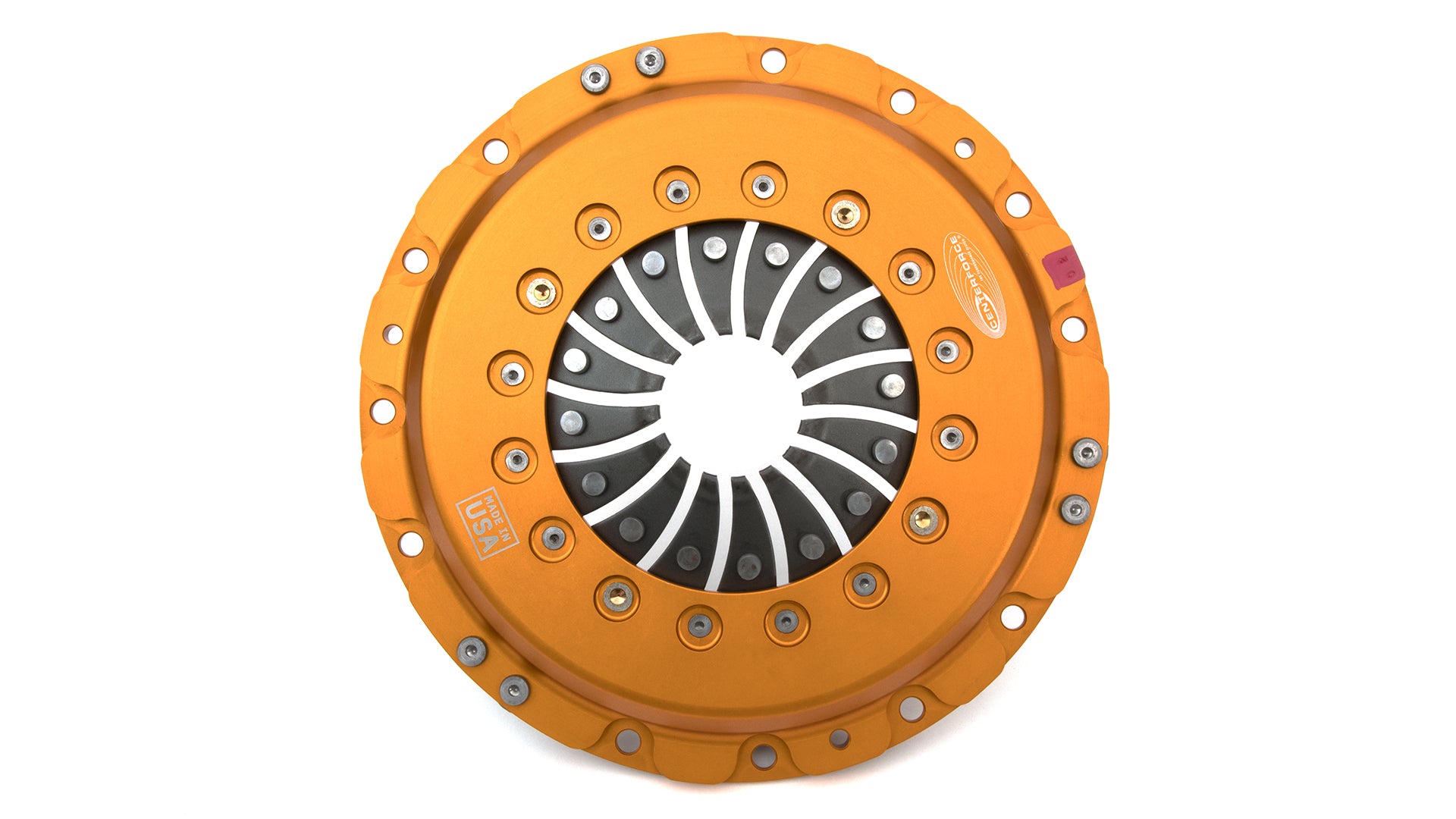

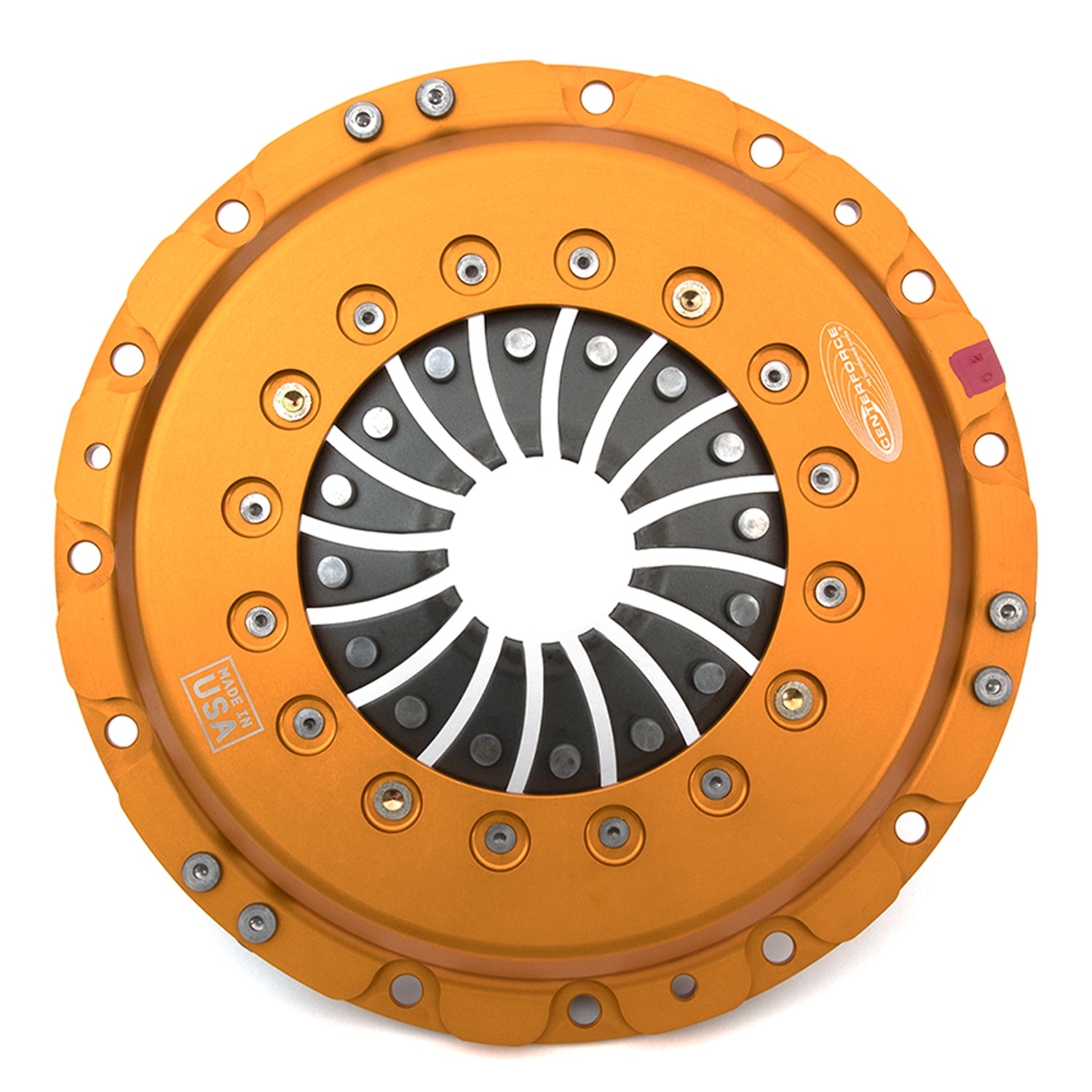

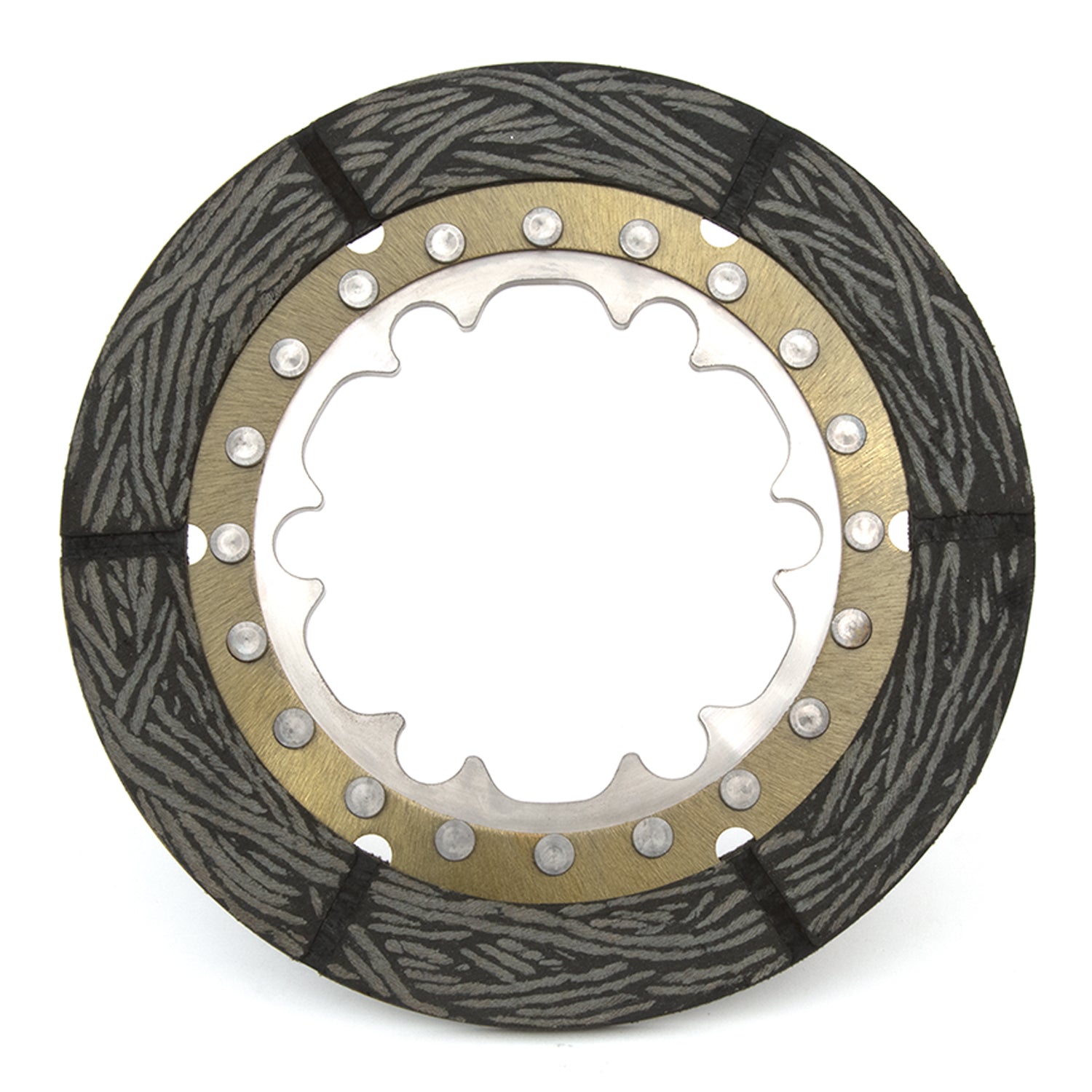

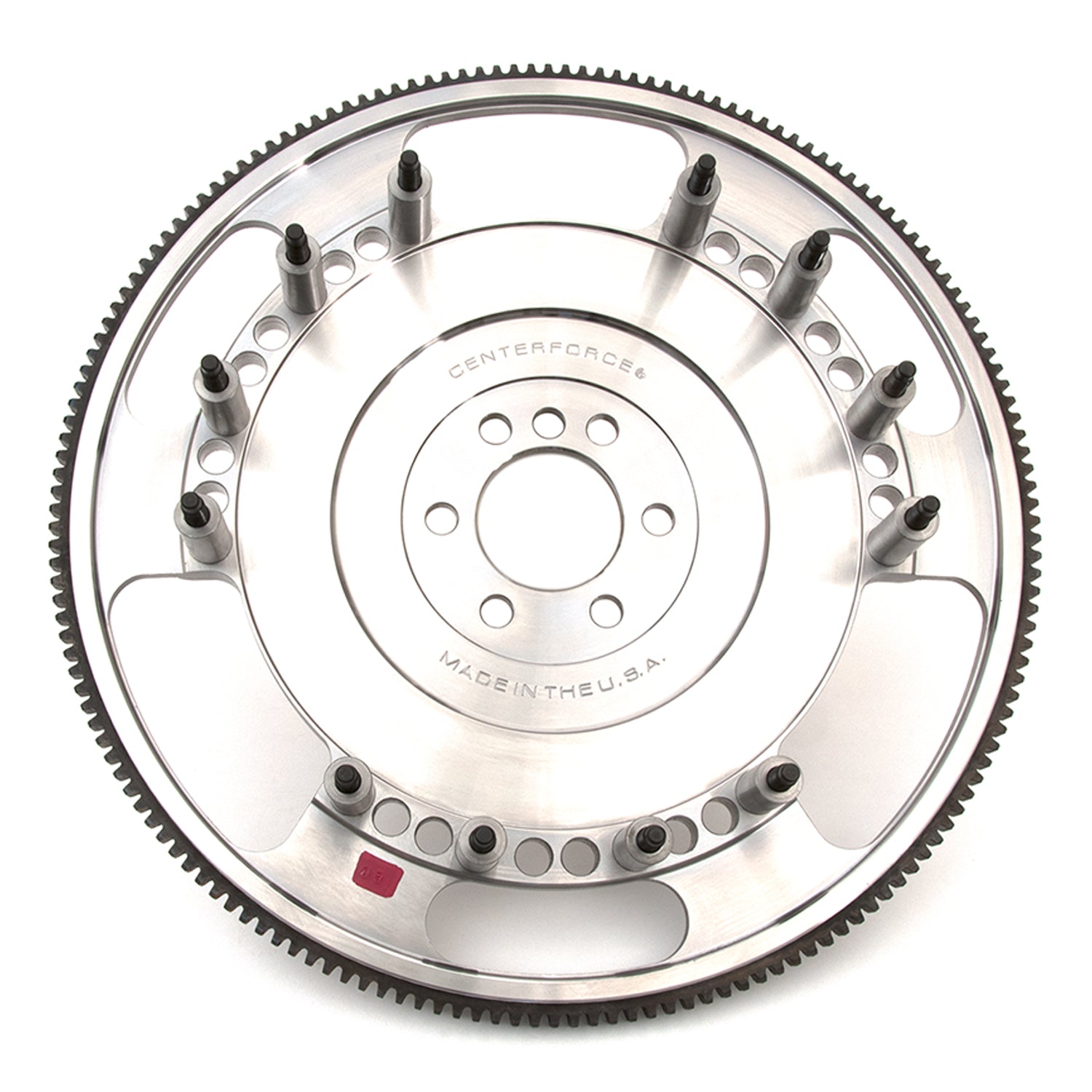

The Centerforce(R) TRIAD DS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications:

Description_ABR	MDA
Description_APS	1997 thru 2015 Chevrolet Camaro and Corvette 8 Cylinders
Description_ASM	1997 thru 2015 Chevrolet Camaro and Corvette 8 Cylinders
Description_DEF	Transmission Clutch and Flywheel Kit
Description_DES	TRIAD(R) DS, Clutch and Flywheel Kit
Description_FAB	8.750" Diameter;
Description_EXT	The Centerforce(R) TRIAD DS (Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1100 ft/lbs.
Description_INV	Centerforce, Full Kits W/Flywheel
Description_MKT	The Centerforce(R) TRIAD DS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

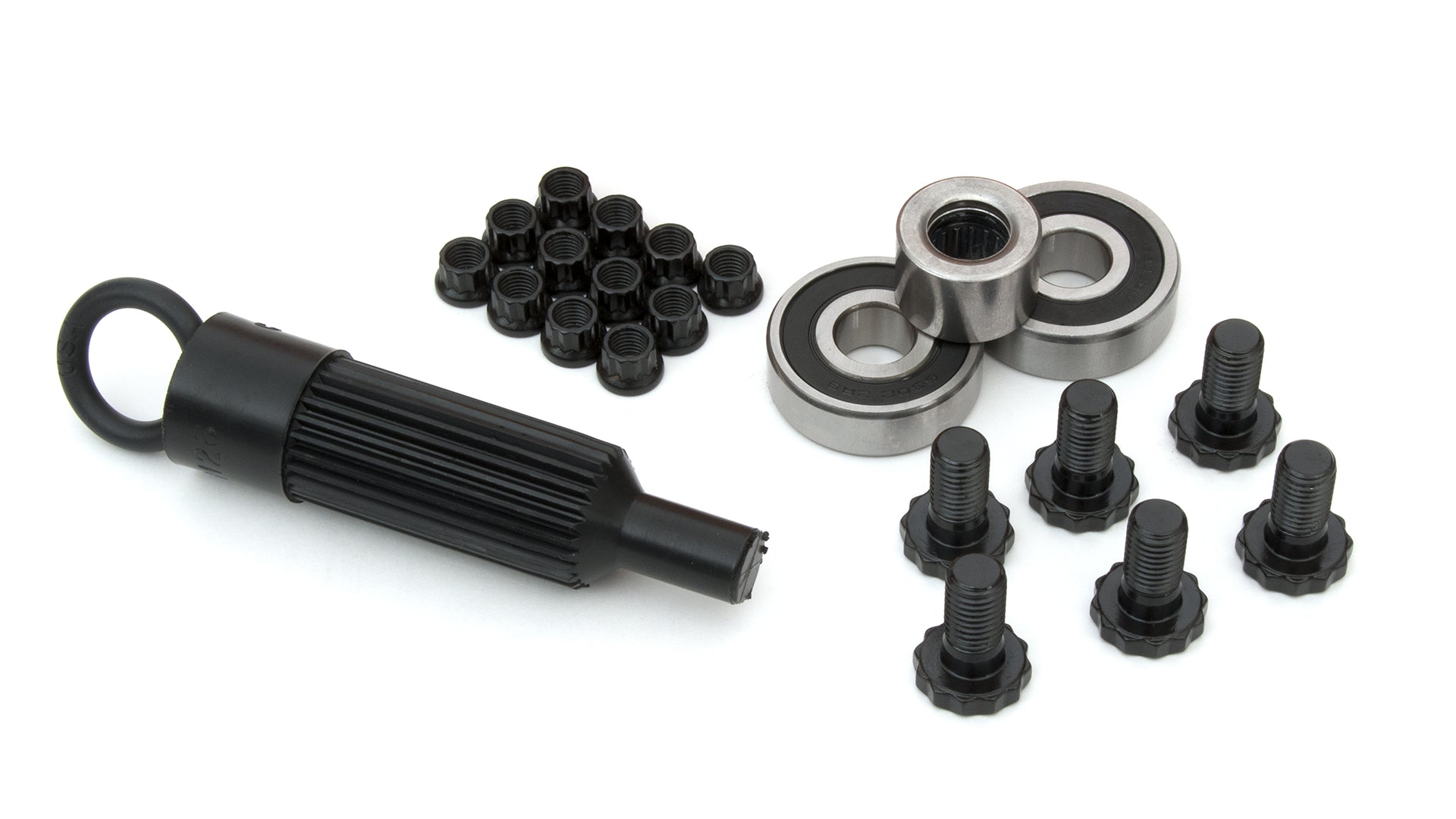

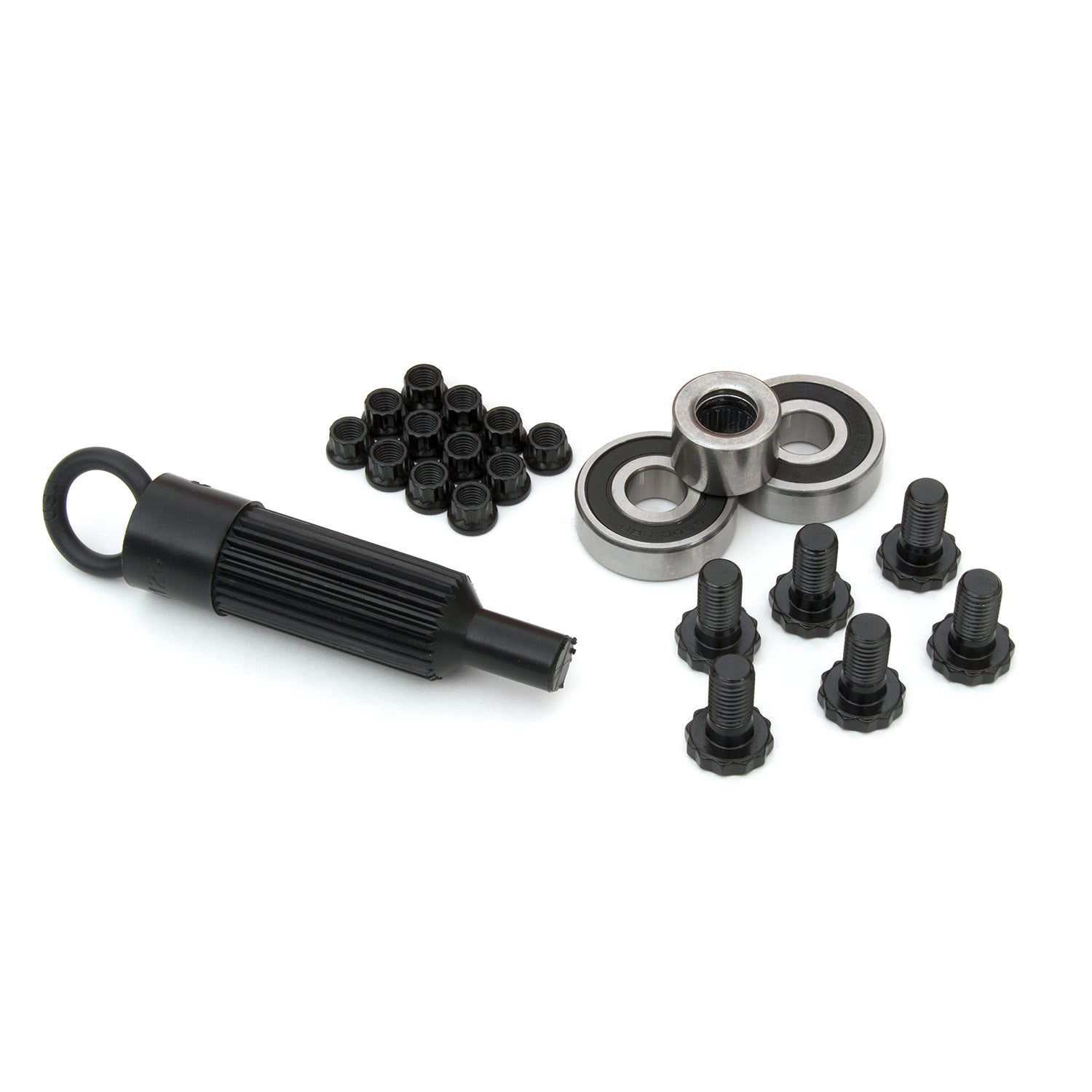

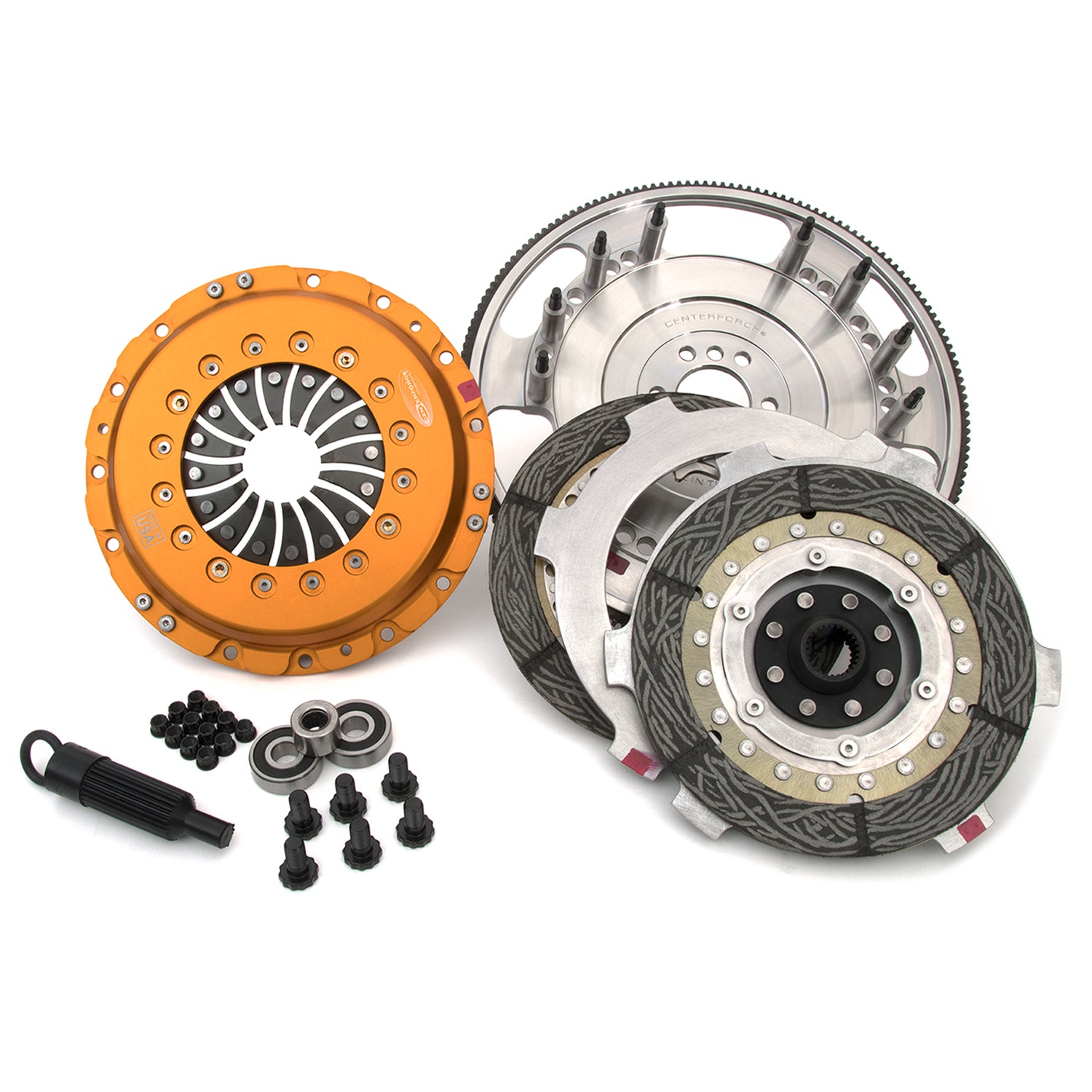

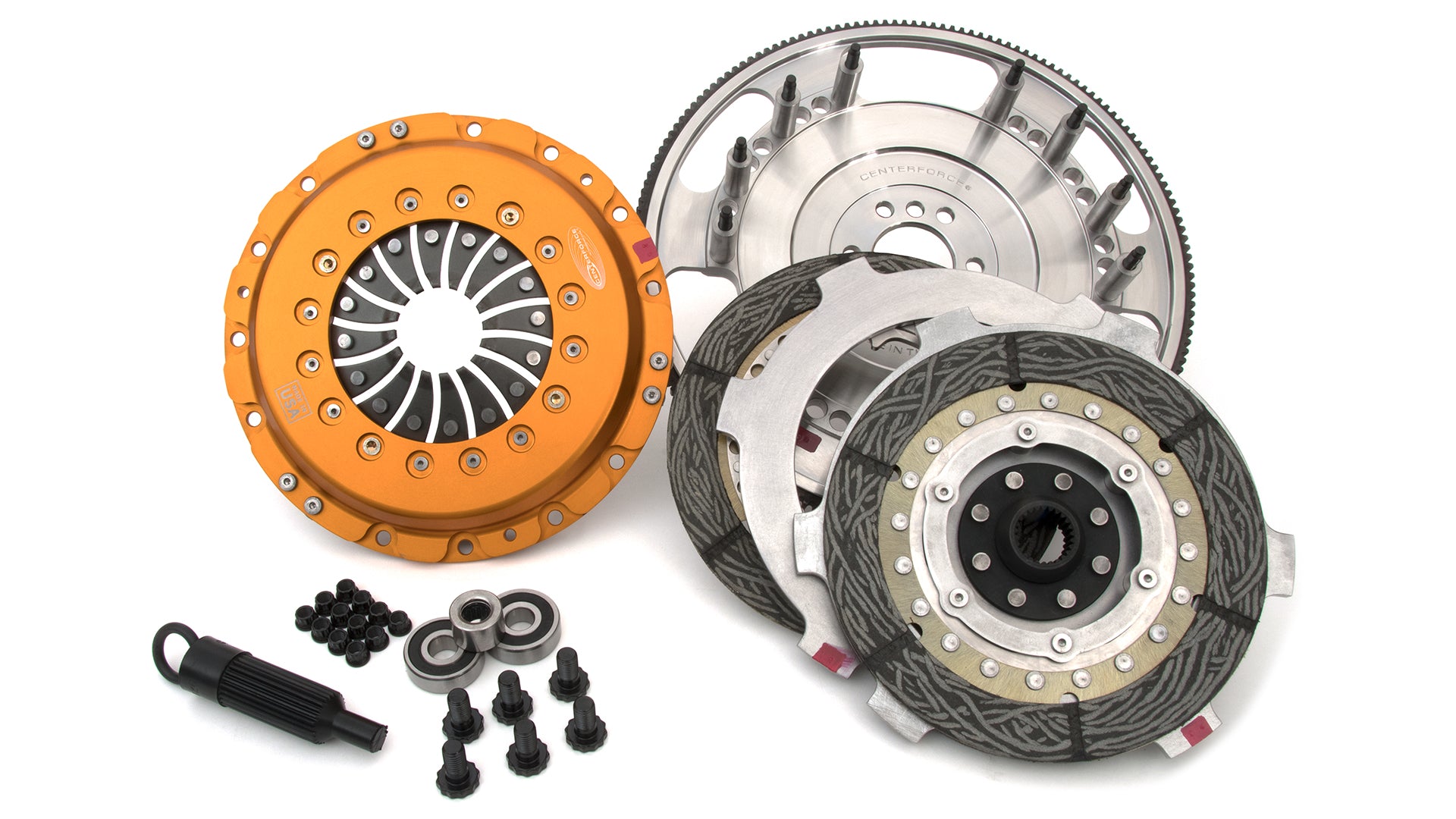

Description_LAB	P.Plate, Discs, Floaters, Flywh, P.P.Bolts, A.Tool, Pilot Brgs
Description_SHO	Full Kits W/Flywheel
Description_SLA	Clutch and Flywheel Kit, TRIAD, 8.750-IN/222.3-MM, 1-1/8-IN - 26 Spl., Solid Full face Sintered Metallic Disc, 900 Ft/Lbs Trq. Cap.
Description_SLD	TRIAD, 8.750-IN, 1.125-IN - 26 Spl., 900 Ft/Lbs
Material	Cast Iron Pressure Plate / Full Face Metalic Friction
California Proposition 65	WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Tooth Quantity	168
Torque Capacity	900
Input Spline Quantity	26
Pilot Bushing Included	Yes
Title	PN: 836264042 - TRIAD DS, Clutch and Flywheel Kit
Alignment Tool Included	Yes
Clutch Disc Diameter	8.750
Clutch Disc Diameter	222.3
Counterweight Assist	No
Crankshaft Bolt Hole Quantity	6
Disc Material	Sintered Metallic
Disc Type	Full face
Disc Type Sprung Solid	Solid
Flywheel Crank Bolt Size	MM11 x 1.50 x 23
Input Shaft Diameter	1.125
Mounting Hardware Included	Yes
Out of Package Weight	32.90
Ring Gear O.D.	14.105
Made In The USA	Assembled
Length	5.5000
Width	18.0000
Height	18.0000
Weight	36.8500
