The Centerforce(R) DYAD DS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications:
| Description_ABR |
MDA |
| Description_APS |
2016 thru 2017 Ford Focus RS 2.3L |
| Description_ASM |
2016 thru 2017 Ford Focus RS 2.3L |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
DYAD(R) DS 8.75, Clutch and Flywheel Kit |
| Description_MKT |
The Centerforce(R) DYAD DS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners. |
| Description_INV |
Centerforce, Full Kits W/Flywheel |
| Description_FAB |
8.75" Diameter; |
| Description_EXT |
The Centerforce(R) DYAD(R) DS (Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 300 to 600 ft /lbs. |
| Description_LAB |

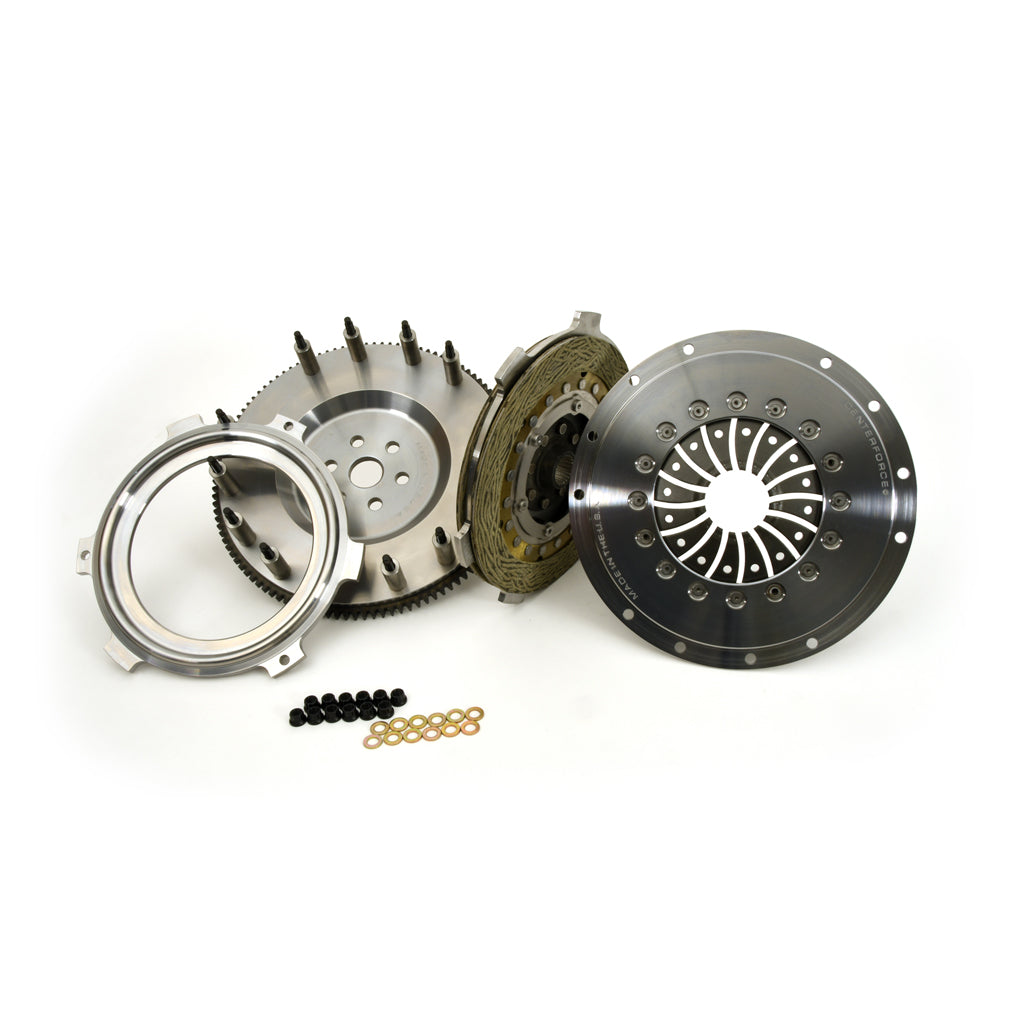

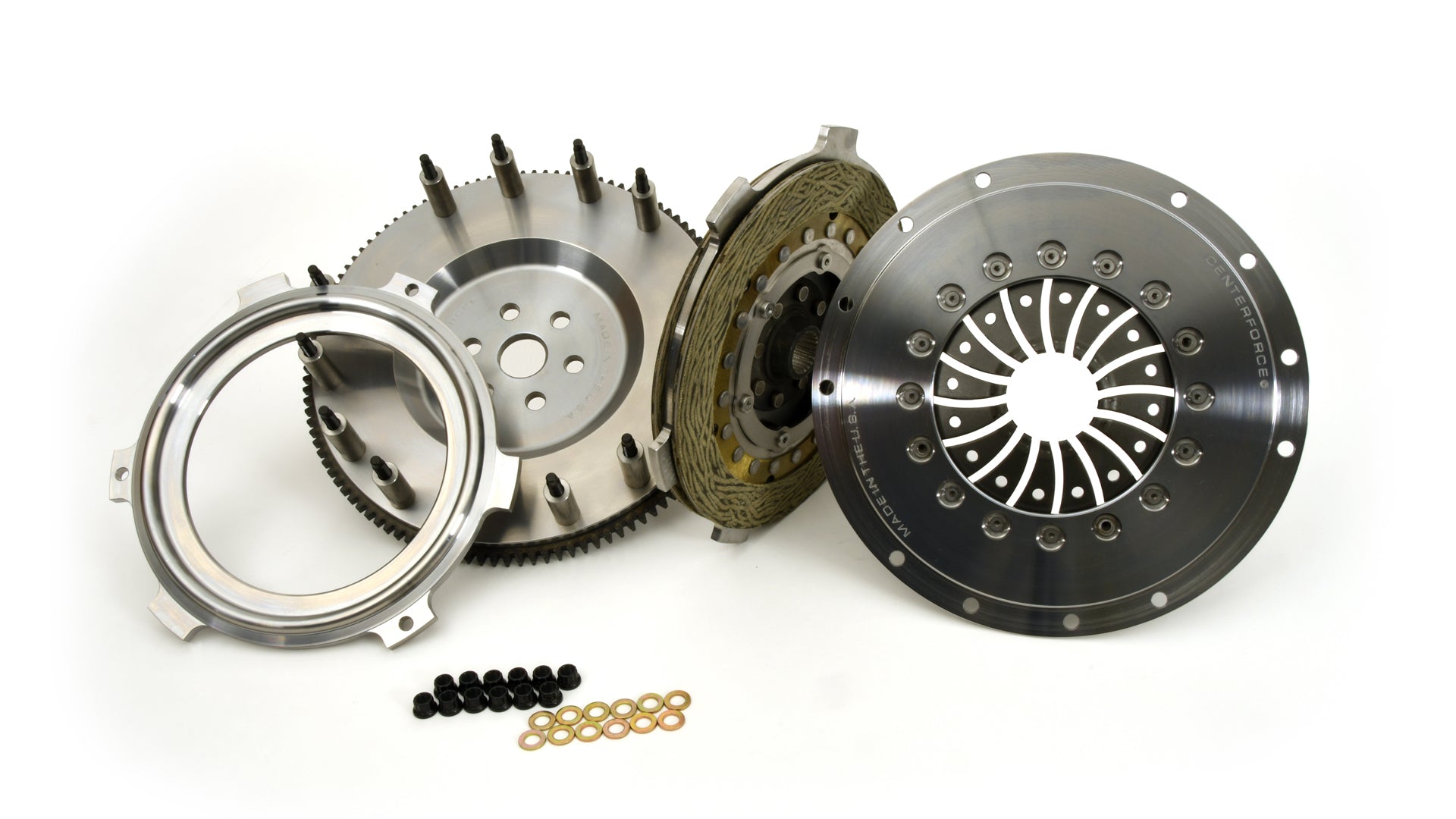

P.Plate, Disc Pack w Floater, Flywh, P.P.Bolts |
| Description_SHO |
Full Kits W/Flywheel |
| Description_SLA |
Clutch and Flywheel Kit, DYAD DS, 8.75-IN/222.3-MM, 1-IN - 23 Spl., Solid Full face Organic/Kevlar Disc, 300-600 Ft/Lbs Trq. Cap. |
| Description_SLD |
DYAD DS, 8.75-IN, 1-IN - 23 Spl., 300-600 Ft/Lbs |
| Input Shaft Diameter |
1 |
| Disc Type Sprung Solid |
Solid |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Input Spline Quantity |
23 |
| Mounting Hardware Included |
Yes |
| Counterweight Assist |
No |
| Torque Capacity |
300-600 |
| Made In The USA |
Assembled |
| Clutch Disc Diameter |
8.75 |
| Clutch Disc Diameter |
222.3 |
| Crankshaft Bolt Hole Quantity |
6 |
| Disc Material |
Organic/Kevlar |
| Disc Type |
Full face |
| Material |
Organic |
| Out of Package Weight |
28.7 |
| Title |
PN: 815231837 - DYAD DS 8.75, Clutch and Flywheel Kit |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
32.9000 |
