| Description_ABR |
MDA |
| Description_APS |
2003 thru 2006 Dodge Viper SRT-10 8.3L |
| Description_ASM |
2003 thru 2006 Dodge Viper SRT-10 8.3L |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |

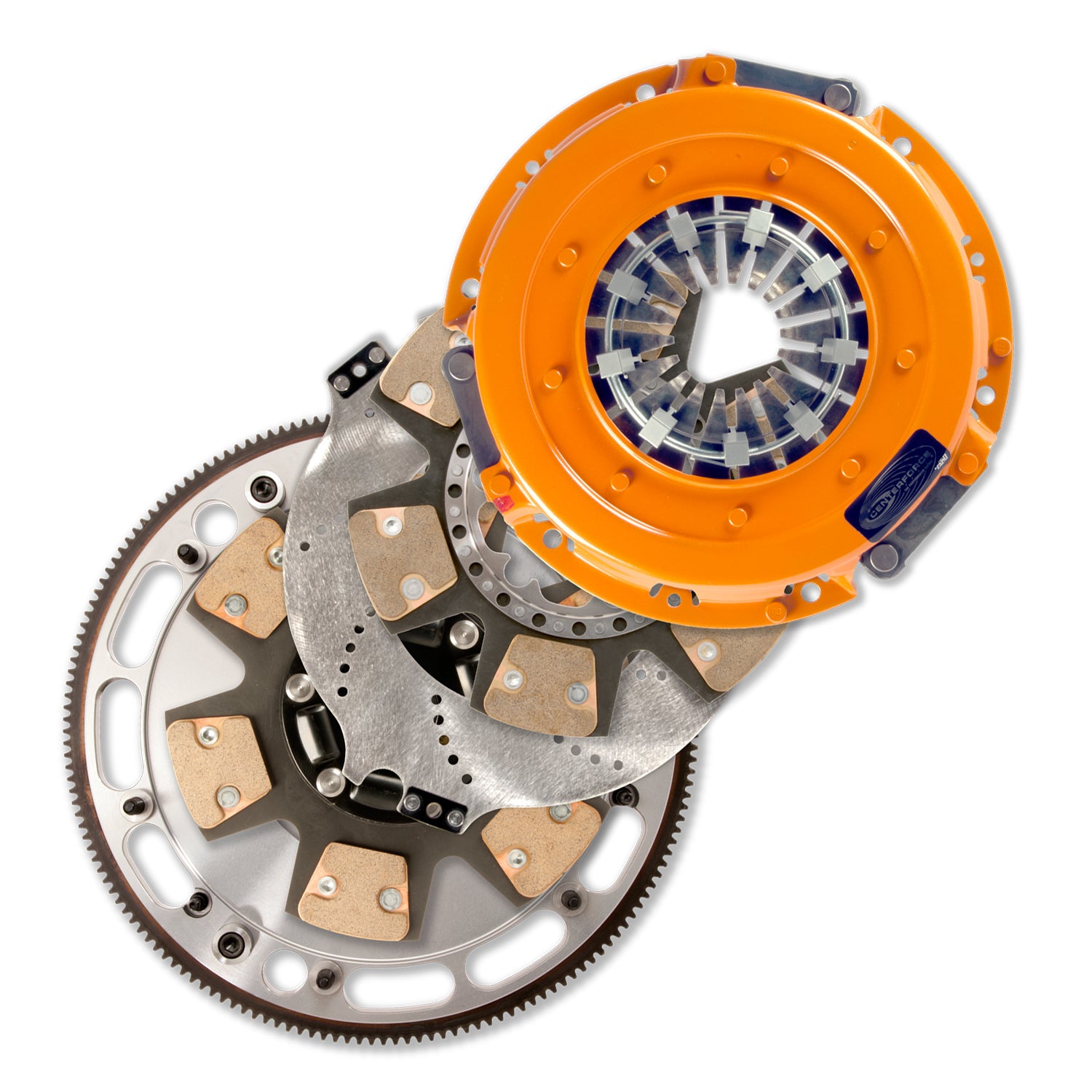

DYAD(R) XDS 10.4, Clutch and Flywheel Kit |
| Description_EXT |
The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs. |
| Description_FAB |
10.4" Diameter; |
| Description_INV |
Centerforce, Full Kits W/Flywheel |
| Description_LAB |
Cover, Discs, Floater, Flywheel, Bolts, Pilot Bearing, Align Tool |
| Description_SHO |
Full Kits W/Flywheel |
| Description_MKT |
The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners. |
| Description_SLA |
Clutch and Flywheel Kit, DYAD XDS, 10.4-IN/264.2-MM, 1-1/8-IN - 26 Spl., Sprung 6-Paddle Cerametallic Disc, 1600 Ft/Lbs Trq. Cap. |
| Description_SLD |
DYAD XDS, 10.4-IN, 1.125-IN - 26 Spl., 1600 Ft/Lbs |
| Disc Material |
Cerametallic |
| Alignment Tool Included |
Yes |
| Disc Type |
6-Paddle |
| Input Shaft Diameter |
1.125 |
| Pilot Bushing Included |
Yes |
| Disc Type Sprung Solid |
Sprung |
| Mounting Hardware Included |
Yes |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Disc Diameter |
10.4 |
| Clutch Disc Diameter |
264.2 |
| Counterweight Assist |
YES |
| Crankshaft Bolt Hole Quantity |
8 |
| Flywheel Counter Balance Weight |
0 |
| Flywheel Crank Bolt Size |
7/16 in x 20 x 0.875 |
| Flywheel Crank Flange Register |
2.159 |
| Input Spline Quantity |
26 |
| Installed Height |
3.550 |
| Material |
Billet Steel Flywheel / Aluminum Pressure Plate / Cerametallic Button Style Friction |
| Out of Package Weight |
48.20 |
| Ring Gear O.D. |
14.579 |
| Title |
PN: 427613094 - DYAD XDS 10.4, Clutch and Flywheel Kit |
| Tooth Quantity |
143 |
| Torque Capacity |
1600 |
| Made In The USA |
Assembled |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
54.0000 |
