| Description_ABR |
MDA |
| Description_APS |
2009 thru 2015 Cadillac CTS V 6.2L |
| Description_ASM |
2009 thru 2015 Cadillac CTS V 6.2L |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
DYAD(R) XDS 10.4, Clutch and Flywheel Kit |
| Description_INV |
Centerforce, Full Kits W/Flywheel |
| Description_EXT |
The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs. |
| Description_LAB |

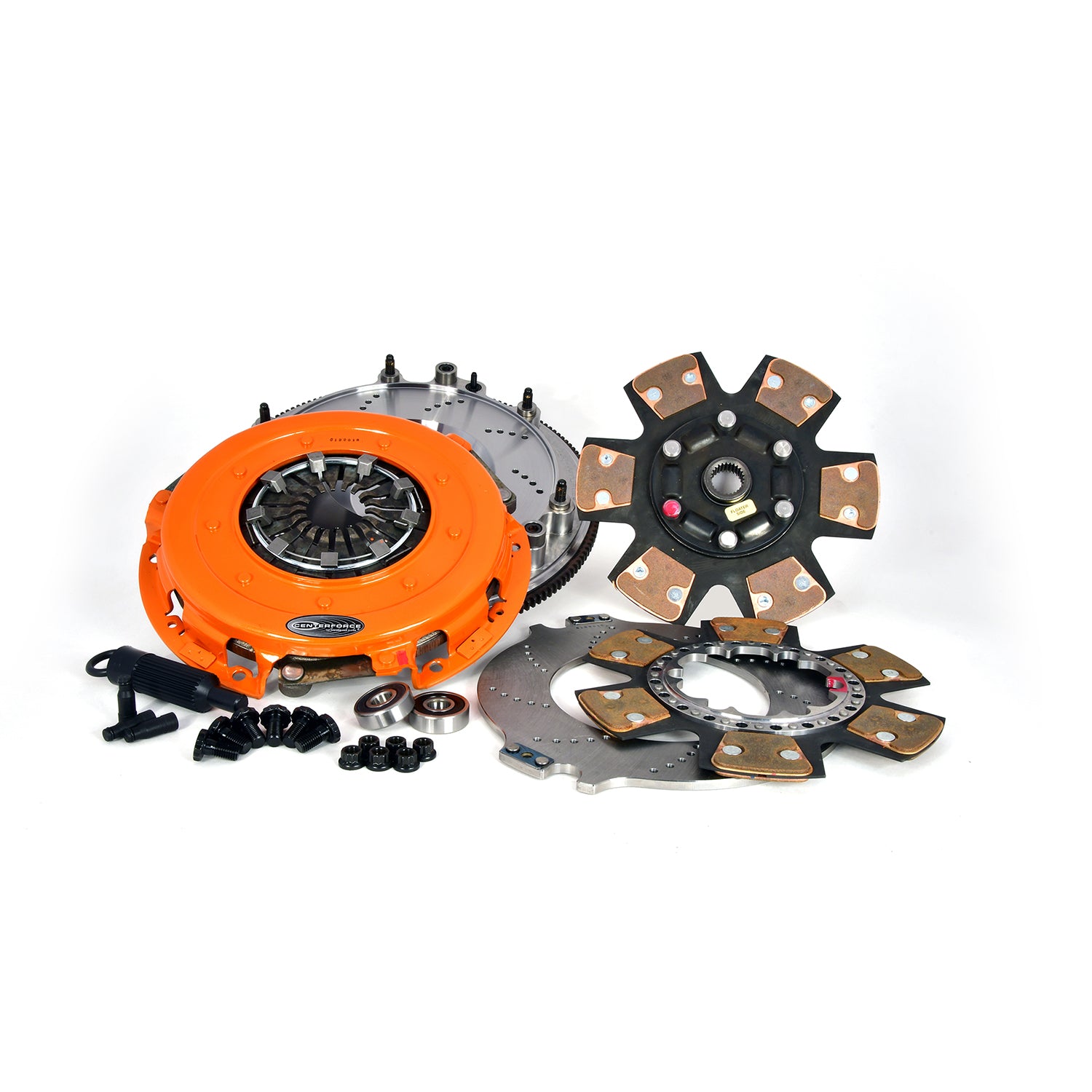

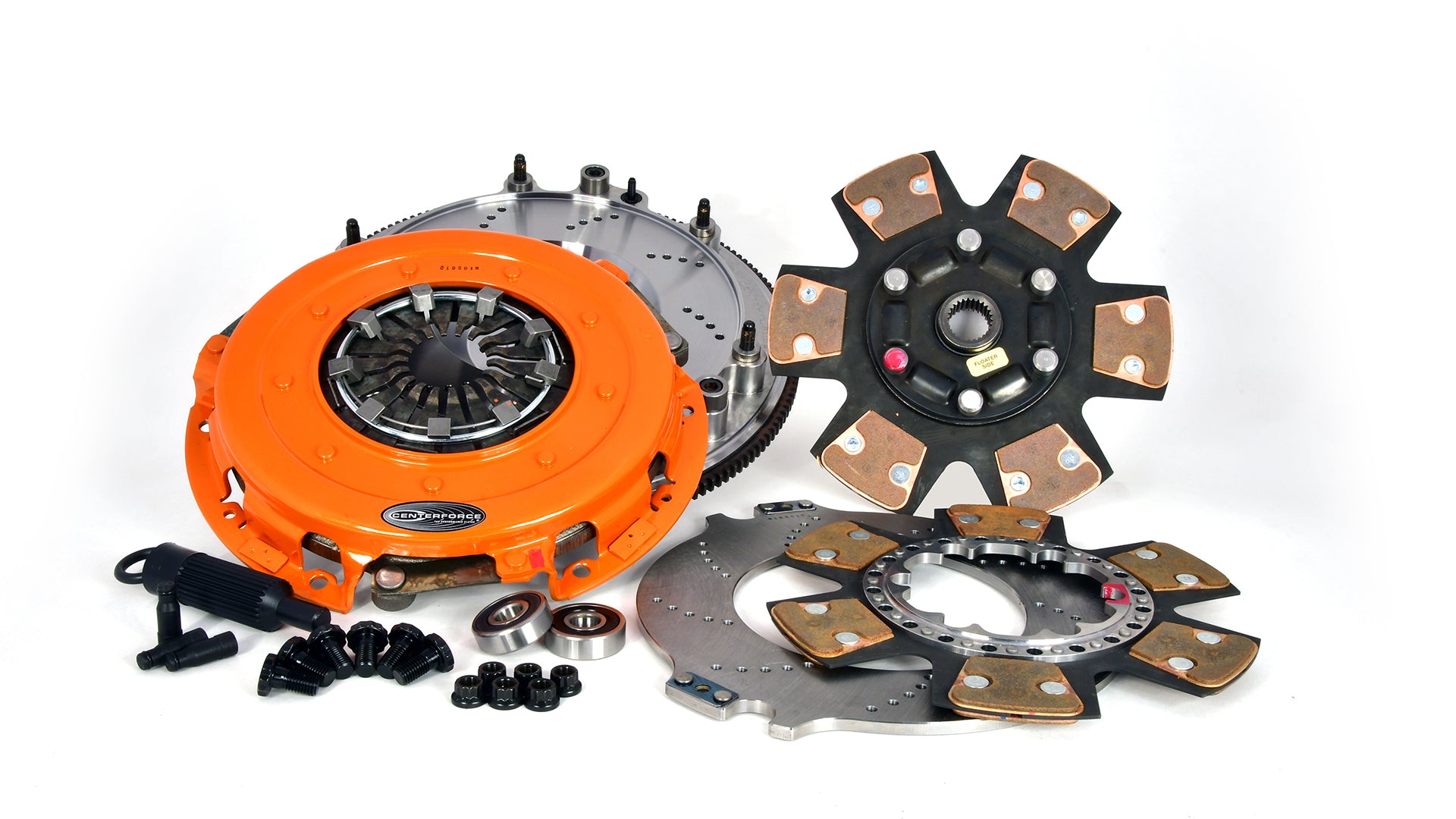

Cover, Discs, Floater, Flywheel, Bolts, Pilot Bearings, Shim, Align Tool |
| Description_FAB |
10.4" Diameter; |
| Description_SHO |
Full Kits W/Flywheel |
| Description_SLD |
DYAD XDS, 10.4-IN, 1.125-IN - 26 Spl., Twin Disc, 1600 Ft/Lbs |
| Description_SLA |
Clutch and Flywheel Kit, DYAD XDS, 10.4-IN/264.2-MM, 1-1/8-IN - 26 Spl., Spring 6-Paddle Cerametallic Twin Disc, 1600 Ft/Lbs Trq. Cap. |
| Description_MKT |
The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners. |
| Input Shaft Diameter |
1.125 |
| Alignment Tool Included |
Yes |
| Disc Type Sprung Solid |
Spring |
| Mounting Hardware Included |
Yes |
| Disc Material |
Cerametallic |
| Disc Type |
6-Paddle |
| Input Spline Quantity |
26 |
| Pilot Bushing Included |
Yes |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Counterweight Assist |
YES |
| Torque Capacity |
1600 |
| Clutch Disc Diameter |
10.4 |
| Clutch Disc Diameter |
264.2 |
| Crankshaft Bolt Hole Quantity |
6 |
| Disc Quantity |
2 |
| Flywheel Counter Balance Weight |
0 |
| Flywheel Crank Bolt Size |
MM11 x 1.50 x 23 |
| Flywheel Crank Flange Register |
2.068 |
| Material |
Billet Steel Flywheel / Nodular Iron Pressure Plate / Cerametallic Button Style Friction |
| Out of Package Weight |
55.50 |
| Ring Gear O.D. |
14.105 |
| Title |
PN: 415614867 - DYAD XDS 10.4, Clutch and Flywheel Kit |
| Tooth Quantity |
168 |
| Made In The USA |
Assembled |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
57.2000 |
