Centerforce 413614842 DYAD(R) DS 10.4, Clutch and Flywheel Kit

2 sold in last 8 days
Centerforce
ds_BDPL_413614842
In stock
Transmission Clutch and Flywheel Kit
$3,103.00 $2,496.58
$2,496.58
customers are viewing this product
Centerforce 413614842 DYAD(R) DS 10.4, Clutch and Flywheel Kit
Details

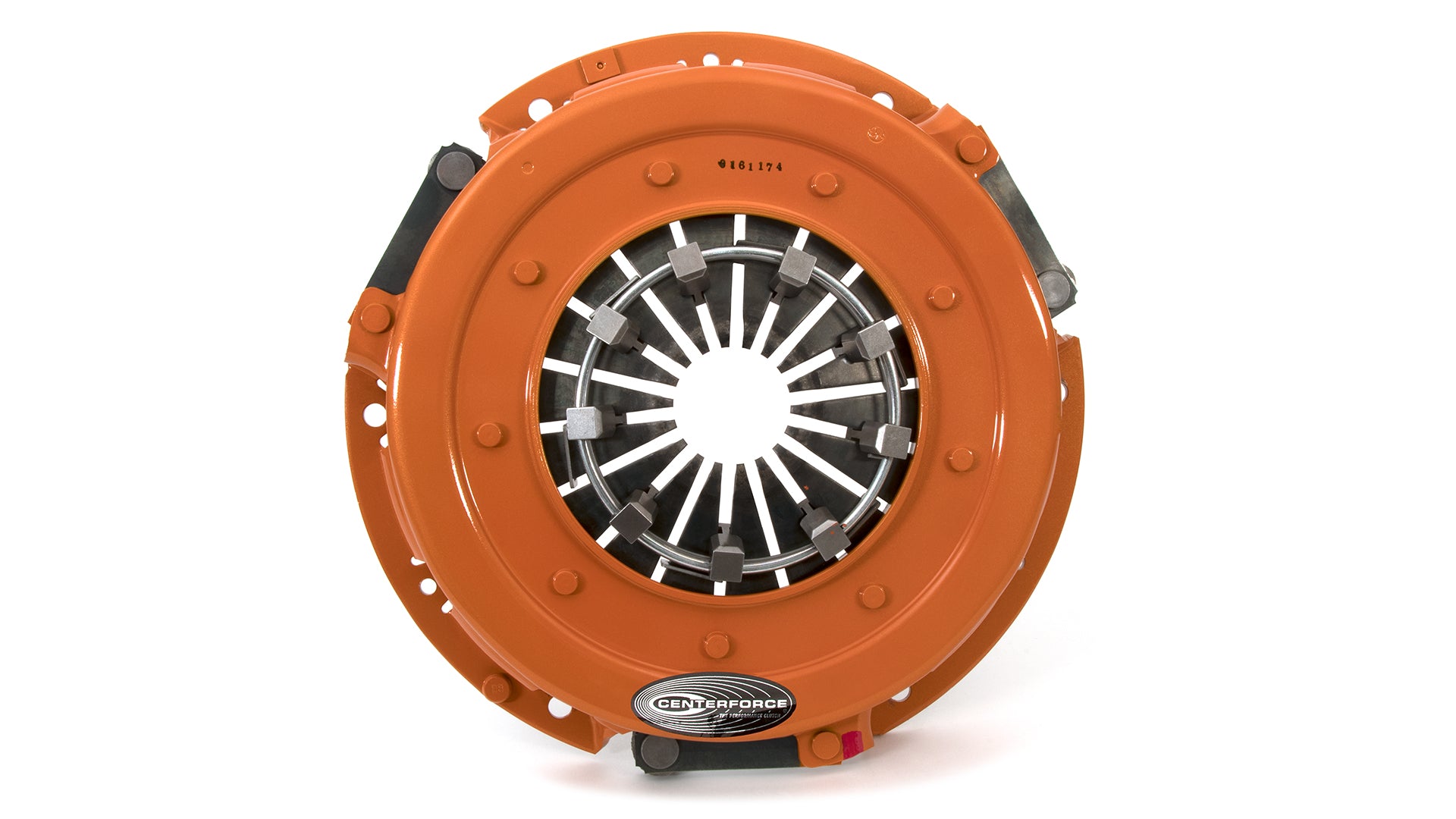

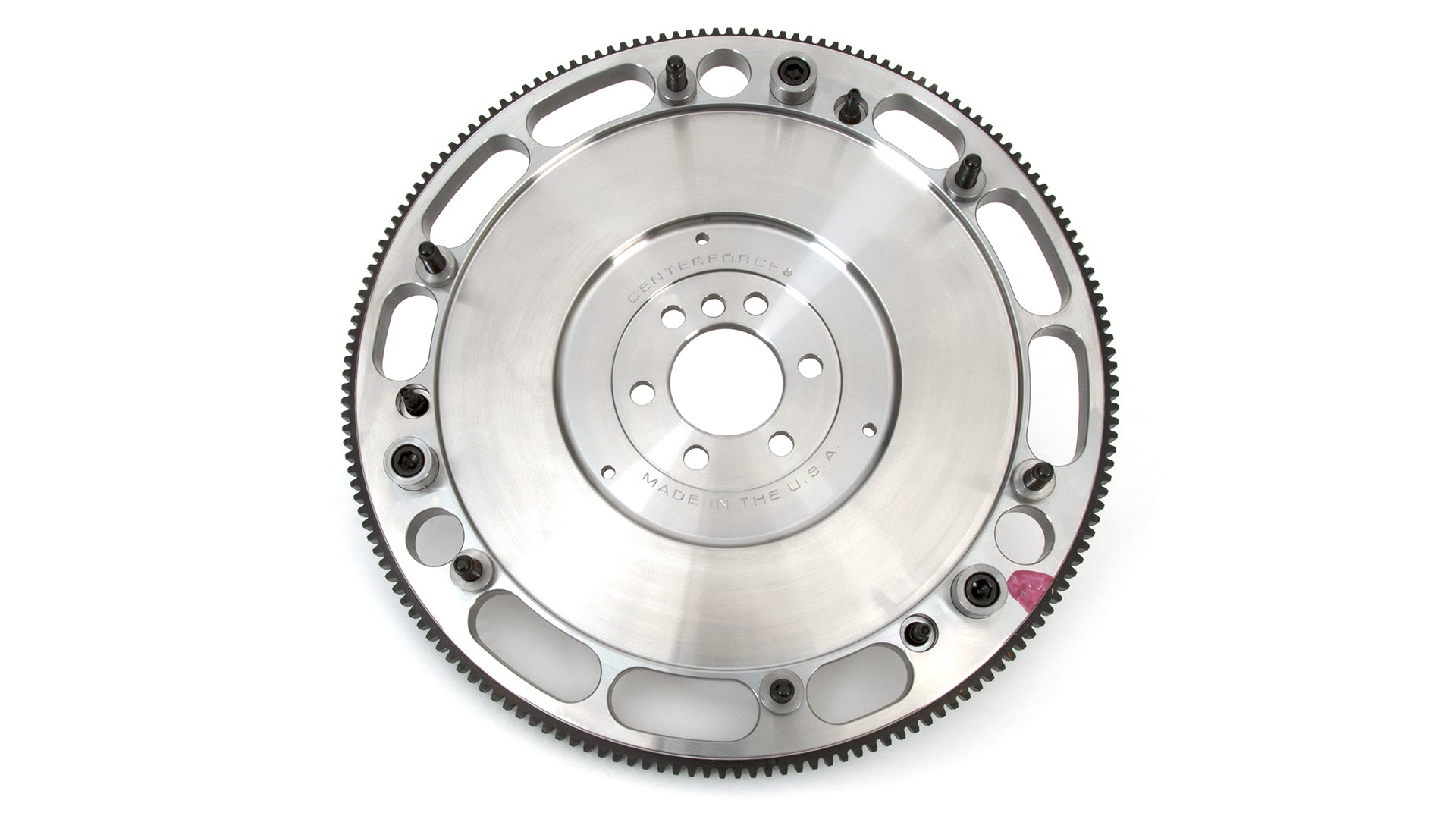

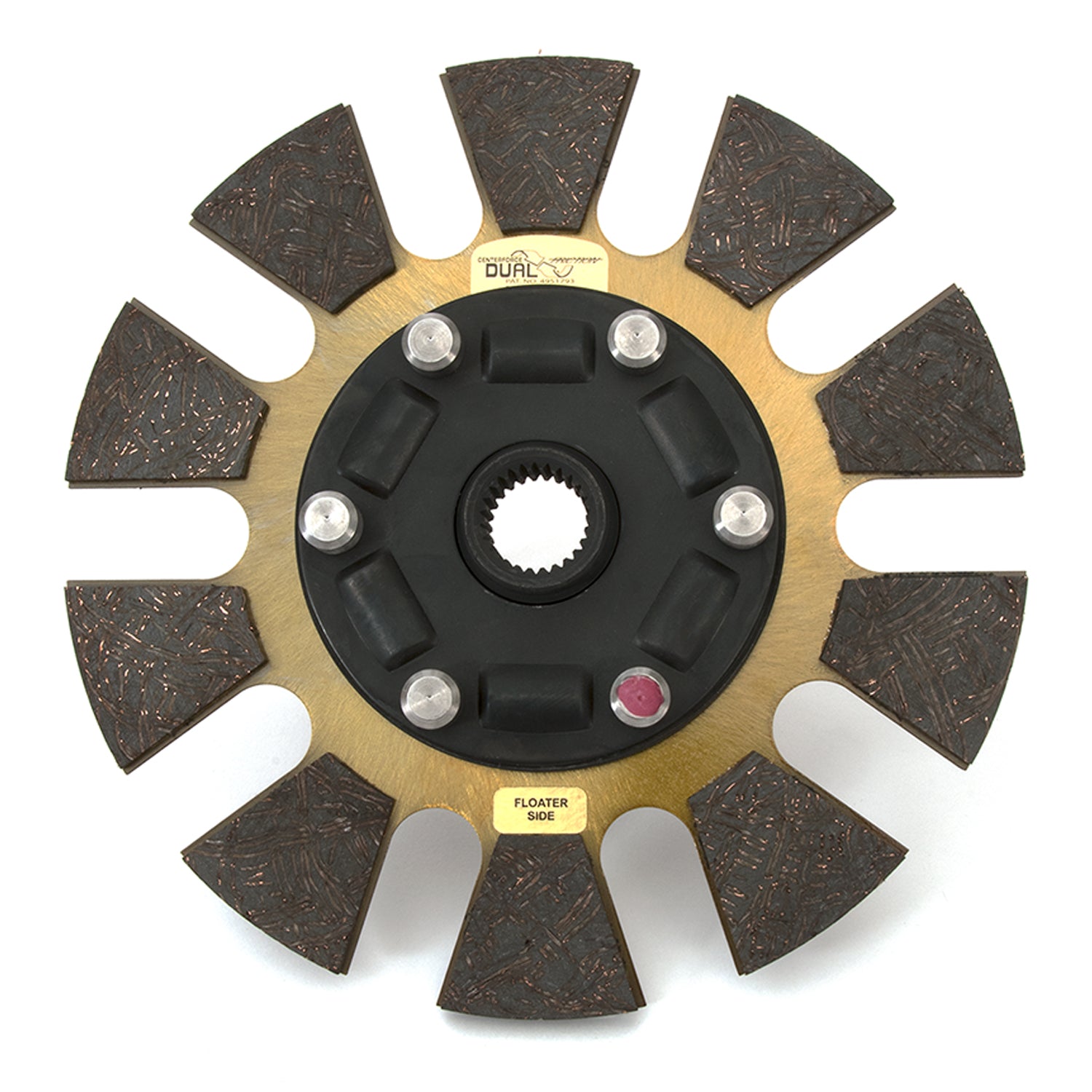

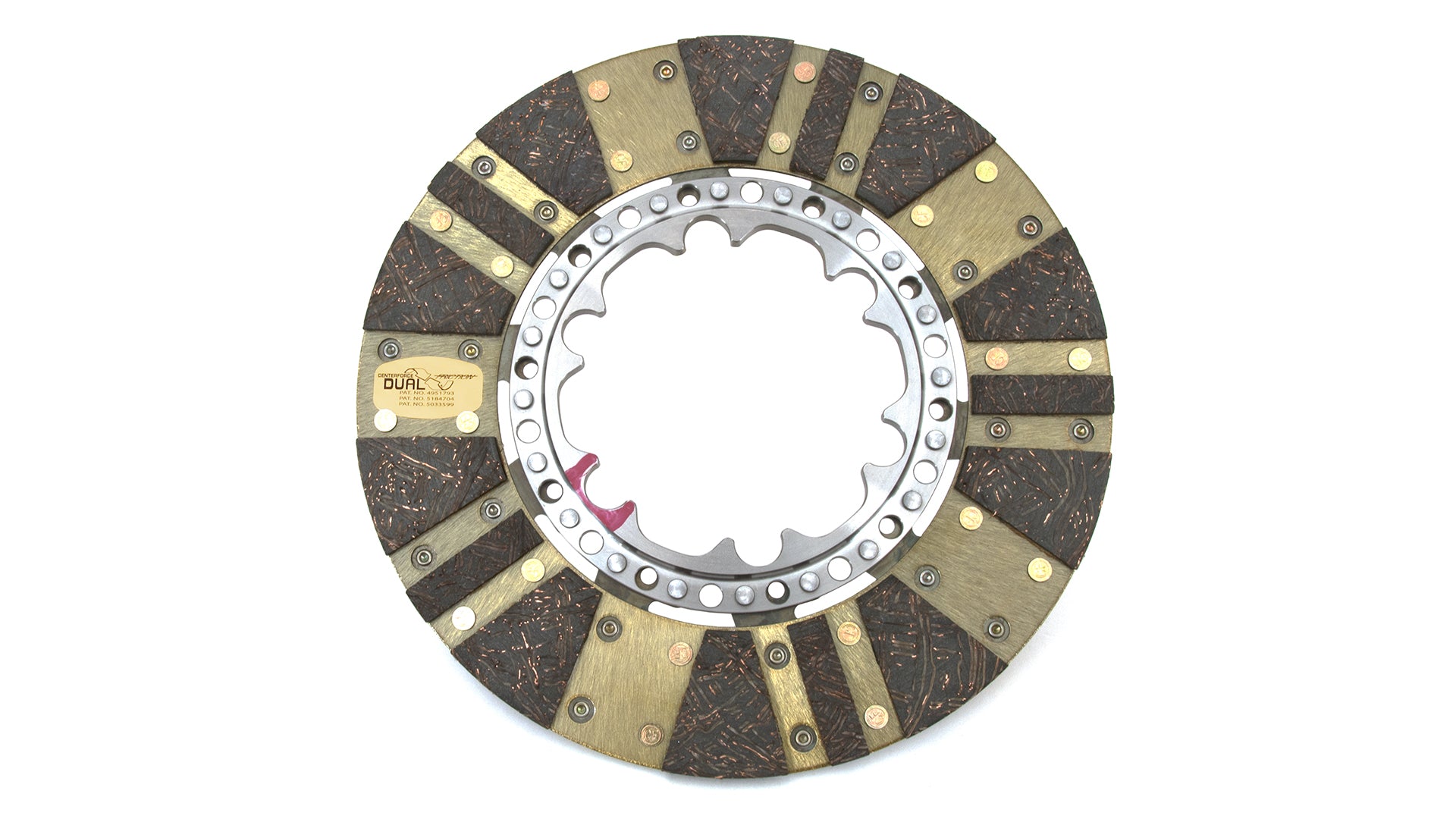

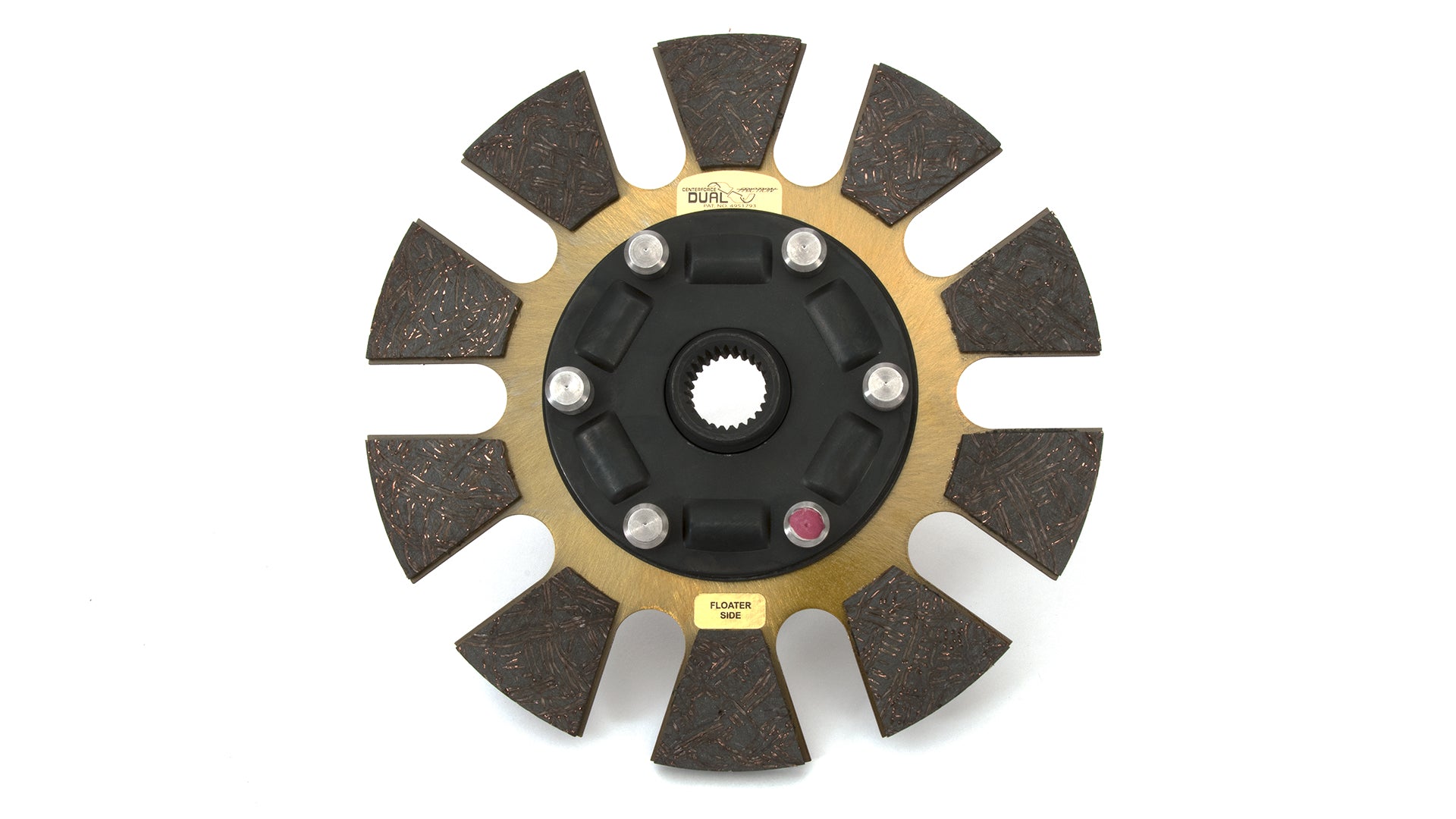

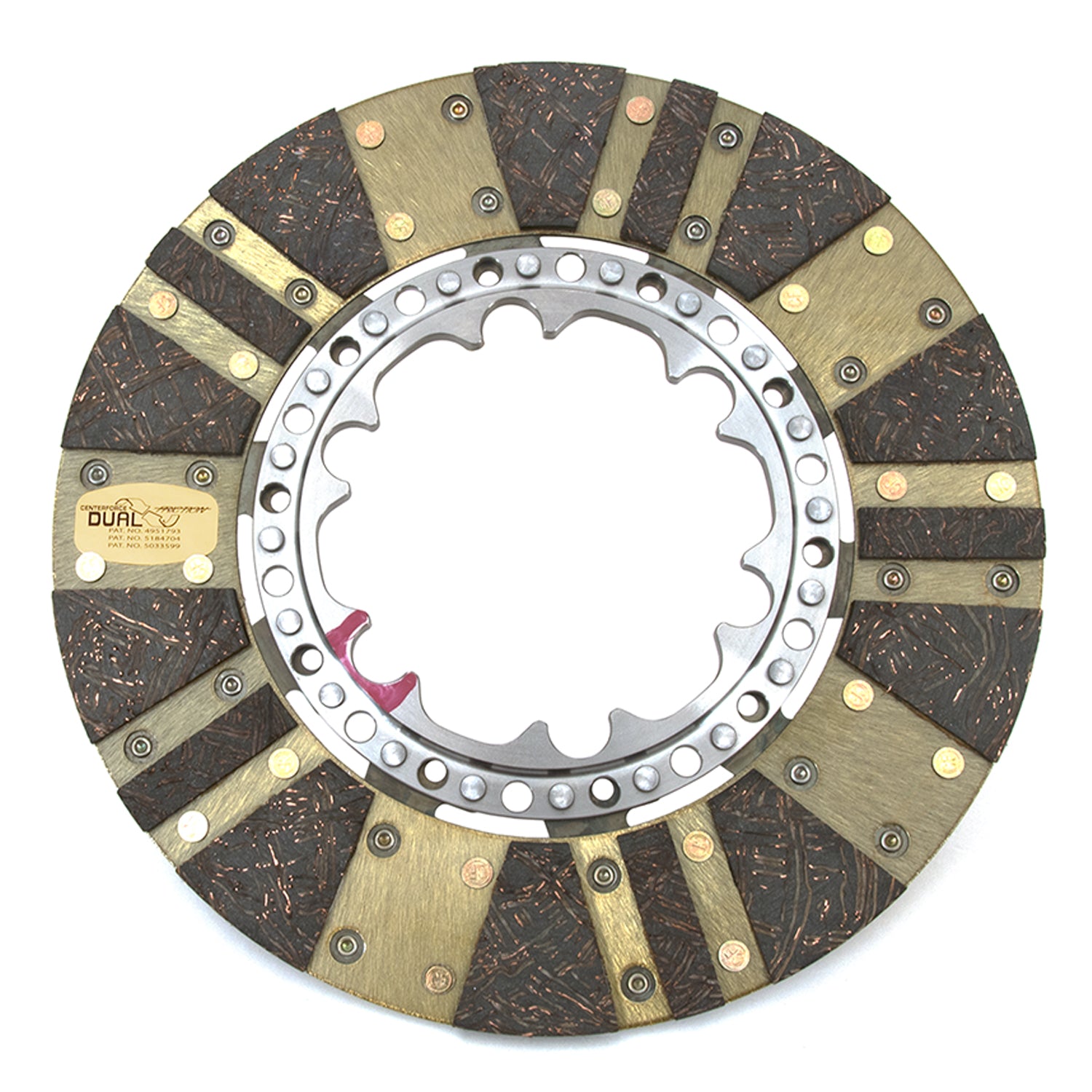

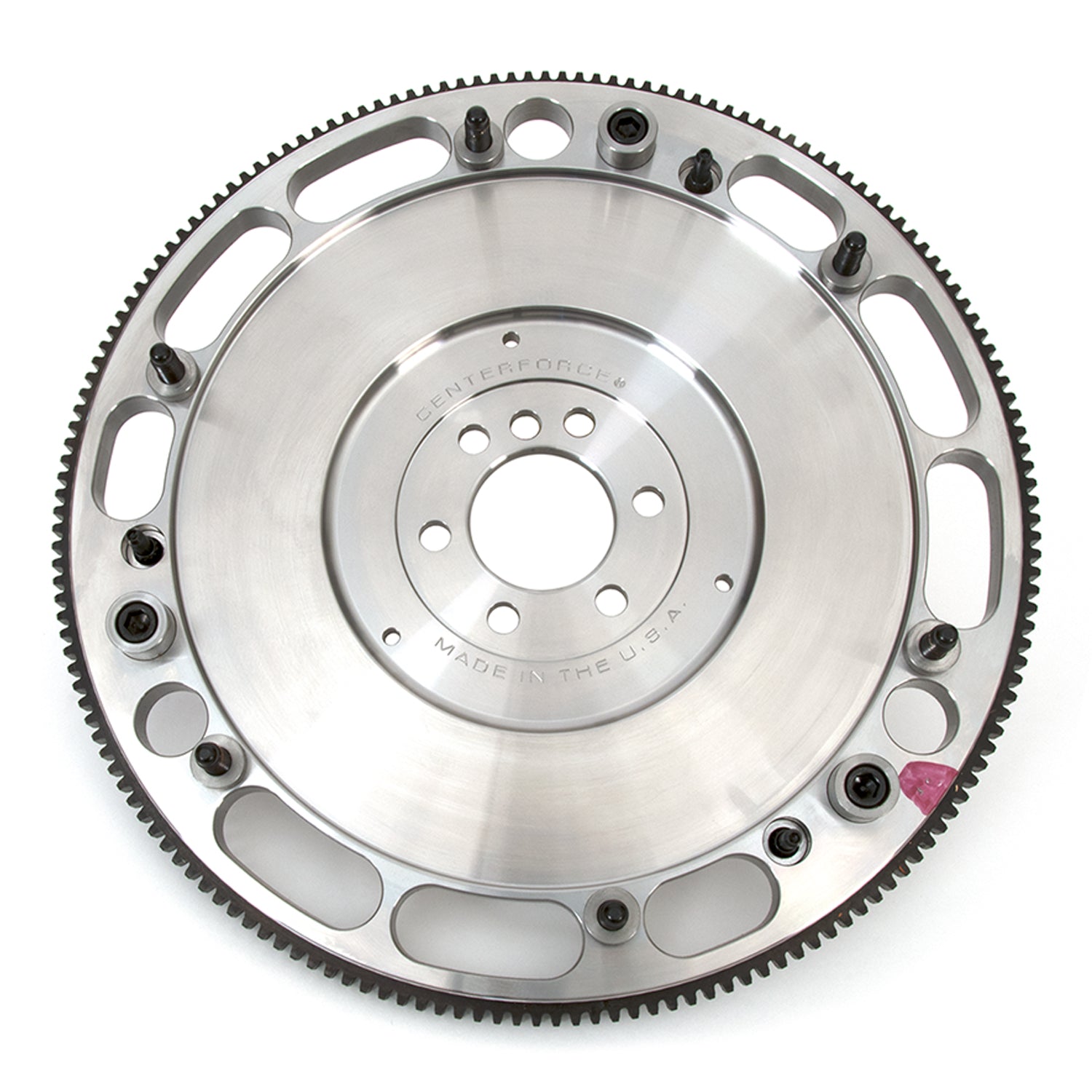

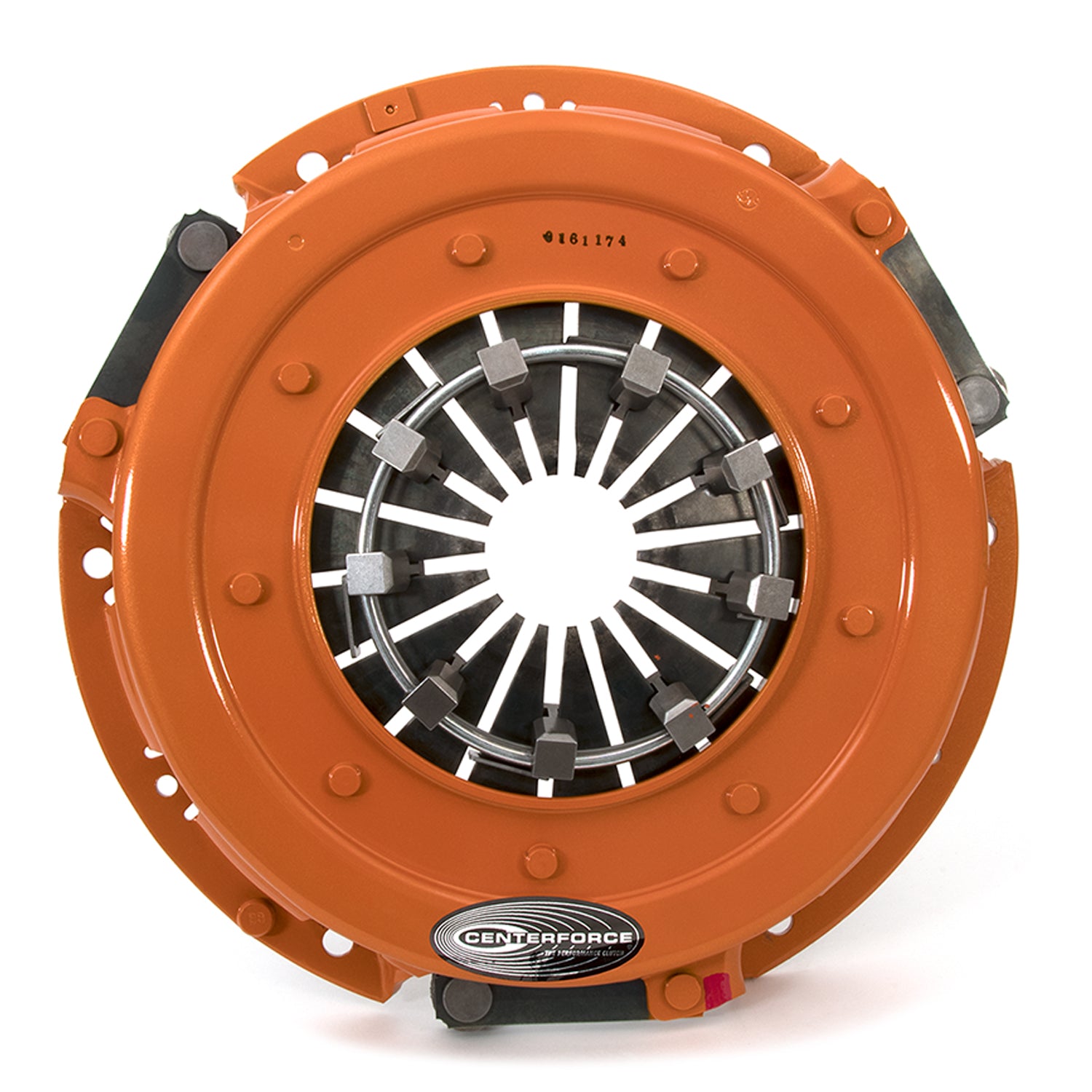

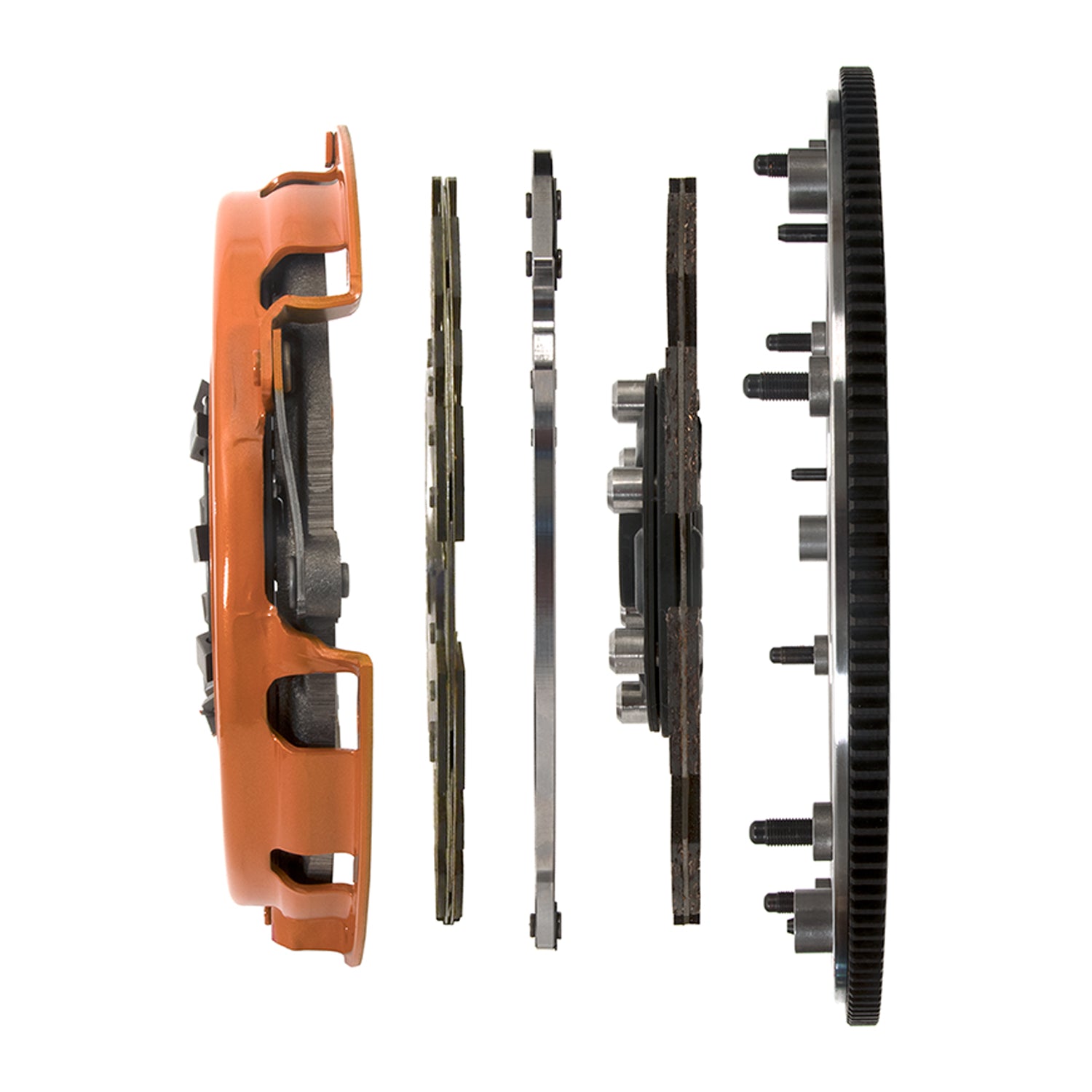

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications:

Description_ABR MDA
Description_APS 1997 thru 2015 Chevrolet Camaro and Corvette 8 Cylinders
Description_ASM 1997 thru 2015 Chevrolet Camaro and Corvette 8 Cylinders
Description_DEF Transmission Clutch and Flywheel Kit
Description_DES DYAD(R) DS 10.4, Clutch and Flywheel Kit
Description_INV Centerforce, Full Kits W/Flywheel
Description_EXT The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description_FAB 10.4" Diameter;

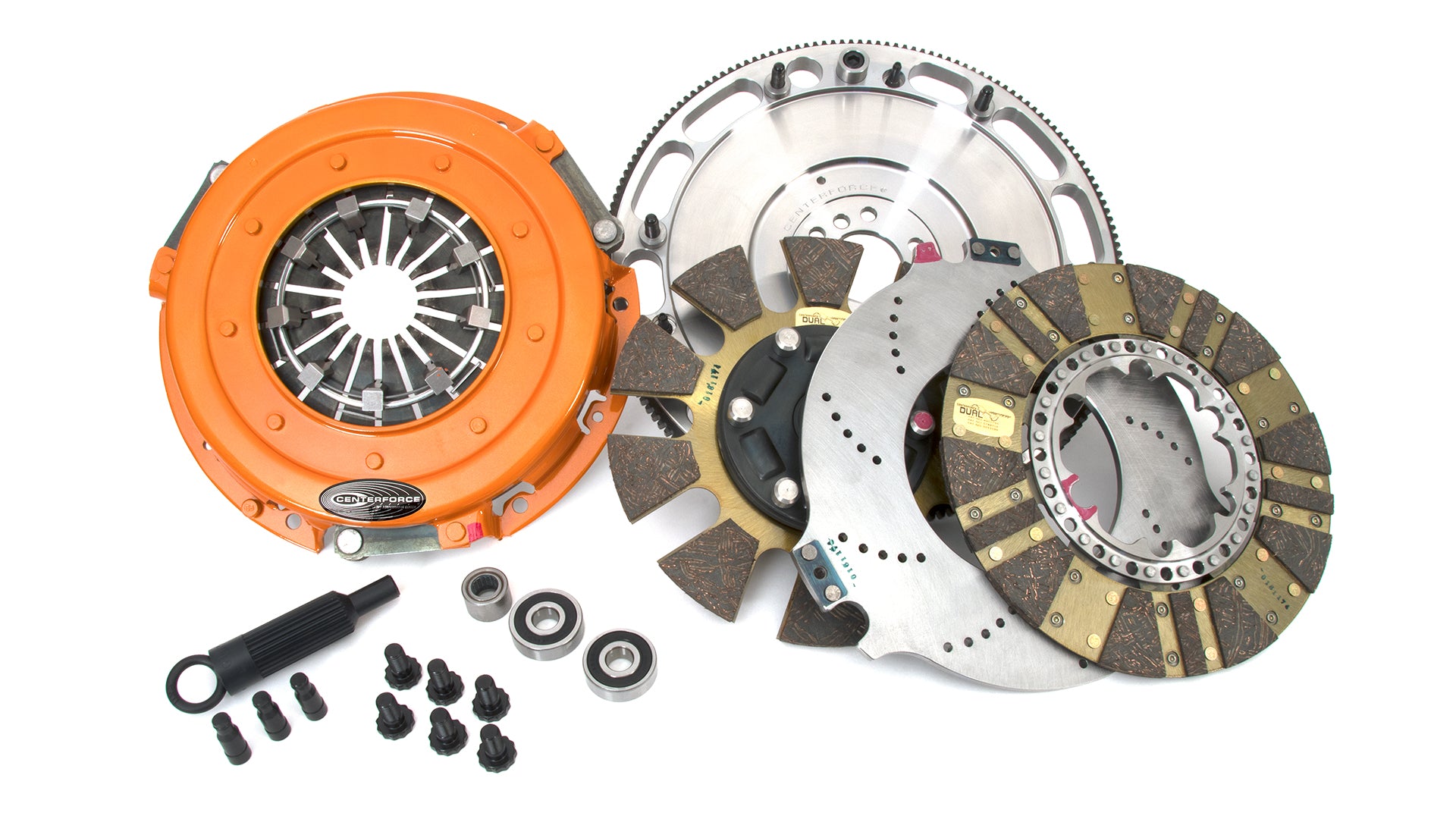

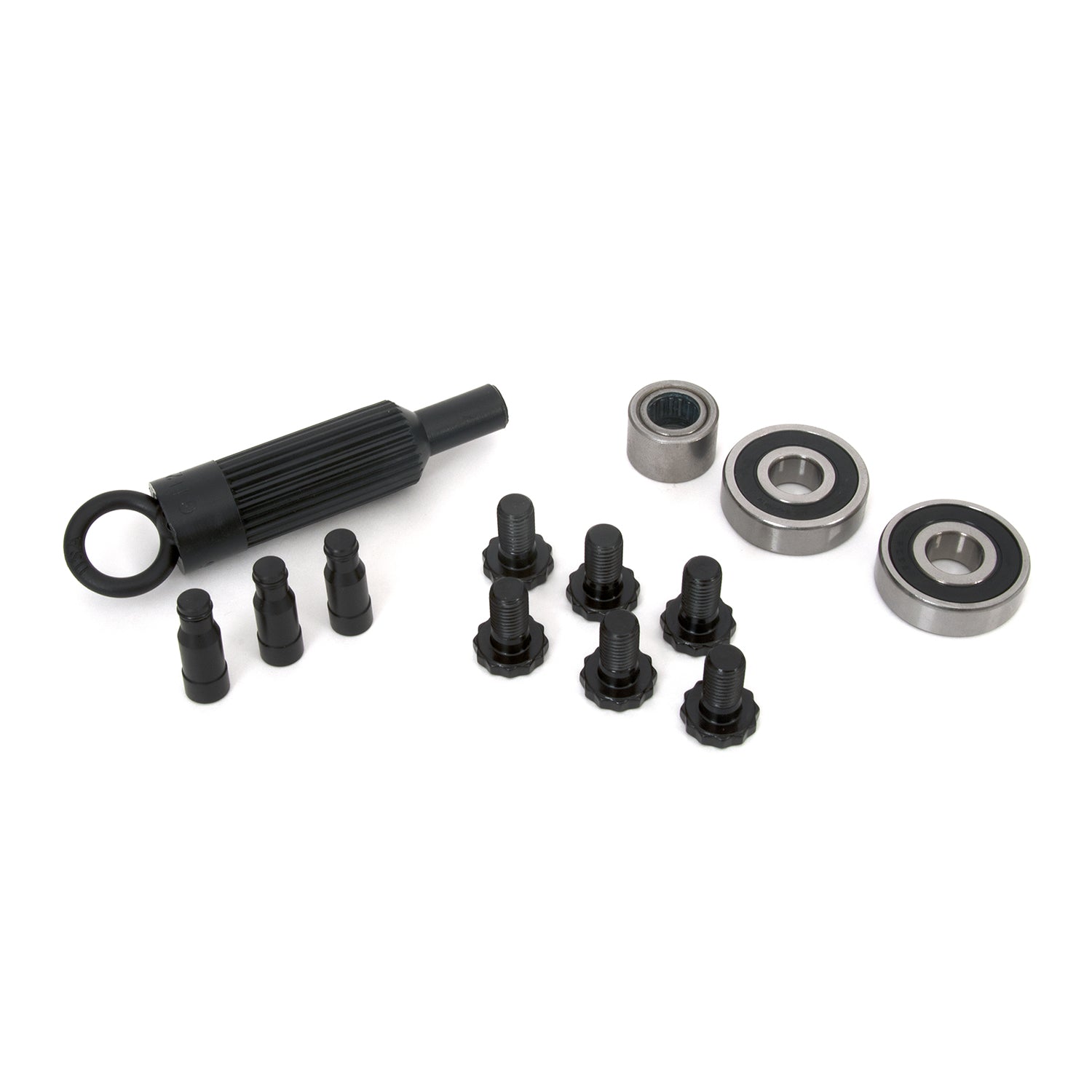

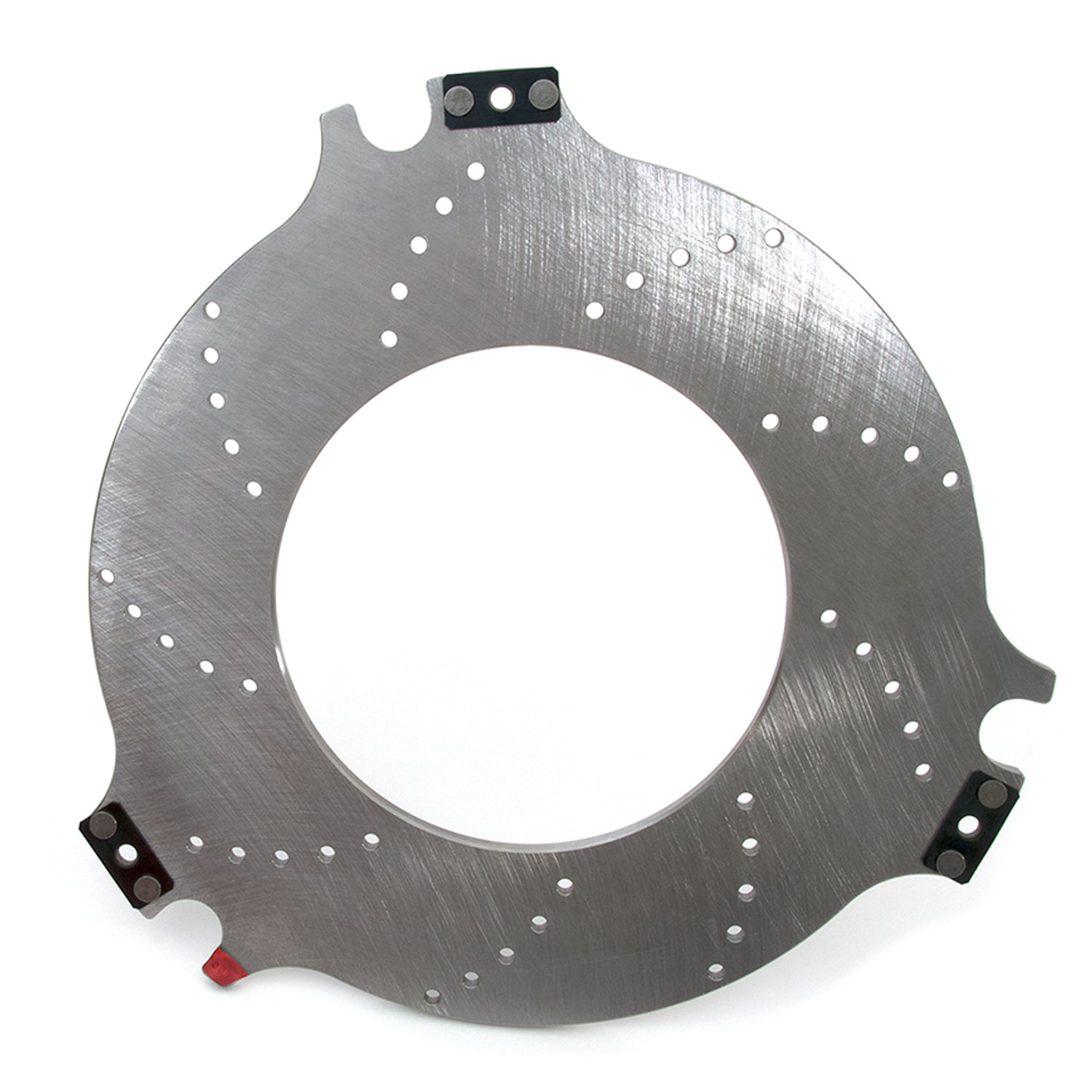

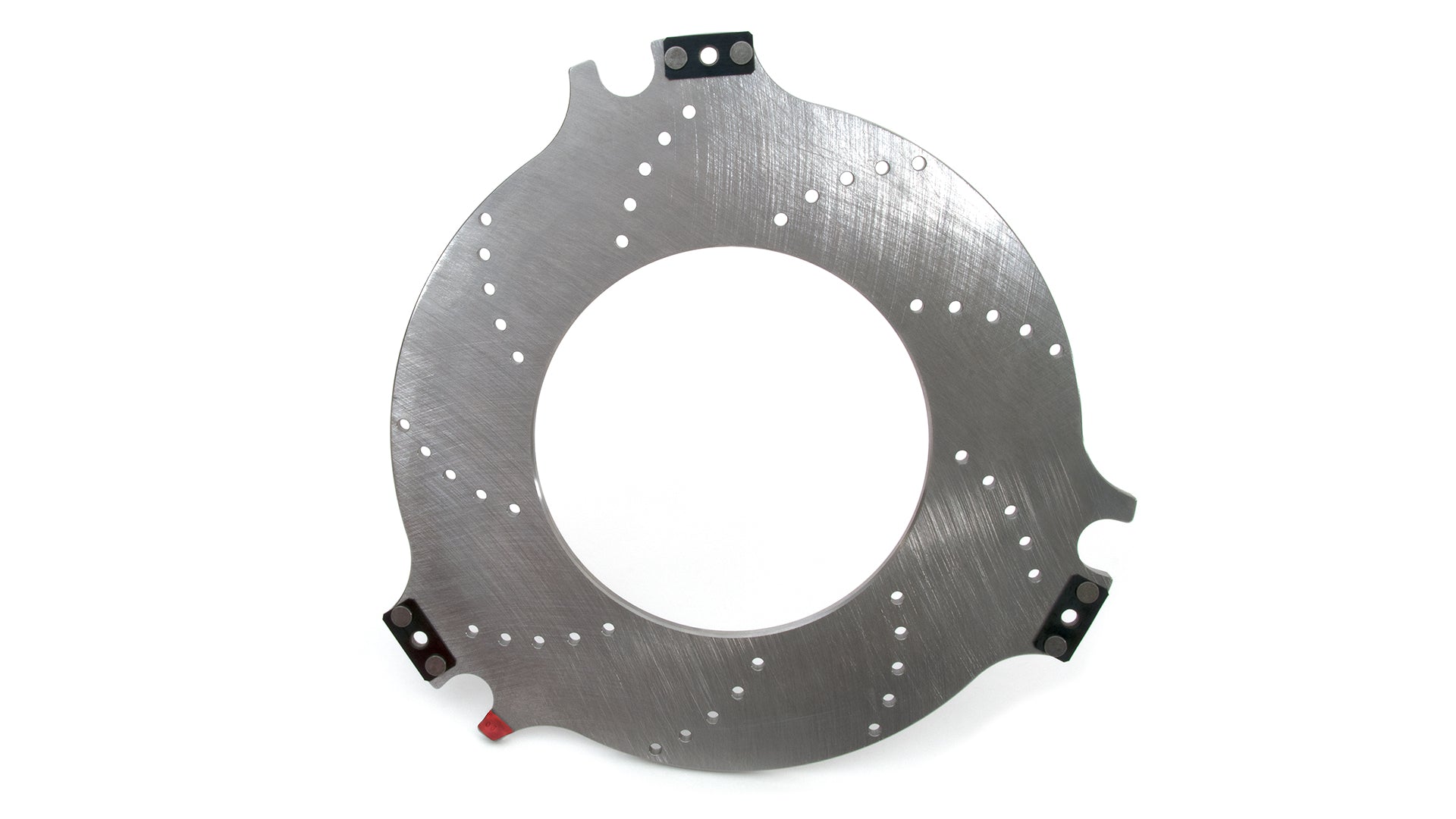

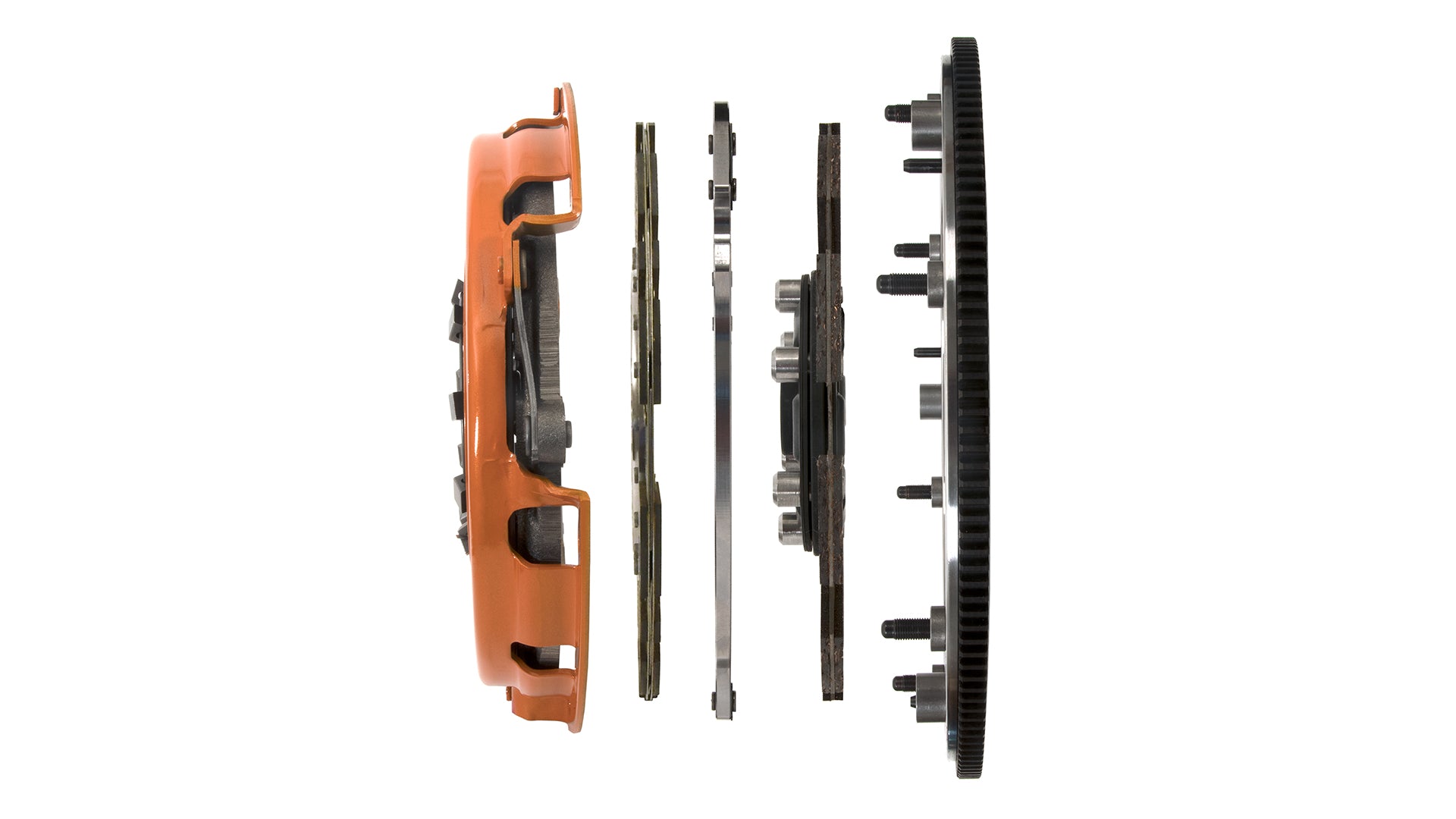

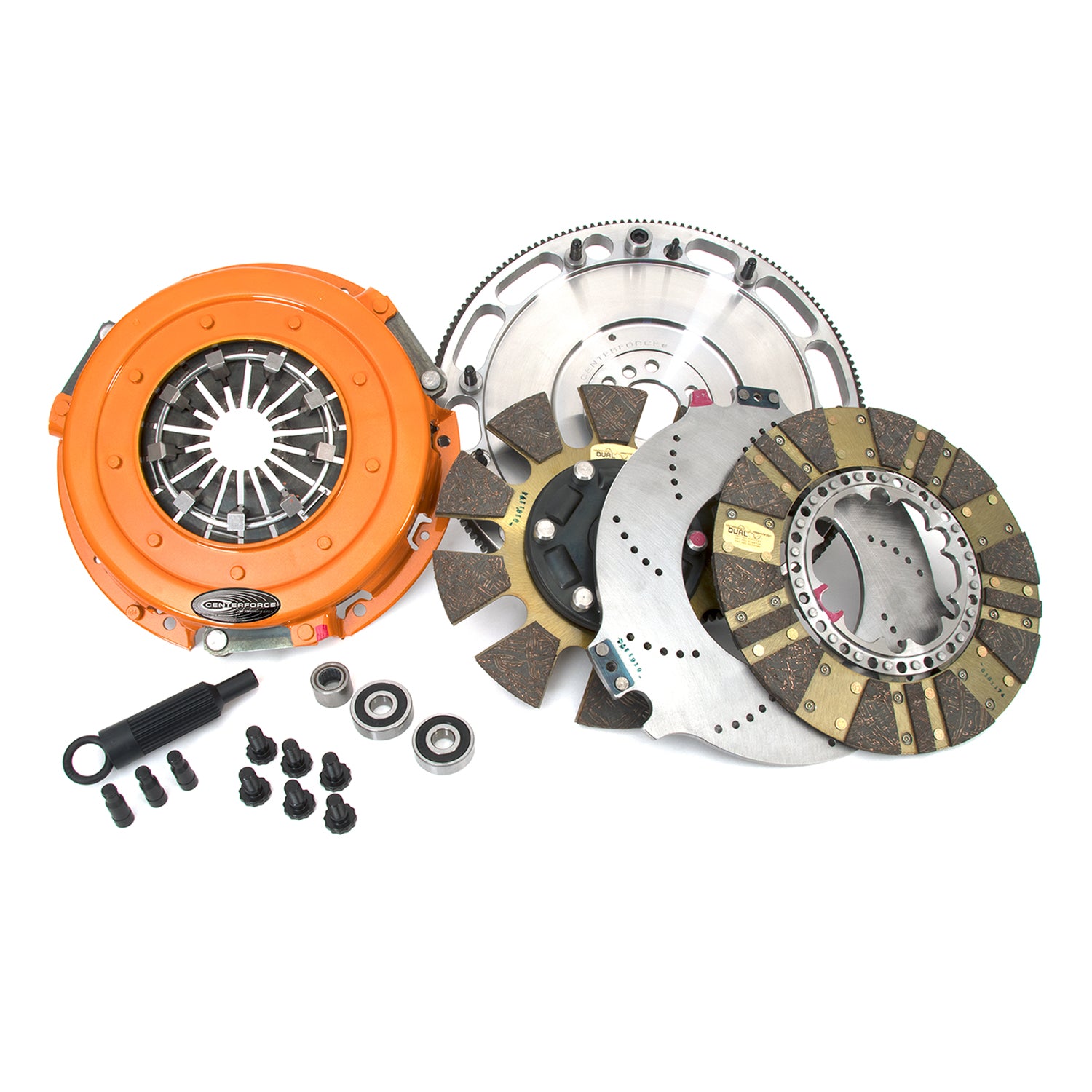

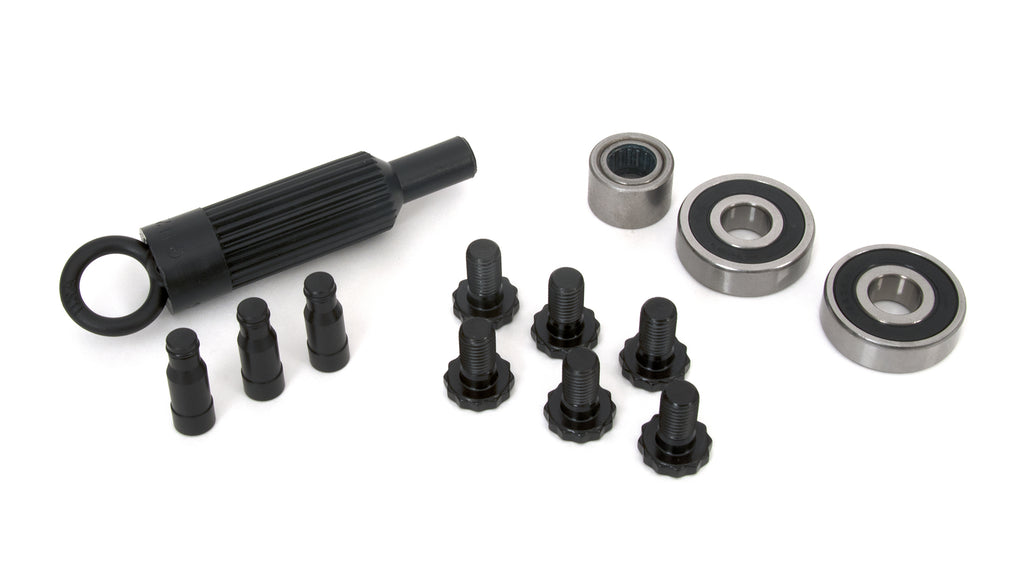

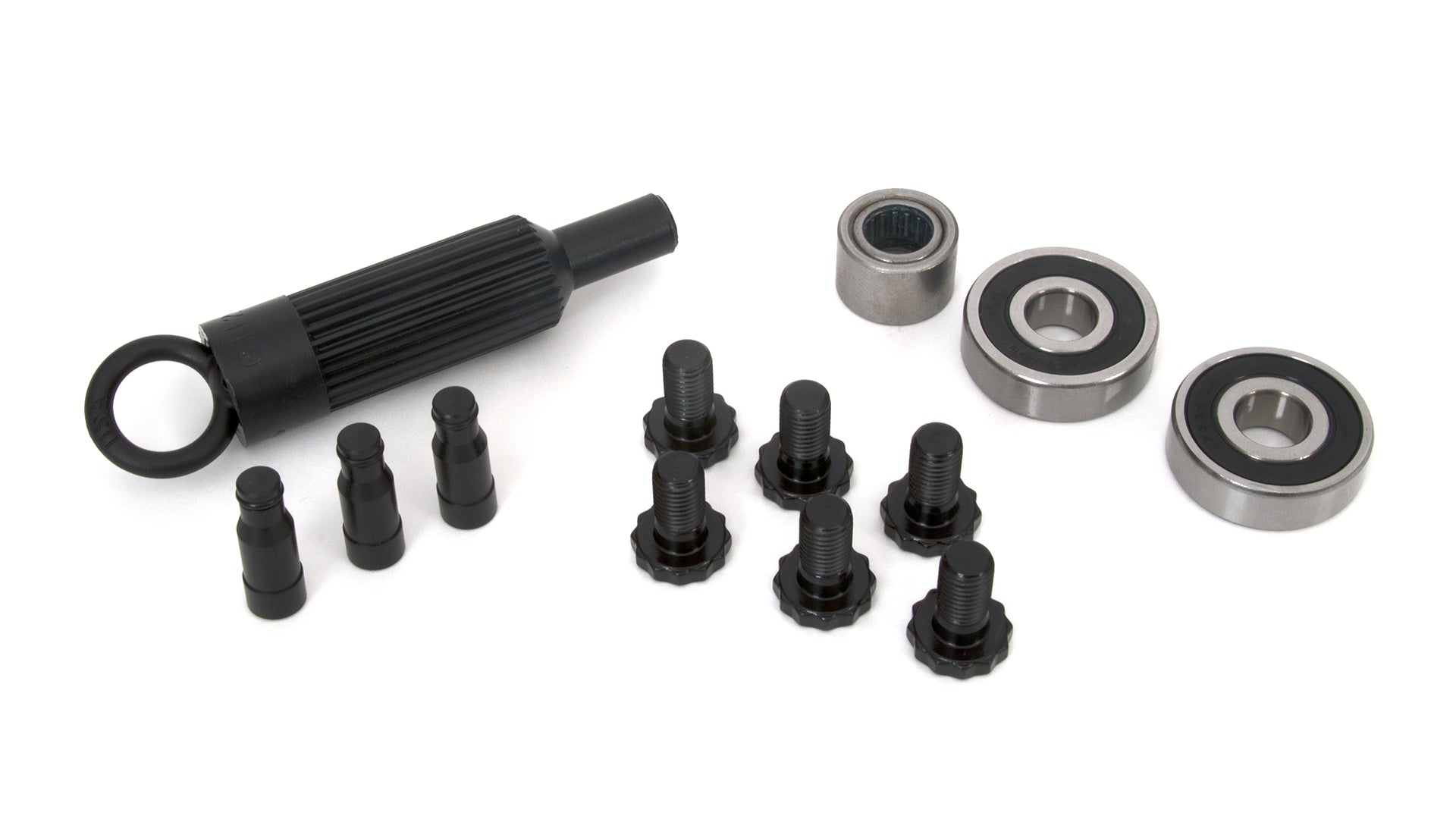

Description_LAB Cover, Discs, Floater, Flywheel, Bolts, Pilot Bearings, Align Tool
Description_MKT The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Description_SLA Clutch and Flywheel Kit, DYAD DS, 10.4-IN/264.2-MM, 1-1/8-IN - 26 Spl., Sprung Segmented face Organic/Carbon Composite Twin Disc
Description_SLD DYAD DS, 10.4-IN, 1.125-IN - 26 Spl., Twin Disc, 1300 Ft/Lbs
Description_SHO Full Kits W/Flywheel
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Disc Type Sprung Solid Sprung
Flywheel Counter Balance Weight 0
Tooth Quantity 168
Torque Capacity 1300
Made In The USA Assembled
Counterweight Assist YES
Crankshaft Bolt Hole Quantity 6
Flywheel Crank Flange Register 2.068
Material Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Ring Gear O.D. 14.105
Title PN: 413614842 - DYAD DS 10.4, Clutch and Flywheel Kit
Alignment Tool Included Yes
Clutch Disc Diameter 10.4
Clutch Disc Diameter 264.2
Disc Material Organic/Carbon composite
Disc Quantity 2
Disc Type Segmented face
Flywheel Crank Bolt Size MM11 x 1.50 x 23
Input Shaft Diameter 1.125
Input Spline Quantity 26
Installed Height 2.760
Mounting Hardware Included Yes
Out of Package Weight 46.45
Pilot Bushing Included Yes
Length 5.5000
Width 18.0000
Height 18.0000
Weight 50.5000
