| Description_ABR |
MDA |
| Description_APS |
1965 thru 1972 Dodge Cars 7.0L/7.2L |
| Description_ASM |
1965 thru 1972 Dodge Cars 7.0L/7.2L |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
DYAD(R) DS 10.4, Clutch and Flywheel Kit |
| Description_INV |
Centerforce, Full Kits W/Flywheel |
| Description_FAB |
10.4" Diameter; |
| Description_EXT |
The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs. |
| Description_LAB |

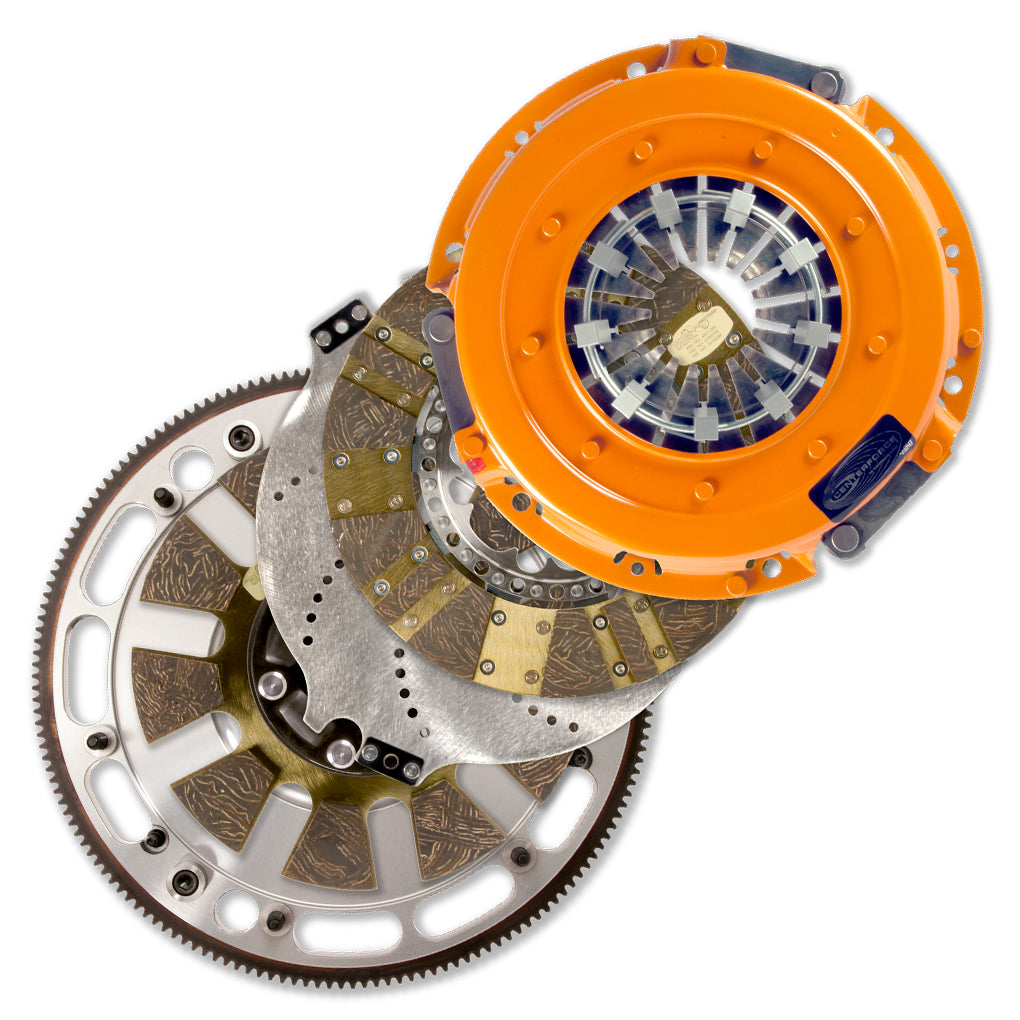

Cover, Discs, Floater, Flywheel, Bolts |
| Description_SHO |
Full Kits W/Flywheel |
| Description_MKT |
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners. |
| Description_SLA |
Clutch and Flywheel Kit, DYAD DS, 10.4-IN/264.2-MM, 1-1/8-IN - 26 Spl., Sprung Segmented face Organic/Carbon Composite Disc, 1300 Ft/Lbs Trq. Cap. |
| Description_SLD |
DYAD DS, 10.4-IN, 1.125-IN - 26 Spl., 1300 Ft/Lbs |
| Ring Gear O.D. |
13.205 |
| Flywheel Counter Balance Weight |
0 |
| Counterweight Assist |
YES |
| Flywheel Crank Bolt Size |
1/2 in x 20 x .875 |
| Material |
Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction |
| Made In The USA |
Assembled |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Disc Diameter |
10.4 |
| Clutch Disc Diameter |
264.2 |
| Crankshaft Bolt Hole Quantity |
8 |
| Disc Material |
Organic/Carbon composite |
| Disc Type |
Segmented face |
| Disc Type Sprung Solid |
Sprung |
| Flywheel Crank Flange Register |
2.160 |
| Input Shaft Diameter |
1.125 |
| Input Spline Quantity |
26 |
| Installed Height |
2.960 |
| Mounting Hardware Included |
Yes |
| Title |
PN: 413613018 - DYAD DS 10.4, Clutch and Flywheel Kit |
| Tooth Quantity |
130 |
| Torque Capacity |
1300 |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
52.0000 |
