The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Specifications:
| Description_APS |
2009 thru 2010 Ford Mustang Cobra Jet 5.4L |
| Description_ABR |
DFX |
| Description_ASM |
2009 thru 2010 Ford Mustang Cobra Jet 5.4L |
| Description_DEF |
Clutch Pressure Plate and Disc Set |
| Description_DES |
DFX(R), Clutch Pressure Plate and Disc Set |
| Description_LAB |
P.Plate, Disc, P.P.Bolts, A.Tool |
| Description_FAB |
11" Diameter; |
| Description_INV |
Centerforce, Clutch Cover/Disc |
| Description_EXT |
The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch. |
| Description_SHO |
Clutch Cover/Disc |
| Description_SLA |
Clutch Pressure Plate and Disc Set, DFX, 11-IN/279.4-MM, 1-1/8-IN - 26 Spl., Sprung 6-Paddle Cerametallic Disc |
| Description_SLD |
DFX, 11-IN, 1.125-IN - 26 Spl. |
| Description_MKT |
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter. |
| Alignment Tool Included |
Yes |
| Disc Type Sprung Solid |
Sprung |
| Mounting Hardware Included |
Yes |
| Disc Type |
6-Paddle |
| Input Shaft Diameter |
1.125 |
| Input Spline Quantity |
26 |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Counterweight Assist |
YES |
| Made In The USA |
Assembled |
| Clutch Bolt Pattern |
18 |
| Clutch Disc Diameter |
11 |
| Clutch Disc Diameter |
279.4 |
| Disc Material |
Cerametallic |
| Material |
Cast Iron Pressure Plate / Cerametallic Button Style Friction |
| SFI 1.1 Approved |
Y |
| Title |

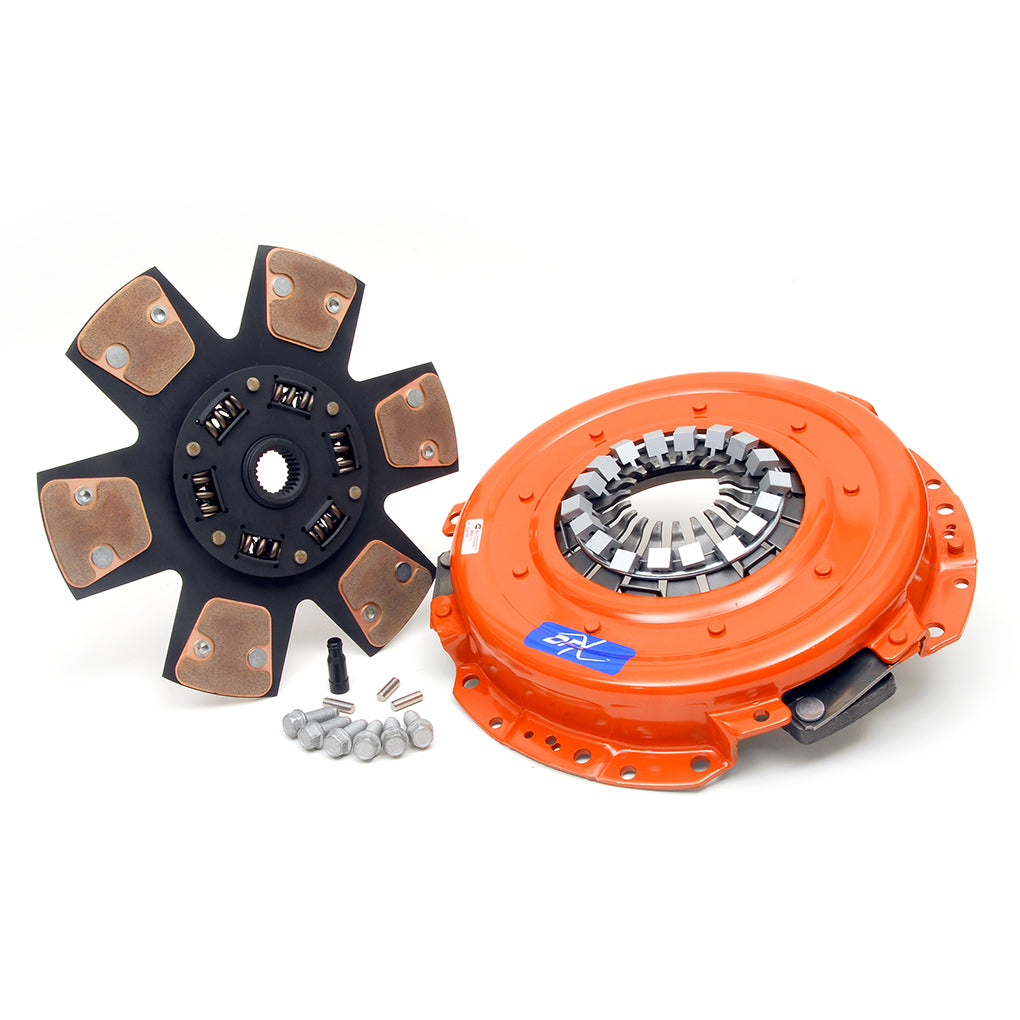

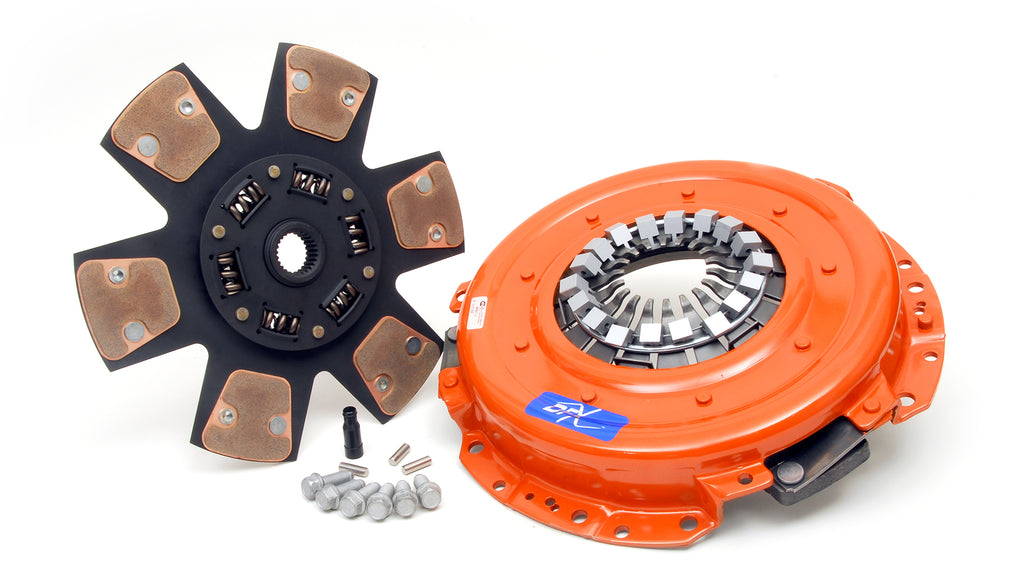

PN: 315441003 - DFX, Clutch Pressure Plate and Disc Set |
| Length |
4.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
31.1500 |
