| Description_APS |
2005 thru 2010 Dodge Cars and Trucks 5.9L/6.7L |
| Description_ABR |
DFX |
| Description_ASM |
2005 thru 2010 Dodge Cars and Trucks 5.9L/6.7L |
| Description_DEF |
Transmission Clutch and Flywheel Kit |
| Description_DES |
DFX(R), Clutch Pressure Plate, Disc, and Flywheel Set |
| Description_INV |
Centerforce, Cover, Disc, Flyw |
| Description_FAB |
13" Diameter; |
| Description_EXT |
The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch. |
| Description_SLD |
DFX, 13-IN, 1.375-IN - 10 Spl., 1100 Ft/Lbs, 0-IN/OZ C-Bal 152T 8-Bolt |
| Description_SLA |
Clutch and Flywheel Kit, DFX, 13-IN/330.2-MM, 1-3/8-IN - 10 Spl., Sprung 8-Paddle Cerametallic Disc, 1100 Ft/Lbs Trq. Cap. |
| Description_LAB |

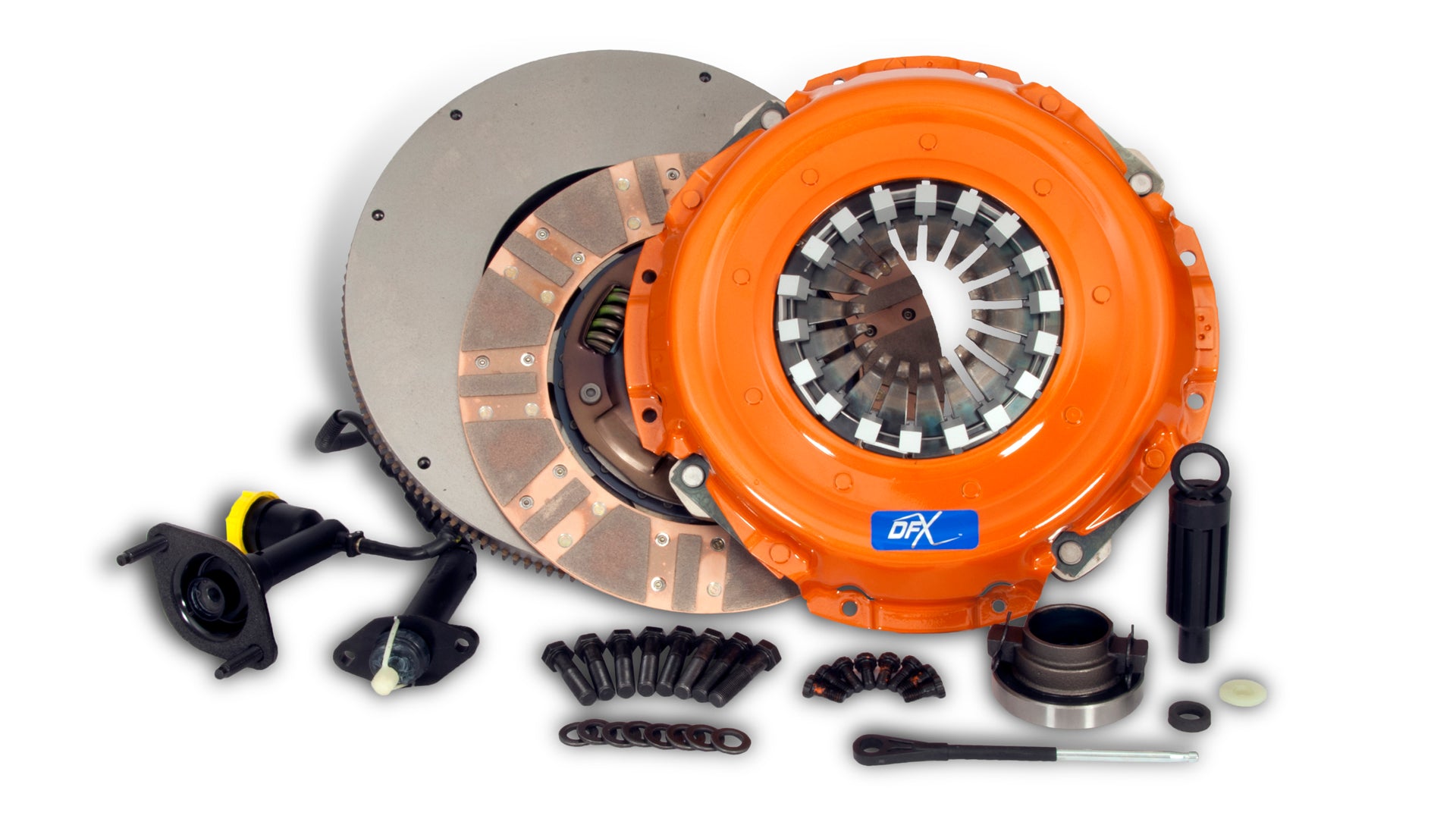

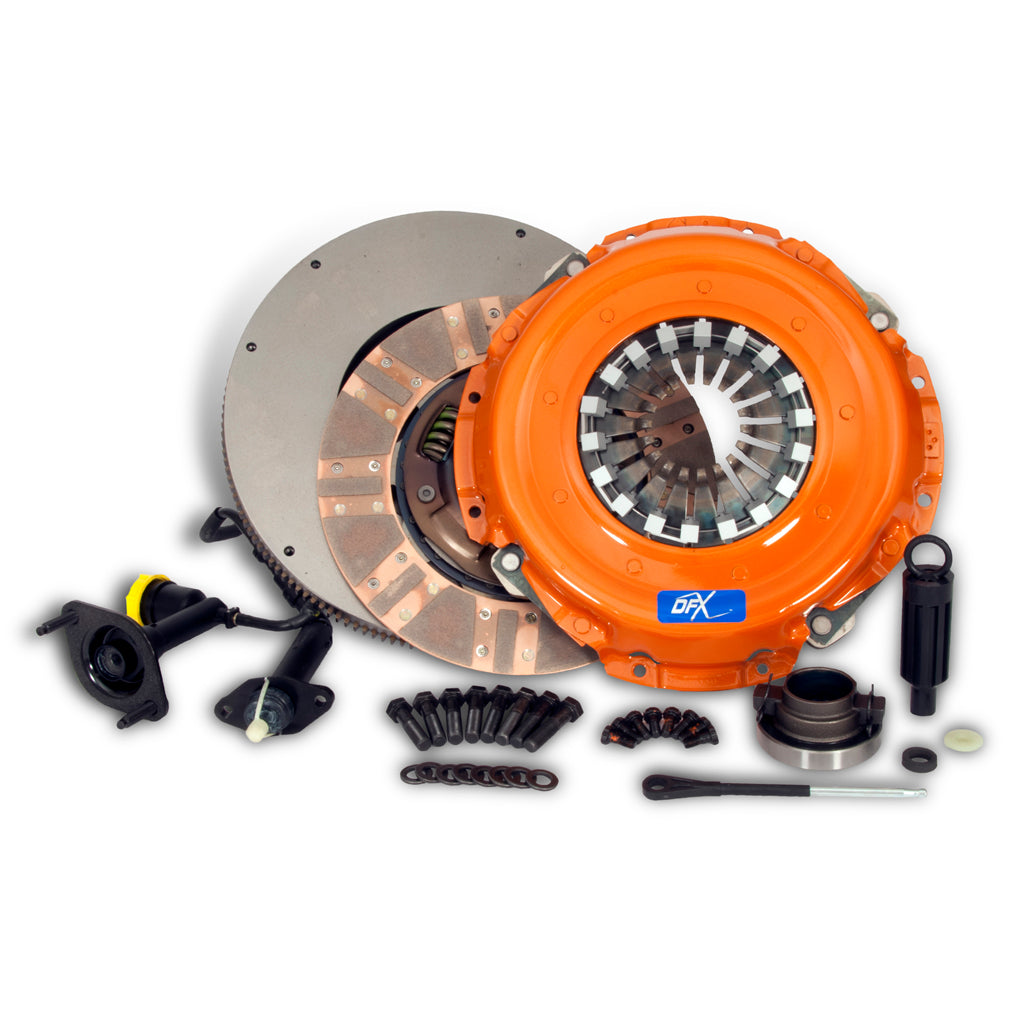

P.Plate, Discs, Floater, Flywh, P.P.Bolts, T.O.B., Pilot Brg, H.Slave, A.Tool |
| Description_MKT |
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter. |
| Description_SHO |
Cover, Disc, Flyw |
| Made In The USA |
Assembled |
| Flywheel Counter Balance Weight |
0 |
| Flywheel Crank Bolt Size |
12 |
| Ring Gear O.D. |
15.625 |
| SFI 1.1 Approved |
Y |
| Title |
PN: 315143253 - DFX, Clutch Pressure Plate, Disc, and Flywheel Set |
| Alignment Tool Included |
Yes |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Bolt Pattern |
23 |
| Clutch Disc Diameter |
13 |
| Clutch Disc Diameter |
330.2 |
| Counterweight Assist |
YES |
| Crankshaft Bolt Hole Quantity |
8 |
| Disc Material |
Cerametallic |
| Disc Type |
8-Paddle |
| Disc Type Sprung Solid |
Sprung |
| Input Shaft Diameter |
1.375 |
| Input Spline Quantity |
10 |
| Material |
Cast Iron Flywheel / Cast Iron Pressure Plate / Cerametallic Friction |
| Mounting Hardware Included |
Yes |
| Pilot Bushing Included |
Yes |
| Release Bearing Included |
Yes |
| Tooth Quantity |
152 |
| Torque Capacity |
1100 |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
113.0000 |
