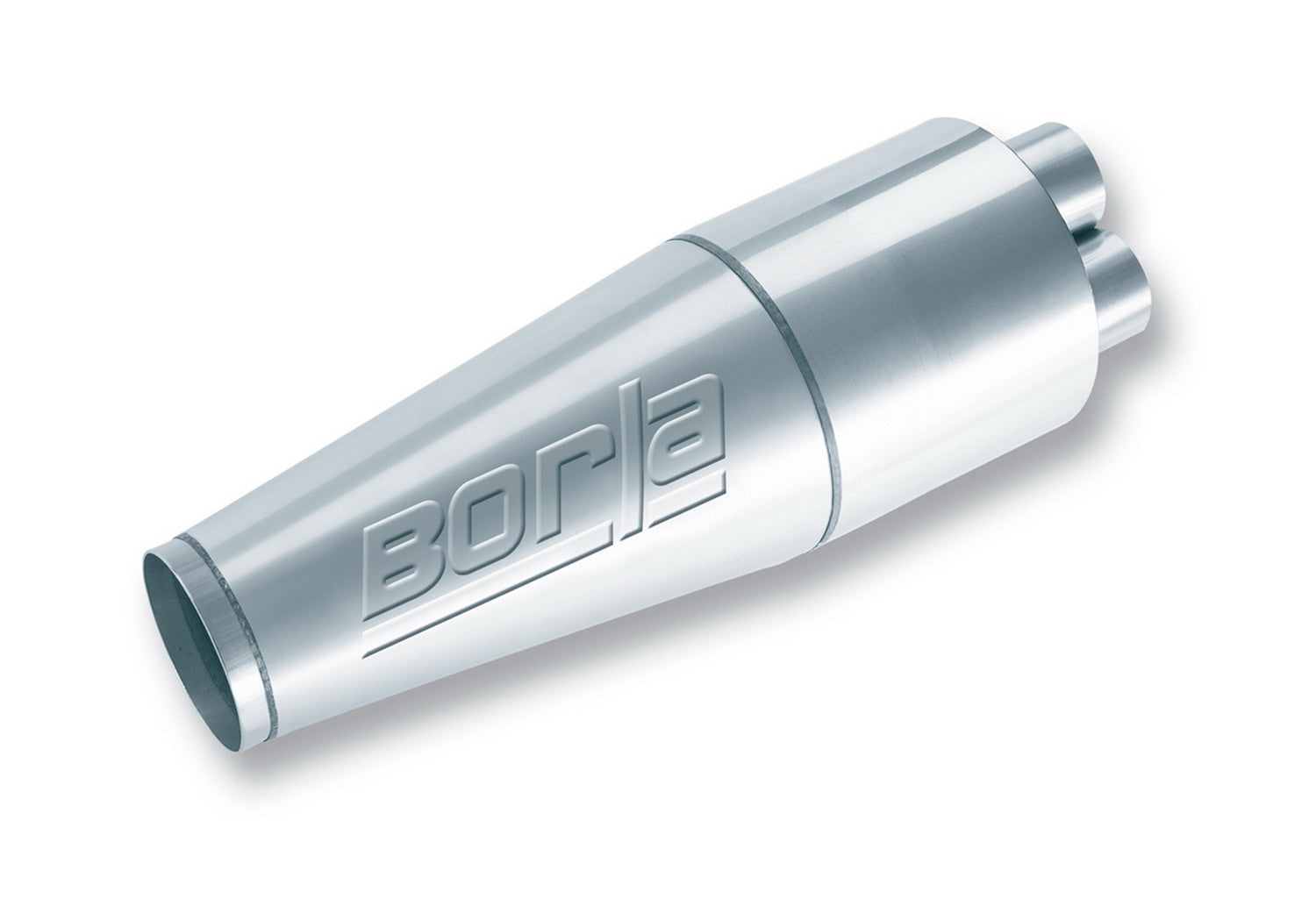

Borla 40703 XR-1 Multicore Collector Muffler Standard

2 sold in last 8 days
Borla
ds_BDLS_40703
Exhaust Muffler
$1,012.31

customers are viewing this product
Borla 40703 XR-1 Multicore Collector Muffler Standard

This is the HOT set up in drag racing. This patented, award and race-winning vacuum Wave Collector was designed to replace your current open header collector and serves as a power producing merge collector and muffler -- all in a single unit. The technology in this unit results in pulling air through the engine faster, which creates more power. When an exhaust valve opens, an energy wave is created from the expanding combustion gases. When this wave encounters a lower pressure area such as a larger collector pipe or the atmosphere, a reversion wave is reflected back toward the exhaust valve. Borla's Vacuum Wave Collector Muffler ensures this wave's "anti-node" reaches the exhaust valve at the precise time for its lower pressure to help fill the combustion chamber with a fresh charge and to further extract spent gases from the chamber via a vacuum effect. Made with a patented, award and race winning multicore high flow design just like the standard XR-1(r) muffler for maximum power. This muffler is recommended for Dragsters, Altereds, and Roadsters. Accepted in NHRA, IHRA, Hot Rod Series, Brackets, Super Chevy, and NSCA. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. T-304 stainless steel wool for sound control. Best of all, it's made in the USA. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.

Specifications:

Description_ASM XR-1(r) Multicore Collector Racing Muffler - (4) 2.375" Inlets (1) 4.5" Outlet 6.75" Round x 18" Long Body 20" Overall Length. Universal Part.
Description_DEF Exhaust Muffler
Description_DES XR-1 Multicore Collector Muffler Standard
Description_EXT XR-1 Multi-Core Collector Racing Muffler - 2.375" Inlets (4)/ 4.5" Outlet 6.75" Round x 18" Long Body 20" Overall Length. Universal Part.
Description_INV Borla(r) XR-1 Collector Muffler
Description_MKT This is the HOT set up in drag racing. This patented, award and race-winning vacuum Wave Collector was designed to replace your current open header collector and serves as a power producing merge collector and muffler -- all in a single unit. The technology in this unit results in pulling air through the engine faster, which creates more power. When an exhaust valve opens, an energy wave is created from the expanding combustion gases. When this wave encounters a lower pressure area such as a larger collector pipe or the atmosphere, a reversion wave is reflected back toward the exhaust valve. Borla's Vacuum Wave Collector Muffler ensures this wave's "anti-node" reaches the exhaust valve at the precise time for its lower pressure to help fill the combustion chamber with a fresh charge and to further extract spent gases from the chamber via a vacuum effect. Made with a patented, award and race winning multicore high flow design just like the standard XR-1(r) muffler for maximum power. This muffler is recommended for Dragsters, Altereds, and Roadsters. Accepted in NHRA, IHRA, Hot Rod Series, Brackets, Super Chevy, and NSCA. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. T-304 stainless steel wool for sound control. Best of all, it's made in the USA. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.
Description_SHO XR-1 Collector
Muffler Count 1
Outlet Type Single Center Outlet
Title Extended XR-1(r) Multi-Core Racing Muffler Collector Quad 2.375in Inlet/ 4.5in Outlet 6.75in Round x 18in Long Body Part # 40703
Body Height 6.750 in.
Inlet Type Single Center
Material T-304 Stainless Steel
Grade Type Performance
Construction All Welded
Main Piping Diameter 2.375 in.
Outlet Outside Diameter 4.500 in.
Overall Length 25.500 in.
Prop 65 - Long Label WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le
Title XR-1(r) Multi-Core Racing Muffler Collector Quad 2.375in Inlet/ 4.5in Outlet 6.75in Round x 18in Long Body
Body Length 20.500 in.
Body Width 6.750 in.
Inlet Connection Type Pipe
Inlet Position Center
Off Road Use Only No
Outlet Position Center
Prop 65 - Short Label Proposition 65 Warning.JPG
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Shape Round
Tip / Outlet Finish N/A
Length 24.0000
Width 10.0000
Height 10.0000
Weight 12.0000
