Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation.
Specifications:
| Description_ASM |

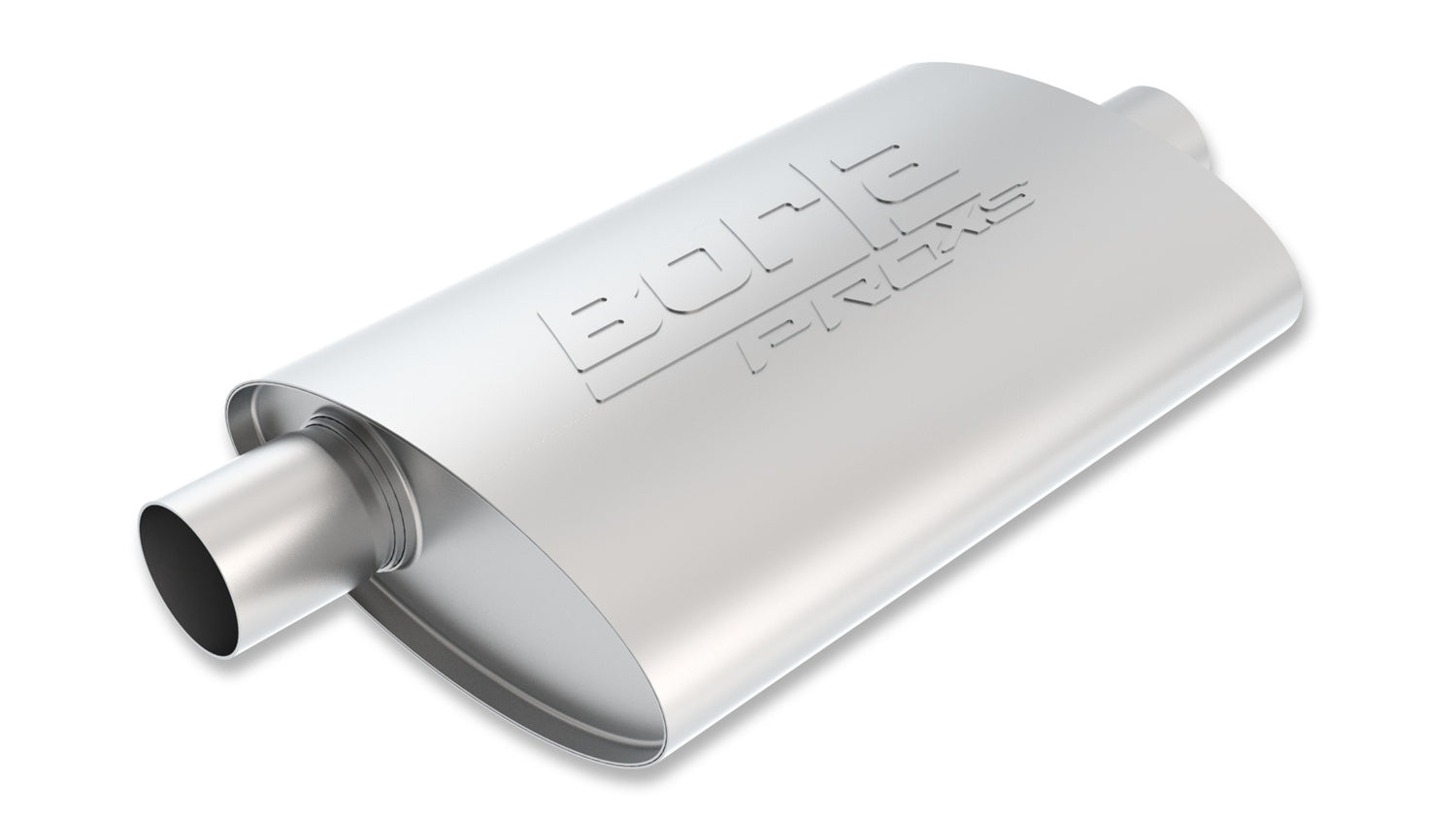

ProXS? Muffler 2.25" Offset Inlet/ 2.25" Center Outlet, 4" x 9.5" Oval, 14" Long Body, 19" Overall Length. Universal Part. Reversible Design. |
| Description_DEF |
Exhaust Muffler |
| Description_DES |
ProXS? Muffler - Un-Notched Neck |
| Description_EXT |
ProXS? Muffler 2.25" Offset Inlet/ 2.25" Center Outlet, 4" x 9.5" Oval, 14" Long Body, 19" Overall Length. Universal Part. Reversible Design. |
| Description_MKT |
Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. |
| Description_INV |
BorlaProXS Muffler |
| Description_SHO |
ProXS? |
| Body Width |
9.500 in. |
| Muffler Count |
1 |
| Title |
ProXS Muffler 2.25in Offset Inlet/ 2.25in Center Outlet 4in x 9.5in Oval x 14in Long Body |
| Main Piping Diameter |
2.250 in. |
| Title Extended |
ProXS Muffler 2.25in Offset/Center 14inx4inx9.5in Part # 40357 |
| Body Height |
4.000 in. |
| Body Length |
14.000 in. |
| Construction |
All Welded |
| Inlet Connection Type |
Pipe |
| Inlet Type |
Single Center |
| Material |
T-304 Stainless Steel |
| Off Road Use Only |
No |
| Outlet Outside Diameter |
2.250 in. |
| Outlet Position |
Offset |
| Prop 65 - Long Label |
WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le |
| Shape |
Oval |
| Grade Type |
Performance |
| Inlet Position |
Center |
| Outlet Type |
Single Offset Outlet |
| Overall Length |
19.000 in. |
| Prop 65 - Short Label |
Proposition 65 Warning.JPG |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Tip / Outlet Finish |
N/A |
| Length |
10.0000 |
| Width |
21.0000 |
| Height |
5.0000 |
| Weight |
8.0000 |
