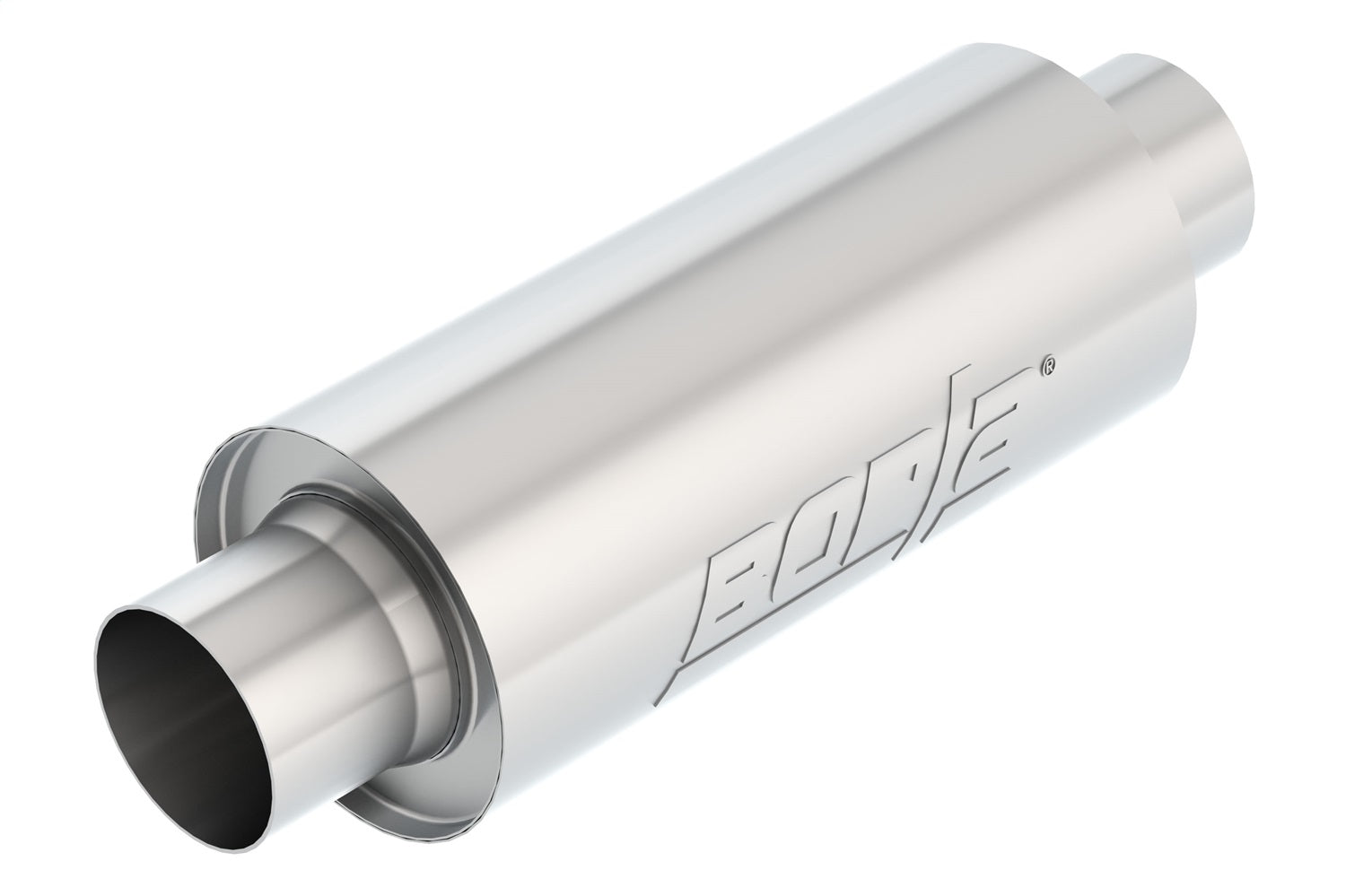

Designed for vehicles racing at venues requiring a muffler, but can be used for other applications. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Best of all, it's made in the USA. Just what you d expect from the world s most experienced (and most winning) exhaust brand.
Specifications:
| Description_ASM |
XR-1? Multi-Core Racing Muffler For Venues Requiring A Muffler - 3.5" Center Inlet/ 3.5' Center Outlet 6.25" Round x 14" Long Body 19.75" Overall Length. Universal Part. Reversible Design. |
| Description_DEF |
Exhaust Muffler |
| Description_EXT |
XR-1? Multi-Core Racing Muffler For Venues Requiring A Muffler - 3.5" Center Inlet/ 3.5" Center Outlet 6.25" Round x 14" Long Body 19.75" Overall Length. Universal Part. Reversible Design. |
| Description_DES |
XR-1 Multicore Muffler |
| Description_MKT |
Designed for vehicles racing at venues requiring a muffler, but can be used for other applications. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Best of all, it's made in the USA. Just what you?d expect from the world?s most experienced (and most winning) exhaust brand. |
| Description_INV |
BorlaXR-1 Multi-Core Muffler |
| Description_SHO |
XR-1 Multi-Core |
| Prop 65 - Short Label |
Proposition 65 Warning.JPG |
| Prop 65 Yes/No |
Yes |
| Shape |
Round |
| Inlet Position |
Center |
| Body Length |
14.000 in. |
| Inlet Connection Type |
Pipe |
| Outlet Outside Diameter |
3.500 in. |
| Tip / Outlet Finish |
N/A |
| Body Height |
6.250 in. |
| Material |
T-304 Stainless Steel |
| Muffler Count |
1 |
| Off Road Use Only |
No |
| Outlet Type |
OEM |
| Overall Length |
OEM |
| Title |
XR-1 Multi-Core Racing Muffler 3.5in Center Inlet/ 3.5in Center Outlet 6.25in Round x 14in Long Body |
| Grade Type |
Performance |
| Body Width |
OEM |
| Construction |
All Welded |
| Inlet Type |
OEM |
| Main Piping Diameter |
3.500 in. |
| Outlet Position |
Center |
| Prop 65 - Long Label |
WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le |
| Prop 65 (C, R or CR) |
CR |
| Title Extended |
XR-1 Multi-Core 3.5in Center-Center 14inx6.25in Round - Racing Muffler Part # 401012 |
| Length |
9.0000 |
| Width |
9.0000 |
| Height |
33.0000 |
| Weight |
12.0000 |
