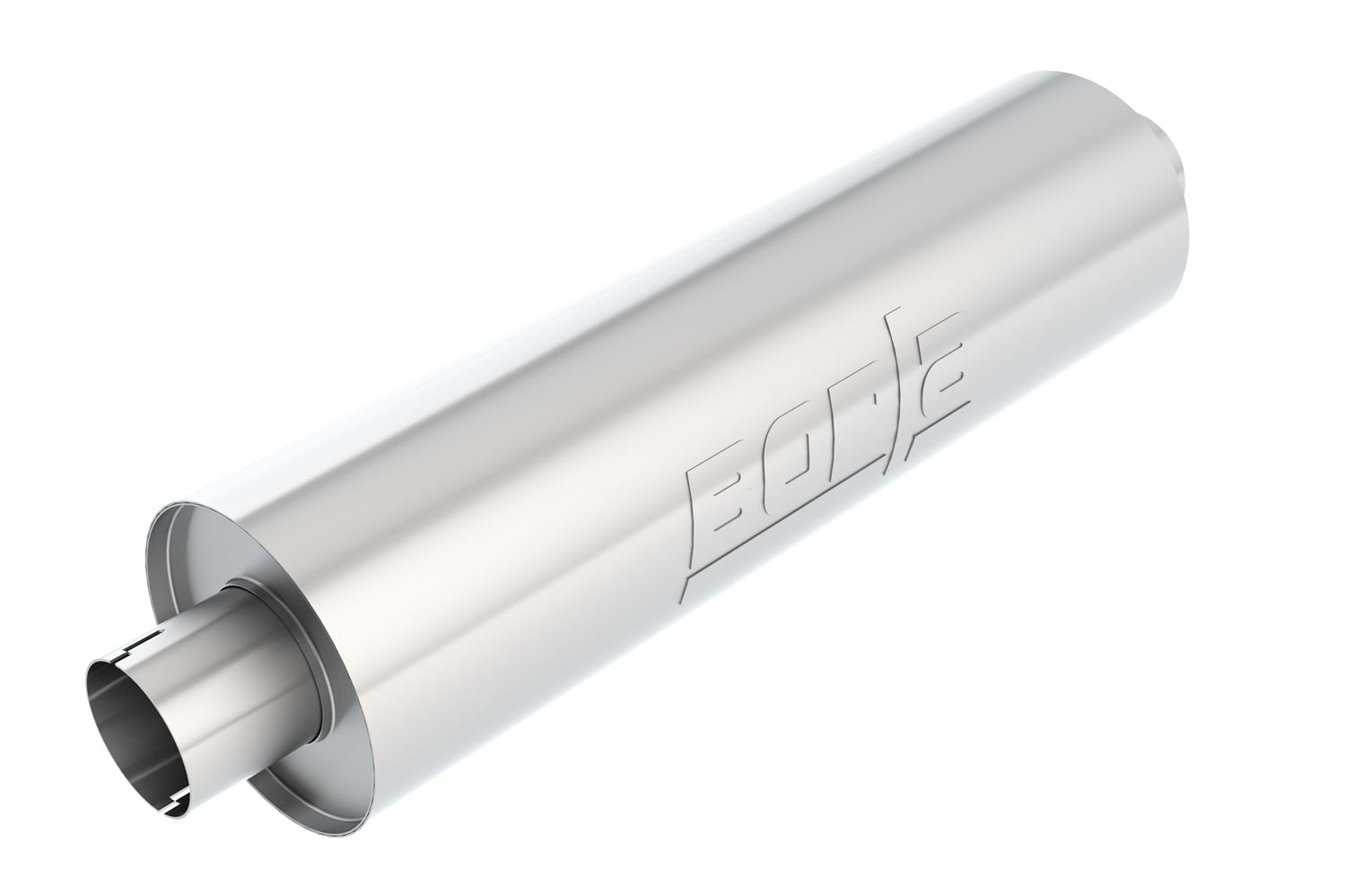

Developed for truck applications and other applications that require a long body muffler. Notched necks for clamp-on installation. Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation.
Specifications:
| Description_ASM |
Specialty Heavy Duty (Truck) Muffler - 3" Center Inlet/ 3" Center Outlet 6.75" Round x 24" Long Body 29" Overall Length. Universal Part. Reversible Design. Notched Necks. |
| Description_DEF |
Exhaust Muffler |
| Description_EXT |
Specialty Heavy Duty (Truck) Muffler - 3" Center Inlet/ 3" Center Outlet 6.75" Round x 24" Long Body 29" Overall Length. Universal Part. Reversible Design. NOTched Necks. |
| Description_DES |
Specialty Muffler - Notched Neck |
| Description_MKT |
Developed for truck applications and other applications that require a long body muffler. Notched necks for clamp-on installation. Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. |
| Description_INV |
BorlaTruck Muffler |
| Description_SHO |
Truck Muffler |
| Outlet Type |
Single Center Outlet |
| Prop 65 - Short Label |
Proposition 65 Warning.JPG |
| Inlet Connection Type |
Pipe |
| Inlet Position |
Center |
| Off Road Use Only |
No |
| Outlet Outside Diameter |
3.000 in. |
| Body Length |
24.000 in. |
| Outlet Position |
Center |
| Overall Length |
28.000 in. |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Shape |
Round |
| Tip / Outlet Finish |
N/A |
| Body Height |
6.750 in. |
| Body Width |
6.750 in. |
| Construction |
All Welded |
| Inlet Outside Diameter |
3.000 in. |
| Inlet Type |
Single Center |
| Main Piping Diameter |
3.000 in. |
| Material |
T-304 Stainless Steel |
| Muffler Count |
1 |
| Prop 65 - Long Label |
WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le |
| Title |
Specialty Muffler Heavy Duty (Truck) 3in Center Inlet/ 3in Center Outlet 6.75in Round x 24in Long Body Notched Necks |
| Title Extended |
Heavy Duty (Truck) - 3in Center-Center 24inx6.75in Round (Notched) - Specialty Muffler Part # 400500 |
| Grade Type |
Performance |
| Length |
34.0000 |
| Width |
17.0000 |
| Height |
10.0000 |
| Weight |
27.0000 |
