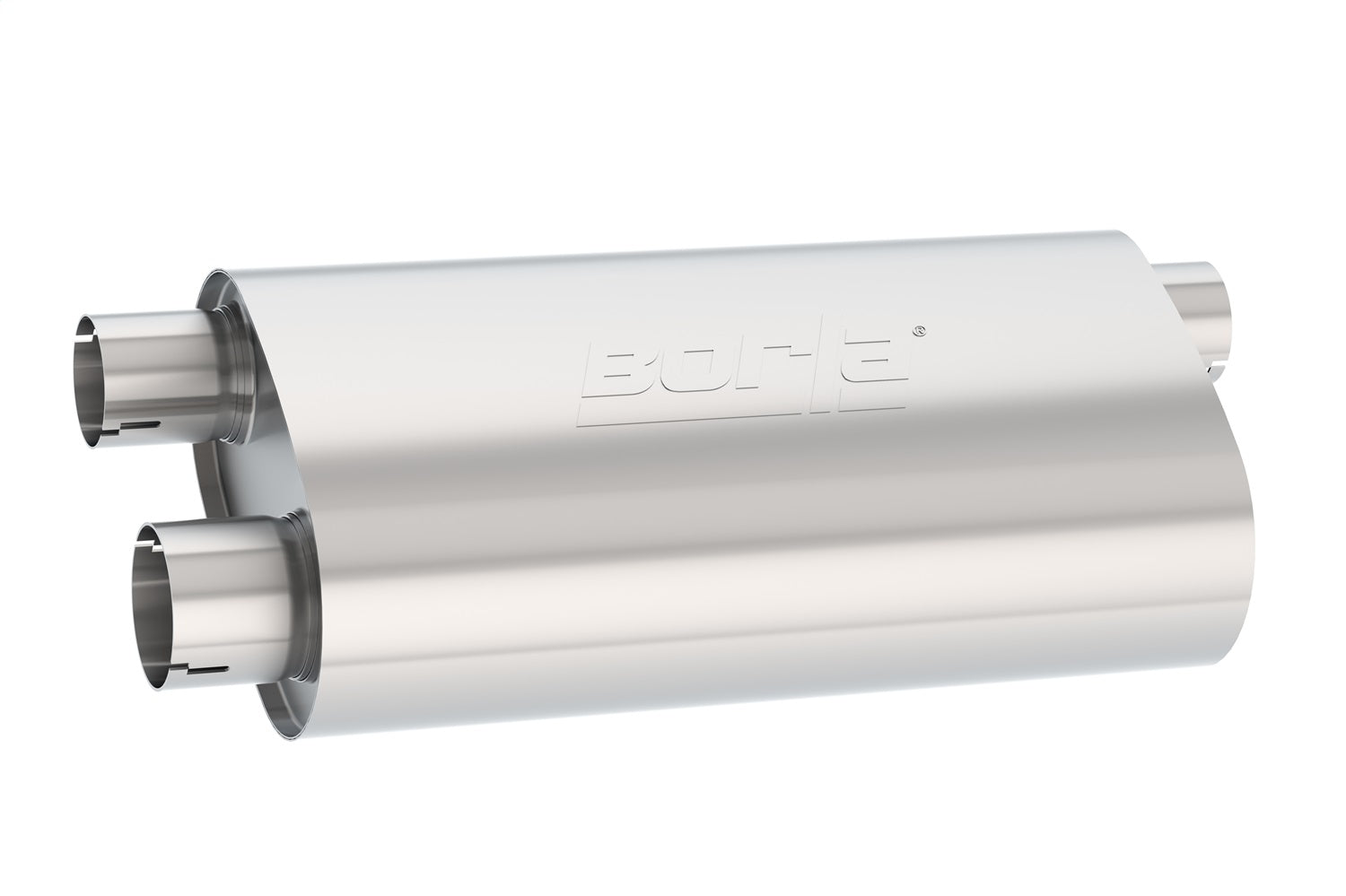

Transverse Flow design. Transverse flow mufflers were originally designed for GM F-Body Camaros and Firebirds. On these vehicles they were mounted behind th rear axle and were parallel to the axle. This muffler can also be used to create custom systems on other vehicles. Single 2.5" Offset Inlet/ Dual 2.5" Offset Outlets. The inlet and one outlet are on one end of the muffler, and the second outlet is on the opposite end. Notched necks for clamp-on installation using 1" wide band style clamps (clamps not included). Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. Best of all, it's made in the USA and backed by BORLA(r)'s Million-Mile warranty. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.
Specifications:
| Description_ASM |
Specialty Muffler - Transverse Flow - 2.5" Offset Inlet/ Dual 2.5" Offset Outlets 6" x 10.25" Oval x 19" Long Body 24" Overall Length. Universal Part. Reversible Design. Notched Necks. |
| Description_DEF |
Exhaust Muffler |
| Description_DES |
Specialty Muffler - Notched Neck |
| Description_MKT |
Transverse Flow design. Transverse flow mufflers were originally designed for GM F-Body Camaros and Firebirds. On these vehicles they were mounted behind th rear axle and were parallel to the axle. This muffler can also be used to create custom systems on other vehicles. Single 2.5" Offset Inlet/ Dual 2.5" Offset Outlets. The inlet and one outlet are on one end of the muffler, and the second outlet is on the opposite end. Notched necks for clamp-on installation using 1" wide band style clamps (clamps not included). Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. Best of all, it's made in the USA and backed by BORLA(r)'s Million-Mile warranty. Just what you'd expect from the world's most experienced (and most winning) exhaust brand. |
| Description_FAB |
Universal muffler. Reversible design. |
| Description_FAB |
Alternate muffler with Un-Notched necks is 40477. If clamping, use band clamps 18325. |
| Description_FAB |
Transverse flow design, originally designed for F-Body Camaro and Firebirds |
| Description_FAB |
Transverse flow design, originally designed for F-Body Camaro and Firebirds |
| Description_EXT |
Specialty Transverse Flow Muffler - 2.5" Offset Inlet/ Dual 2.5" Offset Outlets 6" x 10.25" Oval x 19" Long Body 24" Overall Length. Universal Part. Reversible Design. NOTched Necks. |
| Description_INV |
BORLA(r) Transverse Muffler |
| Description_INV |
BORLA(r) Transverse Muffler |
| Description_SHO |
Transverse Muffler |
| Outlet Outside Diameter |
2.500 in. |
| Construction |
All Welded |
| Outlet Position |
Dual Rear |
| Overall Length |
23.000 in. |
| Prop 65 (C, R or CR) |
CR |
| Body Width |
10.250 in. |
| Prop 65 - Short Label |
Proposition 65 Warning.JPG |
| Prop 65 Yes/No |
Yes |
| Shape |
Oval |
| Body Height |
5.500 in. |
| Body Length |
19.000 in. |
| Inlet Connection Type |
Pipe |
| Inlet Position |
Offset |
| Inlet Type |
Single Offset |
| Muffler Count |
1 |
| Off Road Use Only |
No |
| Outlet Type |
Dual Offset Outlet |
| Tip / Outlet Finish |
N/A |
| Title Extended |
Specialty Muffler Transverse Flow 2.5 in. Single Inlet/ 2.5 in. Dual Outlet 6 in. x 10.25 in. Oval x 19 in. Long Body NotchedNecks Part # 400498 |
| Inlet Outside Diameter |
2.500 in. |
| Main Piping Diameter |
2.500 in. |
| Material |
T-304 Stainless Steel |
| Prop 65 - Long Label |
WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le |
| Title |
Specialty Muffler Transverse Flow 2.5 in. Single Inlet/ 2.5 in. Dual Outlet 6 in. x 10.25 in. Oval x 19 in. Long Body NotchedNecks |
| Grade Type |
Performance |
| Length |
34.0000 |
| Width |
17.0000 |
| Height |
10.0000 |
| Weight |
20.0000 |
