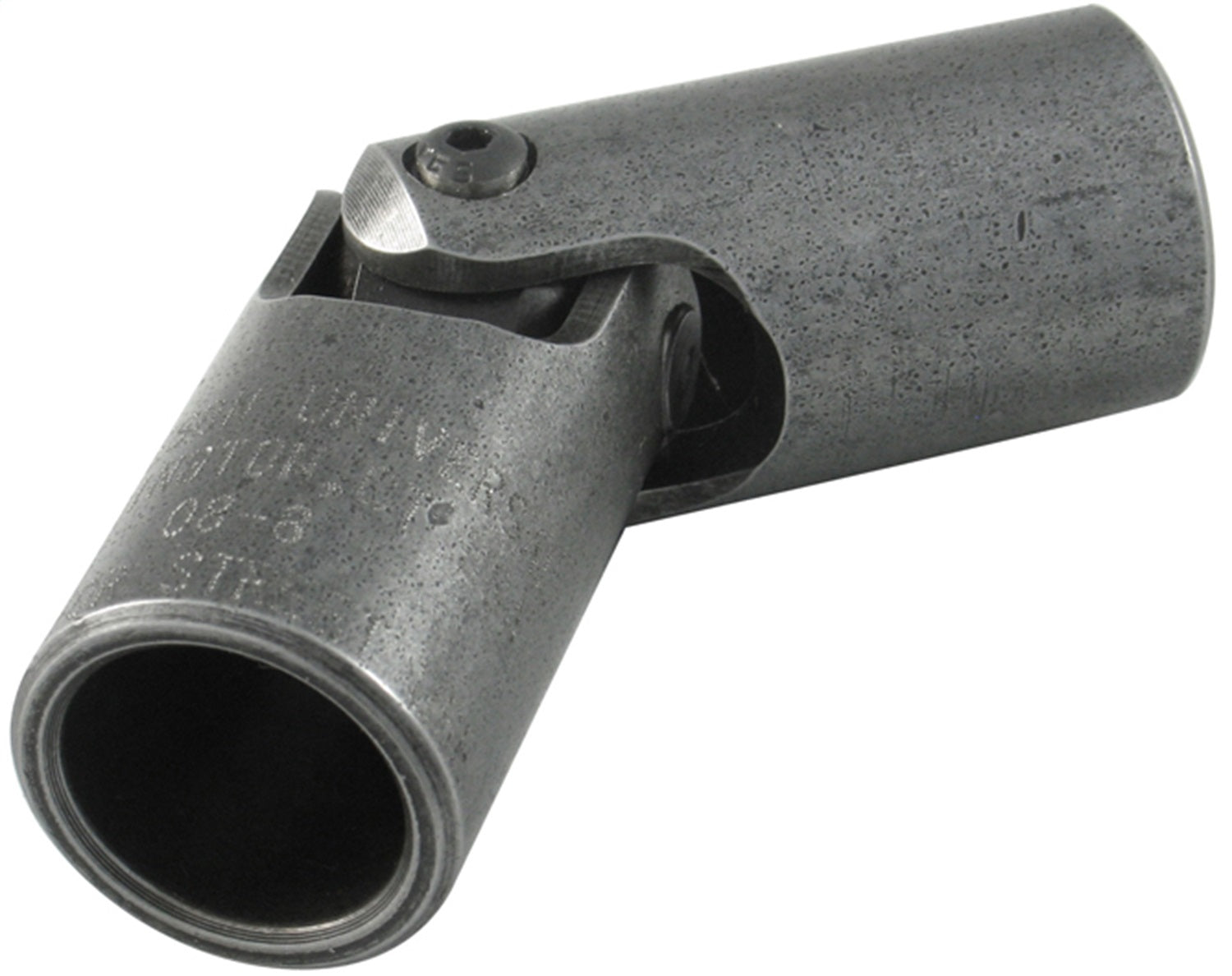

Borgeson pin and block style universal joints are high strength cost effective option. These universal joints are manufactured from high strength billet alloy steel and then heat treated to obtain maximum strength. Because the u-joints use pivot pins and blocks instead of sealed needle bearings, they must be checked and lubricated every time the vehicle is driven. This 1" O.D. joint is ideal for ASCricating shift linkage or use in drag car steering. NOT FOR STREET USE.
Specifications:
Description_ASC |
Steering Universal Joint. |
Description_DEF |
Steering Shaft Universal Joint |
Description_DES |
Steering U-Joint; Pin/Block; 1in.OD; 9/16-26 Spline X 3/4in. Smooth Bore |
Description_MKT |
Borgeson pin and block style universal joints are high strength cost effective option. These universal joints are manufactured from high strength billet alloy steel and then heat treated to obtain maximum strength. Because the u-joints use pivot pins and blocks instead of sealed needle bearings, they must be checked and lubricated every time the vehicle is driven. This 1" O.D. joint is ideal for ASCricating shift linkage or use in drag car steering. NOT FOR STREET USE. |
Description_KEY |
Borgeson U-Joint Universal Steering Joint Billet Racing |
Description_INV |
Borgeson Pin and Block Universal Joint |
Description_FAB |
High strength to weight ratio. Not for street use. Requires lubrication. Made in the USA. |
Description_EXT |

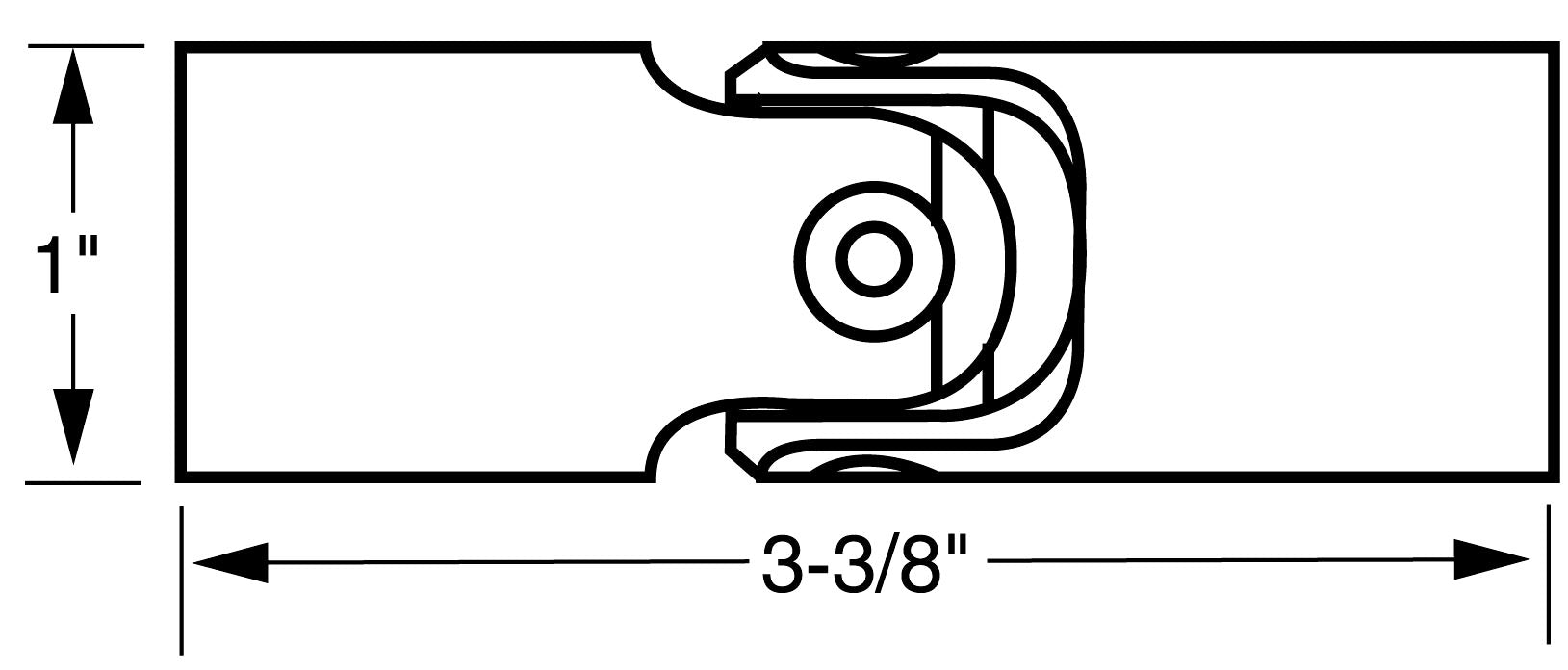

Steel pin/block style universal joint. 1in. Outside diameter. Fits 9/16-26 Spline X 3/4in. Smooth bore. |
Description_SHO |
Steering U-Joint |
Title |
Borgeson - Steering U-Joint - P/N: 510964 - Steel pin & block style universal joint. 1 in. Outside diameter. Fits 9/16-26 Spline X 3/4 in. Smooth bore. |
Shaft End 2 |
3/4 in. without splines |
Shaft End 1 |
9/16 in. 26-spline |
California Proposition 65 |
WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov |
Length |
5.7500 |
Width |
3.7500 |
Height |
1.7500 |
Weight |
0.5100 |
