Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1 4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.
Specifications:
Description_ASC |
Steering Coupler Adapter. |
Description_DEF |
Steering Coupling Assembly |
Description_DES |

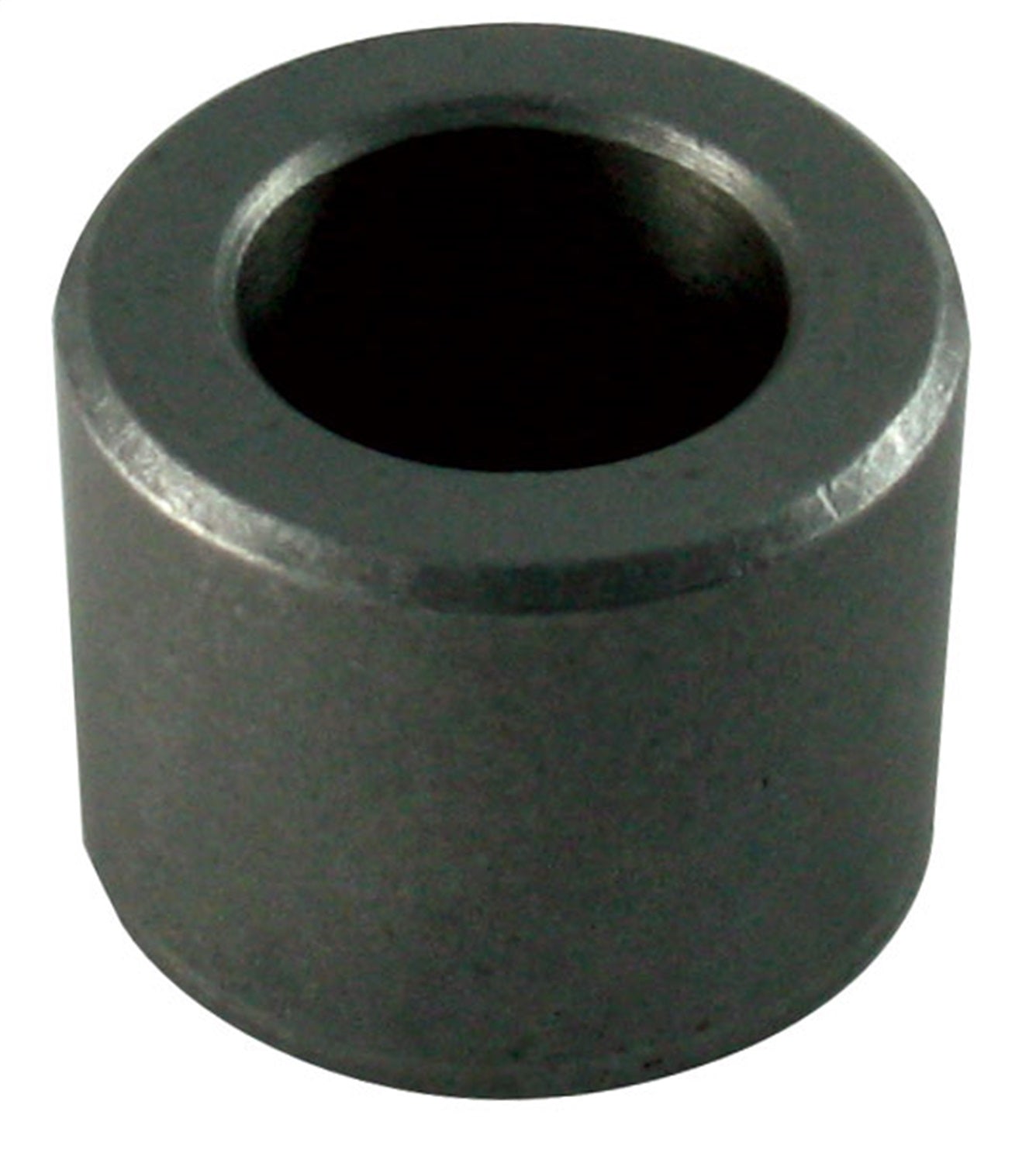

Steering Coupler Adapter; Steel; 1in. OD X 3/4 ID |
Description_INV |
Borgeson Coupler Adapter |
Description_EXT |
Steel steering coupler adapter. 1in. Outside diameter by 3/4in. Inside diameter. |
Description_FAB |
Reduces diameter of couplers to accept 3/4" diameter steering shafts. Safe to weld. Made in the USA. |
Description_KEY |
Borgeson Universal Steering Coupler Adapter |
Description_SHO |
Steering Adapter |
Description_MKT |
Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only. |
California Proposition 65 |
WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov |
Title |
Borgeson - Steering Adapter - P/N: 358000 - Steel steering coupler adapter. 1 in. Outside diameter by 3/4 in. Inside diameter. |
Length |
5.7500 |
Width |
3.7500 |
Height |
1.7500 |
Weight |
0.1200 |
