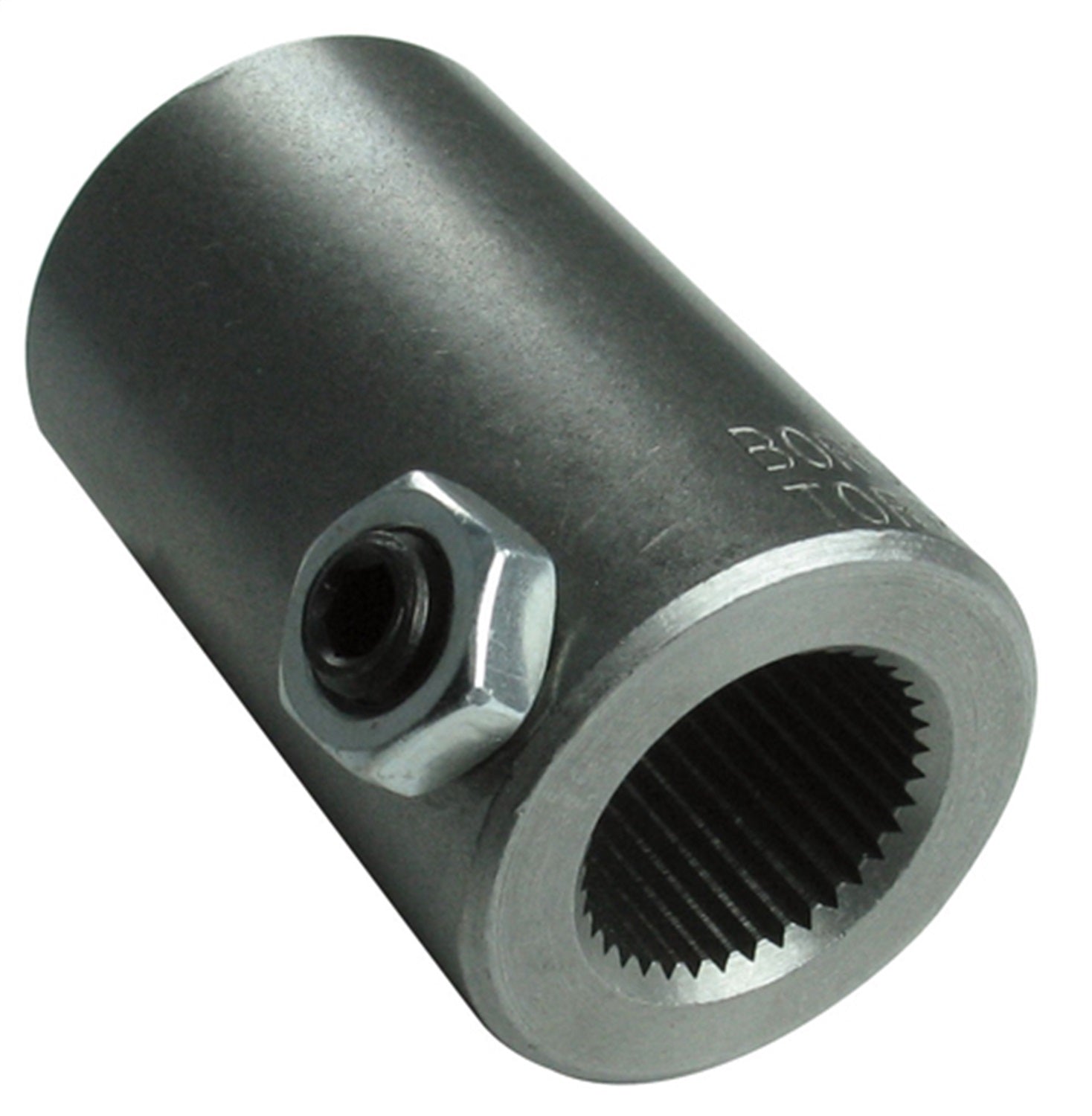

Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1 4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.
Specifications:
| Description_ASC |
Steering Coupler. |
| Description_DEF |
Steering Coupling Assembly |
| Description_DES |
Steering Coupler; Steel; 5/8-36 Chrysler X 3/4 Smooth Bore |
| Description_EXT |
Steel steering coupler. Fits 5/8in.-36 Chrysler spline X 3/4in. Smooth bore. |
| Description_FAB |
Smaller diameter than a universal joint. Rigid steel couplings do not count as a pivot point. Joins two shafts to create an extension. Safe to weld. Precision machined from solid billet steel. Made in the USA. |
| Description_INV |
Borgeson Straight Steel Coupler |
| Description_KEY |
Borgeson Universal Steering Coupler Adapter |
| Description_MKT |
Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only. |
| Description_SHO |
Steering Coupler |
| California Proposition 65 |
WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov |
| Shaft End 1 |
5/8 in. 36-spline Chrysler |
| Shaft End 2 |
3/4 in. without splines |
| Title |
Borgeson - Steering Coupler - P/N: 312100 - Steel steering coupler. Fits 5/8 in.-36 Chrysler spline X 3/4 in. Smooth bore. |
| Length |
5.7500 |
| Width |
3.7500 |
| Height |
1.7500 |
| Weight |
0.2800 |
