Borgeson u-joints are machined in our factory on state of the art CNC equipment from solid billet steel, stainless steel or aluminum. Ongoing engineering and testing ensures our components meet or exceed current automotive production vehicle requirements. Any of our 4 Double D (a round shaft with two flats) sizes, 14 different spline size yokes, and the ΓÇÿ94 and later Mustang V style can be combined to mate components from many different manufacturers. They operate at angles up to 35 degrees. For example, with our components, you could easily connect a GM column to a new Mustang rack and pinion or a Ford column to a Saginaw box. Similar to OEM u-joints, the staked needle bearing caps prevent loosening and adjustment malfunction.
Specifications:
Description_ASC |
Single Steering Universal Joint. |
Description_DEF |
Steering Shaft Universal Joint |
Description_DES |
Steering U-Joint; Polished Stainless; 1in.48 X 3/4DD |
Description_EXT |
Polished stainless steel Single Steering Universal Joint. Fits 1in.-48 Spline X 3/4in. Double-D. |
Description_FAB |

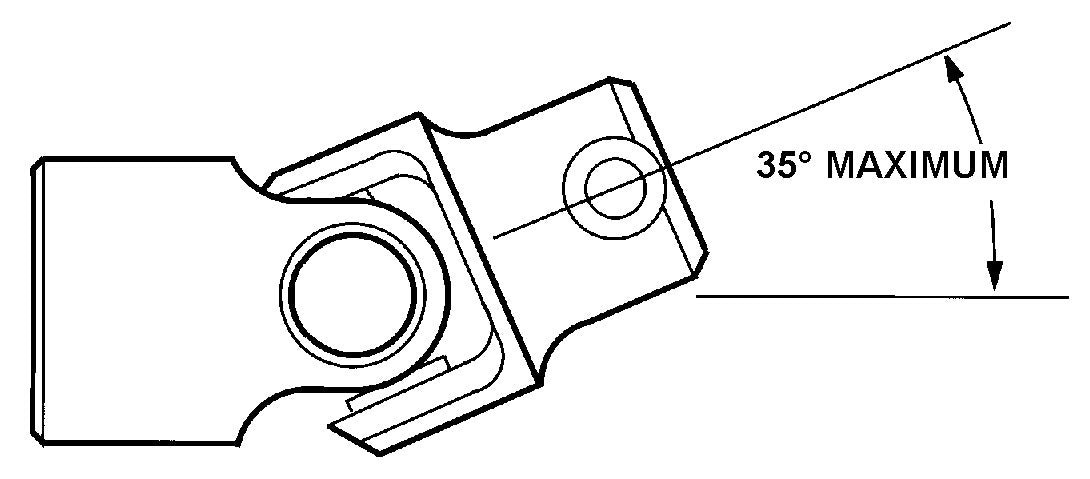

Polished stainless steel. 35 Degree maximum angle. Strongest steering universal joint available. Zero radial play. Machined from solid billet stainless steel. Maintenance free sealed needle bearing design. Made in the USA. |
Description_KEY |
Borgeson U-Joint Universal Steering Joint Billet |
Description_SHO |
Steering U-Joint |
Description_INV |
Borgeson Pol. Stainless Single U-Joint |
Description_MKT |
Borgeson u-joints are machined in our factory on state of the art CNC equipment from solid billet steel, stainless steel or aluminum. Ongoing engineering and testing ensures our components meet or exceed current automotive production vehicle requirements. Any of our 4 Double D (a round shaft with two flats) sizes, 14 different spline size yokes, and the ΓÇÿ94 and later Mustang V style can be combined to mate components from many different manufacturers. They operate at angles up to 35 degrees. For example, with our components, you could easily connect a GM column to a new Mustang rack and pinion or a Ford column to a Saginaw box. Similar to OEM u-joints, the staked needle bearing caps prevent loosening and adjustment malfunction. |
Shaft End 2 |
3/4 in. DD |
Shaft End 1 |
1 in. 48-spline |
California Proposition 65 |
WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov |
Title |
Borgeson - Steering U-Joint - P/N: 124349 - Polished stainless steel single steering universal joint. Fits 1 in.-48 Spline X 3/4 in. Double-D. |

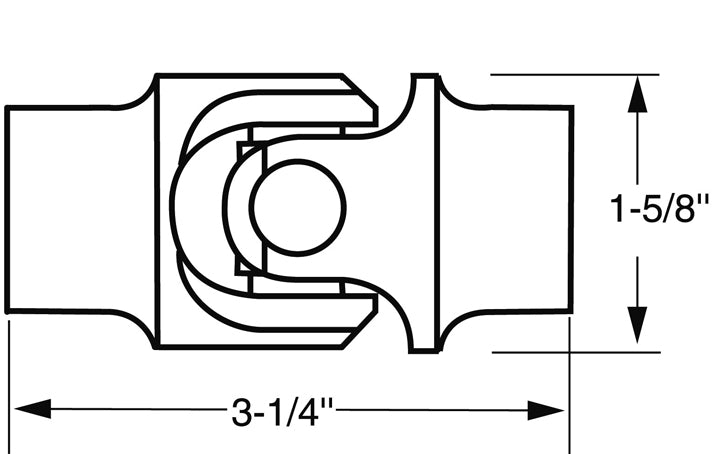

Length |
5.7500 |
Width |
3.7500 |
Height |
1.7500 |
Weight |
1.0000 |
