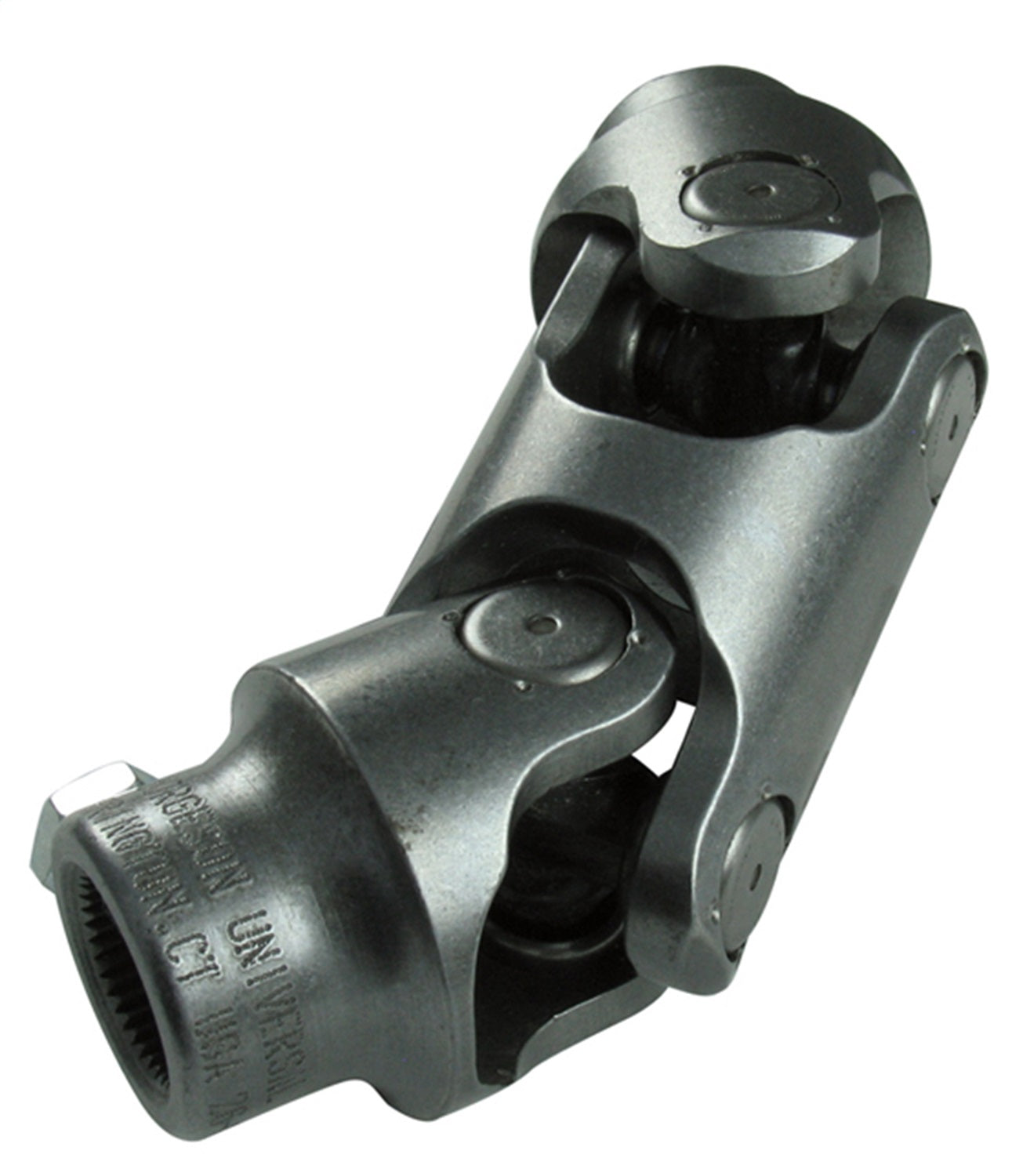

Borgeson double u-joints are machined in our factory on state of the art CNC equipment from solid billet steel, stainless steel or aluminum. Ongoing engineering and testing ensures our components meet or exceed current automotive production vehicle requirements. Any of our 4 Double D (a round shaft with two flats) sizes, 14 different spline size yokes, and the ΓÇÿ94 and later Mustang V style can be combined to mate components from many different manufacturers. They operate at angles up to 70 degrees. For example, with our components, you could easily connect a GM column to a new Mustang rack and pinion or a Ford column to a Saginaw box. Similar to OEM u-joints, the staked needle bearing caps prevent loosening and adjustment malfunction.
Specifications:
| Description_ASC |
Double Steering Universal Joint. |
| Description_DES |
Steering Universal Joint; Double; Steel; 3/4-36 X 3/4-36 |
| Description_DEF |
Steering Shaft Universal Joint |
| Description_INV |
Borgeson Steel Double Universal Joint |
| Description_EXT |
Steel double steering universal joint. Fits 3/4in.-36 Spline X 3/4in.-36 Spline. |
| Description_FAB |
Double universal joint for extreme angles. 70 Degree maximum angle. Strongest steering universal joint available. Zero radial play. Precision machined from solid billet steel. Maintenance free sealed needle bearing design. Made in the USA. |
| Description_MKT |
Borgeson double u-joints are machined in our factory on state of the art CNC equipment from solid billet steel, stainless steel or aluminum. Ongoing engineering and testing ensures our components meet or exceed current automotive production vehicle requirements. Any of our 4 Double D (a round shaft with two flats) sizes, 14 different spline size yokes, and the ΓÇÿ94 and later Mustang V style can be combined to mate components from many different manufacturers. They operate at angles up to 70 degrees. For example, with our components, you could easily connect a GM column to a new Mustang rack and pinion or a Ford column to a Saginaw box. Similar to OEM u-joints, the staked needle bearing caps prevent loosening and adjustment malfunction. |
| Description_SHO |
Steering U-Joint |
| Description_KEY |
Borgeson U-Joint Universal Steering Joint Billet Double |
| Shaft End 2 |
3/4 in. 36-spline |
| California Proposition 65 |
WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov |
| Shaft End 1 |
3/4 in. 36-spline |
| Title |
Borgeson - Steering U-Joint - P/N: 023434 - Steel double steering universal joint. Fits 3/4 in.-36 Spline X 3/4 in.-36 Spline. |
| Length |
8.0000 |
| Width |
4.7500 |
| Height |
1.7500 |
| Weight |
1.4000 |
