Bilstein A510132510 CA5 Series - Suspension Shock Absorber

2 sold in last 8 days
Bilstein
ds_BBGL_A510132510
Out of stock
Suspension Shock Absorber
$498.73
customers are viewing this product
Bilstein A510132510 CA5 Series - Suspension Shock Absorber
Details

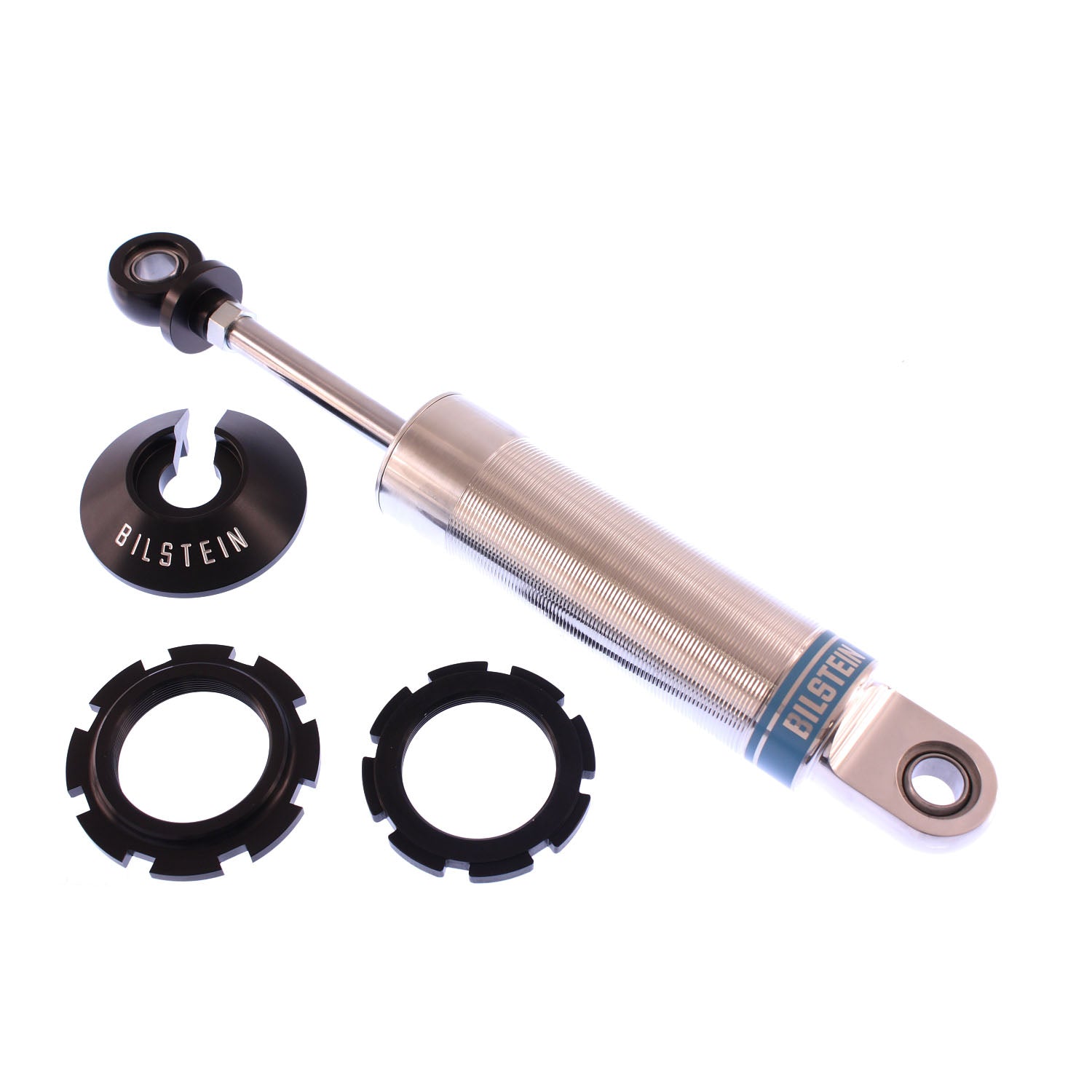

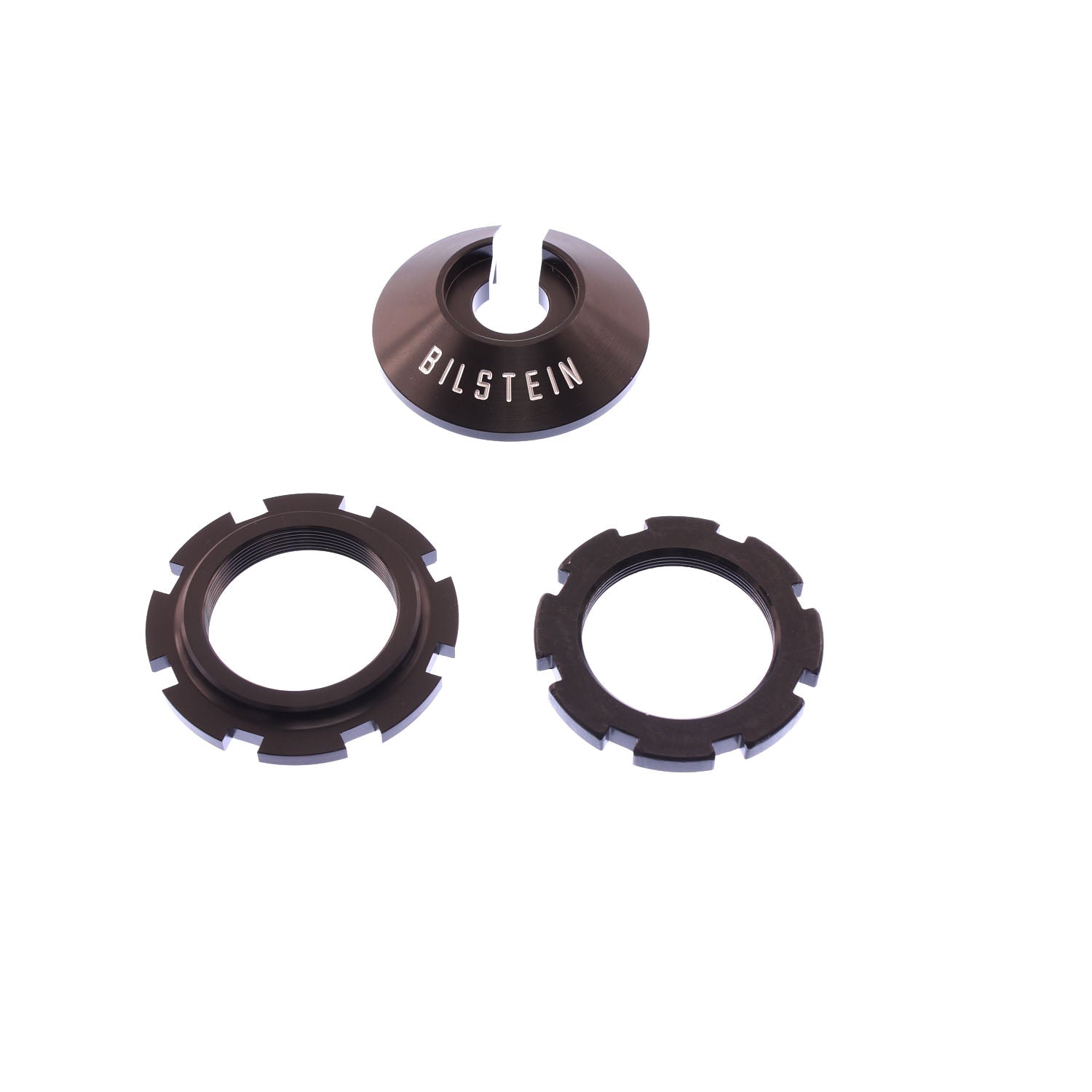

Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.

Specifications:

Description_ASM No Applications
Description_DES CA5 Series - Suspension Shock Absorber
Description_DEF Suspension Shock Absorber
Description_MKT Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.
Description_LAB CA5 Series - Suspension Shock Absorber
Description_EXT 46mm Monotube Shock Absorber
Description_INV 13" ALU 2.5" COILOVER R 240/50 - HEIM
Description_SHO Shock
Rebound @0.52m/s 2400
Boot Included No
Collapsed Length (MM) 258.5
Finish Polished Aluminum
Spring Seat Included Yes
Title Bilstein Shock Absorbers
California Proposition 65 WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Position Rear
Upper Mount Type 15.9mm Heim
Series CA5 Series
Extended Length (IN) 13.66
Lower Mount Type 15.9mm Heim
Extended Length (MM) 347.0
Collapsed Length (IN) 10.18
Compression @0.52m/s 500
Internal Design Monotube
Recommended Mounting Length (IN) 11.50
Length 3.0000
Width 5.0000
Height 20.0000
Weight 5.0000
