Bilstein A509122030 CA5 Series - Suspension Shock Absorber

2 sold in last 8 days
Bilstein
ds_BBGL_A509122030
Out of stock
Suspension Shock Absorber
$498.73
customers are viewing this product
Bilstein A509122030 CA5 Series - Suspension Shock Absorber
Details

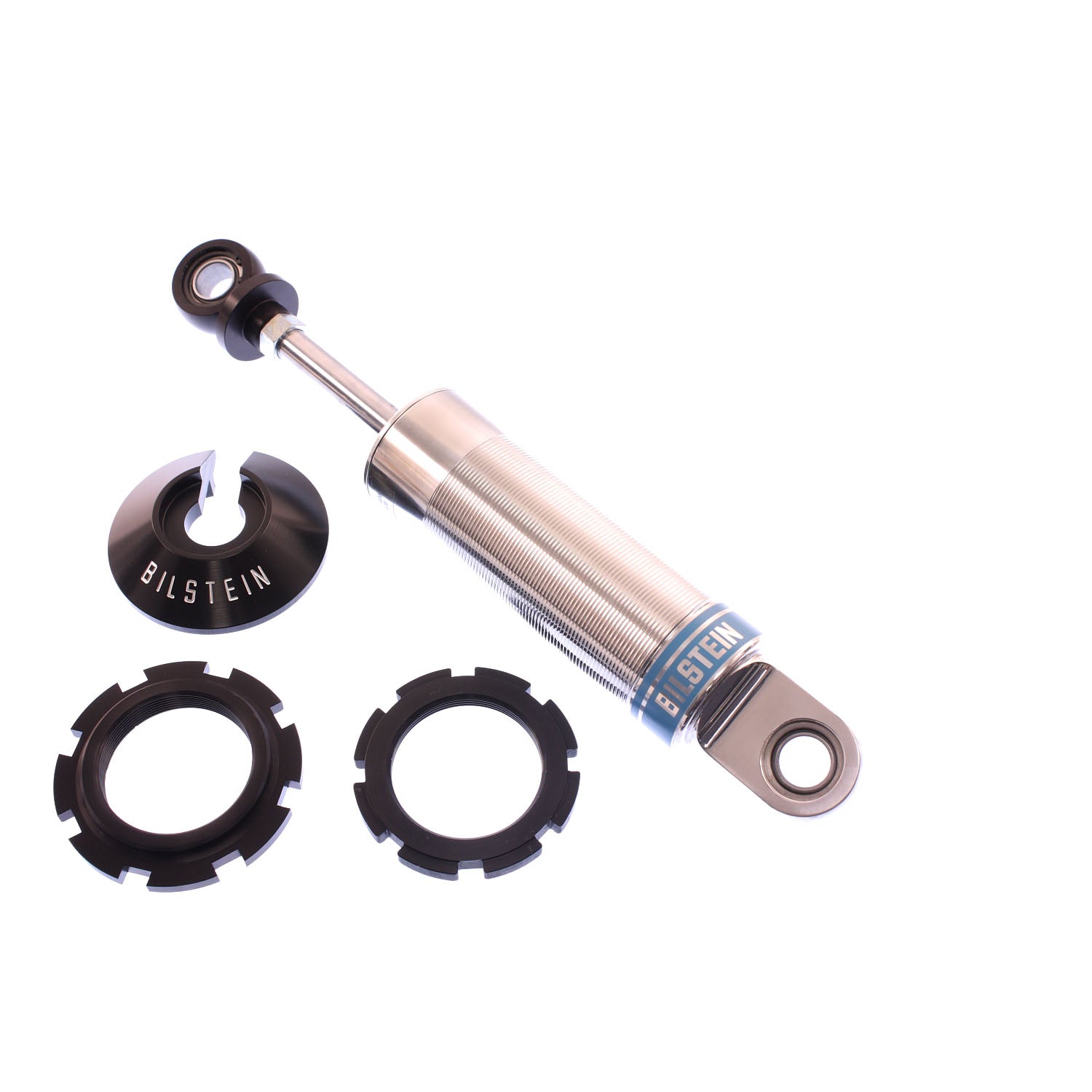

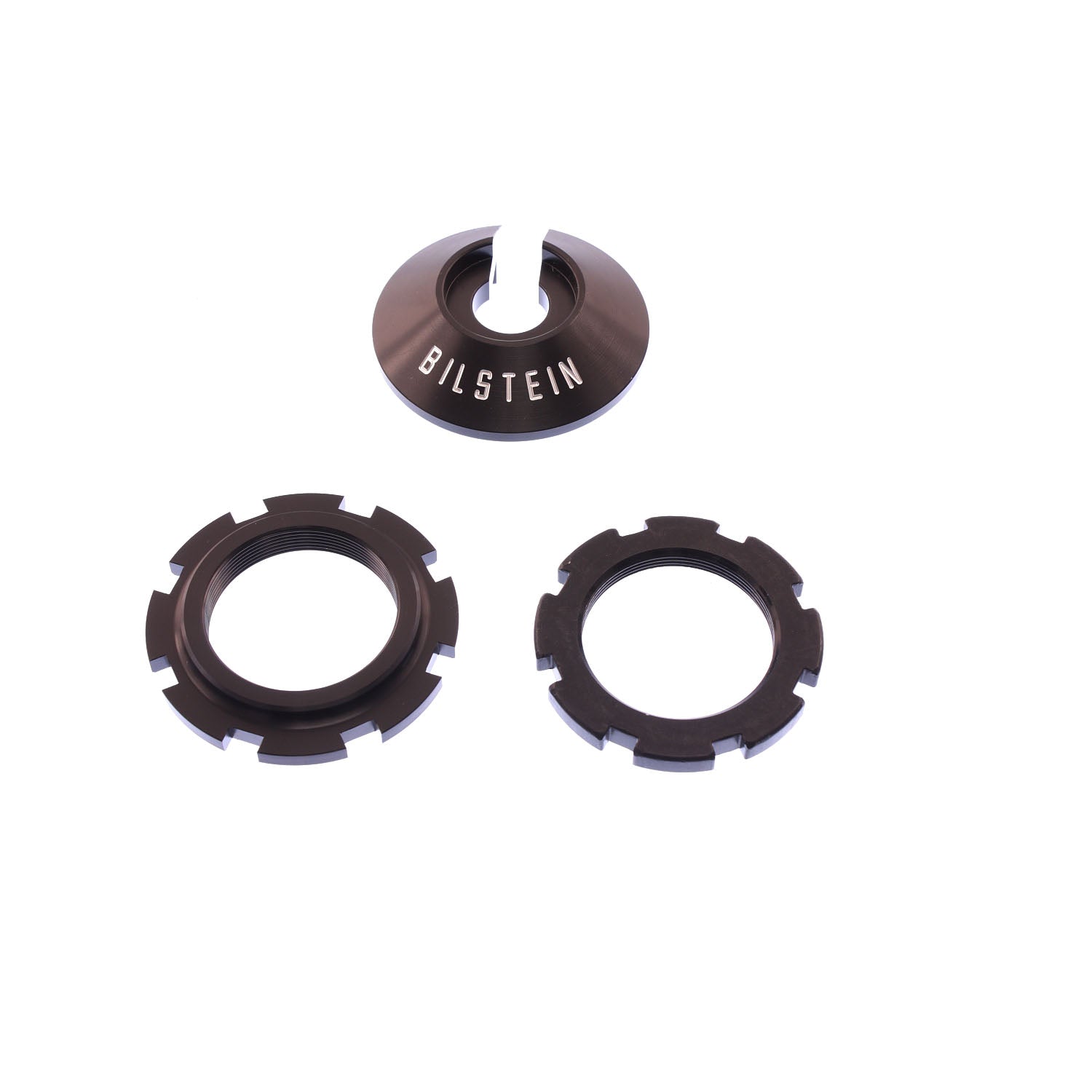

Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.

Specifications:

Description_ASM No Applications
Description_DEF Suspension Shock Absorber
Description_DES CA5 Series - Suspension Shock Absorber
Description_EXT 46mm Monotube Shock Absorber
Description_INV 12" ALU 2.5" COILOVER F 175/64 - HEIM
Description_LAB CA5 Series - Suspension Shock Absorber
Description_MKT Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.
Description_SHO Shock
Extended Length (IN) 11.95
Upper Mount Type 15.9mm Heim
Title Bilstein Shock Absorbers
Collapsed Length (MM) 235.0
Series CA5 Series
Lower Mount Type 15.9mm Heim
California Proposition 65 WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @0.52m/s 640
Rebound @0.52m/s 1750
Extended Length (MM) 303.5
Collapsed Length (IN) 9.25
Position Front
Spring Seat Included Yes
Boot Included No
Recommended Mounting Length (IN) 10.50
Internal Design Monotube
Finish Polished Aluminum
Length 3.0000
Width 5.0000
Height 20.0000
Weight 5.0000
