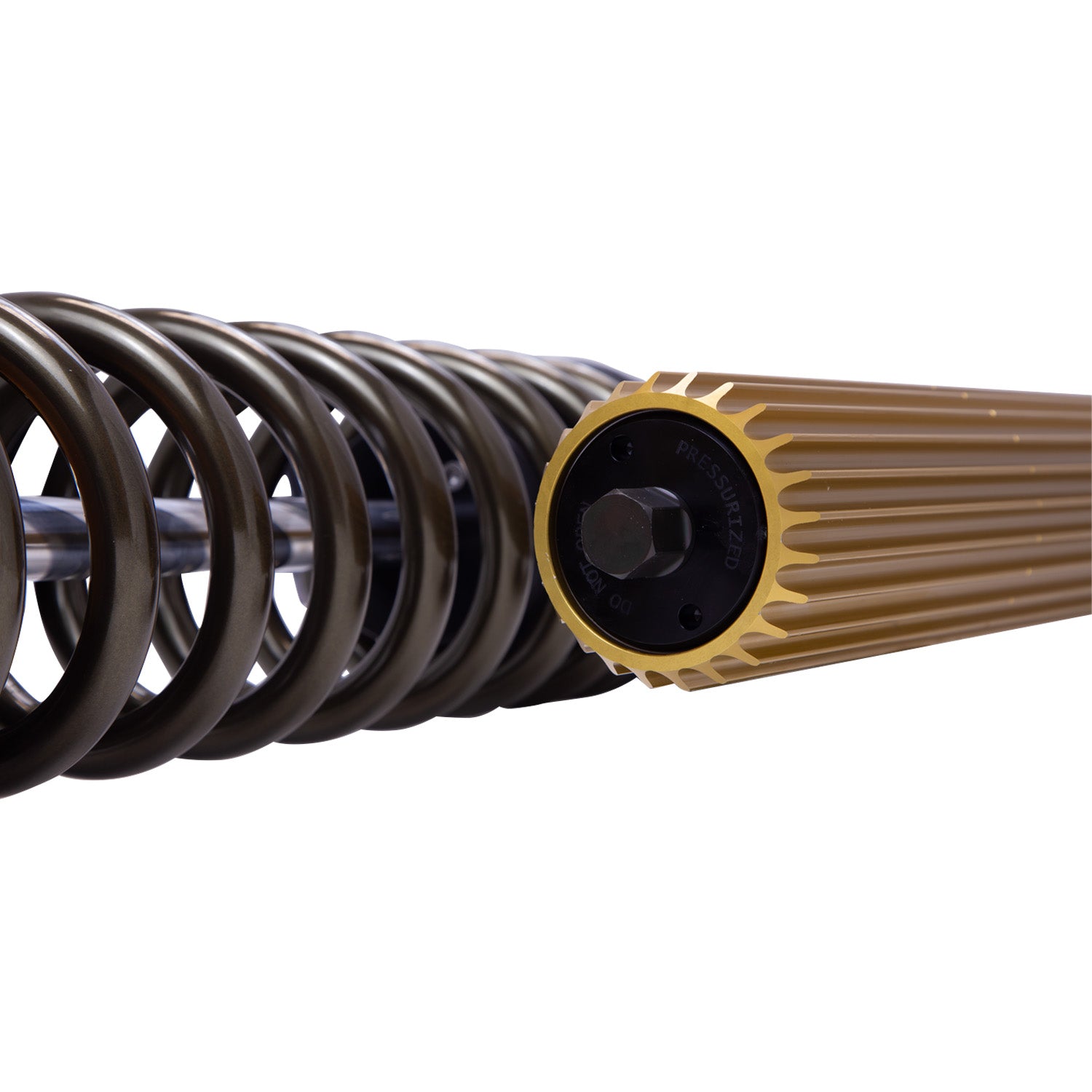

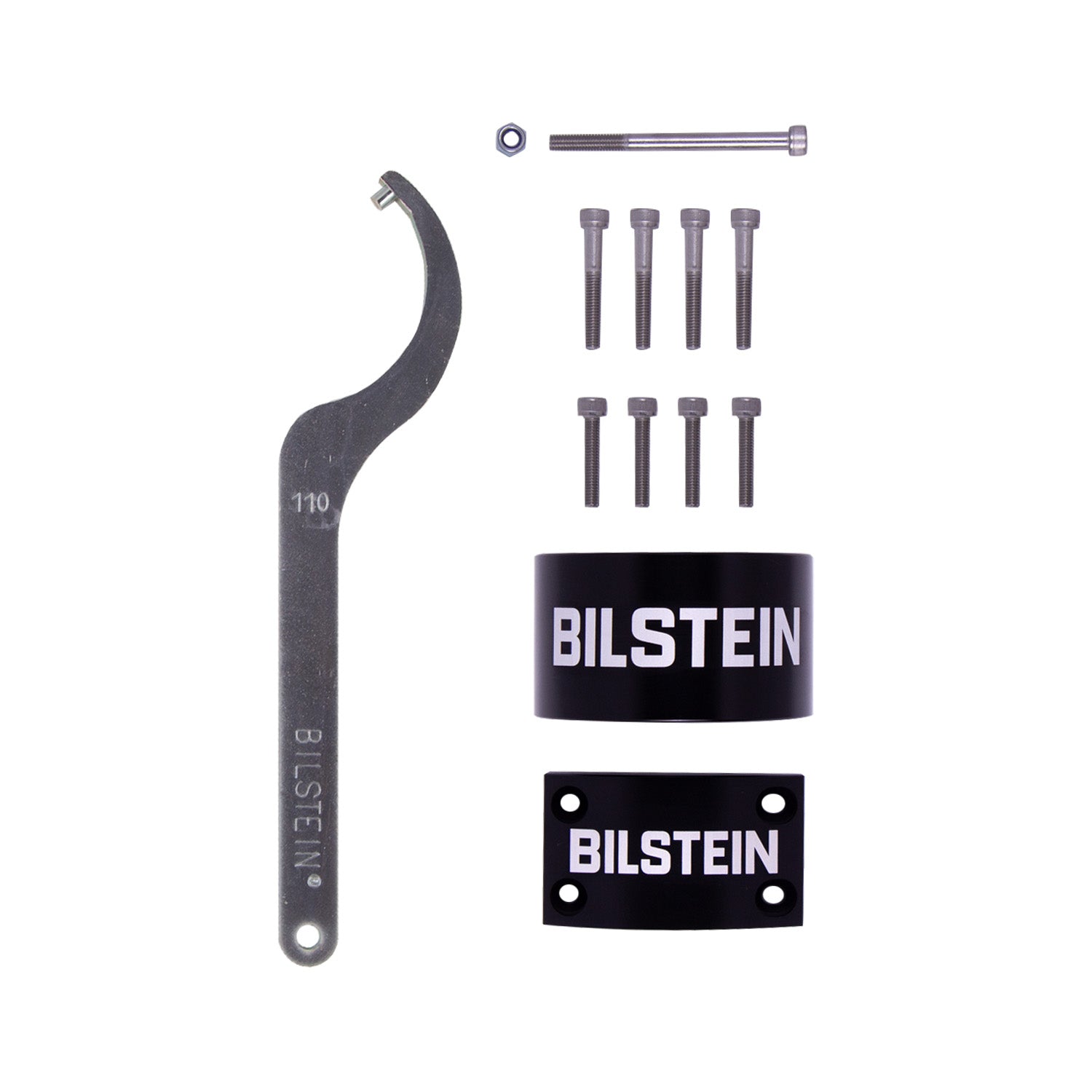

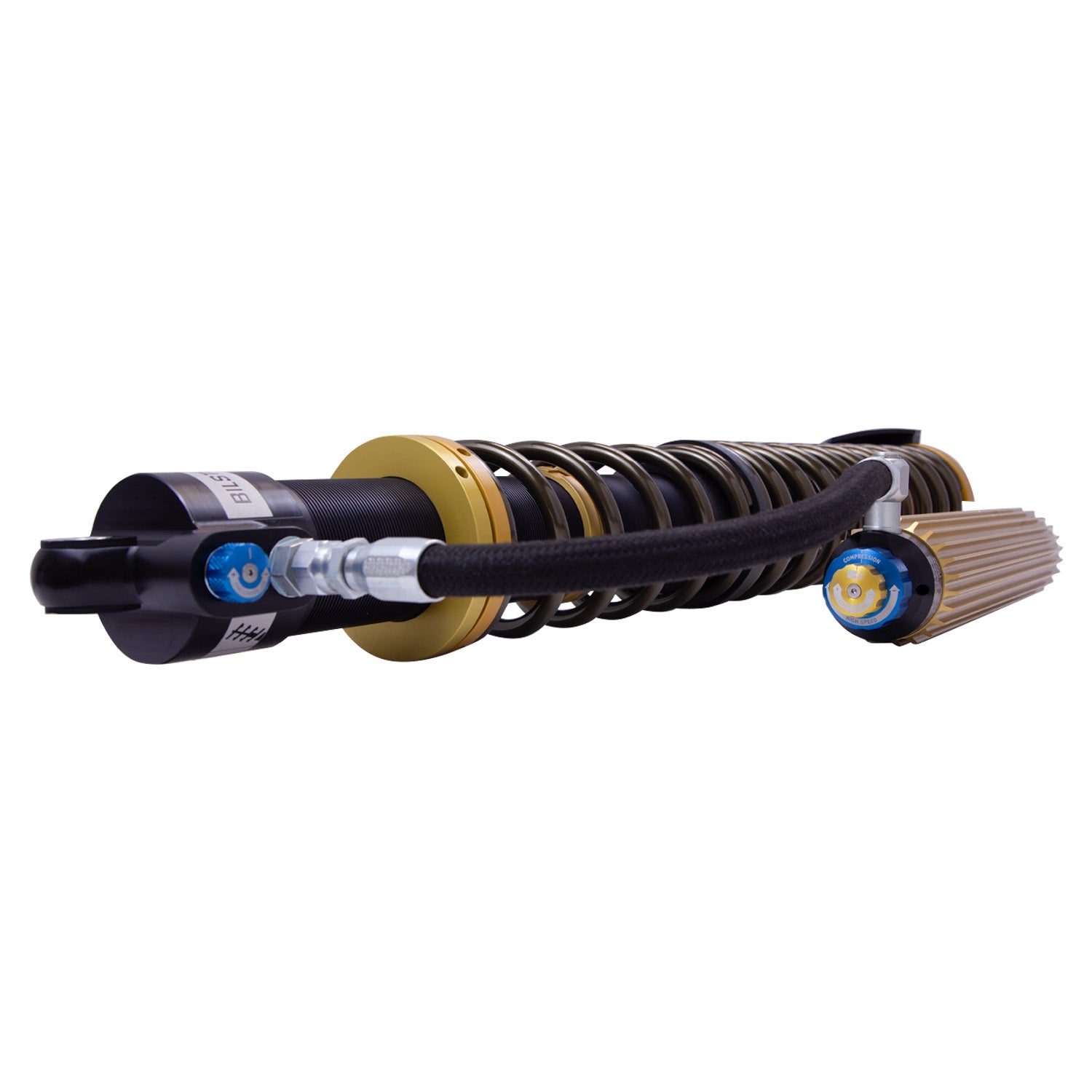

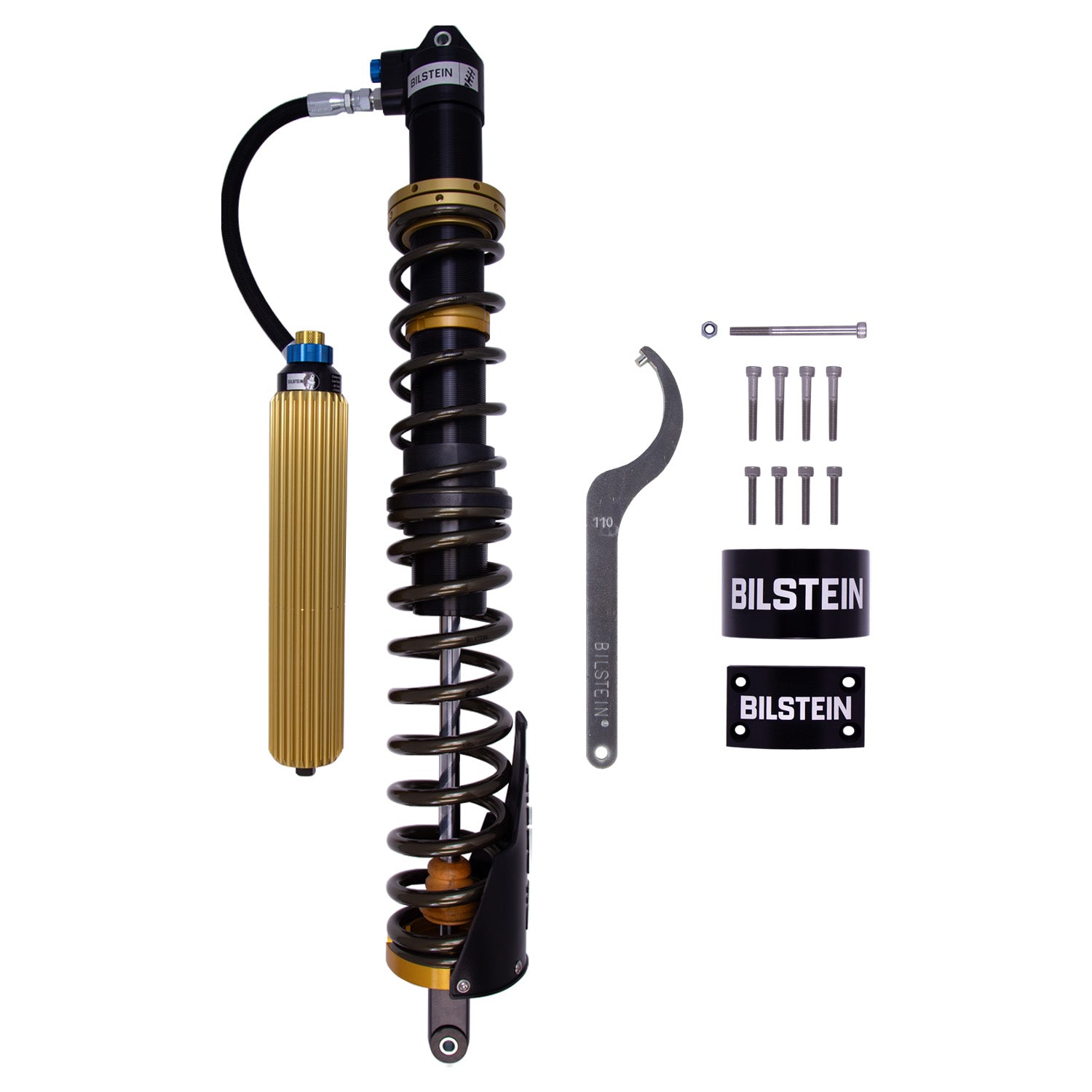

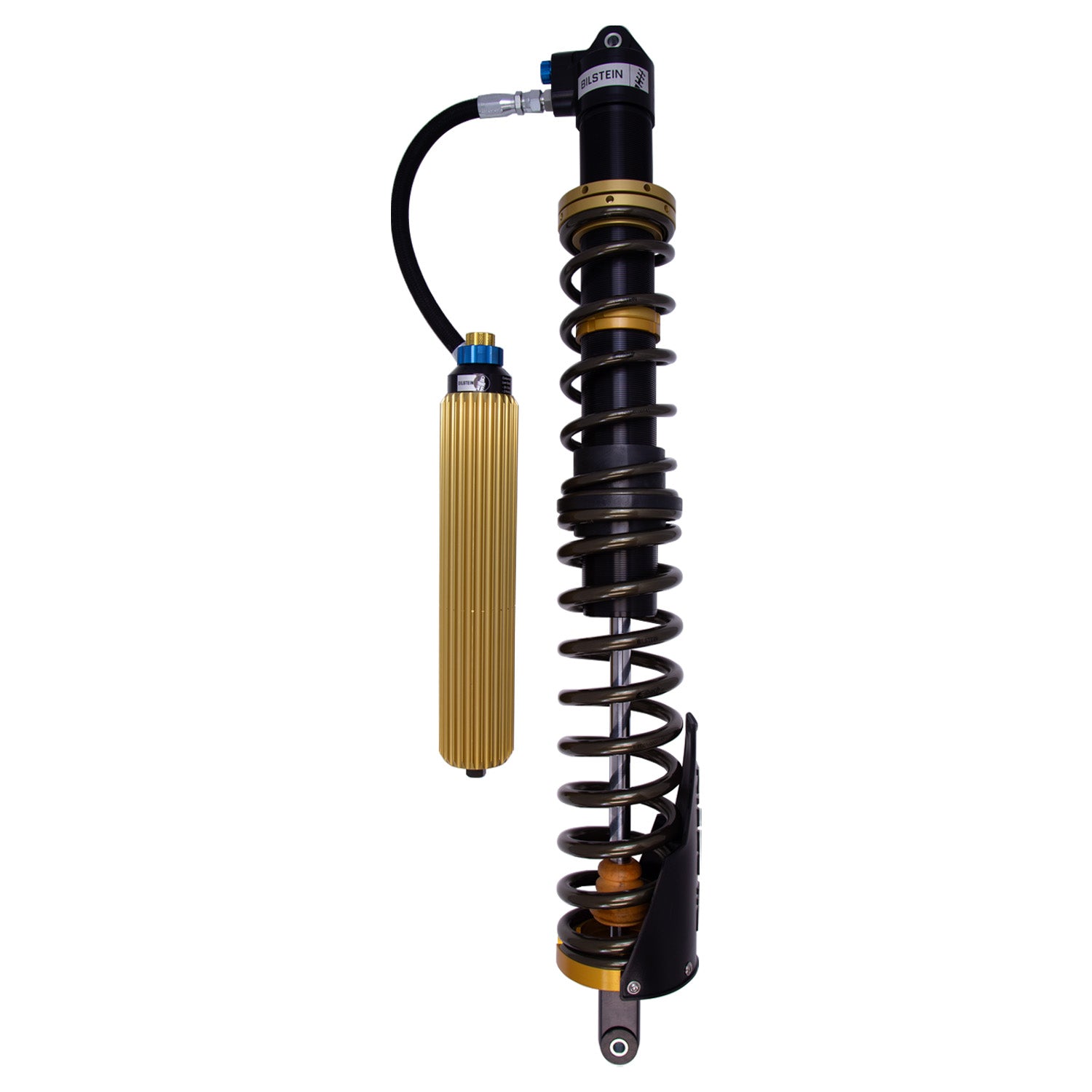

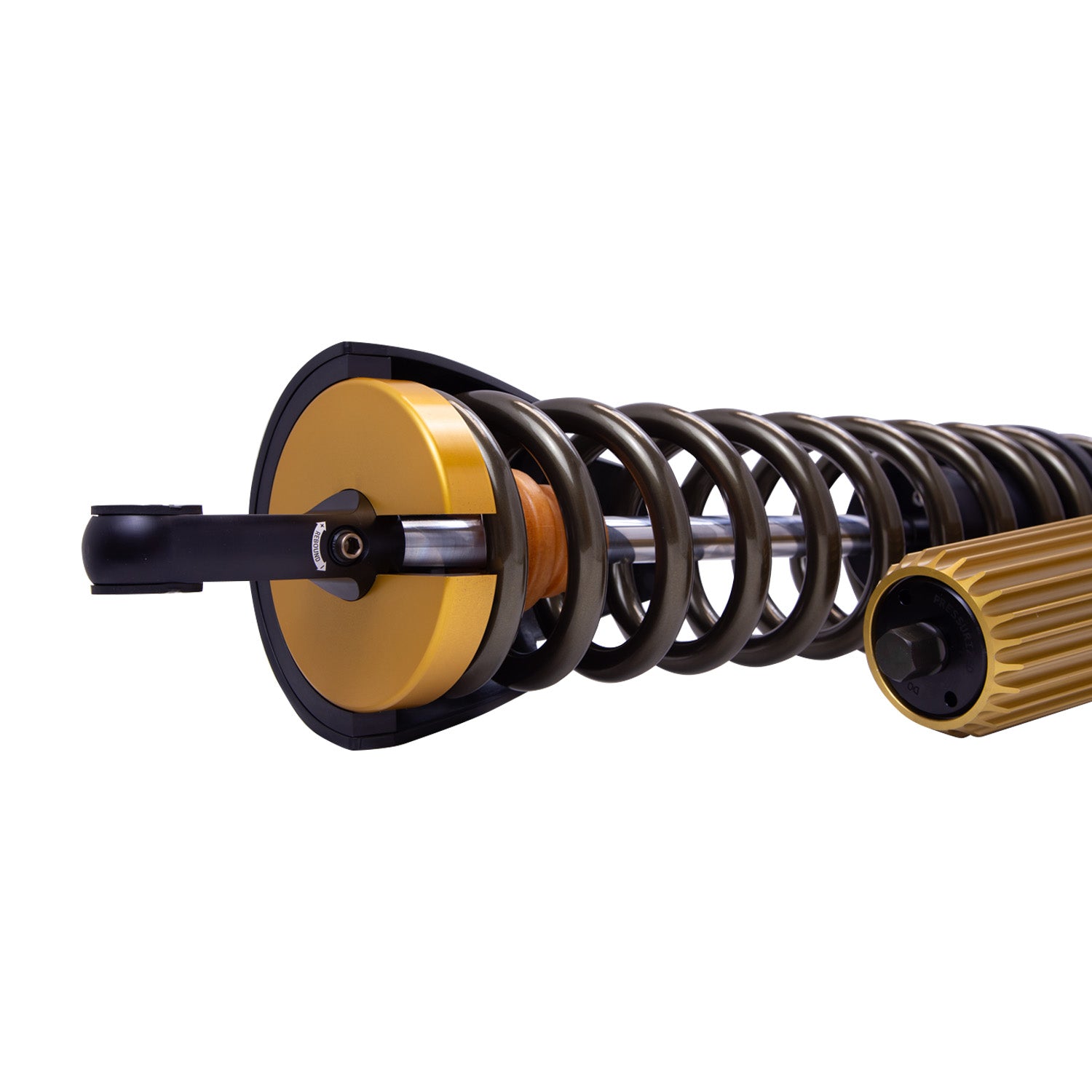

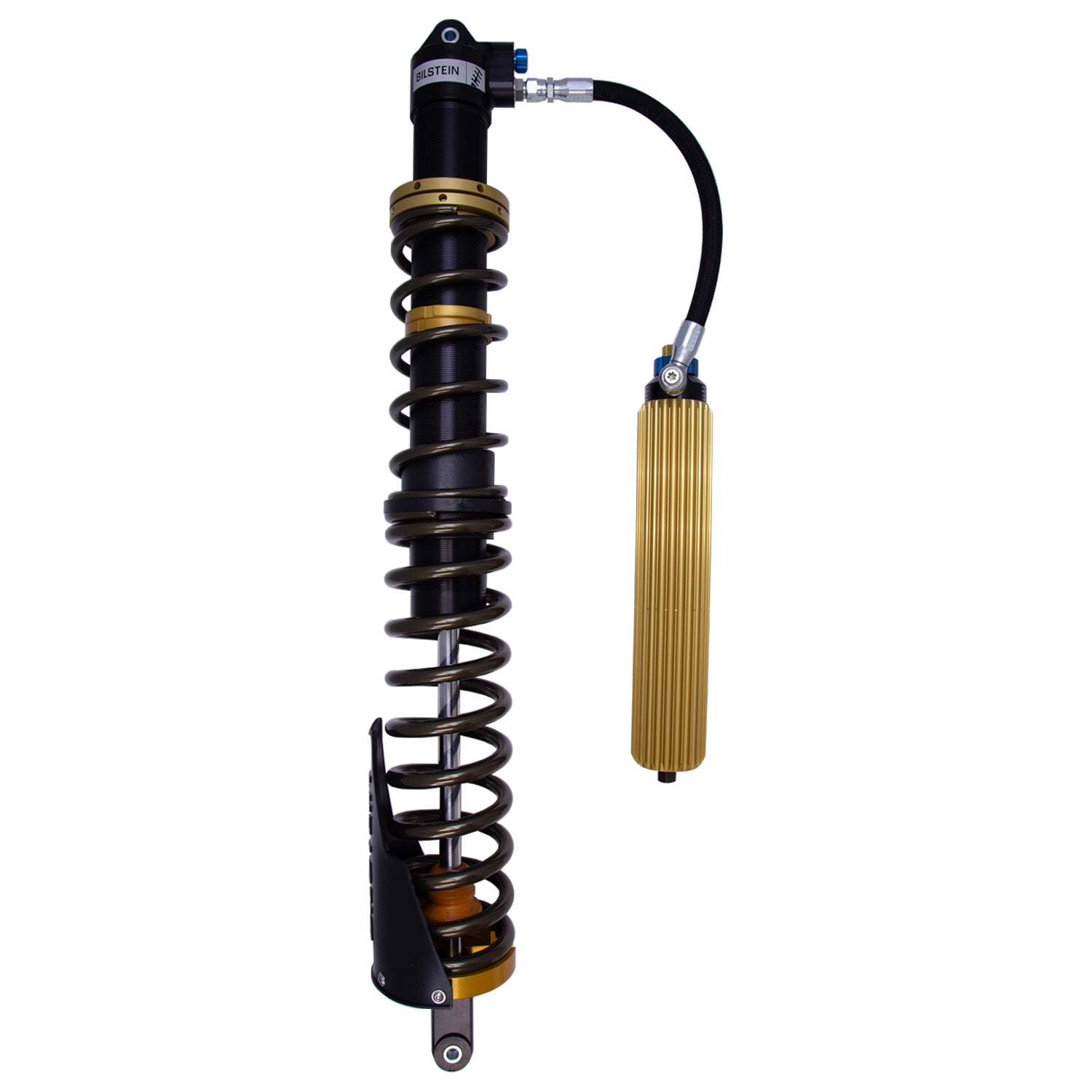

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein's patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to be race ready right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique ΓÇ£bottomless" ride with Bilstein's new Black Hawk Powersports coilover packages.
Specifications:
| Description_ASM |
Can-Am Maverick X3 Max RS Turbo R 2020-2021
Can-Am Maverick X3 Max RS Turbo RR 2022-2023
Can-Am Maverick X3 Max Turbo 2018-2020
Can-Am Maverick X3 Max Turbo R 2017-2019
Can-Am Maverick X3 Max X mr Turbo RR 2020-2023
Can-Am Maverick X3 Max X rs Turbo R 2017-2019
Can-Am Maverick X3 Max X rs Turbo RR 2020-2023
Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox 2021-2023
|
| Description_DEF |
Suspension Shock Absorber and Coil Spring Assembly |
| Description_EXT |
70mm Rear Right Corner Module |
| Description_INV |
Can-Am X3 X RS; 4DR; RR; M9300; Module |
| Description_DES |
Black Hawk Powersports - Rear Right Corner Module |
| Description_LAB |
Black Hawk Powersports - Rear Right Corner Module |
| Description_SHO |
Rear Corner Module |
| Description_MKT |
Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein's patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to be race ready right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique ΓÇ£bottomless" ride with Bilstein's new Black Hawk Powersports coilover packages. |
| Boot Included |
No |
| Body Design |
Threaded Body |
| Body Material |
Aluminum alloy |
| Billet Reservoir Clamp Included |
Yes |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
27.98 |
| Adjustable Damping |

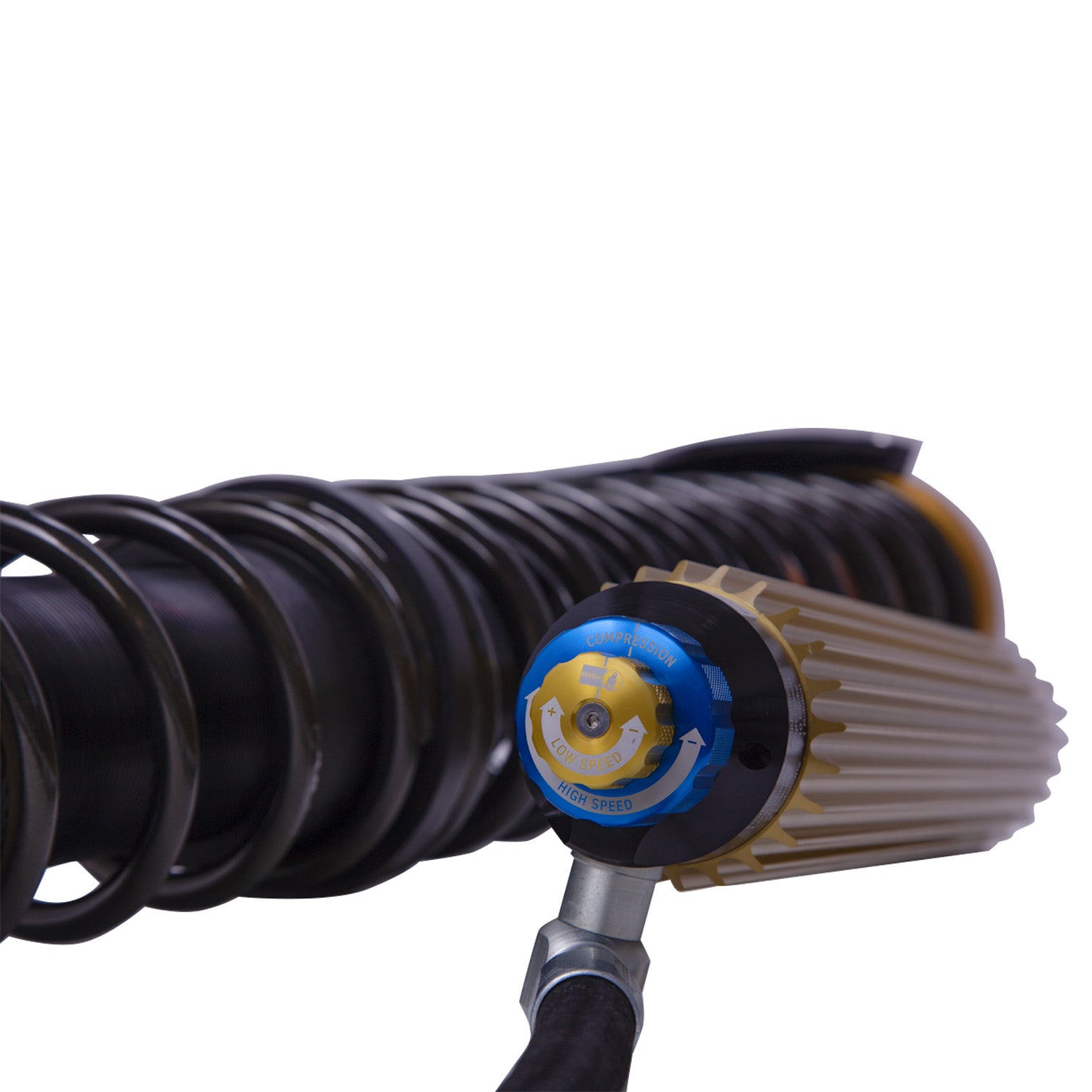

4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump) |
| Collapsed Length (MM) |
710.8 |
| Model |
Maverick X3 |
| Compression @0.52m/s |
Adjustable |
| Extended Length (MM) |
1056.8 |
| Make |
Can-Am |
| Internal Design |
Monotube |
| Lower Mount Type |
Eye 12mm (ID) |
| Finish |
Type III Hard Anodized |
| Extended Length (IN) |
41.61 |
| Series |
Black Hawk Powersports |
| Title |
Bilstein Shock Absorbers |
| Position |
Rear Right |
| Reservoir |
Yes |
| Rebound @0.52m/s |
Adjustable |
| Upper Mount Type |
Eye 12mm (ID) |
| Length |
9.0000 |
| Width |
16.0000 |
| Height |
51.0000 |
| Weight |
46.0000 |
