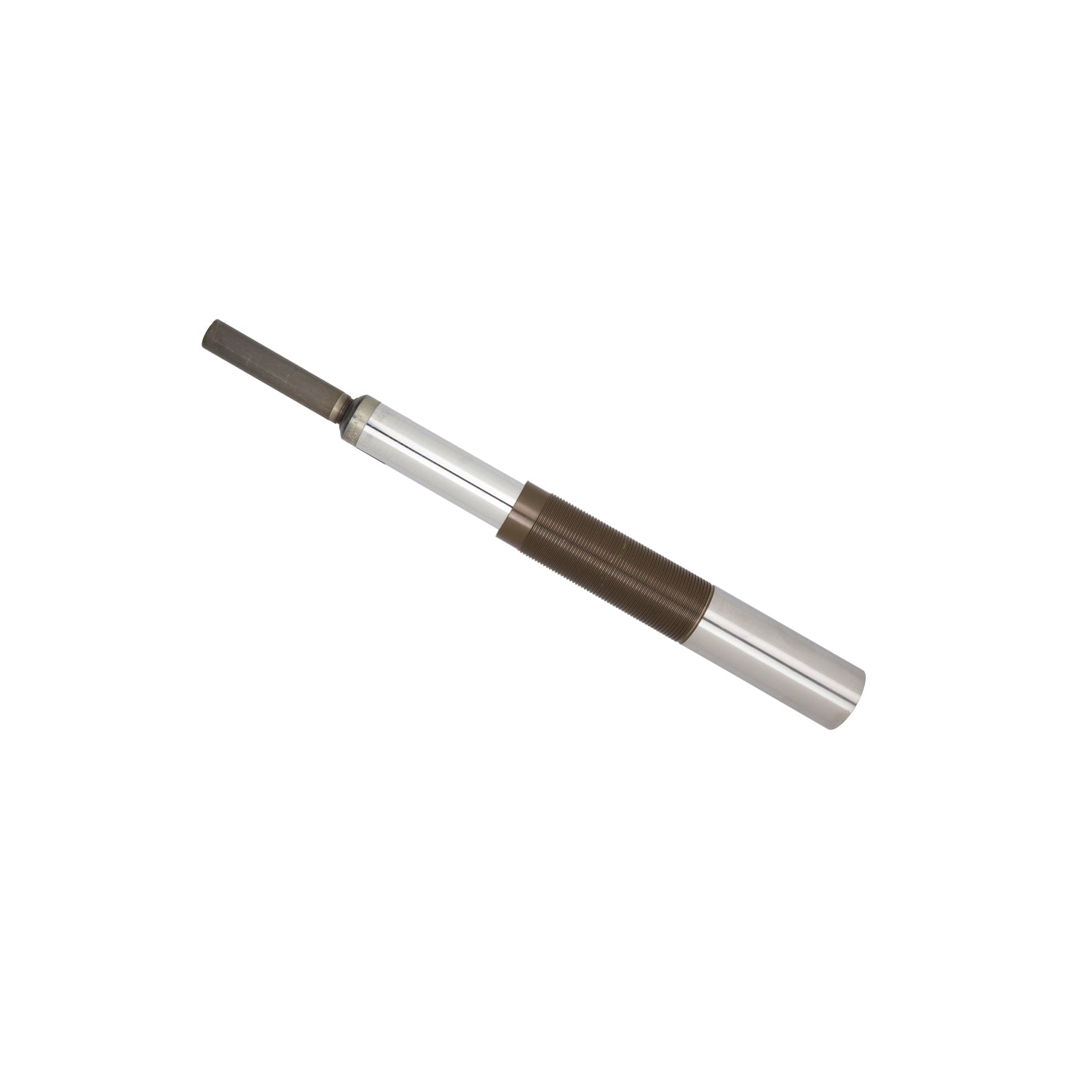

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Strut Assembly |
| Description_DES |
Universal Motorsports Strut - Suspension Strut Assembly |
| Description_LAB |
Universal Motorsports Strut - Suspension Strut Assembly |
| Description_INV |
Universal 36mm Strut, 5.6" trvl, 180/100 |
| Description_EXT |
36mm Monotube Strut Assembly |
| Description_SHO |
Strut |
| Description_MKT |
Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide. |
| Internal Design |
Monotube |
| Extended Length (MM) |
429.4 |
| Compression @0.52m/s |
960 |
| Lower Mount Type |
Housing |
| Body Diameter (ID) |
36mm |
| Adjustable Damping |
Non-Adjustable |
| Collapsed Length (MM) |
287.6 |
| Collapsed Length (IN) |
11.32 |
| Body Design |
Threaded Body (Coilover) |
| Rebound @0.52m/s |
1735 |
| Upper Mount Type |
Stem |
| Extended Length (IN) |
16.91 |
| Title |
Bilstein Shock Absorbers |
| Boot Included |
No |
| Spring Seat Included |
No |
| Finish |
Olive-Drab Zinc |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Valving Identifier |
180/100 |
| Series |
Universal Motorsports Strut |
| Body Material |
Steel |
| Piston Type |
Digressive |
| Length |
4.0000 |
| Width |
4.0000 |
| Height |
27.0000 |
| Weight |
7.0000 |
